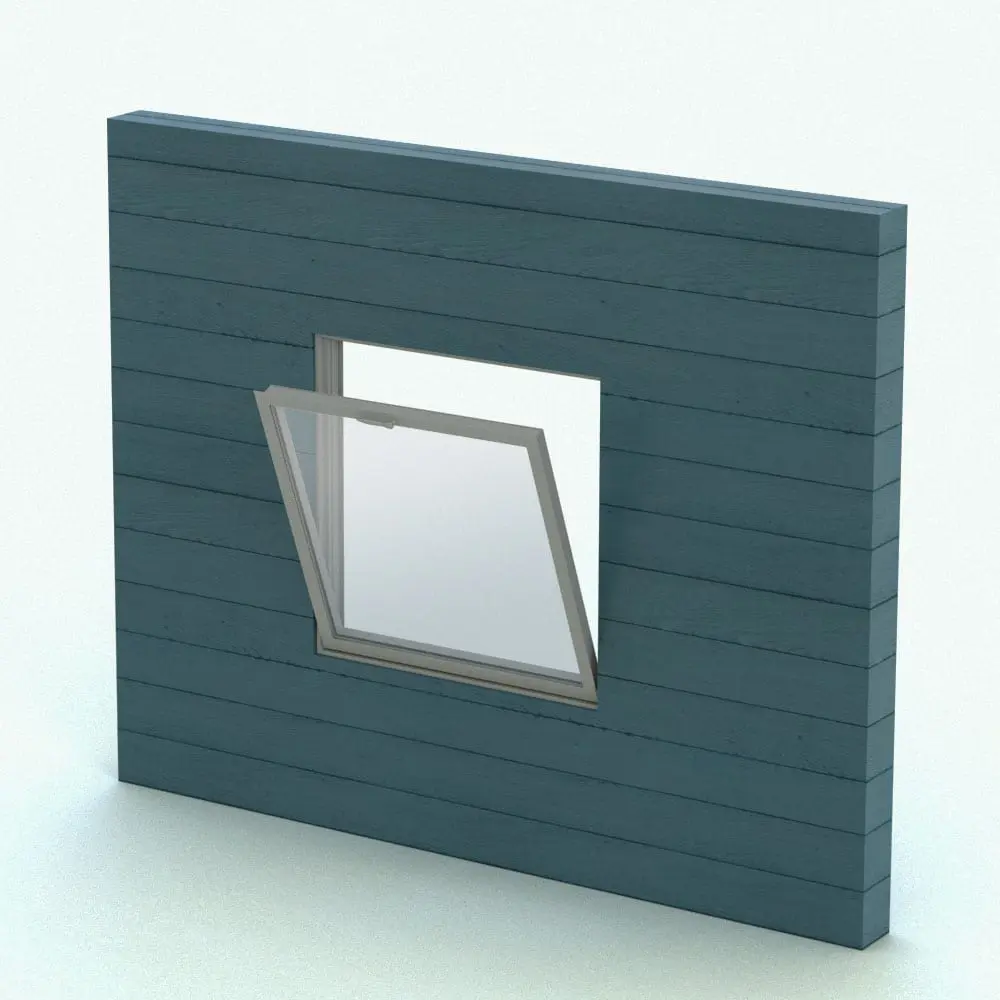

Hopper Revit Window Family shown embedded in a teal colored wooden wall and rendered in a gray colored metallic frame finish. This Revit family is fully parametric, easy to use and ready to render. Plus, it is part of our FREE Revit families category, so don't wait any longer and download this Revit window family today. No credit card required.

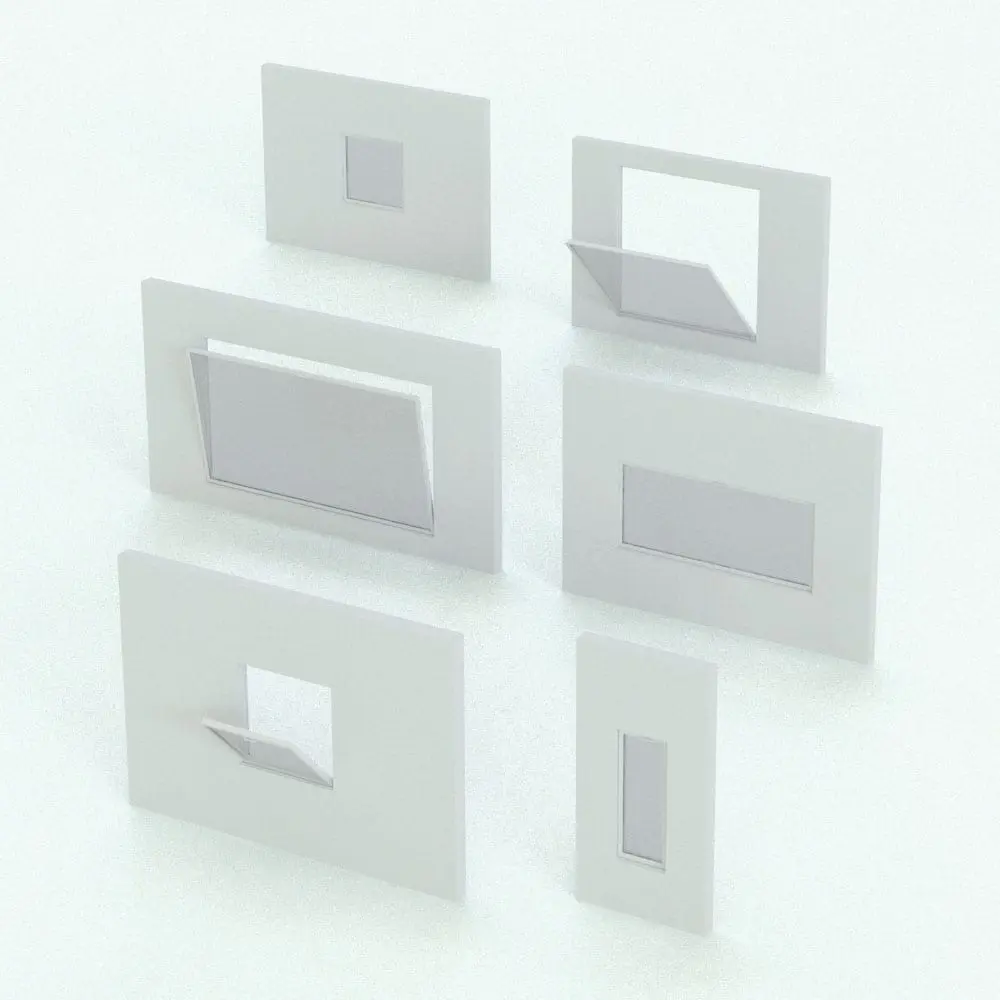

Hopper Revit Window Family shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change not only the overall dimensions, but also the materials, the opening percentage and even the position within the wall for full customization. Download this Revit window family today and start using it in all your projects.

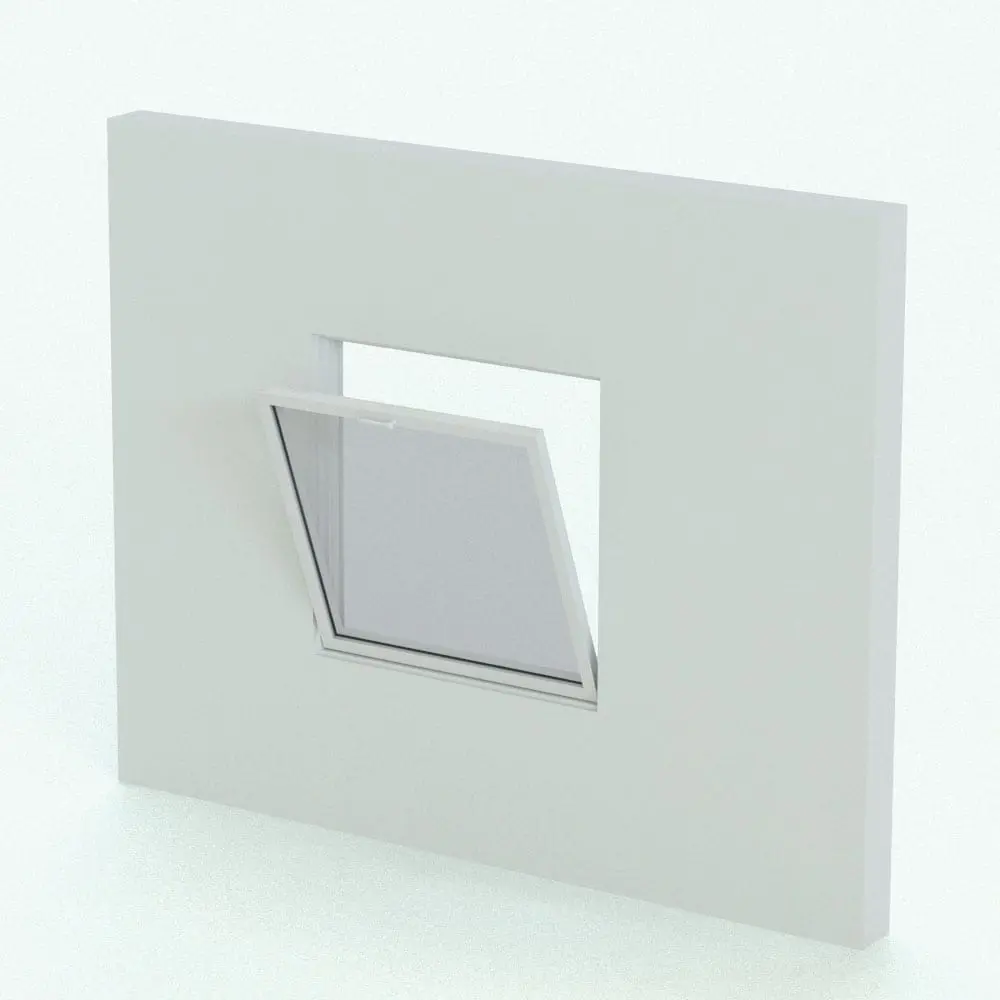

Hopper Revit Window Family in 3D and rendered in black and white (ambient occlusion style) to show the details better. This Revit family is fully parametric and also fully detailed, including the handle and a realistic window frame. Don't let this opportunity go by and add this Hopper Revit Window Family to your personal assets today. And the best part: It's FREE!
2D details of this Hopper Revit Window Family - T600N
Hopper Revit Window Family shown embedded in a teal colored wooden wall and rendered in a gray colored metallic frame finish. This Revit family is fully parametric, easy to use and ready to render. Plus, it is part of our FREE Revit families category, so don't wait any longer and download this Revit window family today. No credit card required.
Hopper Revit Window Family shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change not only the overall dimensions, but also the materials, the opening percentage and even the position within the wall for full customization. Download this Revit window family today and start using it in all your projects.
Hopper Revit Window Family in 3D and rendered in black and white (ambient occlusion style) to show the details better. This Revit family is fully parametric and also fully detailed, including the handle and a realistic window frame. Don't let this opportunity go by and add this Hopper Revit Window Family to your personal assets today. And the best part: It's FREE!
2D details of this Hopper Revit Window Family - T600N

Hopper Revit Window Family – T600N

rfa

$0.00

Categories: , , Tags: , , , , , ,

Bring efficient ventilation and modern style to your architectural projects with the Hopper Revit Window Family – T600N. This bottom-hinged Revit window family tilts inward, making it an excellent choice for basements, bathrooms, and areas requiring controlled airflow with added security. Its compact yet functional design ensures privacy while allowing fresh air to circulate, making it ideal for both residential and commercial applications.

Designed for seamless integration into Revit models, this parametric Hopper Revit Window Family – T600N allows for full customization of dimensions, frame materials, and position options. Whether used individually or in combination with other window styles, this operable Revit window family provides a practical and stylish solution for modern designs.

This Revit window family allows you to offset it within the thickness of the wall. Also, you can open/close the window for different looks. Additionally, the Revit window comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevation. Swing lines in elevation can also be turned on/off. Manufacturer’s details can be found inside of the family.

NOTE: This window is part of our FREE Revit families category, so go ahead and download it today. No credit card required.

Looking for more Revit window families? Click HERE to explore what else we have in our catalog.

For a detailed description of parameters and materials of this Revit window family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Window
  • Materials/textures: No
  • Approximate file size (set): 1.02 MB
  • File format: .rfa

This Hopper Revit Window Family – T600N comes with the following customizable parameters and options:

Width, height and opening angle of this Revit window family:

  • Minimum width: 1′
  • Maximum width: Unlimited
  • Minimum height: 1′
  • Maximum height: Unlimited
  • Minimum opening angle: 0
  • Maximum opening angle: 45

You can center this Revit window within the wall thickness or offset to any of the faces (interior or exterior)

You can turn on/off the details in floor plan and elevations for a cleaner look.

You can also turn the swing lines on/off

This Hopper Revit Window Family – T600N comes with material parameters for:

  • Frame
  • Glass

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.

Format

rfa

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
