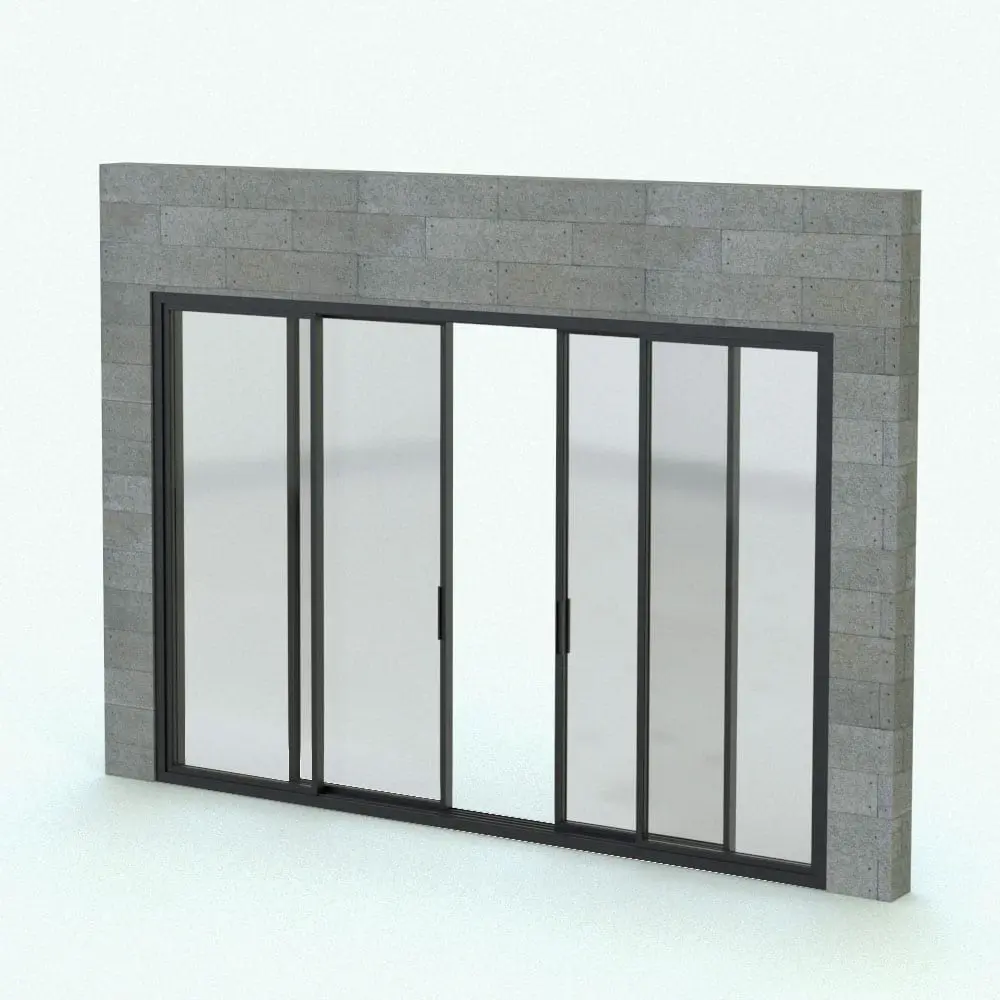

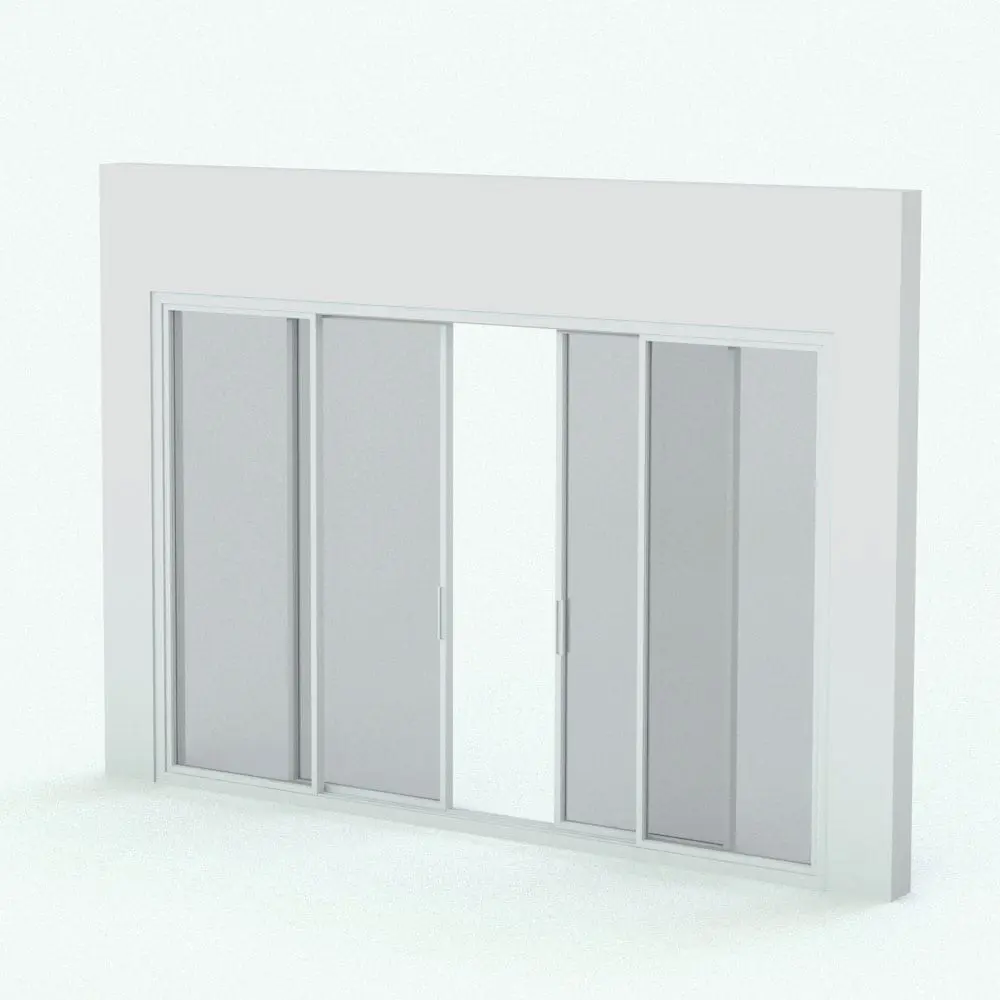

This Revit family sliding bi-part door has four glass panes, two of which can slide open. Any of its dimension can be changed through the use of parameters. Both sliding doors can open to any percentage independently and it comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations that can be turned on/off. Manufacturer’s details can be found inside of the family.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Door
• Materials/textures: No
• Approximate file size (set): 0.71 MB
• File format: .rfa

This Revit family comes with the following customizable parameters and options:

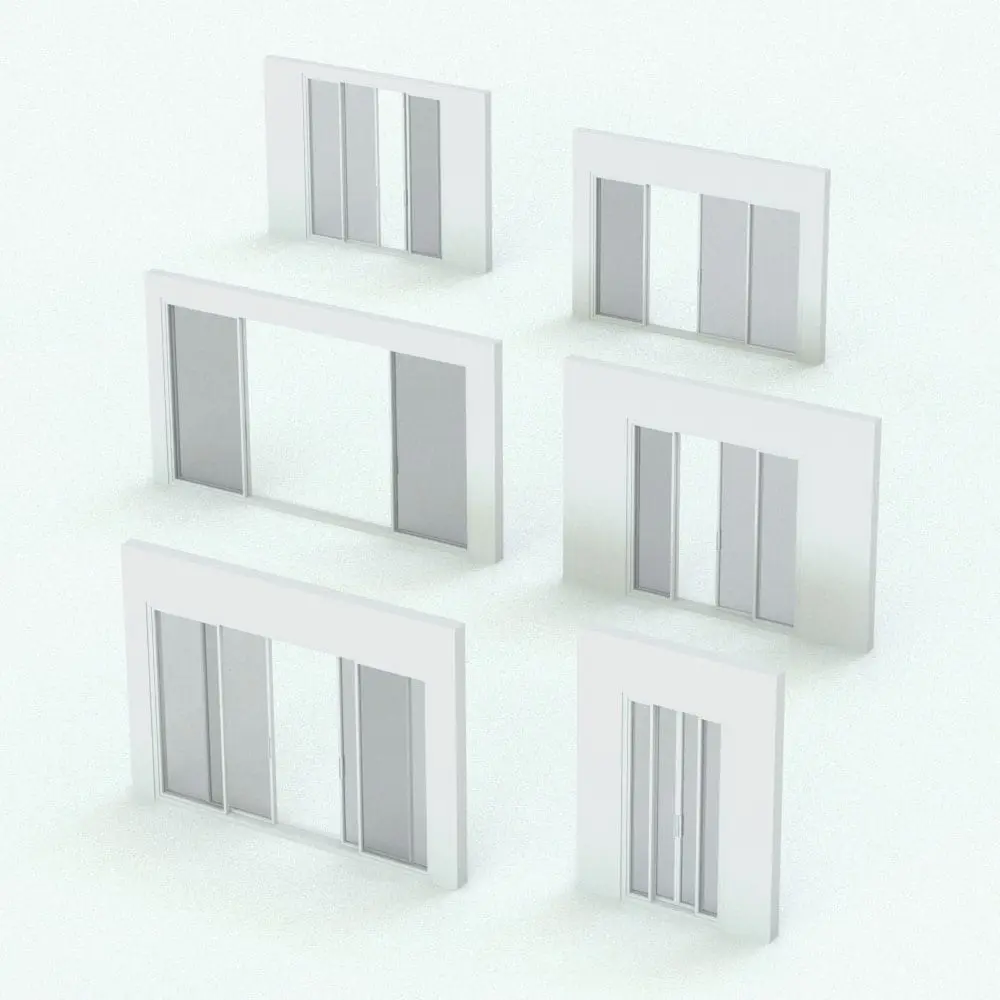

Width and height:

• Minimum width: 4′
• Maximum width: Unlimited

• Minimum height: 5′
• Maximum height: Unlimited

Opening percentage of each door (individually):

• Minimum opening percentage: 0
• Maximum opening percentage: 98

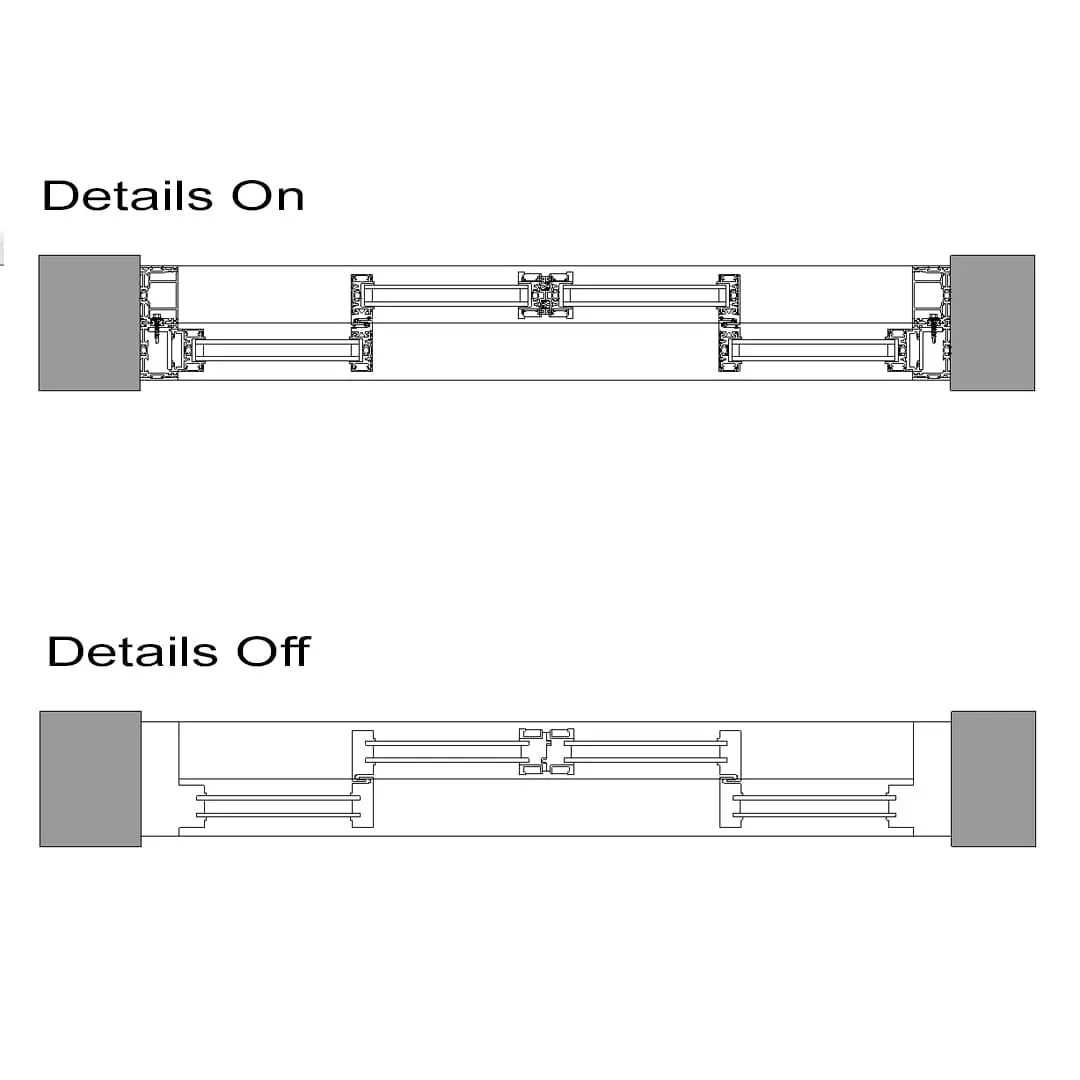

Details in floor plan and elevations can be turned on/off

Material parameters for:

• Frame
• Glass Pane

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
