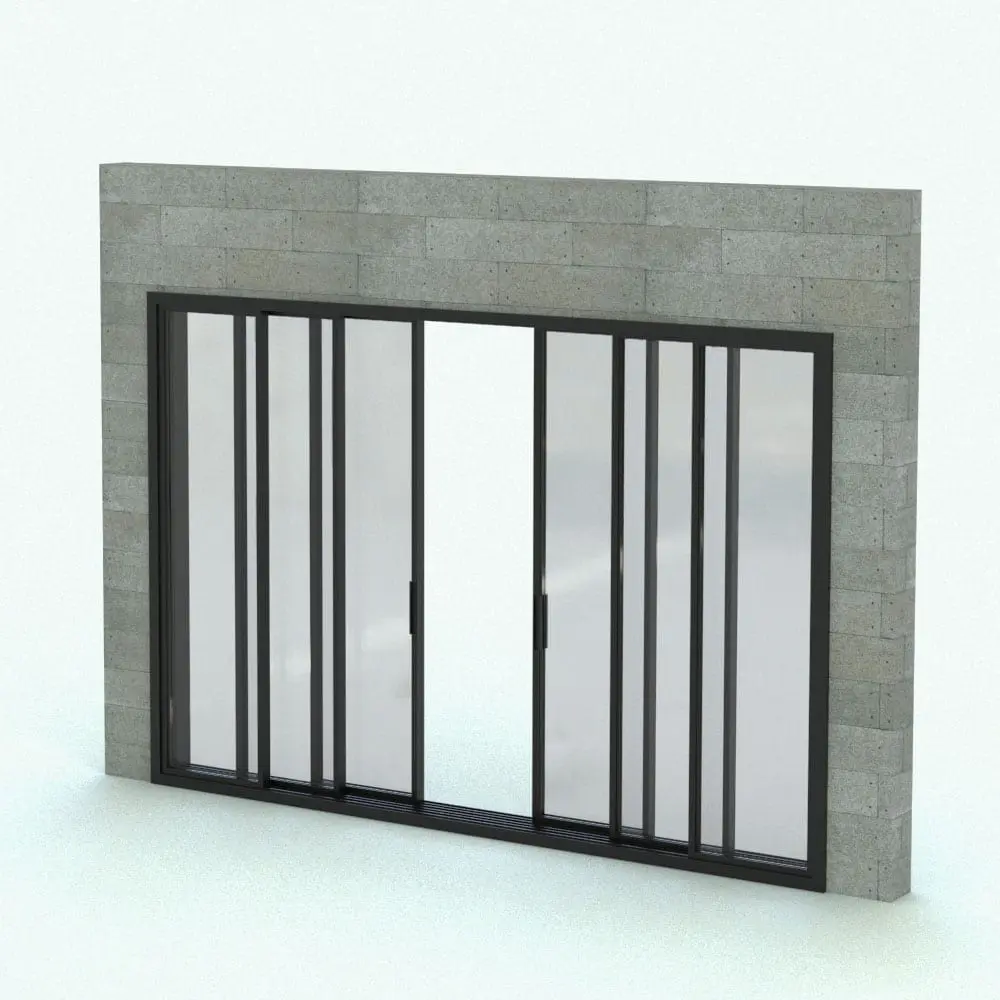

Quad Sliding Door Revit Family - SLD-OXX-XXO-Bi-Part in 3D and rendered embedded in a gray masonry brick wall with dark frames. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, select the materials (or use the provided ones) and hit the render button for instant results. Don't wait any longer and add this Quad Sliding Door Revit Family to your cart today.
Quad Sliding Door Revit Family - SLD-OXX-XXO-Bi-Part shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions, the materials and the opening of each one of the 4 panels. Ideal for luxurious interiors, this Quad Sliding Door Revit Family will transform your spaces in just a few clicks.

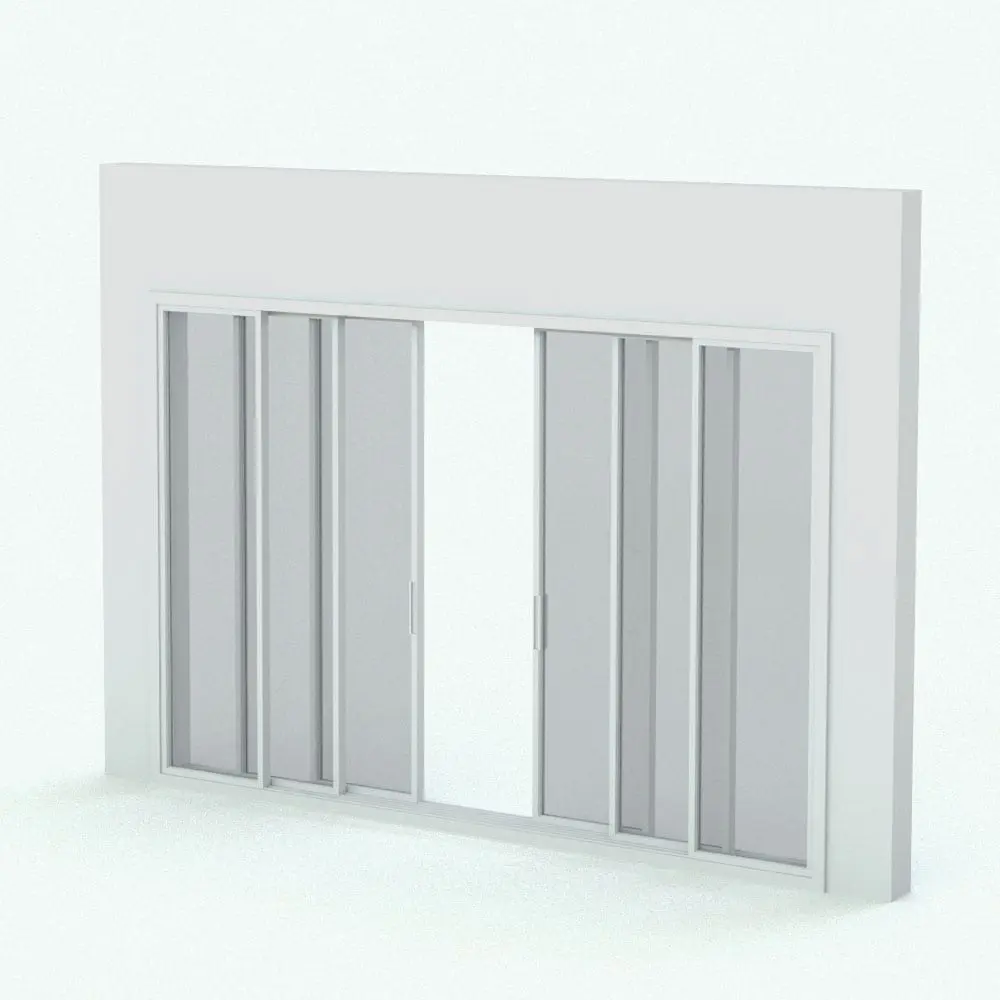

Quad Sliding Door Revit Family - SLD-OXX-XXO-Bi-Part in 3D and rendered in black and white (ambient occlusion style) to show the shapes better. Ideal for residential, commercial and hospitality settings, this fully parametric sliding door Revit family is the perfect complement to your modern and contemporary interior design projects.

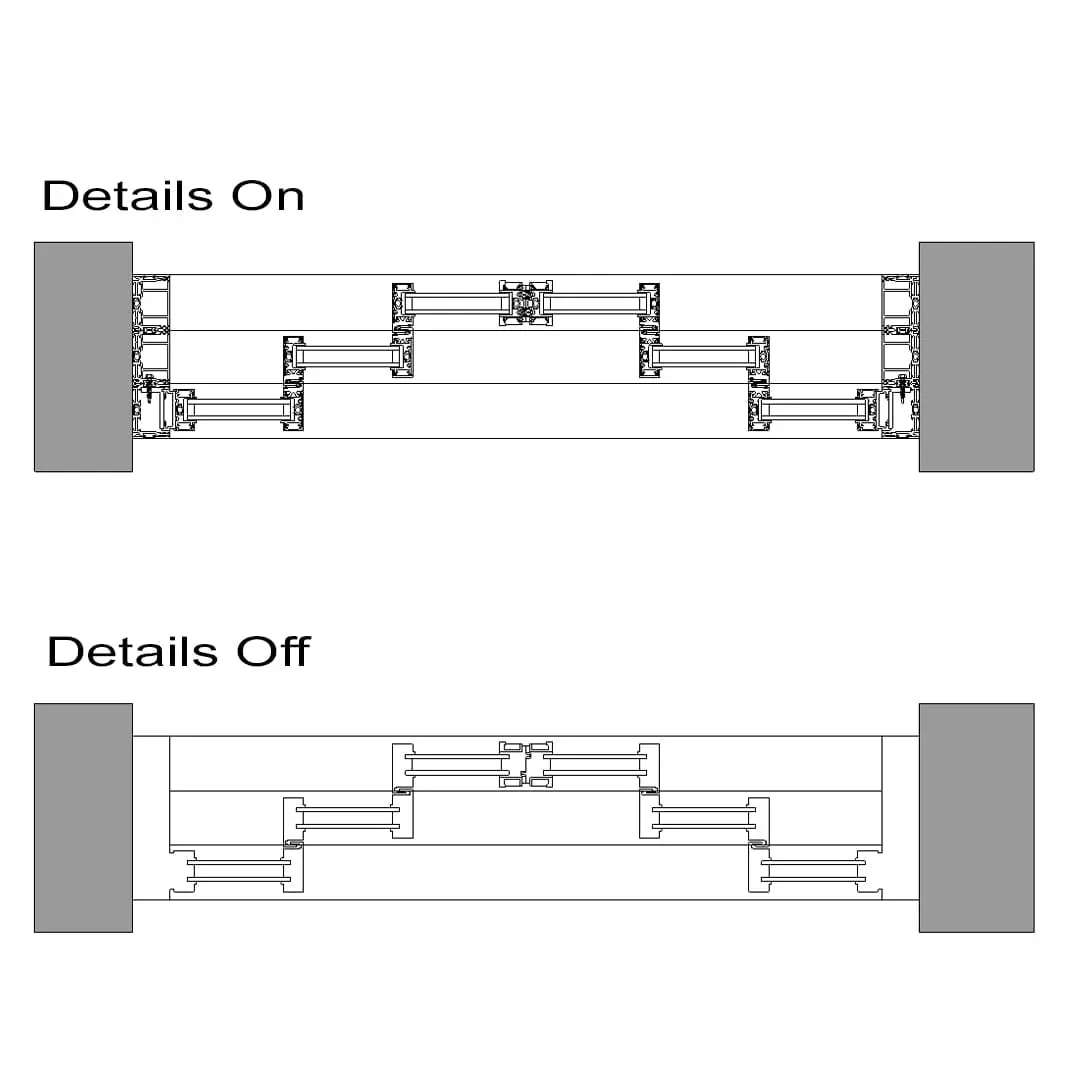

Detail of the Quad Sliding Door Revit Family - SLD-OXX-XXO-Bi-Part in 2D.
Quad Sliding Door Revit Family - SLD-OXX-XXO-Bi-Part in 3D and rendered embedded in a gray masonry brick wall with dark frames. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, select the materials (or use the provided ones) and hit the render button for instant results. Don't wait any longer and add this Quad Sliding Door Revit Family to your cart today.
Quad Sliding Door Revit Family - SLD-OXX-XXO-Bi-Part shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions, the materials and the opening of each one of the 4 panels. Ideal for luxurious interiors, this Quad Sliding Door Revit Family will transform your spaces in just a few clicks.
Quad Sliding Door Revit Family - SLD-OXX-XXO-Bi-Part in 3D and rendered in black and white (ambient occlusion style) to show the shapes better. Ideal for residential, commercial and hospitality settings, this fully parametric sliding door Revit family is the perfect complement to your modern and contemporary interior design projects.
Detail of the Quad Sliding Door Revit Family - SLD-OXX-XXO-Bi-Part in 2D.

Quad Sliding Door Revit Family – SLD-OXX-XXO-Bi-Part

rfa

$0.00

Categories: , , Tags: , , , , , , ,

Upgrade your designs with the Quad Sliding Door Revit Family – SLD-OXX-XXO-Bi-Part, a high-performance bi-parting sliding door Revit family that integrates four sliding panels and two fixed panels for expansive openings and seamless indoor-outdoor transitions. Ideal for luxury residences, high-end commercial spaces, and hospitality projects, this Revit door system offers flexibility, style, and functionality.

This Quad Sliding Door Revit Family features adjustable dimensions, frame finishes, and more, ensuring easy customization to match any architectural aesthetic. The smooth sliding mechanism enhances accessibility, while the large glass panels provide natural light and panoramic views.

This family belongs to our FREE Revit families catalog, so download it today and enhance your projects in just a few clicks. No credit card required.

NOTE: Manufacturer’s details can be found inside of the family.

Looking for other types of Revit door families? Click HERE to explore what we have in stock.

For a detailed description of parameters and materials for this sliding door Revit family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Door
  • Materials/textures: No
  • Approximate file size (set): 0.79 MB
  • File format: .rfa

This Quad Sliding Door Revit Family comes with the following customizable parameters and options:

Width and height of this Revit door family:

  • Minimum width: 4′
  • Maximum width: Unlimited
  • Minimum height: 5′
  • Maximum height: Unlimited

Opening percentage of all four Revit doors (individually):

  • Minimum opening percentage: 0
  • Maximum opening percentage: 98

Details in floor plan and elevations can be turned on/off

This Quad Sliding Door Revit Family comes with material parameters for:

  • Frame
  • Glass Pane

And don’t forget, this door is part of our FREE Revit families category. Get it today! No credit cart required.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
