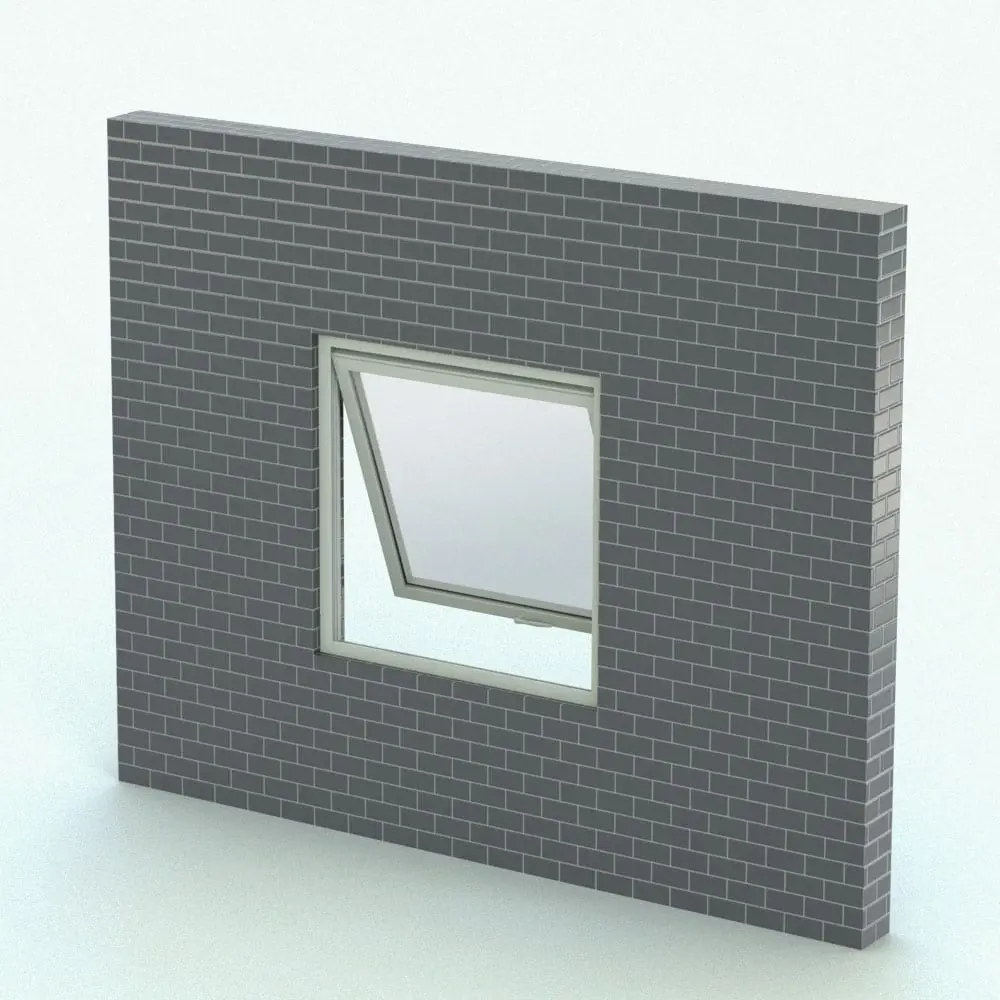

XL Awning Revit Window Family shown embedded in a gray brick wall and rendered in a light colored metallic frame finish. Ideal for residential, commercial and hospitality settings, this fully parametric and easy to use Revit window family will seamlessly blend with any project. And the best part is that it belongs to our FREE Revit families category, so download it and start using it right away. No credit card required.

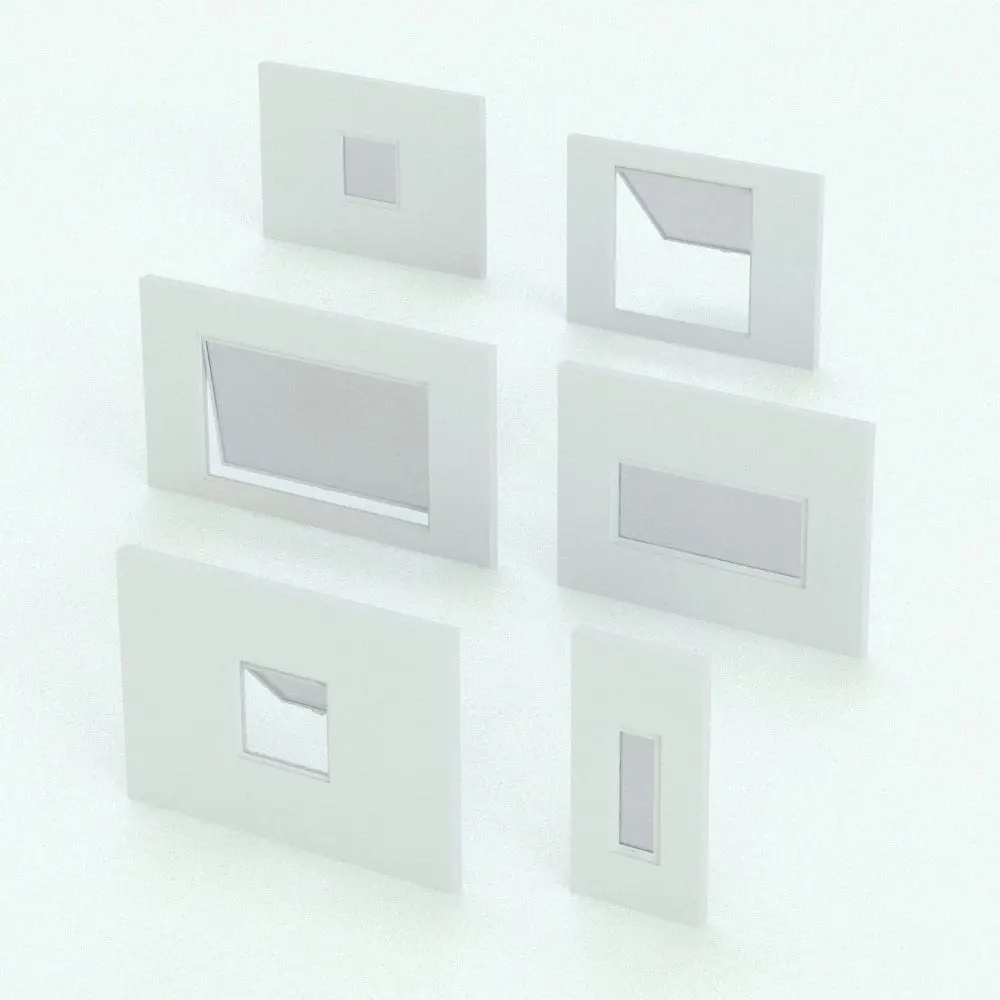

XL Awning Revit Window Family shown in different sizes and configurations to showcase its parametric versatility. This Revit family allows you to change overall dimensions, materials, opening percentage and even the position within the wall for maximum customization. Don't let this opportunity go by and add this XL Awning Revit Window Family to your personal assets today.
XL Awning Revit Window Family in 3D and rendered without any materials (ambient occlusion style) to show the shapes better. Whether used in residential or commercial projects, this fully parametric Revit window family will seamlessly blend into your project in just a few clicks. Plus, it is completely FREE, so download it and start using it today.
2D details of this XL Awning Revit Window Family - T450N
XL Awning Revit Window Family shown embedded in a gray brick wall and rendered in a light colored metallic frame finish. Ideal for residential, commercial and hospitality settings, this fully parametric and easy to use Revit window family will seamlessly blend with any project. And the best part is that it belongs to our FREE Revit families category, so download it and start using it right away. No credit card required.
XL Awning Revit Window Family shown in different sizes and configurations to showcase its parametric versatility. This Revit family allows you to change overall dimensions, materials, opening percentage and even the position within the wall for maximum customization. Don't let this opportunity go by and add this XL Awning Revit Window Family to your personal assets today.
XL Awning Revit Window Family in 3D and rendered without any materials (ambient occlusion style) to show the shapes better. Whether used in residential or commercial projects, this fully parametric Revit window family will seamlessly blend into your project in just a few clicks. Plus, it is completely FREE, so download it and start using it today.
2D details of this XL Awning Revit Window Family - T450N

XL Awning Revit Window Family – T450N

rfa

$0.00

Categories: , , Tags: , , , , , ,

Enhance your architectural designs with the XL Awning Revit Window Family – T450N, a top-hinged operable Revit window family designed to provide superior ventilation and natural light. This awning-style Revit window opens outward from the bottom, allowing airflow while keeping out rain and debris, making it an ideal choice for residential, commercial, and institutional buildings. Its expansive size ensures unobstructed views while maintaining a sleek and modern aesthetic.

This fully parametric XL Awning Revit Window Family – T450N allows customization of window dimensions, frame materials, and more, ensuring flexibility across various design requirements. Whether used in office spaces, modern homes, or high-rise buildings, this extra-large awning Revit window enhances both functionality and architectural appeal.

You can offset this Revit window within the thickness of the wall to have more control over the look. Also, you can open/close the window for different looks. Additionally, the window comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations. Swing lines in elevation can also be turned on/off. Manufacturer’s details can be found inside of the family.

NOTE: This window is part of our FREE Revit families section, so go ahead and download it today. No credit card required.

Looking for other styles of Revit window families? Click HERE to see all the options we have in stock.

For a detailed description of parameters and materials of this Revit window family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Window
  • Materials/textures: No
  • Approximate file size (set): 1.10 MB
  • File format: .rfa

This XL Awning Revit Window Family – T450N comes with the following customizable parameters and options:

Width, height and opening angle of this Revit window family:

  • Minimum width: 1′
  • Maximum width: Unlimited
  • Minimum height: 1′
  • Maximum height: Unlimited
  • Minimum opening angle: 0
  • Maximum opening angle: 45

You can center this window within the wall thickness or offset to any of the faces (interior or exterior)

You can turn on/off the details in floor plan and elevations for a cleaner look.

You can turn the swing lines on/off

NOTE: This XL version is the same as T450N-Awning, except that the Revit window frame is thicker.

This XL Awning Revit Window Family – T450N comes with material parameters for:

  • Frame
  • Glass

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
