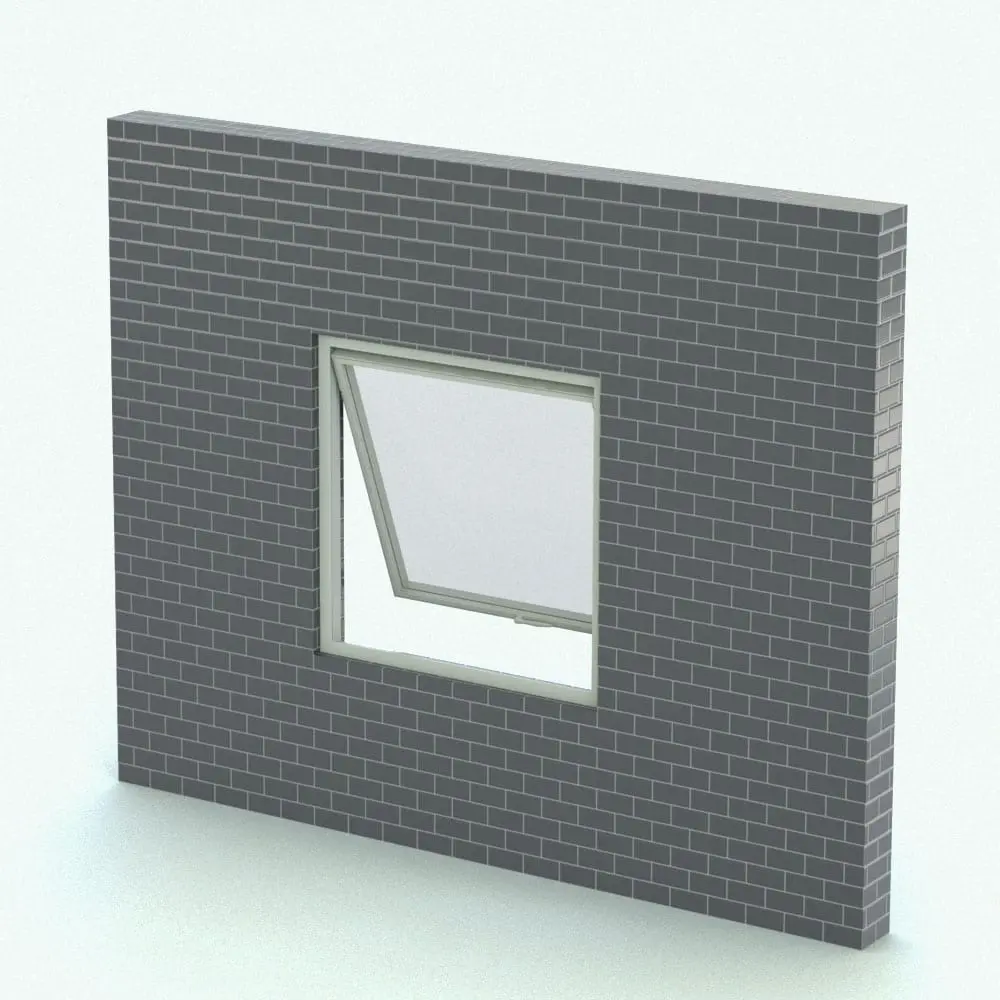

Awning Revit Window Family - T450N shown embedded in a gray brick wall and rendered with a light colored metallic frame finish. This Revit family is fully parametric, easy to use and ready to render! And the best part is that it belongs to our FREE Revit families category! So go ahead and download this Revit window family today. No credit card required.

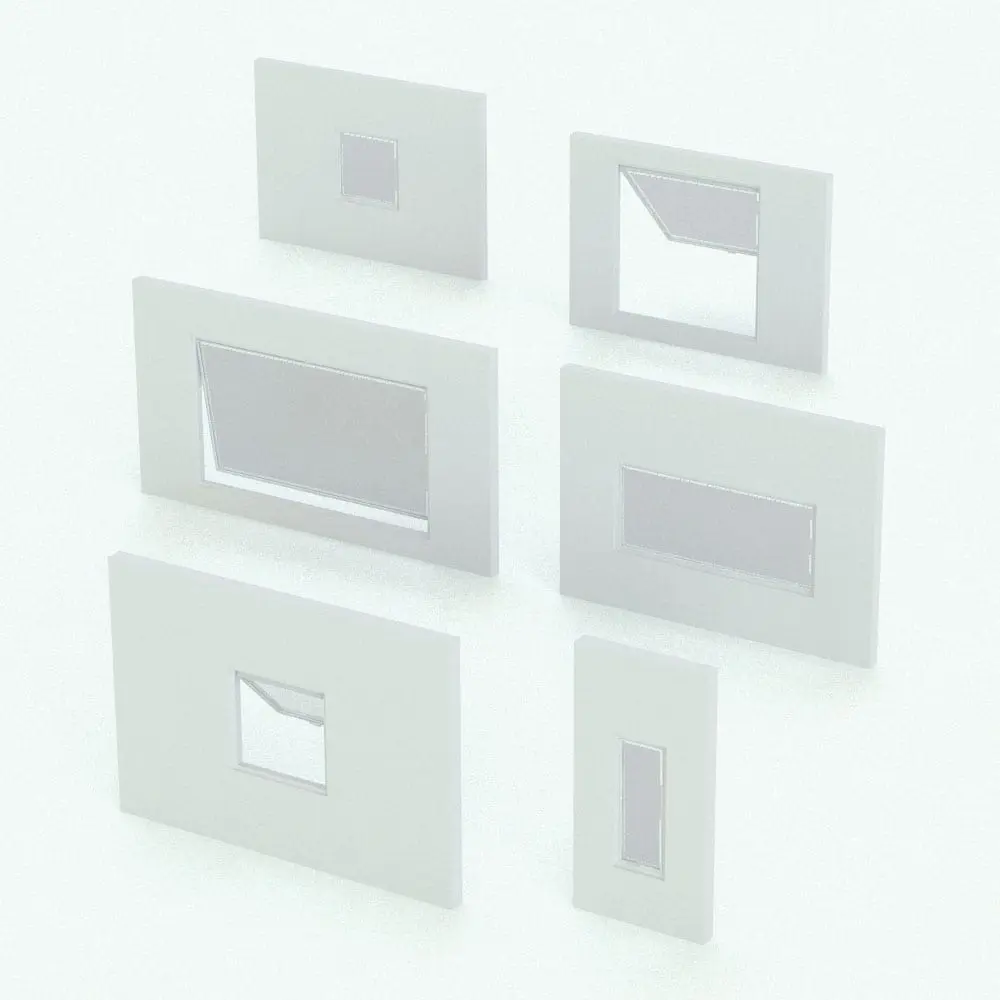

Awning Revit Window Family - T450N shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions, the materials, the opening percentage and even the position of the glass within the frame/wall. Ideal for any type of project, this Revit window family will simplify your workflow in just a few clicks.
Awning Revit Window Family - T450N in 3D and rendered in black and white (ambient occlusion style) to show the shapes better. This Revit family is fully detailed and it can even open and close to make your renders even more realistic. With tons of parameters to change, this Awning Revit Window Family will be a great asset in your personal library. Plus it belongs to our FREE Revit families category, so get it now and start using it today.
2D details in this Awning Revit Window Family - T450N
Awning Revit Window Family - T450N shown embedded in a gray brick wall and rendered with a light colored metallic frame finish. This Revit family is fully parametric, easy to use and ready to render! And the best part is that it belongs to our FREE Revit families category! So go ahead and download this Revit window family today. No credit card required.
Awning Revit Window Family - T450N shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions, the materials, the opening percentage and even the position of the glass within the frame/wall. Ideal for any type of project, this Revit window family will simplify your workflow in just a few clicks.
Awning Revit Window Family - T450N in 3D and rendered in black and white (ambient occlusion style) to show the shapes better. This Revit family is fully detailed and it can even open and close to make your renders even more realistic. With tons of parameters to change, this Awning Revit Window Family will be a great asset in your personal library. Plus it belongs to our FREE Revit families category, so get it now and start using it today.
2D details in this Awning Revit Window Family - T450N

Awning Revit Window Family – T450N

rfa

$0.00

Categories: , , Tags: , , , , , ,

Enhance your architectural projects with the Awning Revit Window Family – T450N, a high-quality operable Revit window designed for optimal ventilation and modern aesthetics. This top-hinged Revit window opens outward, allowing fresh air to circulate while keeping out rain and debris. Ideal for residential, commercial, and institutional buildings, this awning-style Revit window is perfect for bathrooms, kitchens, and office spaces where controlled ventilation is needed.

This fully parametric Awning Revit Window Family – T450N allows customization of window dimensions, frame materials, and glass position, ensuring seamless integration into various architectural styles. Whether used as a standalone Revit window family or combined with other window configurations, this design enhances both functionality and style.

You can offset the Revit window within the thickness of the wall to have more control over the look. Also, you can open/close the Revit window for different looks. Additionally, the Revit window comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations. Swing lines in elevation can also be turned on/off. Manufacturer’s details can be found inside of the family.

Oh, and it is part of our FREE Revit families, so go ahead and download it today. No credit card required.

Looking for other styles of Revit window families? Click HERE to browse the options we have in stock.

For a detailed description of parameters and materials of this Revit window family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Window
  • Materials/textures: No
  • Approximate file size (set): 1.02 MB
  • File format: .rfa

This Awning Revit Window Family – T450N comes with the following customizable parameters and options:

Width, height and opening angle of this Revit window family:

  • Minimum width: 1′
  • Maximum width: Unlimited
  • Minimum height: 1′
  • Maximum height: Unlimited
  • Minimum opening angle: 0
  • Maximum opening angle: 45

You can center the Revit window within the wall thickness or offset to any of the faces (interior or exterior)

You can turn on/off the details in floor plan and elevations for a cleaner look.

You can turn on/off the swing lines.

This Awning Revit Window Family – T450N comes with material parameters for:

  • Frame
  • Glass

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.

Format

rfa

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
