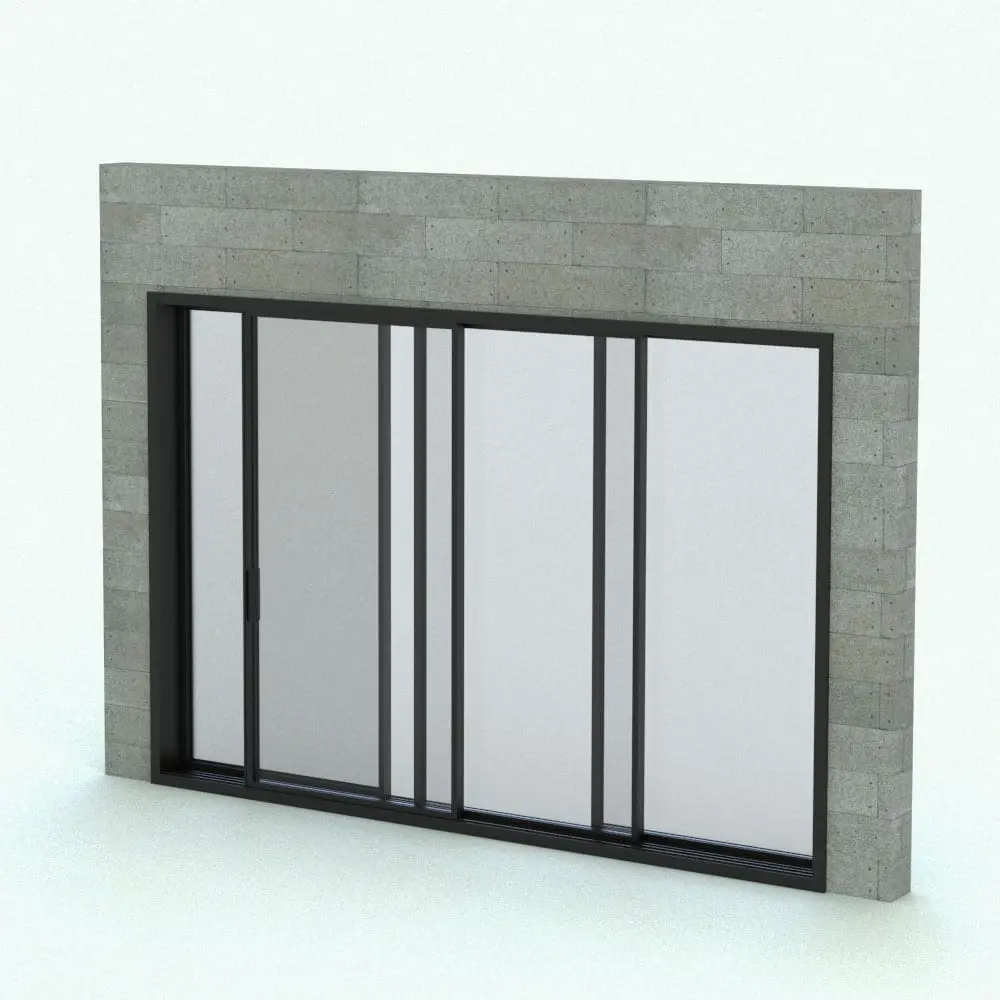

Sliding Door Revit Family With Screen - SLD-XXO Multi-Slide in 3D and rendered embedded in a gray masonry brick wall with dark metallic frames. This Revit family is fully parametric, easy to use and ready to render. Just load it onto your project, set the dimensions and hit the render button for instant results. Don't let this opportunity go by and add this Sliding Door Revit Family With Screen to your cart today.

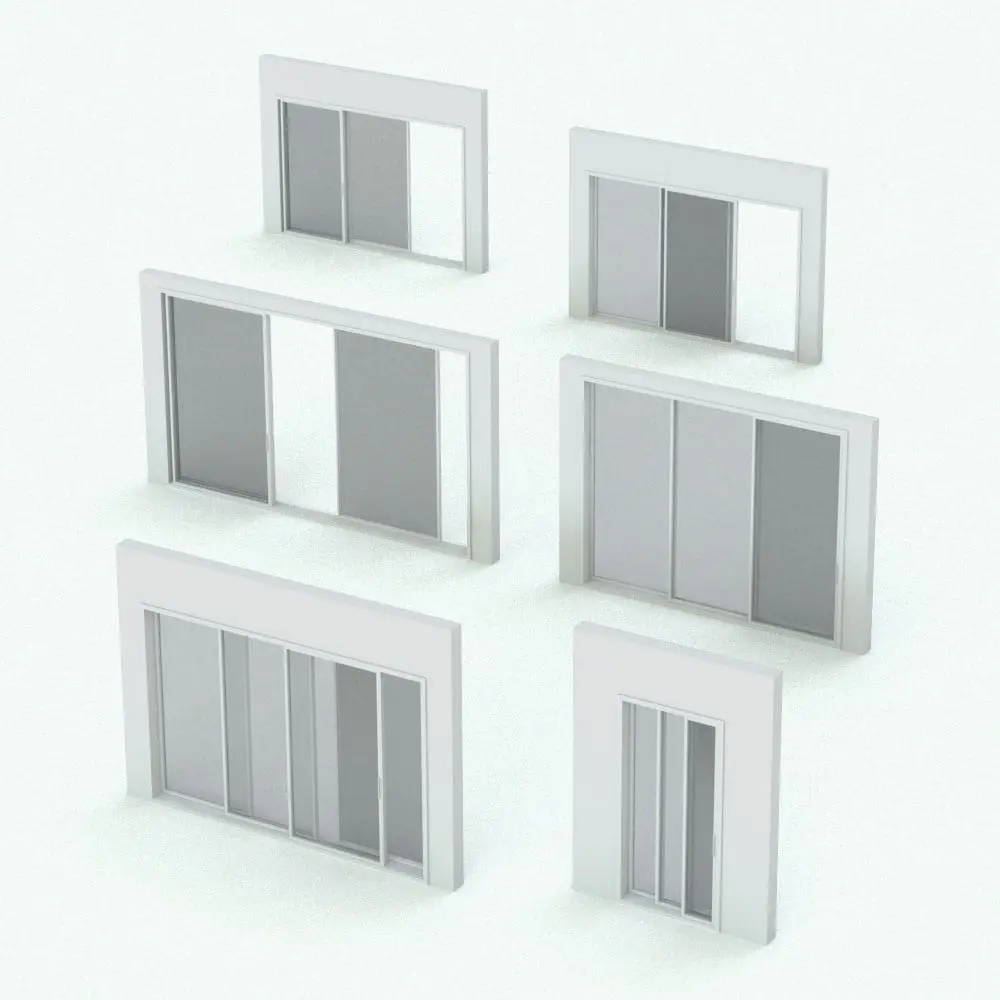

Sliding Door Revit Family With Screen - SLD-XXO Multi-Slide shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions, positions of the movable panels and materials for full customization. Ideal for residential, commercial and hospitality projects, this sliding door Revit family will make your spaces look luxurious and elegant. Get it today and see for yourself.

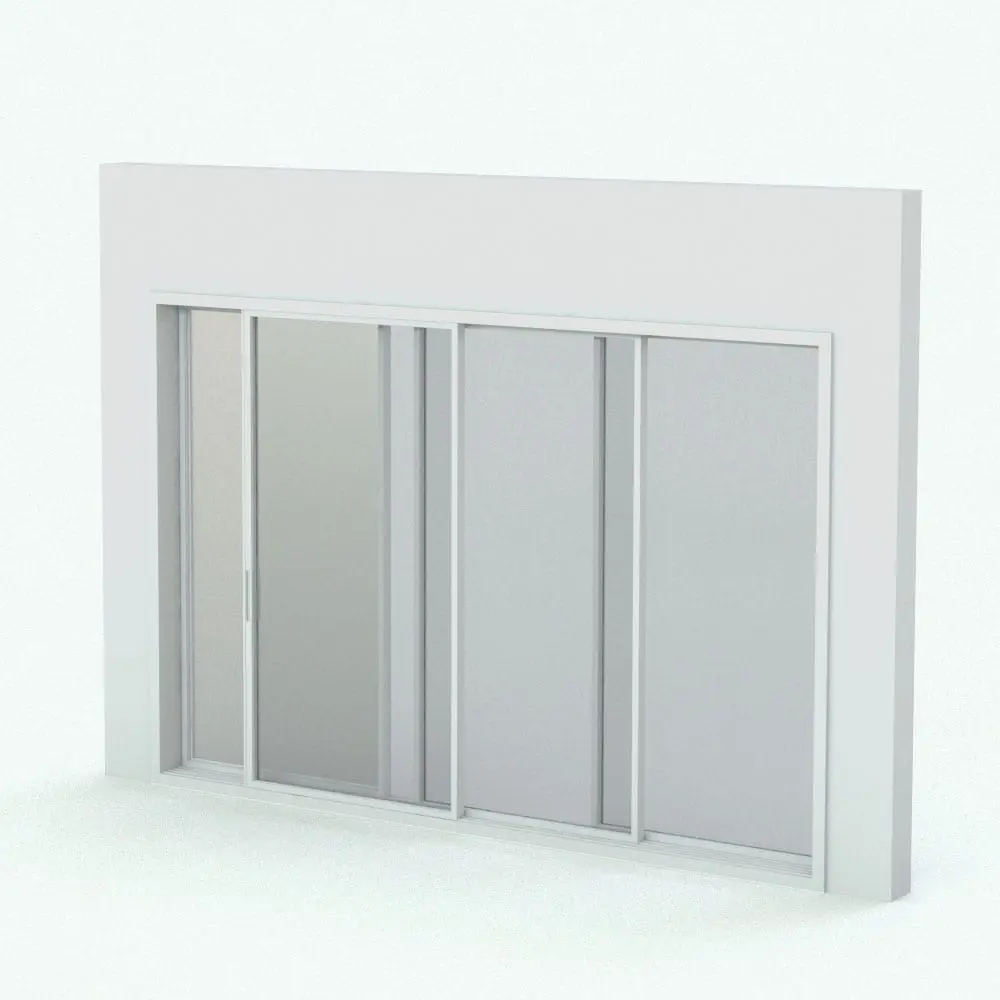

Sliding Door Revit Family With Screen - SLD-XXO Multi-Slide in 3D and rendered in black and white (ambient occlusion style) to show the shapes and details better. Ideal for visually connect your interior and exterior spaces and make them feel bigger, this fully parametric and easy to use sliding door Revit family will elevate your projects to new heights in just a few clicks.

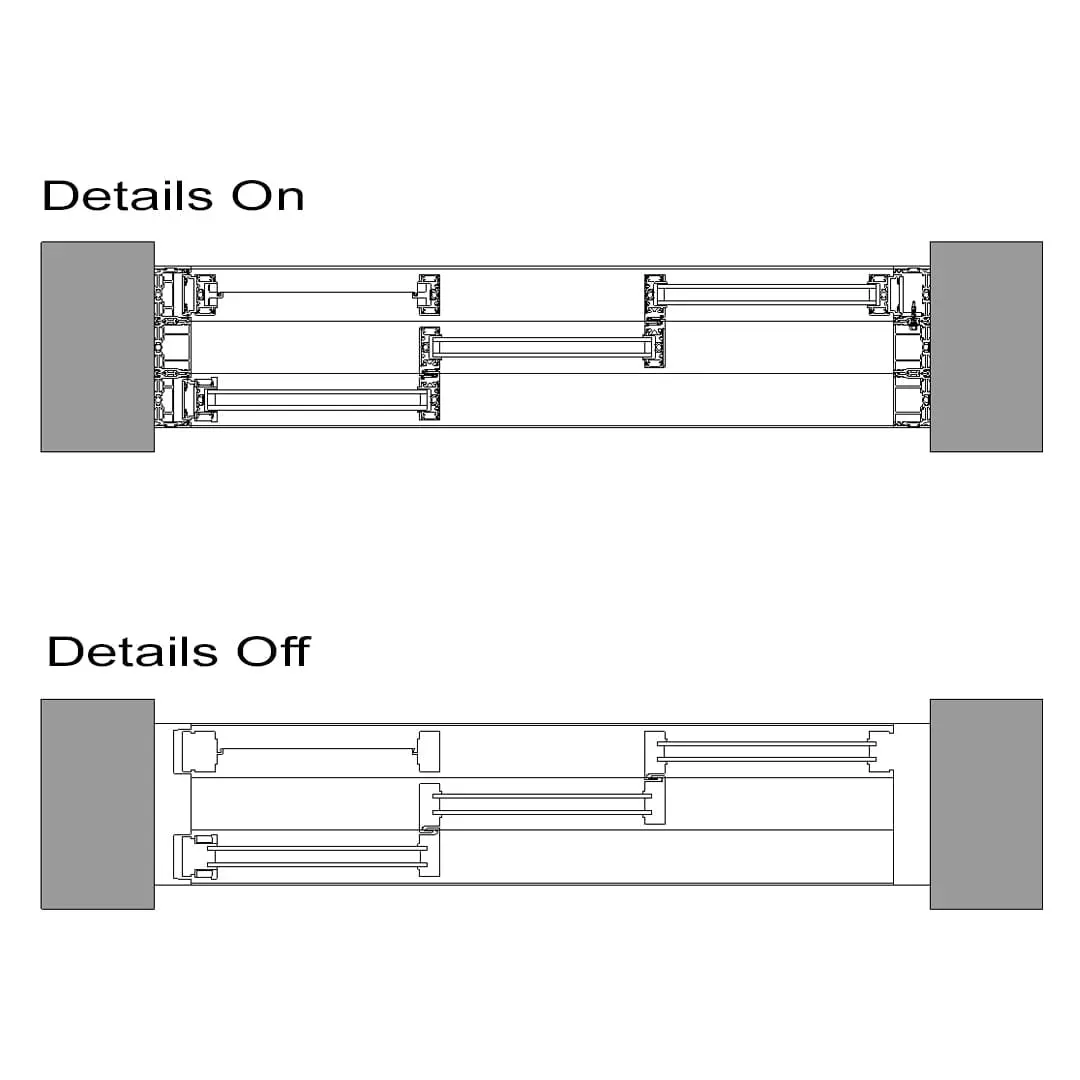

2D detail of this Sliding Door Revit Family With Screen - SLD-XXO Multi-Slide
Sliding Door Revit Family With Screen - SLD-XXO Multi-Slide in 3D and rendered embedded in a gray masonry brick wall with dark metallic frames. This Revit family is fully parametric, easy to use and ready to render. Just load it onto your project, set the dimensions and hit the render button for instant results. Don't let this opportunity go by and add this Sliding Door Revit Family With Screen to your cart today.
Sliding Door Revit Family With Screen - SLD-XXO Multi-Slide shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions, positions of the movable panels and materials for full customization. Ideal for residential, commercial and hospitality projects, this sliding door Revit family will make your spaces look luxurious and elegant. Get it today and see for yourself.
Sliding Door Revit Family With Screen - SLD-XXO Multi-Slide in 3D and rendered in black and white (ambient occlusion style) to show the shapes and details better. Ideal for visually connect your interior and exterior spaces and make them feel bigger, this fully parametric and easy to use sliding door Revit family will elevate your projects to new heights in just a few clicks.
2D detail of this Sliding Door Revit Family With Screen - SLD-XXO Multi-Slide

Sliding Door Revit Family With Screen – SLD-XXO Multi-Slide

rfa

$0.00

Categories: , , Tags: , , , , , , , ,

Enhance your indoor-outdoor transitions with the Sliding Door Revit Family With Screen – SLD-XXO Multi-Slide, a sophisticated sliding door Revit family that combines two glass sliding panels with an integrated sliding screen for added ventilation and privacy. This multi-slide Revit door design is perfect for modern homes, commercial spaces, and patio enclosures, allowing seamless movement while maintaining security and airflow control.

Designed for flexibility and customization, this Sliding Door Revit Family With Screen includes adjustable door dimensions, frame materials, and more to match a variety of architectural styles. The screen panel provides insect protection while maintaining airflow, making it an ideal choice for energy-efficient designs and natural ventilation strategies.

Oh, and it is FREE! Yes, this family is part of our FREE Revit families category, so go ahead and download it today! No credit card required.

NOTE: Manufacturer’s details can be found inside of the family.

Looking for other types of Revit door families? Click HERE to explore all the options we have in our catalog.

For a detailed description of parameters and materials of this sliding door Revit family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Door
  • Materials/textures: No
  • Approximate file size (set): 0.76 MB
  • File format: .rfa

This Sliding Door Revit Family With Screen comes with the following customizable parameters and options:

Width and height of this Revit door family:

  • Minimum width: 4′
  • Maximum width: Unlimited
  • Minimum height: 5′
  • Maximum height: Unlimited

Opening percentage of Revit doors (individually):

  • Minimum opening percentage: 0
  • Maximum opening percentage: 98

Insect screen opening percentage in this sliding door Revit family:

  • Minimum opening percentage: 0
  • Maximum opening percentage: 96

Details in floor plan and elevations can be turned on/off

This Sliding Door Revit Family With Screen comes with material parameters for:

  • Frame
  • Glass Pane
  • Screen

And don’t forget that it is part of our FREE Revit families category, so download it today. No credit card required.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
