Window – SLW-E4 | Revit Family

$0.00

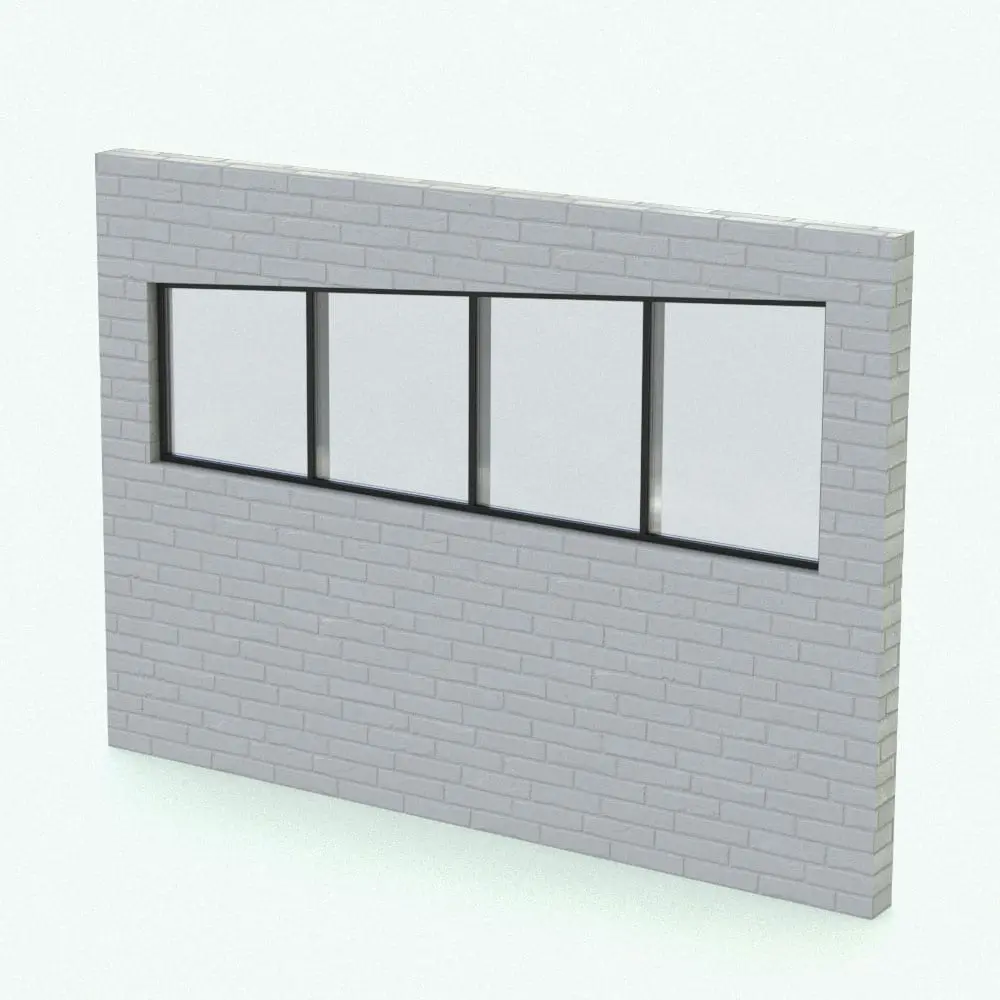

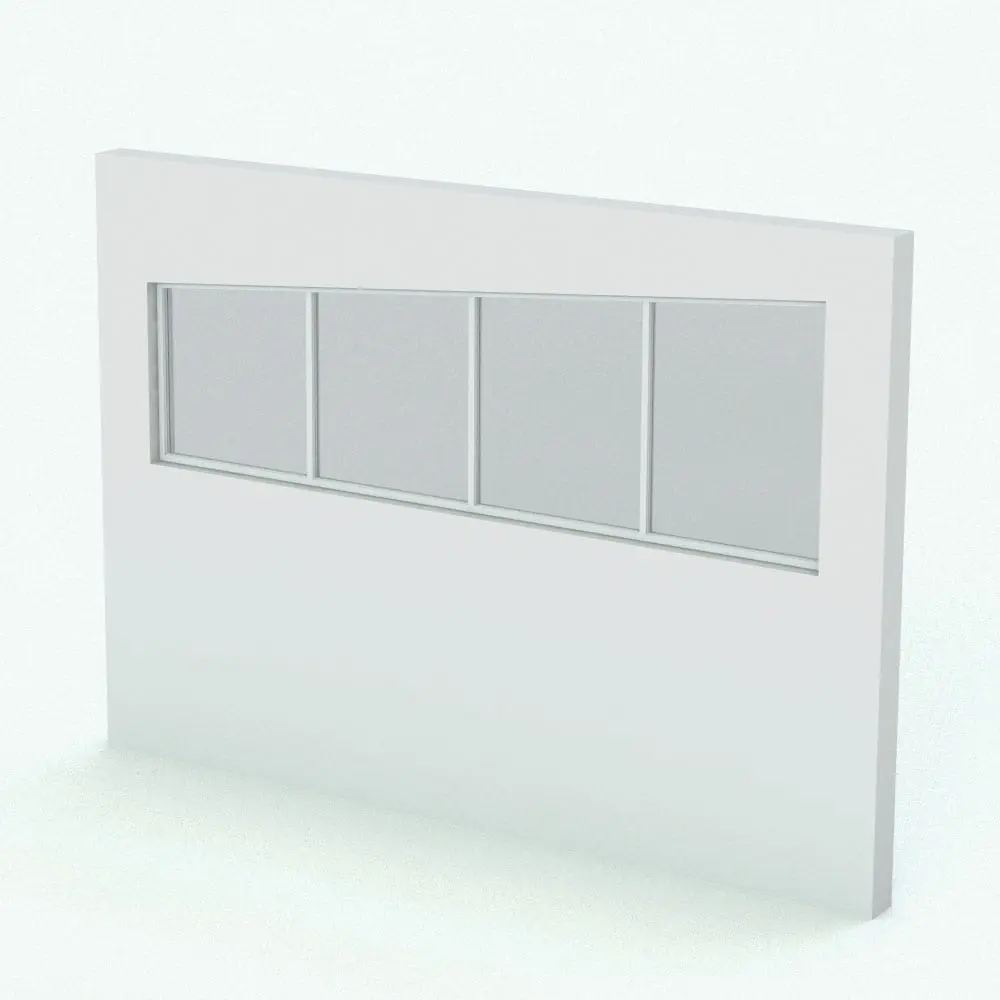

This sloped quad-panel Revit family fixed window’s dimensions can be changed through the use of parameters. The frame can be buried in the wall to create the illusion of a frame-less window. Additionally, the window can be offsetted within the thickness of the wall to have more control over the look. The angle of the window can be changed to create different slopes. Combine this window with other SLW windows or SLD doors to create more variations. The window comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations that can be turned on/off. Manufacturer’s details can be found inside of the family.

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Window
  • Materials/textures: No
  • Approximate file size (set): 0.98 MB
  • File format: .zip**

Description

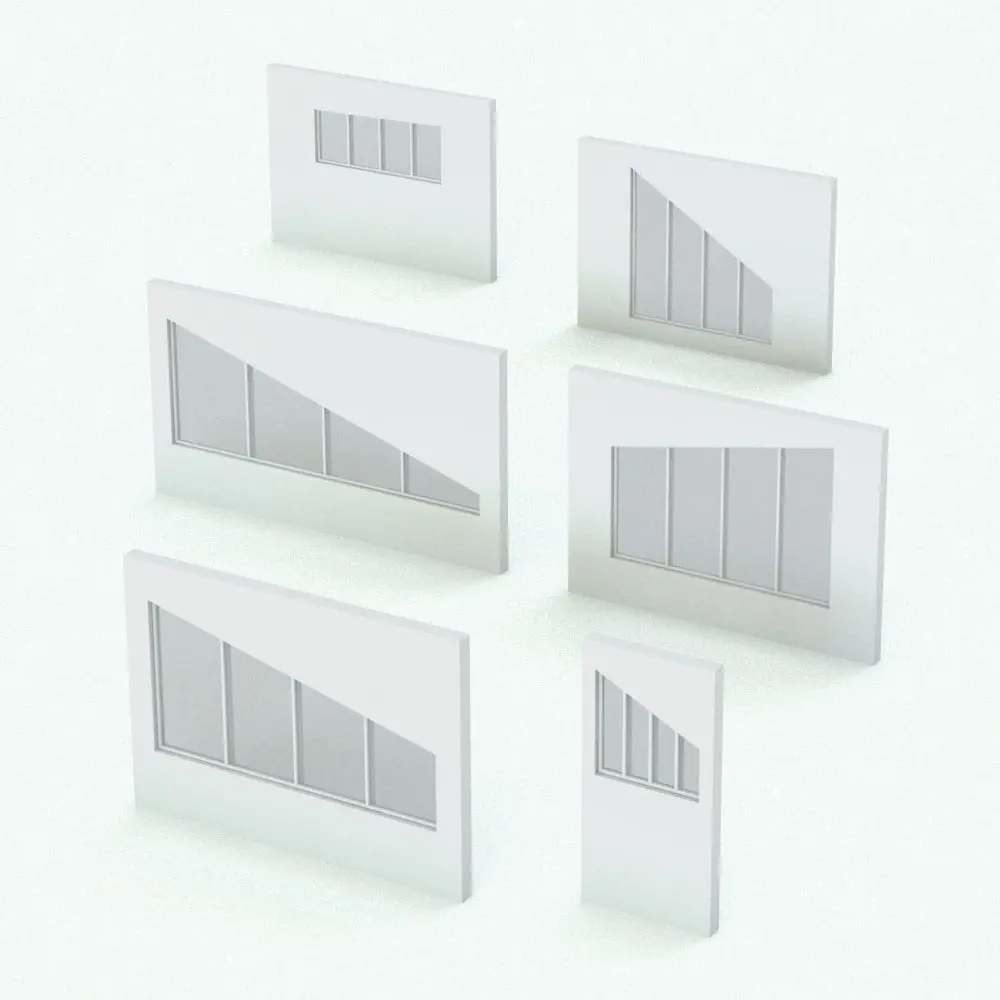

This slanted quad-pane Revit family fixed window comes with the following customizable parameters and options:

Width, height and height at apex:

  • Minimum width: 4′
  • Maximum width: Unlimited
  • Minimum height: 1′
  • Maximum height: Unlimited
  • Minimum height at apex: height + 3″
  • Maximum height at apex: width

Window can be centered within the wall thickness or offset to any of the faces (interior or exterior)

Window frame can be buried in the wall/floor to achieve a frame-less look.

Details in floor plan and elevations can be turned on/off

Combine it with SLW-E2, SLD-OX-XO Bi Part or SLD-XXXX-Multi Slide to create additional variations.

Material parameters for:

  • Frame
  • Glass

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

** All files are delivered in zip format. Before using your families, you will need to unzip the Revit file(s) (.rfa or .rvt) using a 3rd party software like Winzip or Peazip. Make sure to have a software to unzip files before purchasing 3D models.
