Double Fixed Revit Window Family – SLW-E1b
$0.00

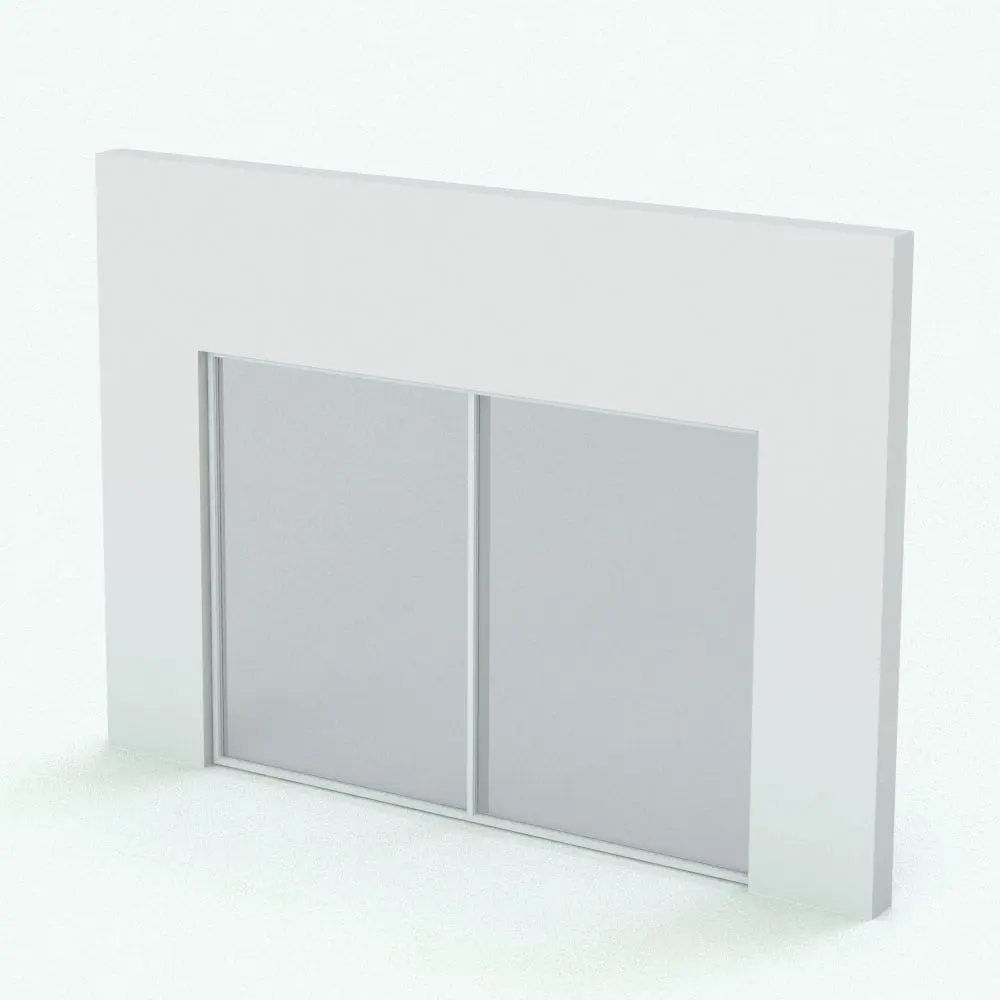

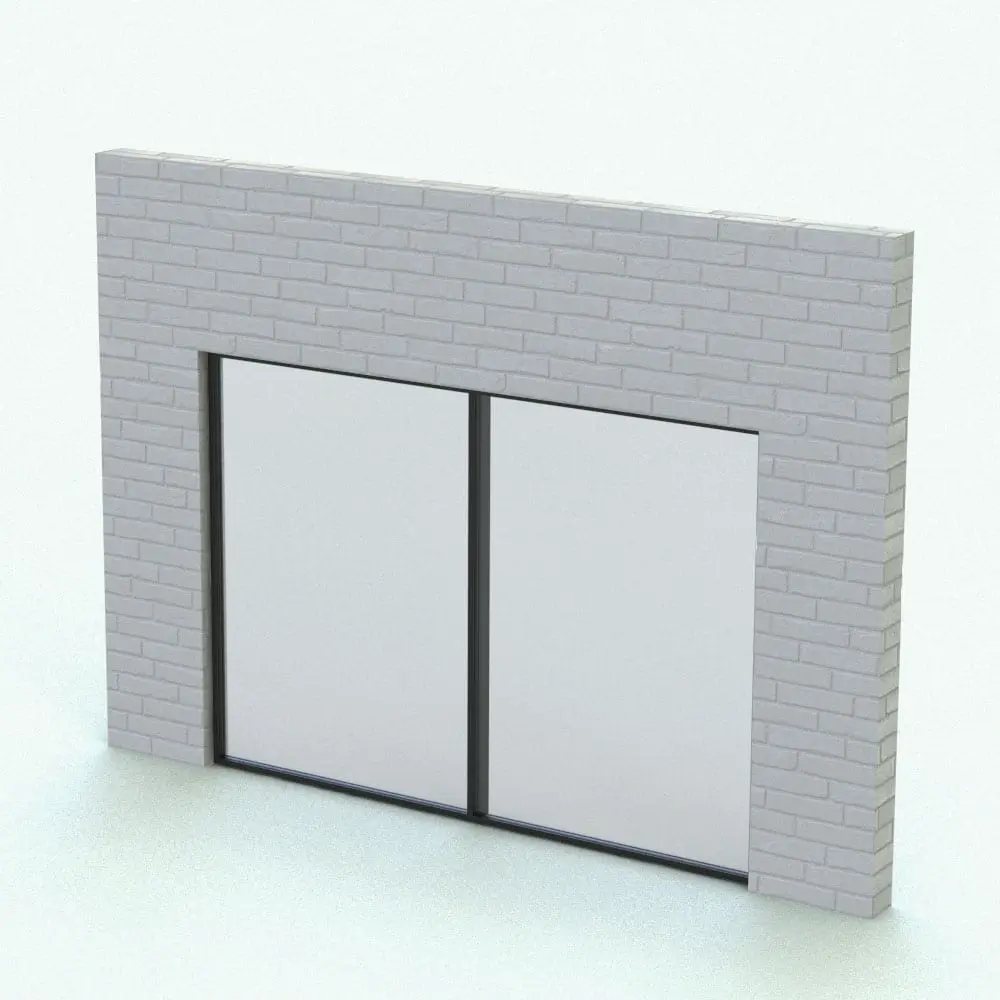

Upgrade your architectural projects with the SLW-E1b Double Fixed Revit Window Family, a high-quality, non-operable Revit window solution designed to enhance natural lighting and aesthetics. This modern fixed window configuration features two large glass panels, perfect for contemporary residential and commercial designs. Whether used in office buildings, retail spaces, or modern homes, this Revit window family provides a sleek, minimalist appearance while ensuring energy efficiency and durability.

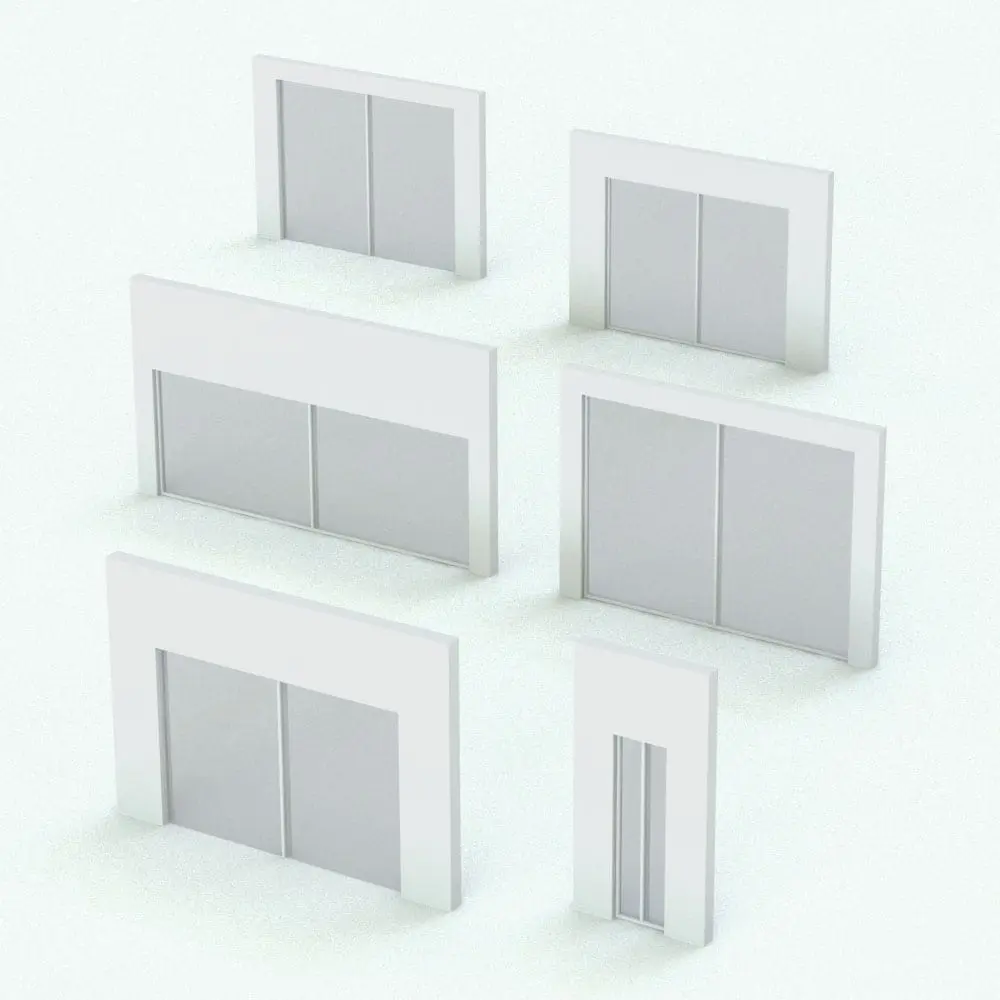

This fully parametric Double Fixed Revit Window Family allows customization of window dimensions, frame materials, and more to fit a variety of design needs. Optimized for lightweight performance, thRevit window integrates smoothly into BIM workflows, providing accurate documentation and realistic visualization. Ideal for large openings, curtain walls, and panoramic views, this window adds both functionality and elegance to your Revit projects.
The frame can be buried in the wall to create the illusion of a frame-less window. Additionally, the window can be either centered or offsetted within the wall thickness to have more control over the look. The window comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations. Manufacturer’s details can be found inside of the family.
Oh, and one small detail: this window is part of our FREE Revit families category, so go ahead and download it today. No credit card required.
Looking for other styles of Revit window families? Click HERE to explore all the options we have in stock.
For a detailed description of parameters and materials of this Revit window family, please read the Revit Family Technical Information section below.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Window
- Materials/textures: No
- Approximate file size (set): 0.66 MB
- File format: .rfa
This Double Fixed Revit Window Family comes with the following customizable parameters and options:
Width and height of this window Revit family:
- Minimum width: 2′
- Maximum width: Unlimited
- Minimum height: 1′
- Maximum height: Unlimited
You can center the Revit window within the wall thickness or offset to any of the faces (interior or exterior)
You can bury the window frame in the wall/floor to achieve a frame-less look.
You can turn on/off the details in floor plan and elevations.
This Double Fixed Revit Window Family comes with material parameters for:
- Frame
- Glass
And don’t forget this window is part of our FREE Revit families category, so don’t wait any longer and get it today. No credit card required.
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families.
Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
| Format | rfa |
|---|
