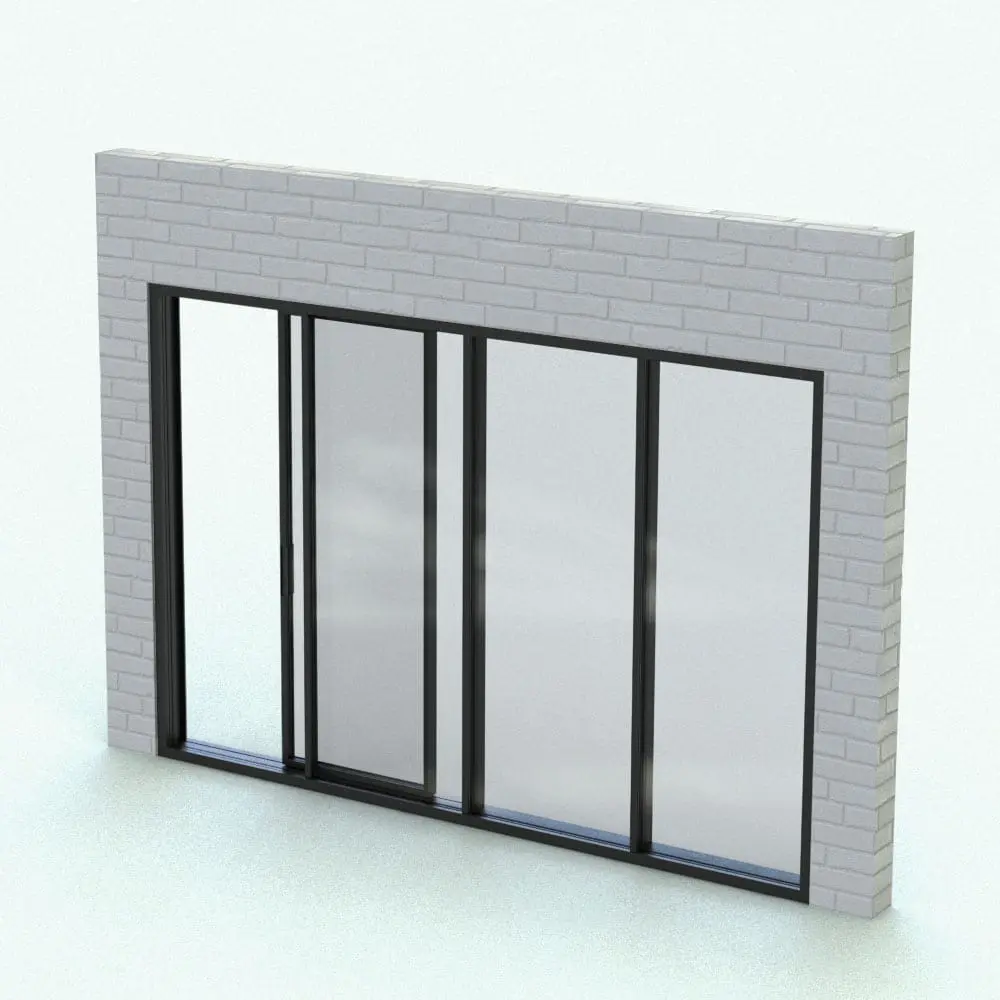

Sliding Window Revit Family embedded in a white brick wall and rendered with a dark colored metallic frame material. This Revit window is fully parametric and it even includes a door that opens and closes to connect interior with exterior spaces. Ideal for residential, commercial and hospitality settings, this sliding window Revit family will streamline your workflow in just a few clicks. Get it today and see for yourself.

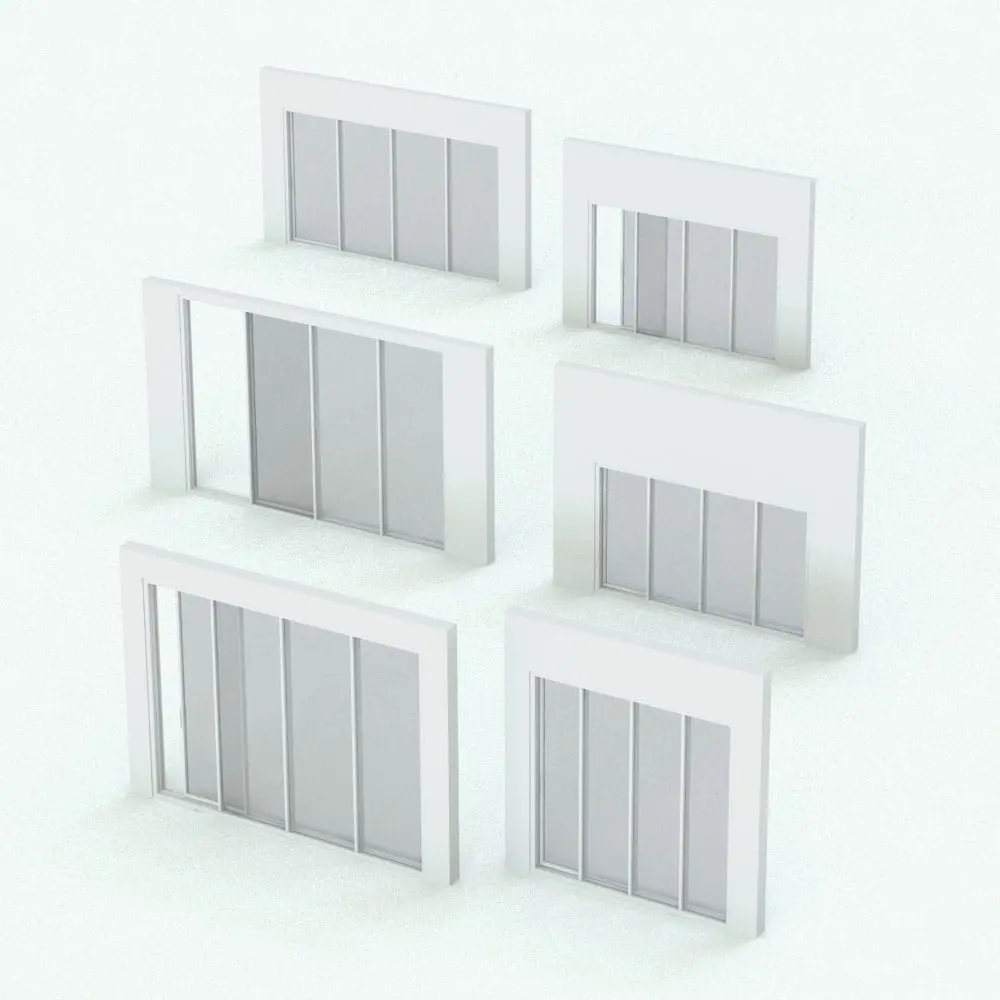

Sliding Window Revit Family shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions as well as the materials, the opening of the door and the position of the glass within the frame for full customization. Don't wait any longer and add this Sliding Window Revit Family to your cart today.

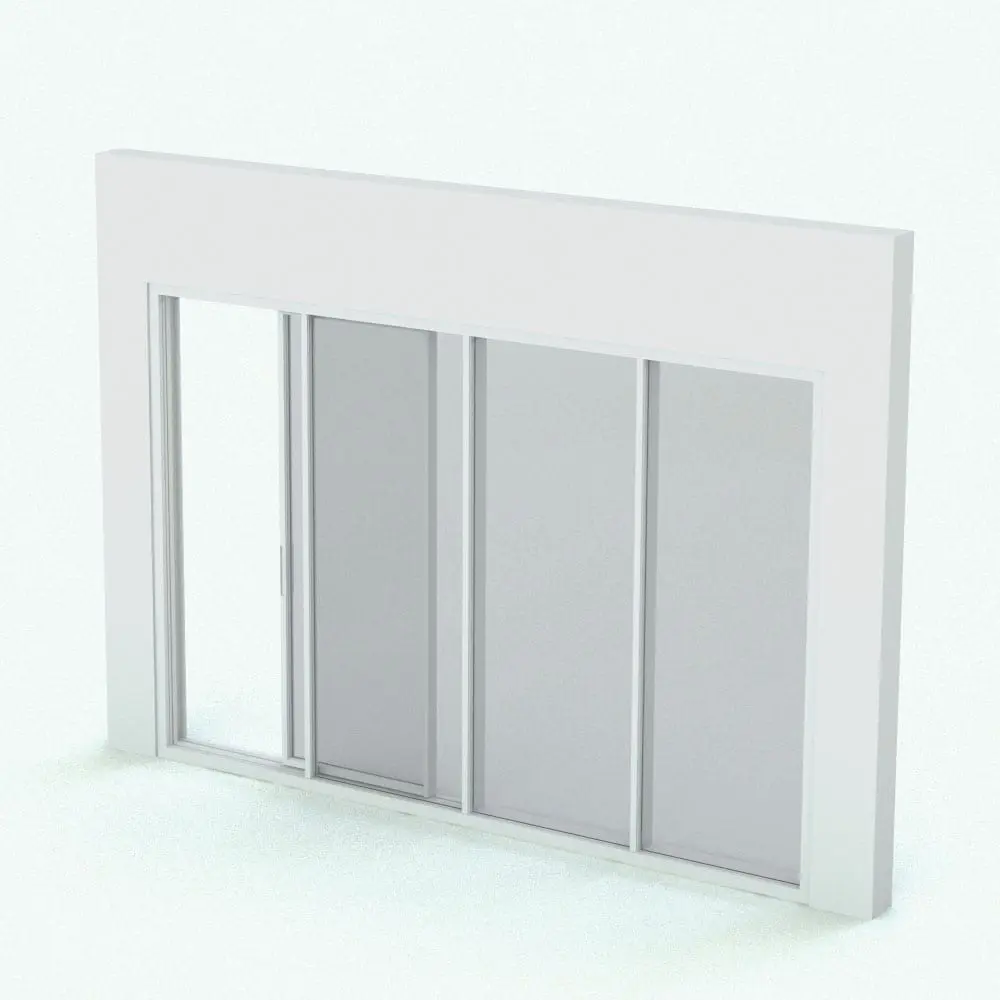

Sliding Window Revit Family in 3D and rendered in black and white (ambient occlusion style) to show the shapes better. Whether you are working on residential, commercial or hospitality projects, this fully parametric and easy to use Revit window family will transform your spaces in just a few clicks but letting light and views into your project. Get it today and see for yourself.
2D details of this Sliding Window Revit Family - SLW-E7
Sliding Window Revit Family embedded in a white brick wall and rendered with a dark colored metallic frame material. This Revit window is fully parametric and it even includes a door that opens and closes to connect interior with exterior spaces. Ideal for residential, commercial and hospitality settings, this sliding window Revit family will streamline your workflow in just a few clicks. Get it today and see for yourself.
Sliding Window Revit Family shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions as well as the materials, the opening of the door and the position of the glass within the frame for full customization. Don't wait any longer and add this Sliding Window Revit Family to your cart today.
Sliding Window Revit Family in 3D and rendered in black and white (ambient occlusion style) to show the shapes better. Whether you are working on residential, commercial or hospitality projects, this fully parametric and easy to use Revit window family will transform your spaces in just a few clicks but letting light and views into your project. Get it today and see for yourself.
2D details of this Sliding Window Revit Family - SLW-E7

Sliding Window Revit Family – SLW-E7

rfa

$0.00

Categories: , , Tags: , , , , , , ,

Enhance your architectural designs with the SLW-E7 Sliding Window Revit Family, a modern and efficient Revit window Family designed for both residential and commercial applications. Featuring a sleek sliding mechanism, this Revit window provides a seamless transition between indoor and outdoor spaces while maximizing natural light and ventilation. Its contemporary design makes it an excellent choice for modern homes, office buildings, and hospitality projects.

This Sliding Window Revit Family allows customization of window dimensions, frame materials, and glazing positions to suit various project requirements. Whether used in residential, work environments, or storefronts, this sliding window offers functionality and aesthetic appeal in your Revit projects.

You can offset the window within the thickness of the wall to have more control over the look. The window also includes a door that can open/close. Additionally, the window comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations. Manufacturer’s details can be found inside of the family.

And the best part of this window is that it belongs to our FREE Revit families category, so download it now! No credit card required.

Looking for other types of Revit window families? Click HERE to explore all the options we have in stock.

For a detailed description of parameters and materials of this sliding window Revit family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Window
  • Materials/textures: No
  • Approximate file size (set): 1.44 MB
  • File format: .rfa

This Sliding Window Revit Family comes with the following customizable parameters and options:

Width and height of this Revit window family:

  • Minimum width: 8′
  • Maximum width: Unlimited
  • Minimum height: 6′
  • Maximum height: Unlimited

Revit door opening percentage:

  • Minimum opening percentage: 0
  • Maximum opening percentage: 100

You can center the Revit window within the wall thickness or offset to any of the faces (interior or exterior)

You can turn on/off the details in floor plan and elevations.

This Sliding Window Revit Family comes with material parameters for:

  • Frame
  • Glass

And don’t forget that it is part of our FREE Revit families section, so go ahead and download it today.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
