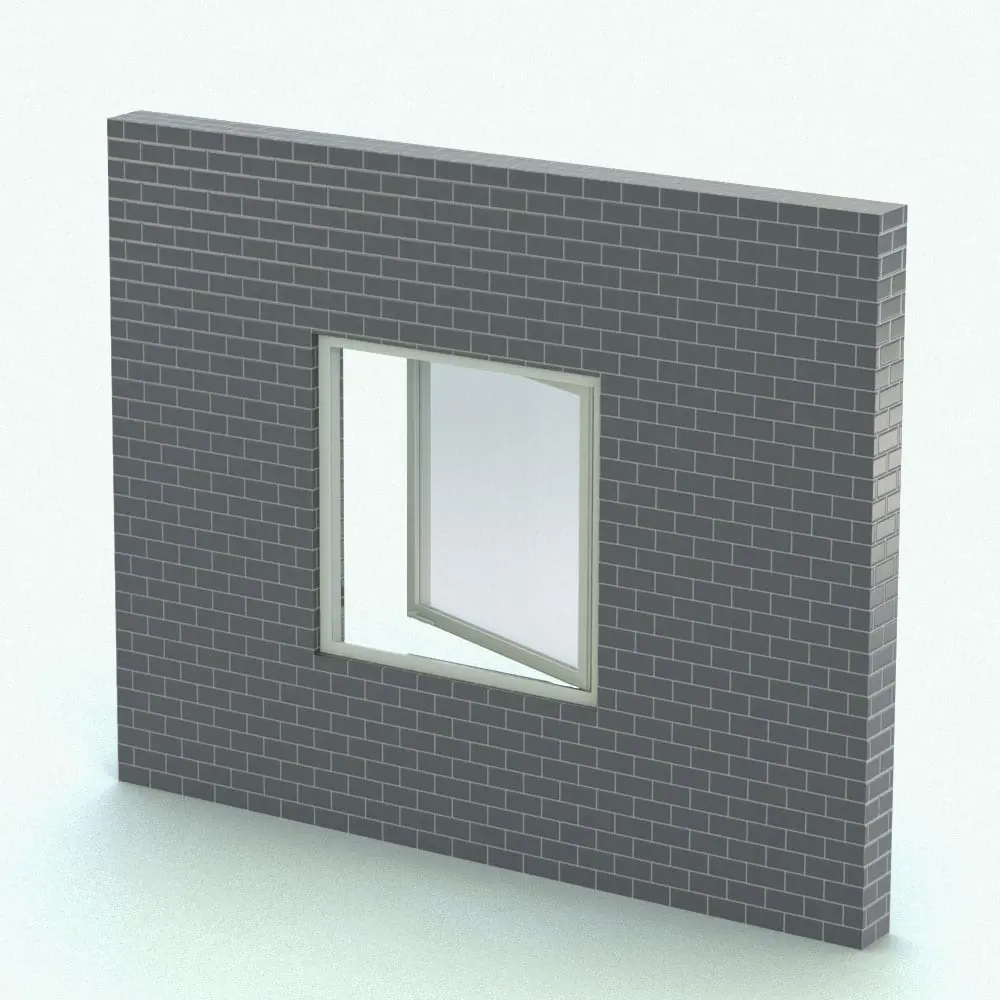

XL Casement Revit Window Family embedded in a gray brick wall and rendered in a light colored metallic frame finish. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, select the size and hot the render button for instant results. And the best part is that it belongs to our FREE Revit families category, so download this Revit window family and start using it today.

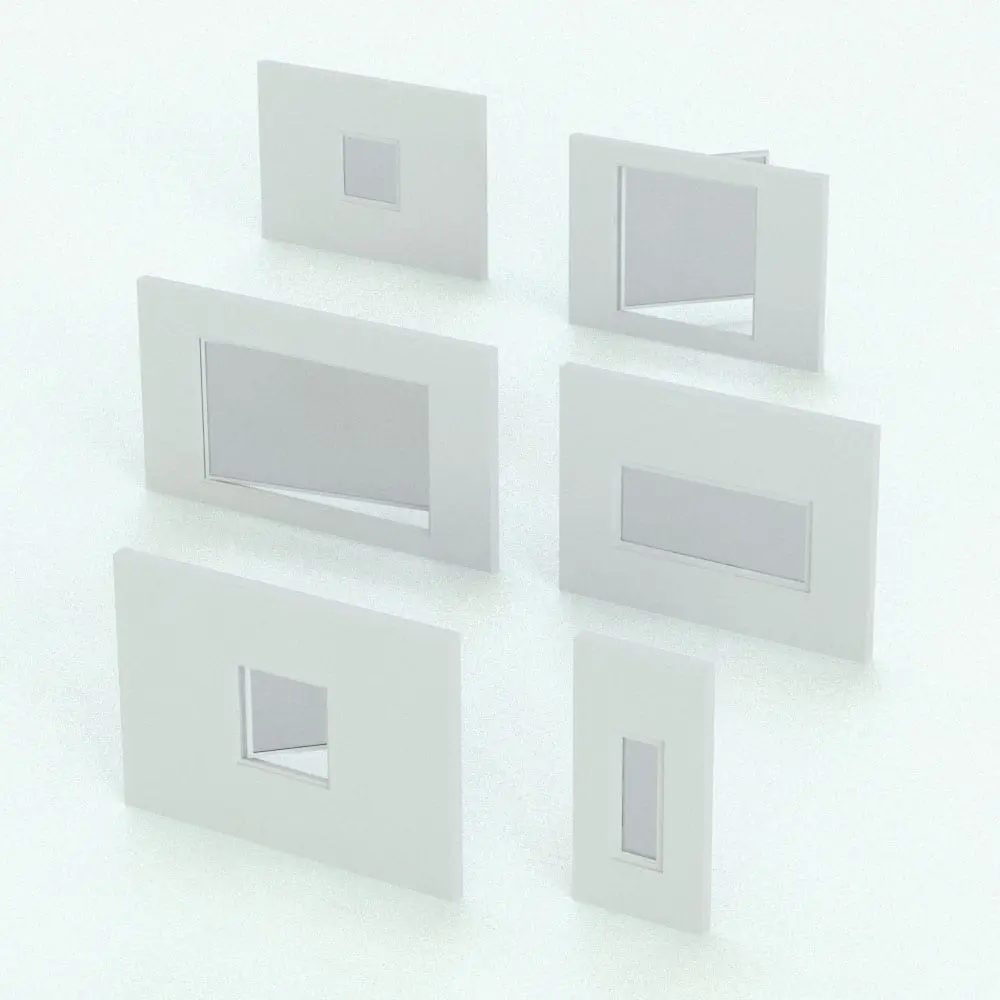

XL Casement Revit Window Family shown in different sizes and configurations to showcase its parametric versatility. This Revit family allows you to change the overall dimensions of the window, the materials and even the position of the window within the wall thickness. Don't wait any longer and download this FREE Revit window family today.
XL Casement Revit Window Family in 3D and rendered in black and white (ambient occlusion style) to show the shapes better. This Revit family is highly details and fully parametric. Ideal for residential, commercial and hospitality projects, this Revit window family will transform your spaces in just a few clicks. Get it today. Its FREE.
2D details in this XL Casement Revit Window Family - T450N
XL Casement Revit Window Family embedded in a gray brick wall and rendered in a light colored metallic frame finish. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, select the size and hot the render button for instant results. And the best part is that it belongs to our FREE Revit families category, so download this Revit window family and start using it today.
XL Casement Revit Window Family shown in different sizes and configurations to showcase its parametric versatility. This Revit family allows you to change the overall dimensions of the window, the materials and even the position of the window within the wall thickness. Don't wait any longer and download this FREE Revit window family today.
XL Casement Revit Window Family in 3D and rendered in black and white (ambient occlusion style) to show the shapes better. This Revit family is highly details and fully parametric. Ideal for residential, commercial and hospitality projects, this Revit window family will transform your spaces in just a few clicks. Get it today. Its FREE.
2D details in this XL Casement Revit Window Family - T450N

XL Casement Revit Window Family – T450N

rfa

$0.00

Categories: , , Tags: , , , , , ,

Upgrade your architectural projects with the XL Casement Revit Window Family – T450N, a high-quality operable Revit window family featuring an extra-thick frame for enhanced durability and modern aesthetics. This side-hinged casement Revit window swings outward, providing superior ventilation while maintaining a sleek, contemporary design. Ideal for residential, commercial, and institutional buildings, this robust Revit window frame ensures long-lasting performance and a bold architectural statement.

This fully parametric XL Casement Revit Window Family – T450N allows customization of window dimensions, frame materials, and more, making it adaptable for various design needs. Whether used as a single unit or in combination with other Revit windows, this casement Revit window family provides a premium look with its reinforced frame and clean design.

You can offset the window within the thickness of the wall to have more control over the look. You can also open/close the window for different looks. Additionally, the Revit window comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations. Swing lines in elevation can also be turned on/off. Manufacturer’s details can be found inside of the family.

NOTE: This Revit window is part of our FREE Revit families category, so go ahead and download it today. No credit card required.

Looking for other styles of Revit window families? Click HERE to explore all the options we have in stock.

For a detailed description of parameters and materials of this Revit window family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Window
  • Materials/textures: No
  • Approximate file size (set): 1.16 MB
  • File format: .rfa

This XL Casement Revit Window Family – T450N window comes with the following customizable parameters and options:

Width, height and opening angle of this Revit window family:

  • Minimum width: 1′
  • Maximum width: Unlimited
  • Minimum height: 1′
  • Maximum height: Unlimited
  • Minimum opening angle: 0
  • Maximum opening angle: 45

You can offset this window within the wall thickness or offset to any of the faces (interior or exterior)

You can turn on/off the details in floor plan and elevations for a cleaner look.

You can turn the swing lines on/off

This XL version is the same as T450N-Casement, except that the Revit window frame is thicker.

This XL Casement Revit Window Family – T450N comes with material parameters for:

  • Frame
  • Glass
