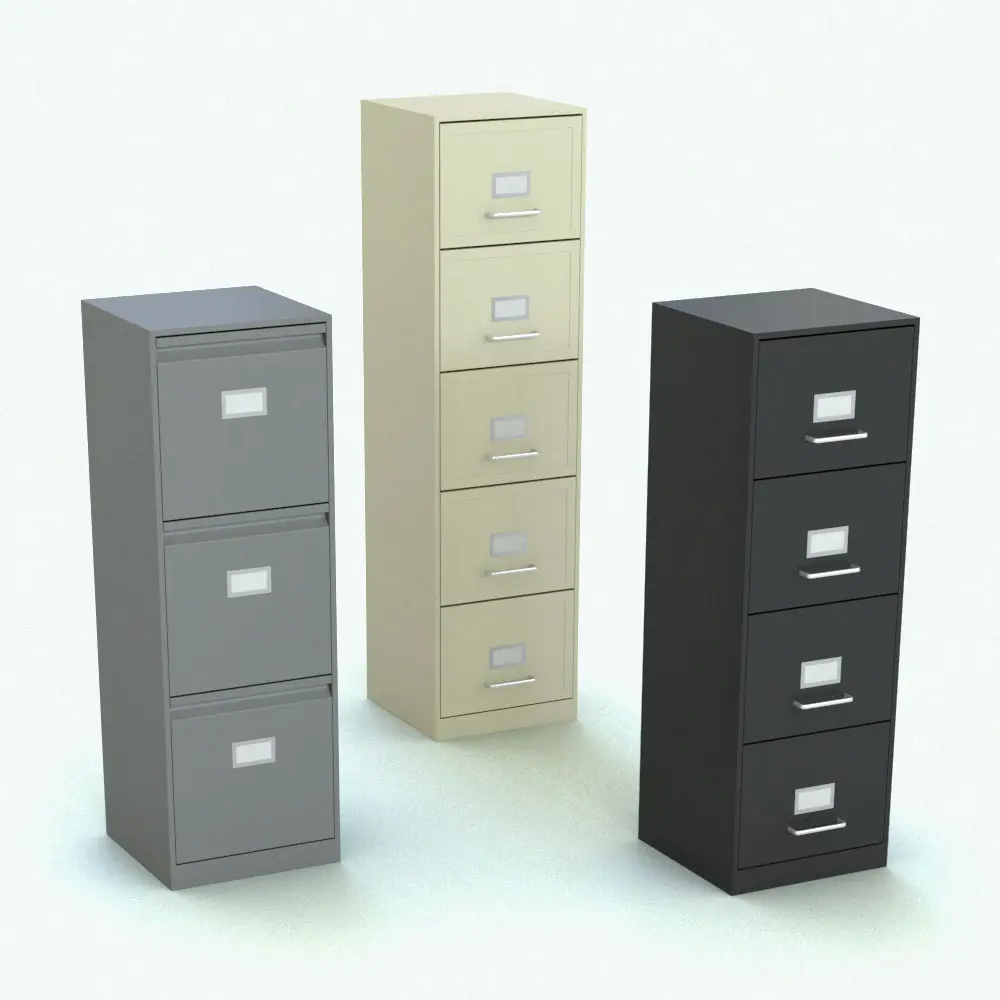

Filing Revit Cabinets Family in 3D and rendered in different metallic colors (gray, tan and black). Ideal for home offices, corporate offices, co-working spaces and much more, this Revit cabinets family will make your spaces look finished and complete.

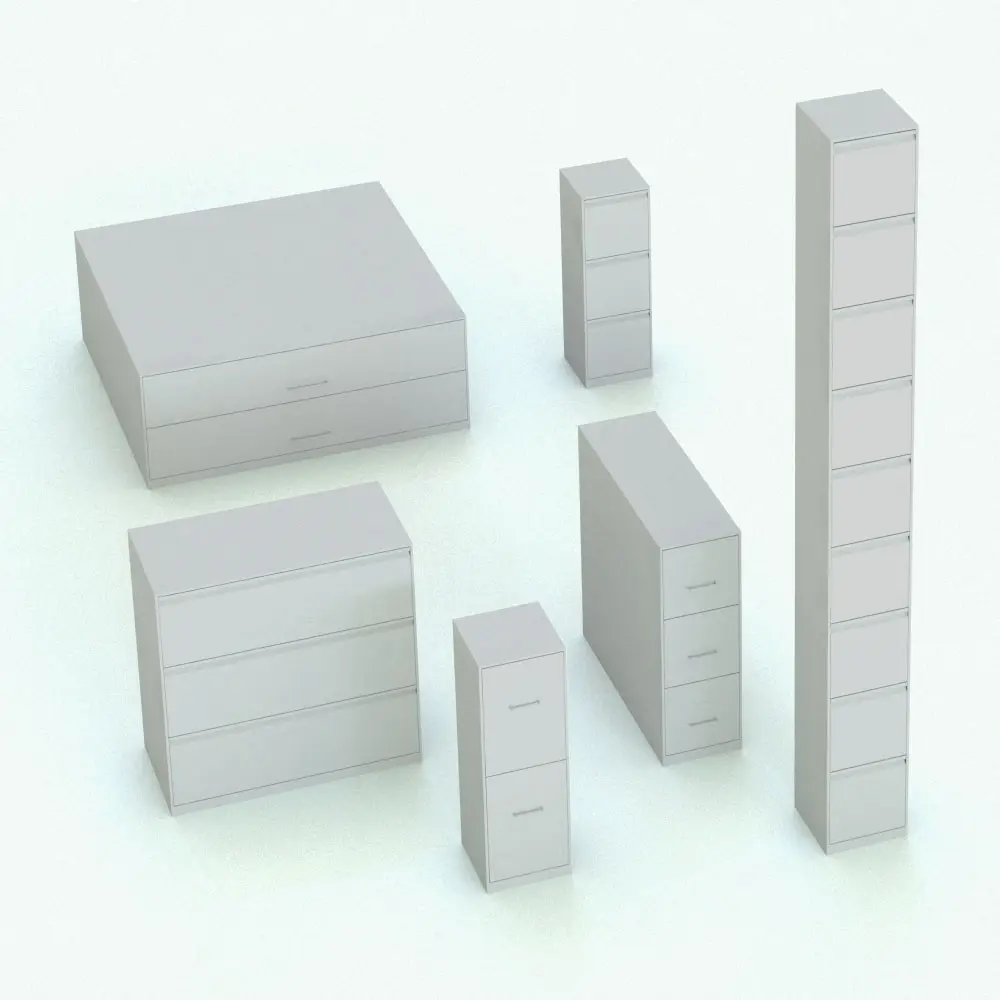

Filing Revit Cabinets Family shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change not only the overall dimensions, but also the number of filing drawers, type of drawer, materials and more. Don't let this opportunity to make your spaces look more realistic go by and add this Filing Revit Cabinets Family to your cart today.
Filing Revit Cabinets Family in front view and rendered in black and white (ambient occlusion style) to show the shapes better. Whether you need a complement for your project or an accent in your render, this fully parametric and easy to use Revit cabinets family will transform your spaces and make them look finished in just a few clicks.
Filing Revit Cabinets Family in top view and rendered without any materials to show the shape better. Ideal for commercial of hospitality spaces, this fully parametric and ready to render Revit cabinets family will add a touch of finesse and livability to your projects.
Filing Revit Cabinets Family in 3D and rendered in different metallic colors (gray, tan and black). Ideal for home offices, corporate offices, co-working spaces and much more, this Revit cabinets family will make your spaces look finished and complete.
Filing Revit Cabinets Family shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change not only the overall dimensions, but also the number of filing drawers, type of drawer, materials and more. Don't let this opportunity to make your spaces look more realistic go by and add this Filing Revit Cabinets Family to your cart today.
Filing Revit Cabinets Family in front view and rendered in black and white (ambient occlusion style) to show the shapes better. Whether you need a complement for your project or an accent in your render, this fully parametric and easy to use Revit cabinets family will transform your spaces and make them look finished in just a few clicks.
Filing Revit Cabinets Family in top view and rendered without any materials to show the shape better. Ideal for commercial of hospitality spaces, this fully parametric and ready to render Revit cabinets family will add a touch of finesse and livability to your projects.

Filing Revit Cabinets Family

rfa

$4.49

Categories: , Tags: , , , , , , , ,

Streamline office storage with the Filing Revit Cabinets Family, a fully parametric and customizable Revit cabinets family designed for efficient organization in corporate, commercial, and home office spaces. This versatile family allows users to configure different drawer types, cabinet heights, and dimensions, making it adaptable to various workspace requirements.

With full parametric control, this Revit filing cabinets allow users to adjust the number of drawers, materials, drawer options and more to match their specific design needs. Whether used in corporate offices, archives, or workspace interiors, the Filing Revit Cabinets Family ensures seamless BIM integration, providing a functional and professional storage solution.

Looking for more Revit office families? Click HERE to see all the options we have in stock.

For a detailed description of parameters and materials of this Revit cabinets family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Furniture
  • Materials/textures: Yes
  • Approximate file size: 0.50 MB
  • File format: .rfa

This Filing Revit Cabinets Family comes with the following customizable parameters and options:

Width, depth and height of the Revit cabinets can be changed:

  • Minimum width: 1′
  • Maximum width: 6′
  • Minimum depth: 1′
  • Maximum depth: 6′
  • Minimum height: 2’4″
  • Maximum height: 20′

Number of drawers can be changed:

  • Minimum number of drawers: 2
  • Maximum number of drawers: As many as the height of the drawers is not less than 11″

This Revit cabinets family comes with three different types of drawer shapes. Also, the handle position as well as the tag position and visibility can be changed.

This Filing Revit Cabinets Family comes with material parameters for:

  • Cabinet
  • Handles
  • Tag Edge
  • Tag

* Hybrid families combine native Revit objects with other 3D applications’ objects for a and realistic look to the families.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.

Format

rfa

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
