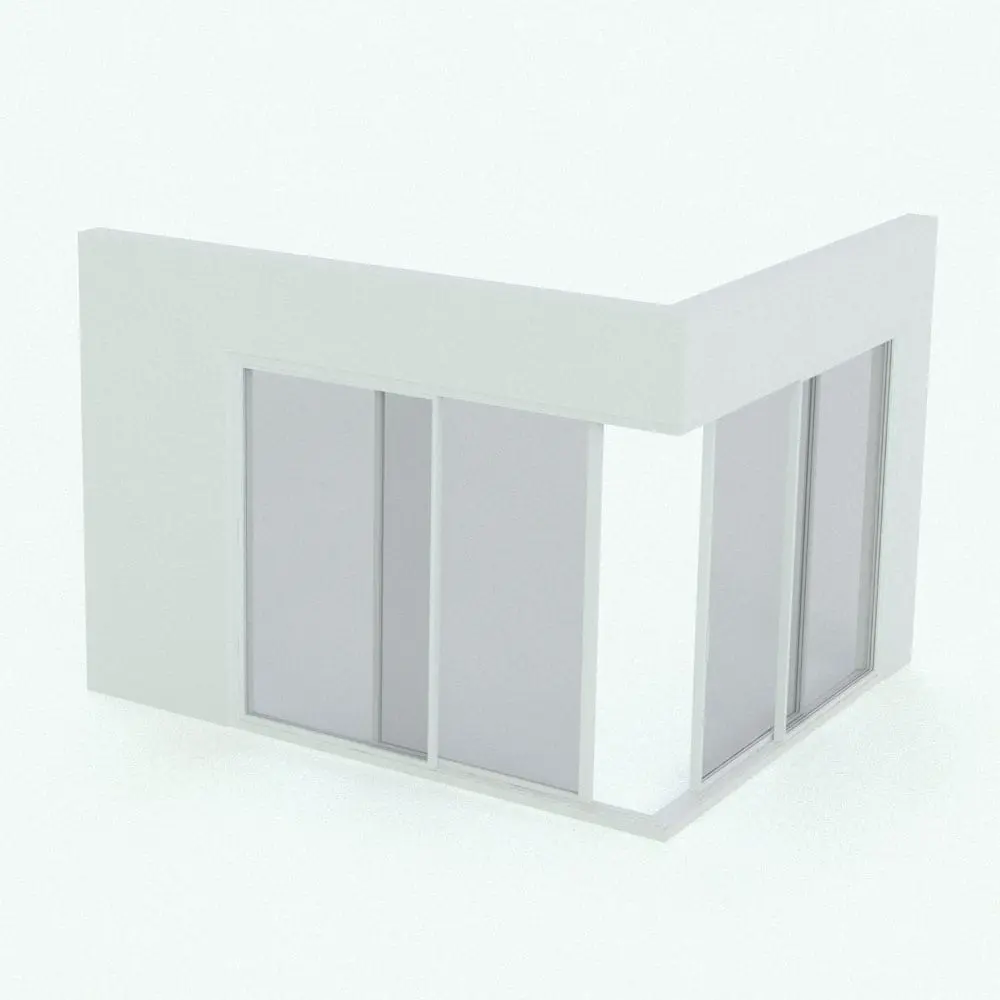

Corner Sliding Door Revit Family - SLD-OX-Corner-XO Multi Slide in 3D and rendered in a masonry wall. Ideal for luxury residential projects, commercial or hospitality settings, this fully parametric and easy to use sliding door Revit family will seamlessly blend to your Revit project in just a few clicks. Get it today and see for yourself.

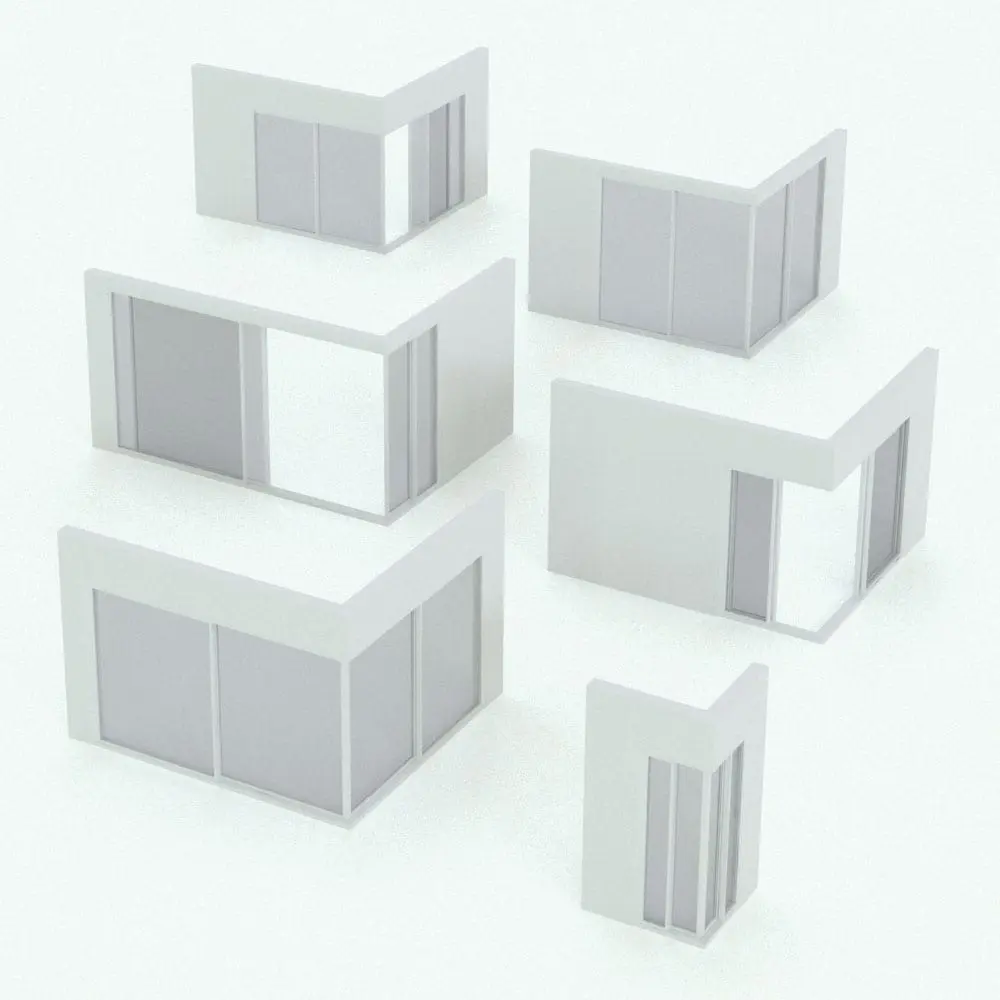

Corner Sliding Door Revit Family - SLD-OX-Corner-XO Multi Slide shown in different sizes and configurations to showcase its parametric versatility. This Revit family is part of our free Revit families, so go ahead and download it today! No credit card required.
Corner Sliding Door Revit Family - SLD-OX-Corner-XO Multi Slide in 3D and rendered in black and white (ambient occlusion style) to showcase the shapes better. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, select the materials (or use the provided ones) and hit the render button for instant results. Oh, and the best part? It belongs to our free Revit families category, so go ahead and download this corner sliding Revit family today.
Corner Sliding Door Revit Family - SLD-OX-Corner-XO Multi Slide in 2D view.
Corner Sliding Door Revit Family - SLD-OX-Corner-XO Multi Slide in 3D and rendered in a masonry wall. Ideal for luxury residential projects, commercial or hospitality settings, this fully parametric and easy to use sliding door Revit family will seamlessly blend to your Revit project in just a few clicks. Get it today and see for yourself.
Corner Sliding Door Revit Family - SLD-OX-Corner-XO Multi Slide shown in different sizes and configurations to showcase its parametric versatility. This Revit family is part of our free Revit families, so go ahead and download it today! No credit card required.
Corner Sliding Door Revit Family - SLD-OX-Corner-XO Multi Slide in 3D and rendered in black and white (ambient occlusion style) to showcase the shapes better. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, select the materials (or use the provided ones) and hit the render button for instant results. Oh, and the best part? It belongs to our free Revit families category, so go ahead and download this corner sliding Revit family today.
Corner Sliding Door Revit Family - SLD-OX-Corner-XO Multi Slide in 2D view.

Corner Sliding Door Revit Family – SLD-OX-Corner-XO Multi Slide

rfa

$0.00

Categories: , , Tags: , , , , , , ,

Enhance your architectural projects with the Corner Sliding Door Revit Family – SLD-OX-Corner-XO Multi Slide, a high-quality, parametric corner Revit sliding door designed for modern residential and commercial spaces. This multi-panel sliding system seamlessly integrates into corner layouts, allowing for a fully open transition between indoor and outdoor areas.

This Corner Sliding Door Revit Family offers adjustable dimensions, frame materials, and more, ensuring it fits a wide range of design styles and spatial configurations. Whether for luxury homes, office spaces, or hospitality environments, this sliding door Revit family system maximizes natural light and open-concept aesthetics.

This sliding Revit family is part of our free Revit families category, so don’t wait any longer and download it today. No credit card required.

Note: Manufacturer’s details can be found inside of the family.

Looking for other Revit door families? Click HERE to see all the options we have in stock.

For a detailed description of parameters and materials of this sliding door Revit family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Door
  • Materials/textures: No
  • Approximate file size (set): 0.83 MB
  • File format: .rfa

This Corner Sliding Door Revit Family comes with the following customizable parameters and options:

Width, depth and height of this Revit door family:

  • Minimum width: 3′
  • Maximum width: Unlimited
  • Minimum depth: 3′
  • Maximum depth: Unlimited
  • Minimum height: 5′
  • Maximum height: Unlimited

Opening percentage of each Revit door (individually):

  • Minimum opening percentage: 0
  • Maximum opening percentage: 100

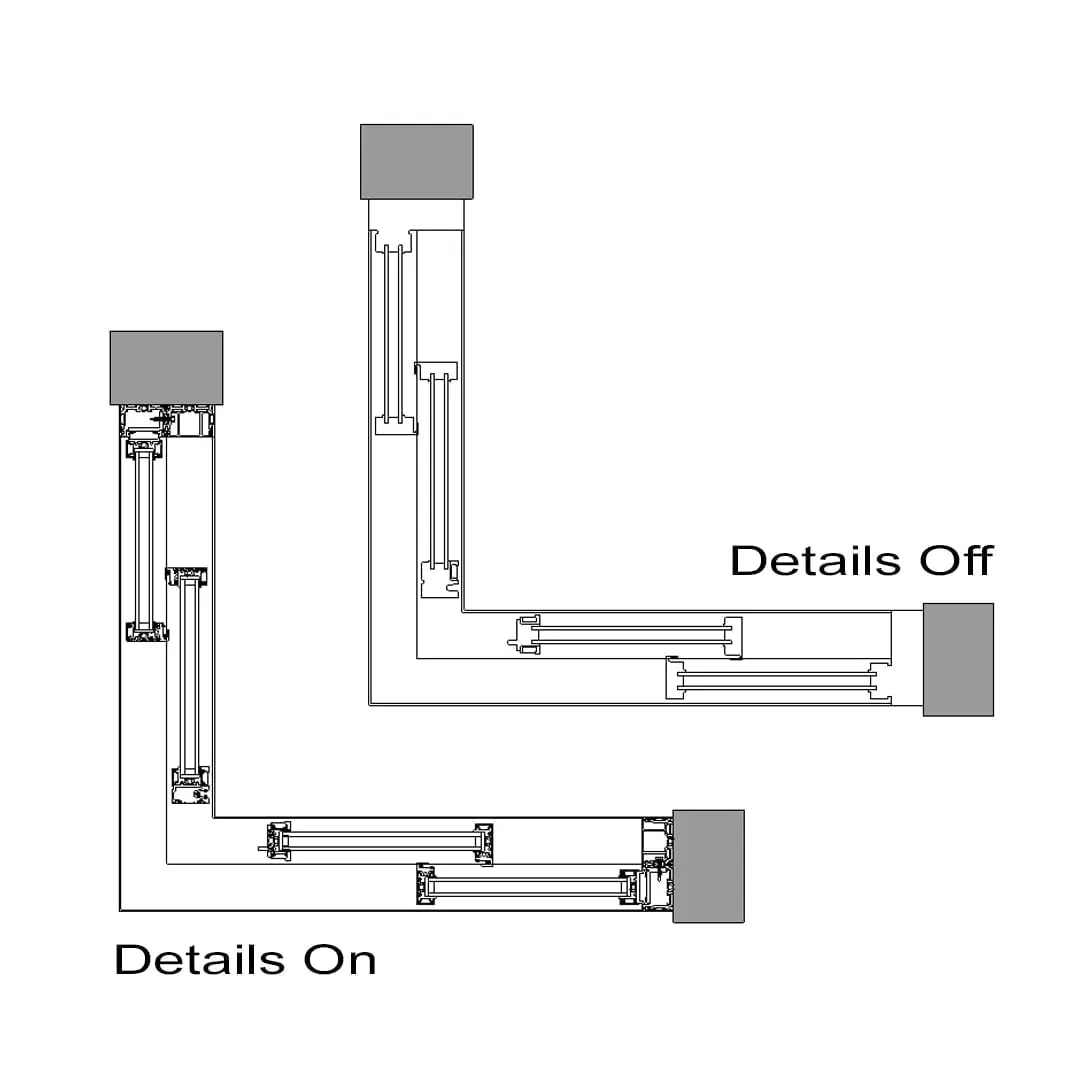

Details in floor plan and elevations can be turned on/off

This Corner Sliding Door Revit Family comes with material parameters for:

  • Frame
  • Glass Pane

And don’t forget: this is a FREE Revit family, so get it today.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
