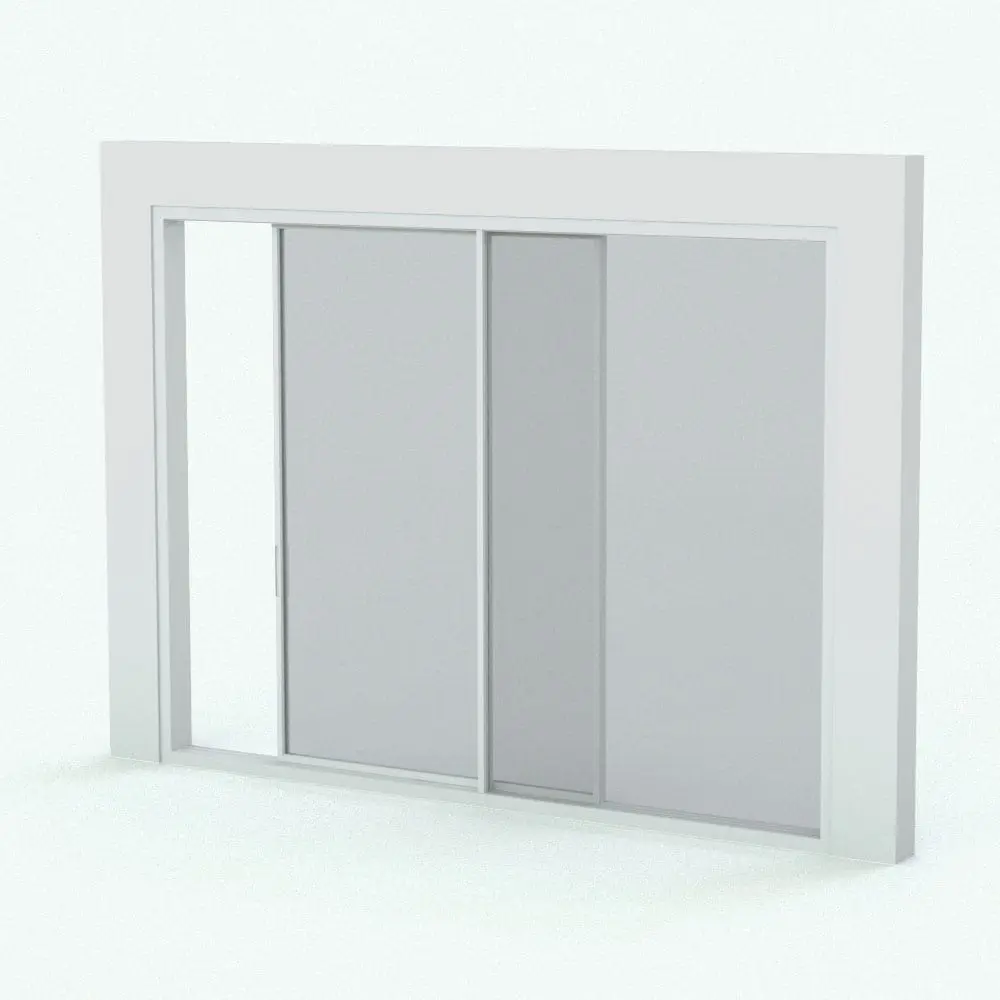

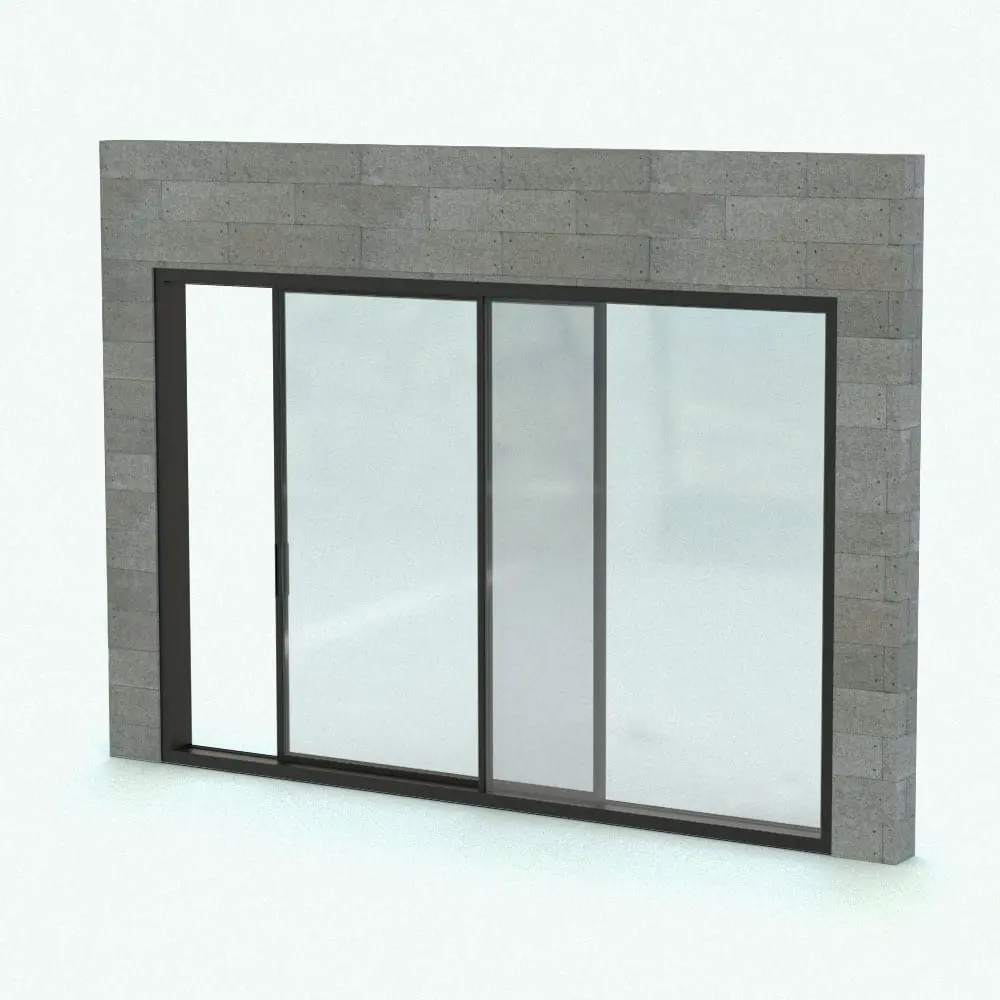

This sliding door Revit family has one fixed side with no frame (the sliding side does have a frame) and it can change to any dimension through the use of type parameters. The sliding door can open to any percentage and it comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations that can be turned on/off. Manufacturer’s details can be found inside of the family.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Door
• Materials/textures: No
• Approximate file size (set): 0.62 MB
• File format: .rfa

This door family comes with the following customizable parameters and options:

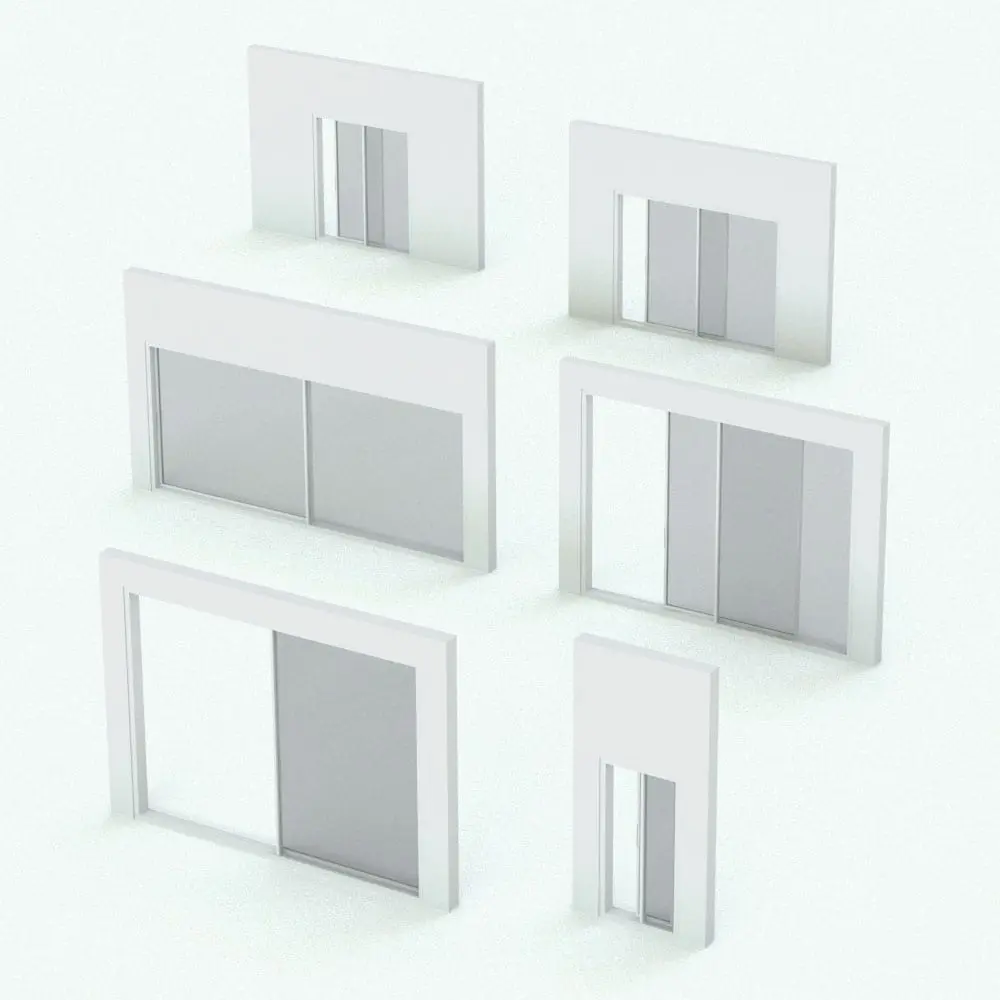

Width and height:

• Minimum width: 3′
• Maximum width: Unlimited

• Minimum height: 5′
• Maximum height: Unlimited

Door opening percentage:

• Minimum opening percentage: 0
• Maximum opening percentage: 100

Details in floor plan and elevations can be turned on/off

Material parameters for:

• Frame
• Glass Pane

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
