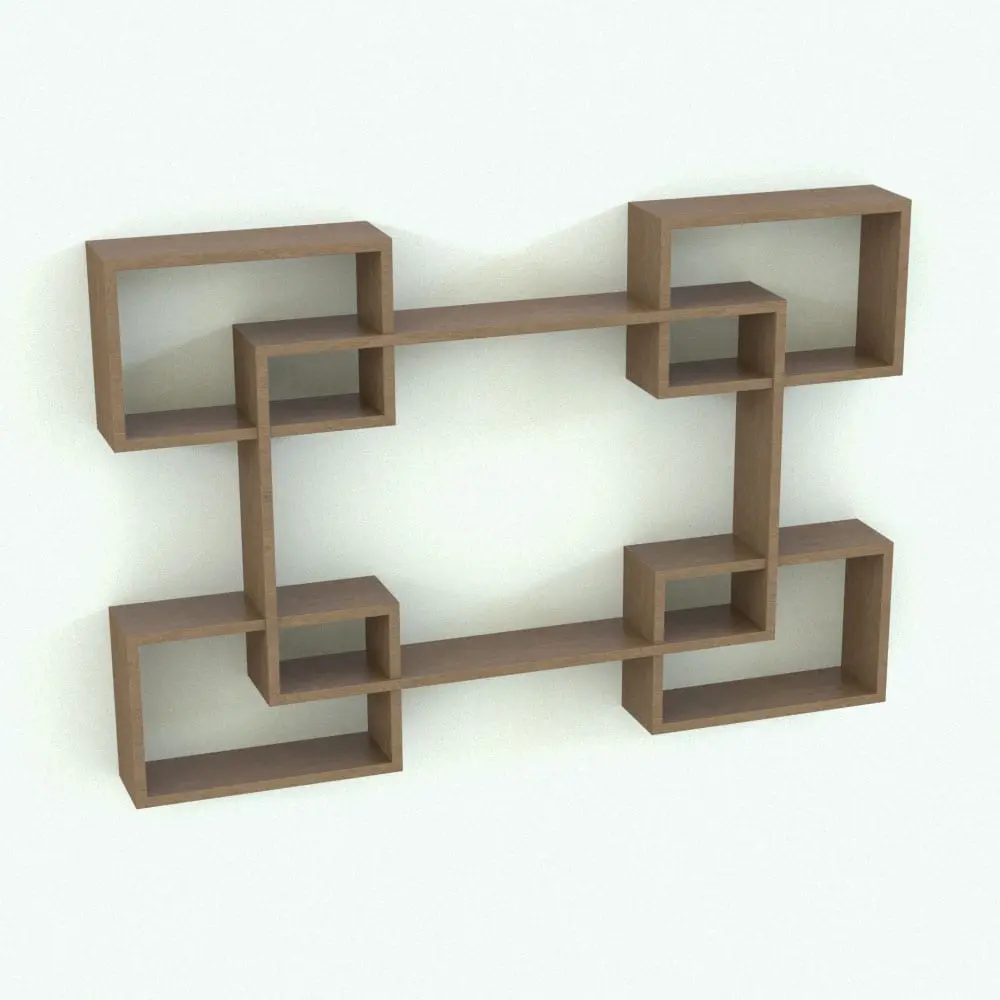

Multiple Rectangles Revit Shelf Family in 3d and rendered in a light colored wood finish. This Revit family is fully parametric and it allows you not only to change the dimensions, but also the layout, so you can create your own arrangements and designs. Ideal for modern residential, commercial or hospitality projects, this Revit shelf family will seamlessly blend with your project in just a few clicks.

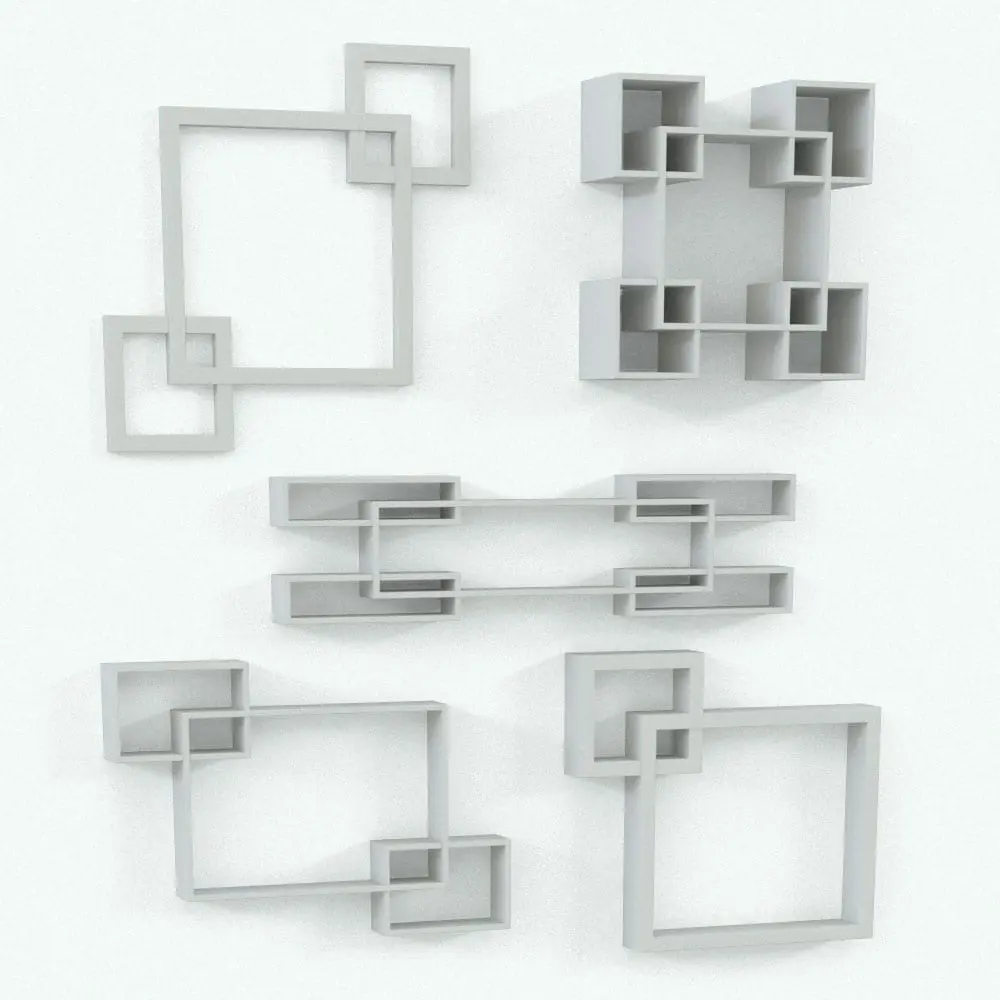

Multiple Rectangles Revit Shelf Family shown in different sizes and configurations to showcase its parametric flexibility. With parameters to change the overall dimensions as well as the depth and visibility of each one of the corner rectangles, this Revit family will bring versatility and charm to all your interior design projects.

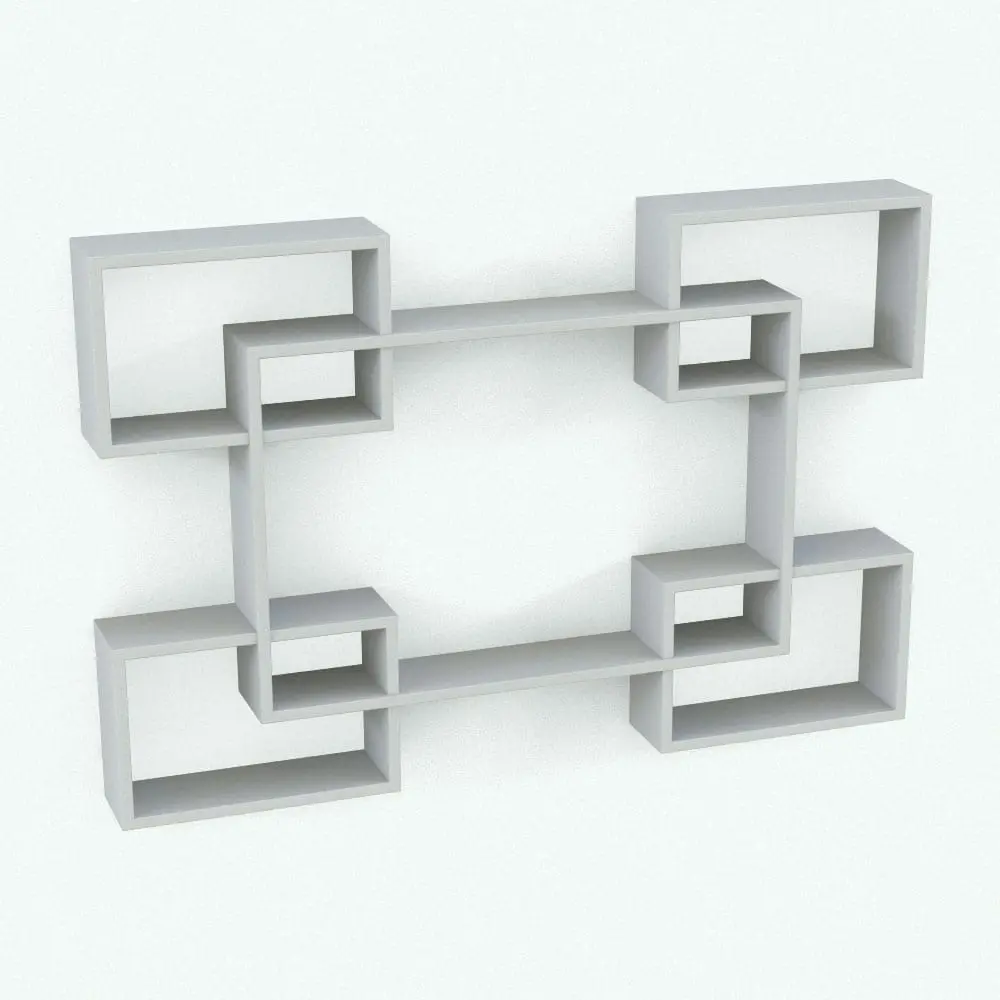

Multiple Rectangles Revit Shelf Family in 3D and rendered in black and white (ambient occlusion style) to showcase the shapes better. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, load the provided textures (or use your own) and hit the render button for instant results. Don't wait any longer and add this Multiple Rectangles Revit Shelf Family to your cart today.
Multiple Rectangles Revit Shelf Family in 3d and rendered in a light colored wood finish. This Revit family is fully parametric and it allows you not only to change the dimensions, but also the layout, so you can create your own arrangements and designs. Ideal for modern residential, commercial or hospitality projects, this Revit shelf family will seamlessly blend with your project in just a few clicks.
Multiple Rectangles Revit Shelf Family shown in different sizes and configurations to showcase its parametric flexibility. With parameters to change the overall dimensions as well as the depth and visibility of each one of the corner rectangles, this Revit family will bring versatility and charm to all your interior design projects.
Multiple Rectangles Revit Shelf Family in 3D and rendered in black and white (ambient occlusion style) to showcase the shapes better. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, load the provided textures (or use your own) and hit the render button for instant results. Don't wait any longer and add this Multiple Rectangles Revit Shelf Family to your cart today.

Multiple Rectangles Revit Shelf Family

rfa

$3.99

Categories: , Tags: , , , , , , , ,

Enhance your interior designs with the Multiple Rectangles Revit Shelf Family, a fully parametric and visually striking shelving system ideal for modern spaces. This Revit family features an interconnected rectangular layout, creating a geometric, open-shelving solution that blends functionality with artistic expression.

Designed for residential, commercial, and hospitality interiors, this shelf serves as a statement piece for wall-mounted storage and display.

With its parametric flexibility, users can adjust the size, proportions, and configuration of the rectangular elements to achieve different layouts, as shown in one of the images. Whether you need a compact design for a small space or a larger feature wall composition, this shelving system adapts to your needs.

The materials and dimensions are fully customizable, ensuring seamless integration with various design aesthetics.

Need decoration Revit families to add to your Revit shelf? Click HERE to see what we have in stock.

For a detailed description of parameters and materials of this Revit shelf family, please read the Revit Family Technical Information section below.



  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model Work Plane Based
  • Materials/textures: Yes
  • Approximate file size: 0.41 MB
  • File format: .rfa

This Multiple Rectangles Revit Shelf Family comes with the following customizable parameters and options:

Width+, height+, depth and thickness of this Revit shelf:

  • Minimum width: thickness value x 16
  • Maximum width: 30′
  • Minimum height: thickness value x 16
  • Maximum height: 30′
  • Minimum depth: 2″
  • Maximum depth: 1′ 6″
  • Minimum thickness: 1/4″
  • Maximum thickness: 3″

+Width and Height values are measured to the main Rectangular shelf, not the corner ones

Visibility of each of the corner rectangles can be turned on/off individually

This Multiple Rectangles Revit Shelf Family comes with a material parameter for:

  • Shelves

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.

Format

rfa
