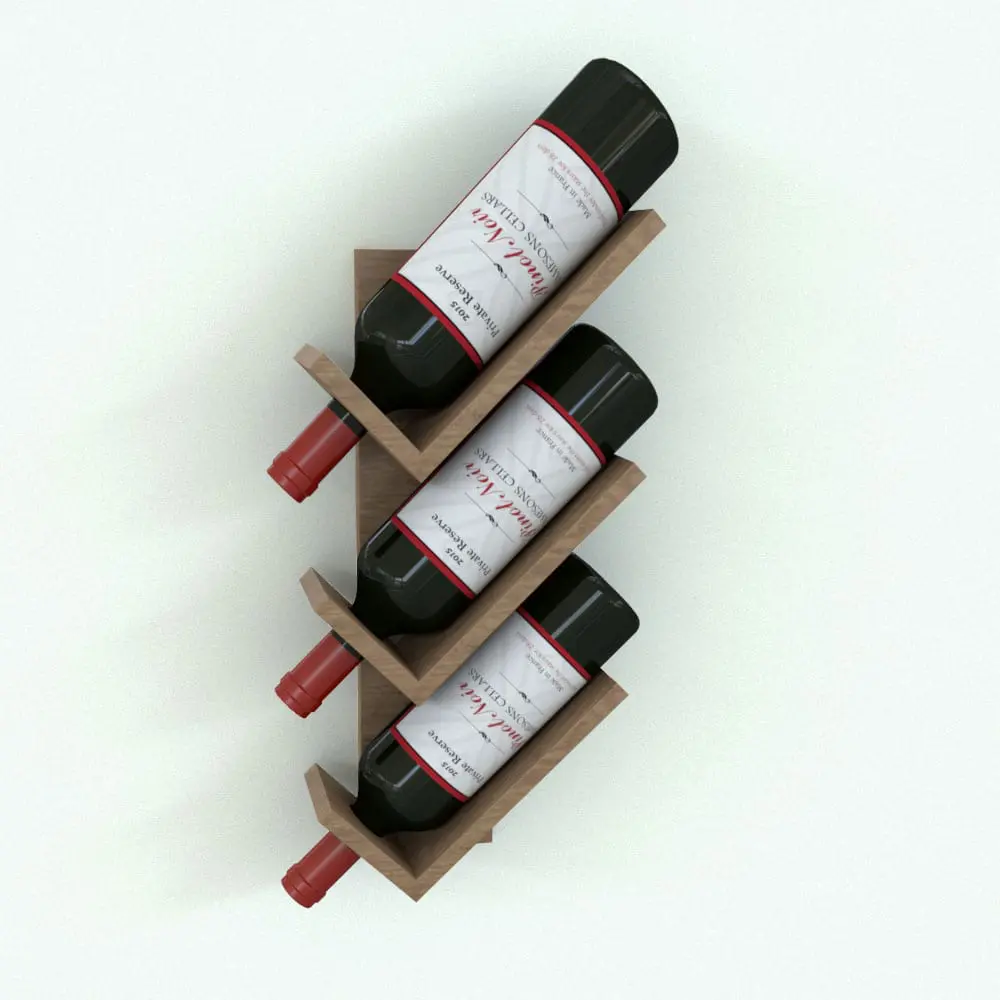

Angles Wine Rack Revit Family in 3D and rendered in a light colored wood finish with red wine bottles. This Revit family includes the depicted bottle of wine, which can be turned into a bottle of white wine as well. Fully parametric and easy to use, this wine rack Revit family will transform your spaces in just a few clicks.

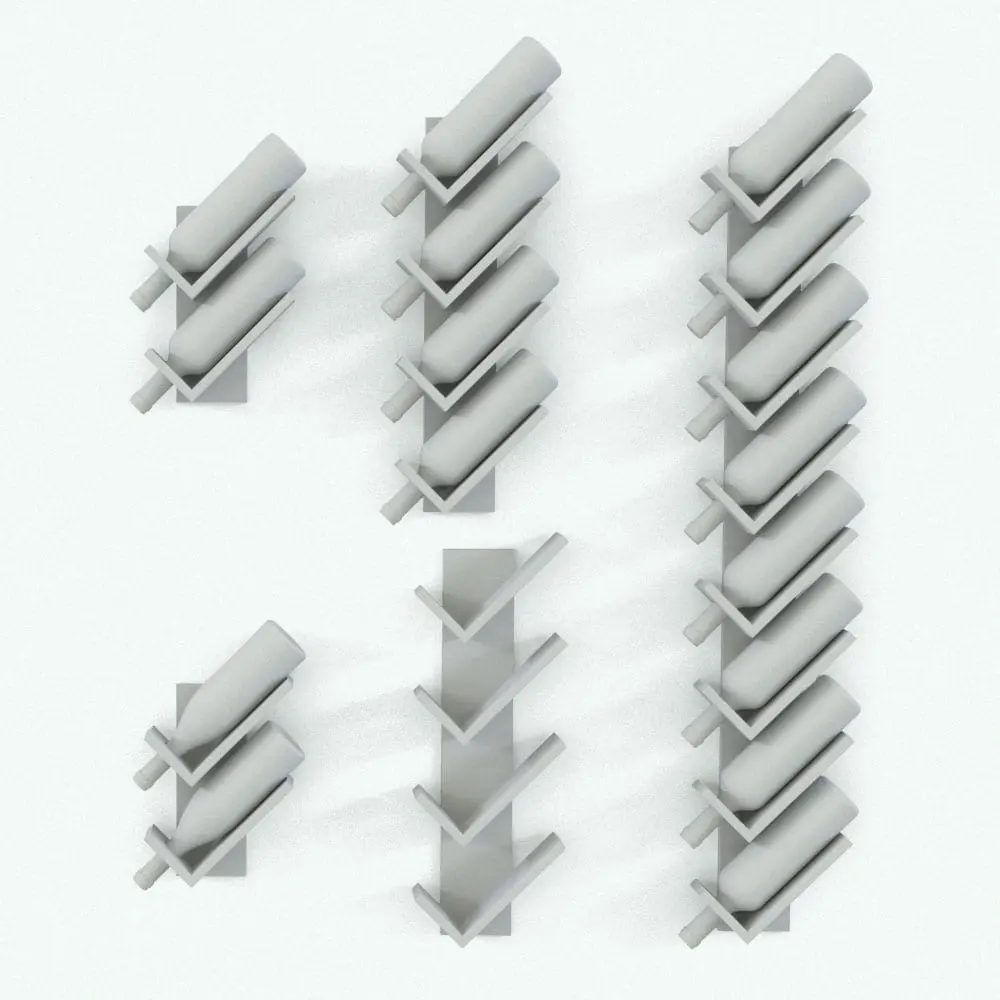

Angles Wine Rack Revit Family shown in different configurations. This Revit family allows you to change the number of spaces for bottles so you can customize it to the size of your space. Additionally, the included wine bottle Revit family can be easily inserted into this wine rack by using the provided back panel (turn it off after you place the bottles) to create your own arrangements and look. Don't wait any longer and add this wine rack Revit family to your cart today.

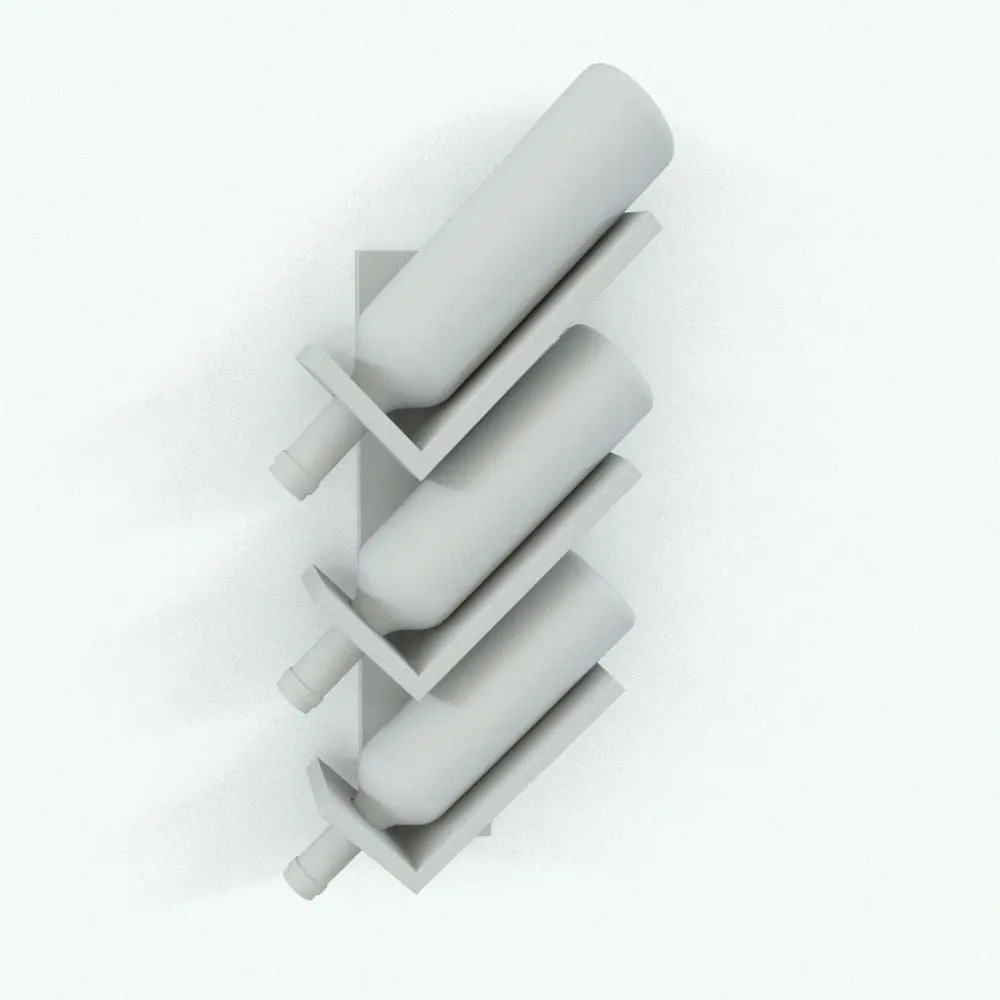

Angles Wine Rack Revit Family in 3D and rendered without any materials to show the shapes and details better. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, select the textures (or use the provided ones) and hit the render button for instant results. Don't wait any longer and add this Angles Wine Rack Revit Family to your personal assets today.
Angles Wine Rack Revit Family in 3D and rendered in a light colored wood finish with red wine bottles. This Revit family includes the depicted bottle of wine, which can be turned into a bottle of white wine as well. Fully parametric and easy to use, this wine rack Revit family will transform your spaces in just a few clicks.
Angles Wine Rack Revit Family shown in different configurations. This Revit family allows you to change the number of spaces for bottles so you can customize it to the size of your space. Additionally, the included wine bottle Revit family can be easily inserted into this wine rack by using the provided back panel (turn it off after you place the bottles) to create your own arrangements and look. Don't wait any longer and add this wine rack Revit family to your cart today.
Angles Wine Rack Revit Family in 3D and rendered without any materials to show the shapes and details better. This Revit family is fully parametric, easy to use and ready to render. Just load it into your project, select the textures (or use the provided ones) and hit the render button for instant results. Don't wait any longer and add this Angles Wine Rack Revit Family to your personal assets today.

Angles Wine Rack Revit Family

rfa

$4.49

Categories: , Tags: , , , , , , , , , ,

Enhance your interior designs with the Angles Wine Rack Revit Family, a modern and stylish wine storage solution perfect for residential and commercial spaces. This high-quality Revit family features a diagonal wooden rack designed to securely hold wine bottles. This adds a contemporary touch to kitchens, dining rooms, wine cellars, and bars.

The bottle placement system allows for both red and white wine storage, giving users flexibility in their design choices.

This Angles Wine Rack Revit Family also includes a wine bottle and a toggleable back panel, which assists users in correctly placing the bottles. Since bottles attach to faces, the back panel can be activated to easily position them and then turned off for a clean final appearance.

This Revit family includes parametric flexibility, and high-quality materials, ensuring easy customization for various project needs.

Looking for other types or styles of wine rack Revit families? Click HERE to explore our options.

For a detailed description of parameters and materials of this wine rack Revit family, please read the Revit Family Technical Information section below.



Wine Rack Revit Family:

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model Work Plane Based
  • Materials/textures: Yes
  • Approximate file size: 0.89 MB
  • File format: .rfa

Wine Bottle Revit Family:

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model Work Plane Based
  • Materials/textures: Yes
  • Approximate file size: 0.51 MB
  • File format: .rfa



This Angles Wine Rack Revit Family comes with the following customizable parameters and options:

Wine Rack Revit Family:

Number of holders:

  • Minimum number of holders: 2
  • Maximum number of holders: 20

Bottles can be switched between Red Wine and White Wine bottles and they can all be turned off in case you want to create your own arrangements.

To create your own arrangements, turn off all the bottles in the family and insert the included bottle of wine (separate file) into the project. Turn on the Back Panel Visibility option momentarily and use them to simplify the placement of the bottles in the right places (the bottle of wine attaches to faces). Turn off the back panels once you are done placing the bottles.

This Angles Wine Rack Revit Family comes with material parameters for:

  • Wine Rack
  • Bottle
  • Cap
  • Label

Wine Bottle Revit Family:

You can change the type of wine bottle between red or white wine

Material parameters for:

  • Cap
  • Bottle
  • Label

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.

Format

rfa
