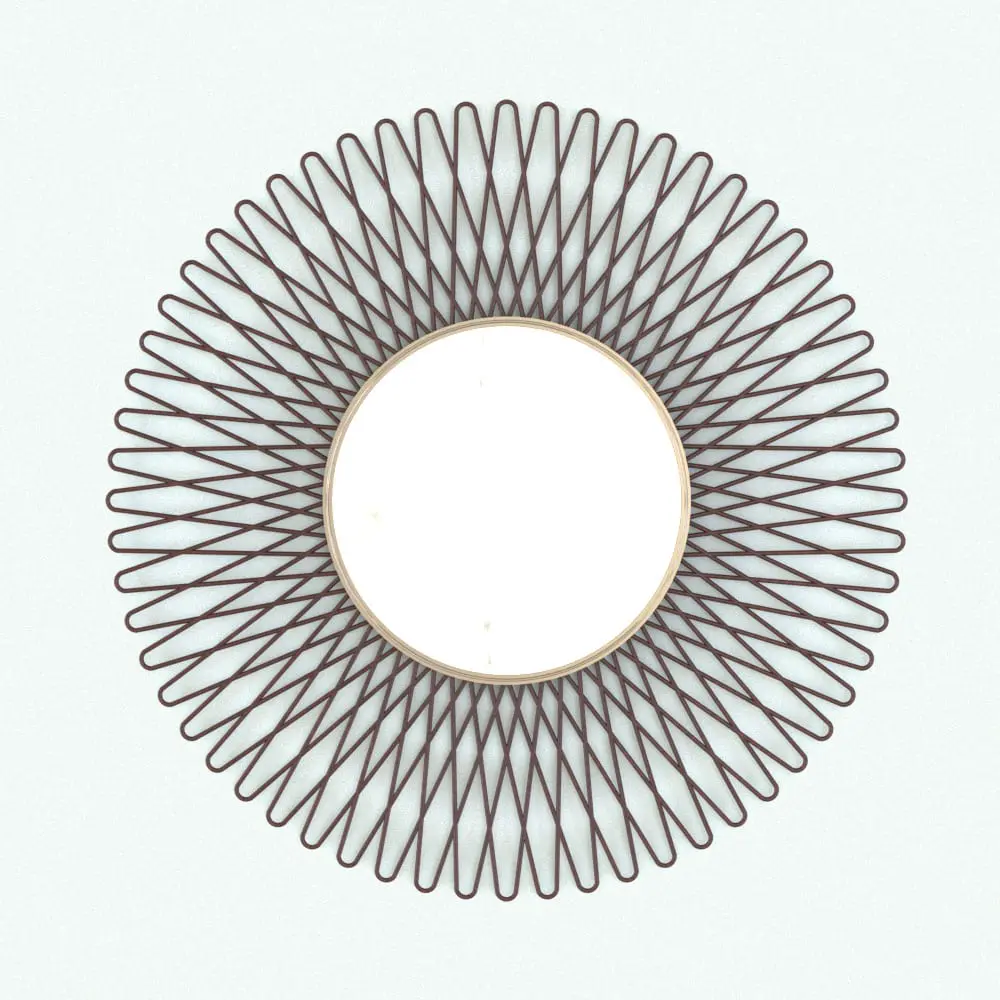

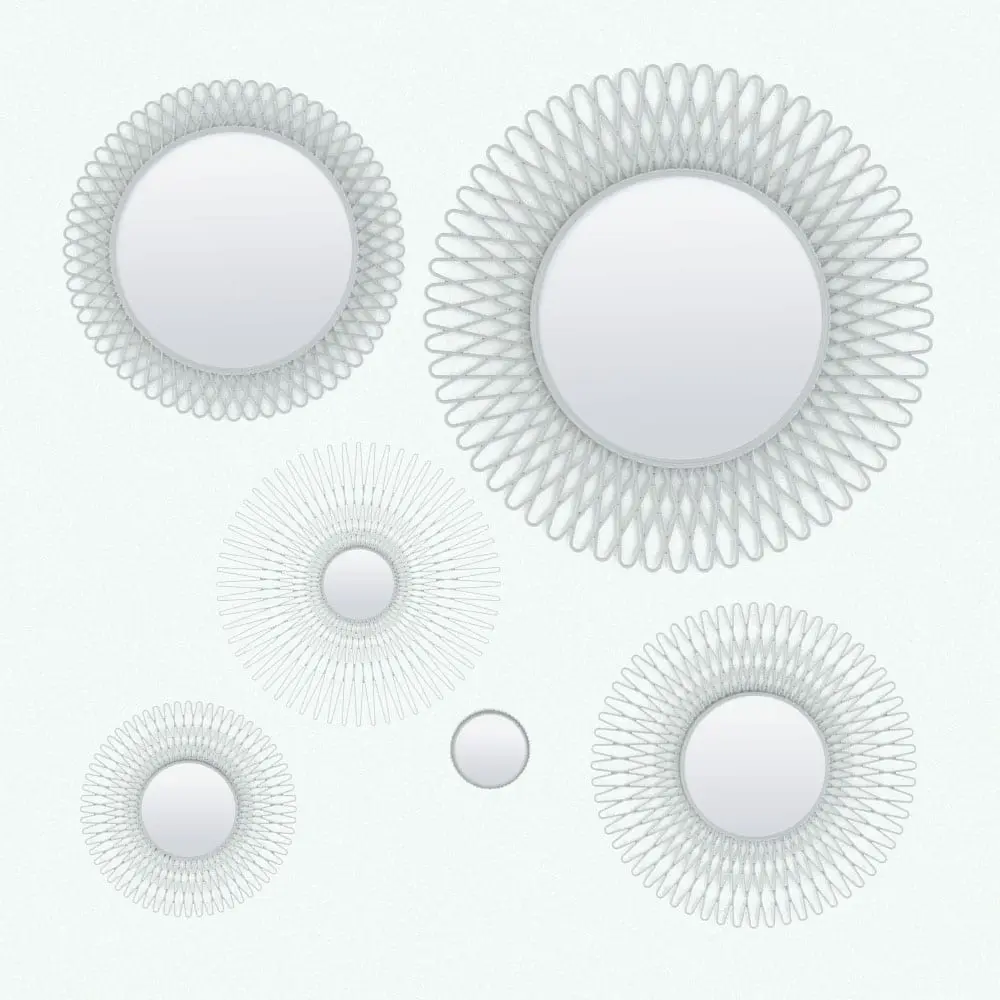

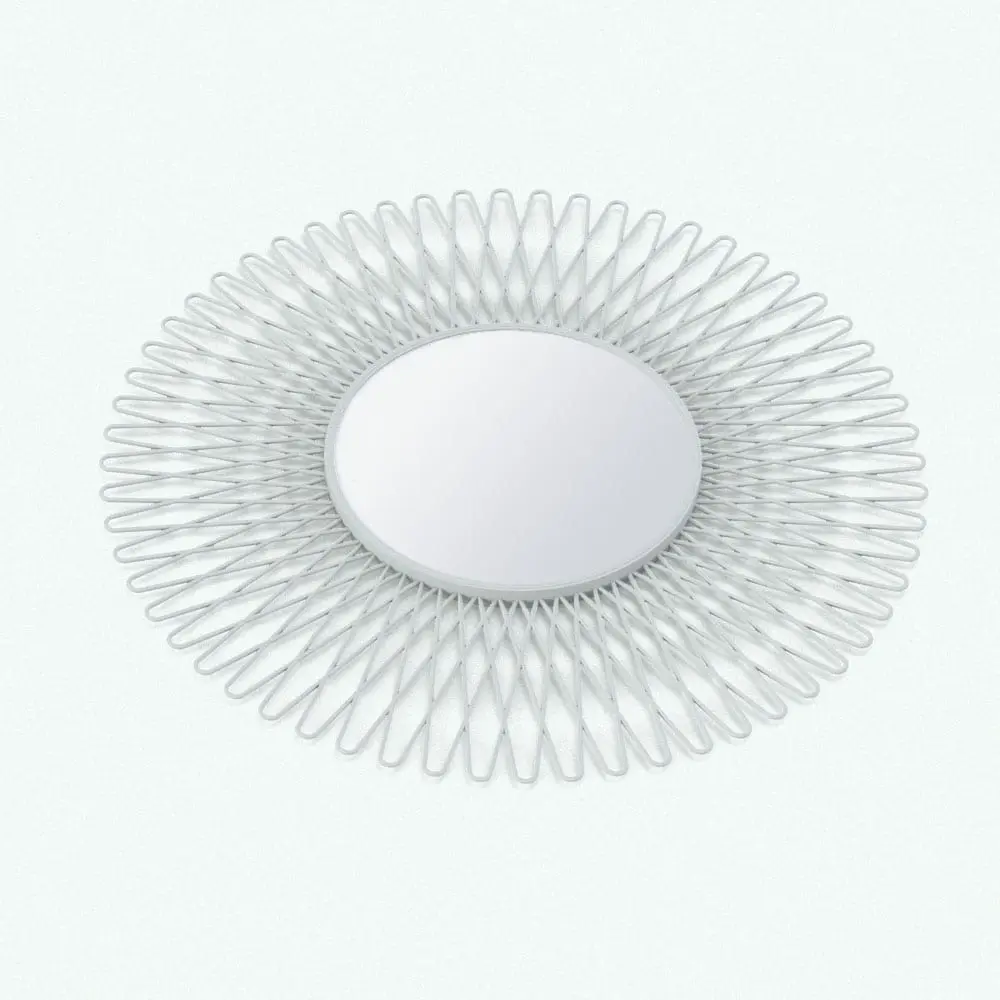

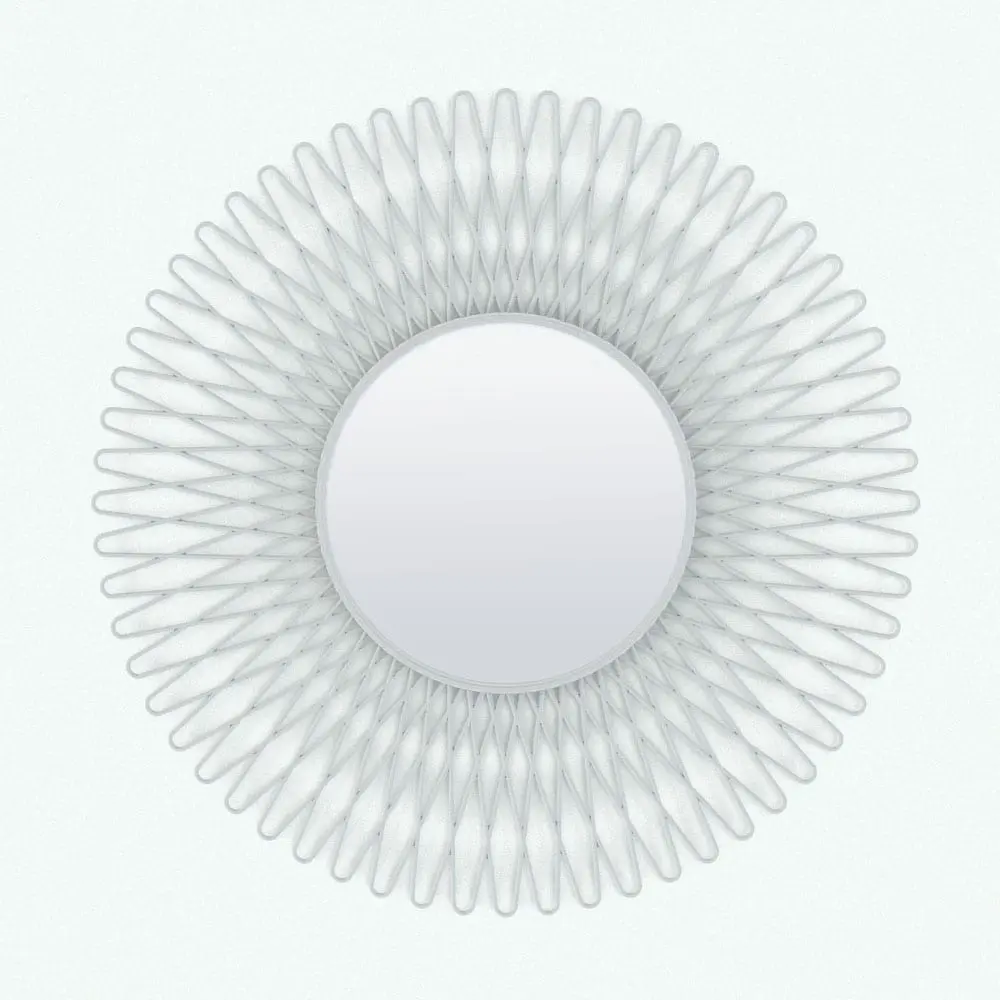

A modern mirror Revit family that can be used to adorn any space. This mirror can change size to make it fit to the area where you insert it. The thickness of the frame can be changed manually or it can be linked to the size of the mirror so that it updates its thickness proportionally. Ideal for houses, offices, stores/commercial spaces, etc.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Generic Model Face Based
- Materials/textures: Yes
- Approximate file size: 0.46 MB
- File format: .rfa
This Revit family V-shapes wall mirror comes with the following customizable parameters and options:
Mirror diameter:
- Minimum diameter++: 8″
- Maximum diameter++: 30′
++ Does not include the frame
If the “Scale Proportionally” checkbox is on, the thickness of the frame will automatically be set to 2/3rds of the mirror diameter. If “Scale Proportionally” is off, you can set the thickness of the frame using the “Frame Thickness” parameter as follows:
- Minimum frame thickness: 1/19th of the frame diameter
- Maximum frame thickness: 1.5 times the diameter of the mirror
Material parameters for:
- Mirror
- Frame
- Trim
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
