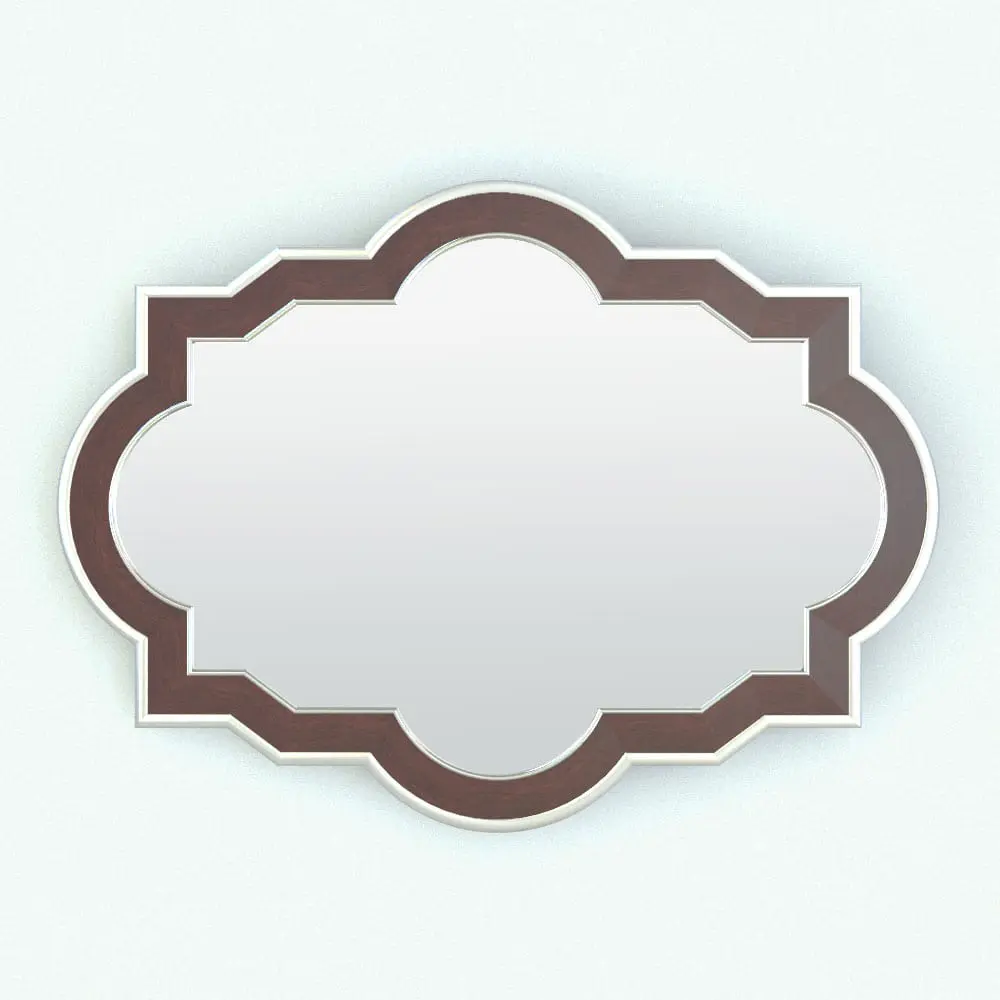

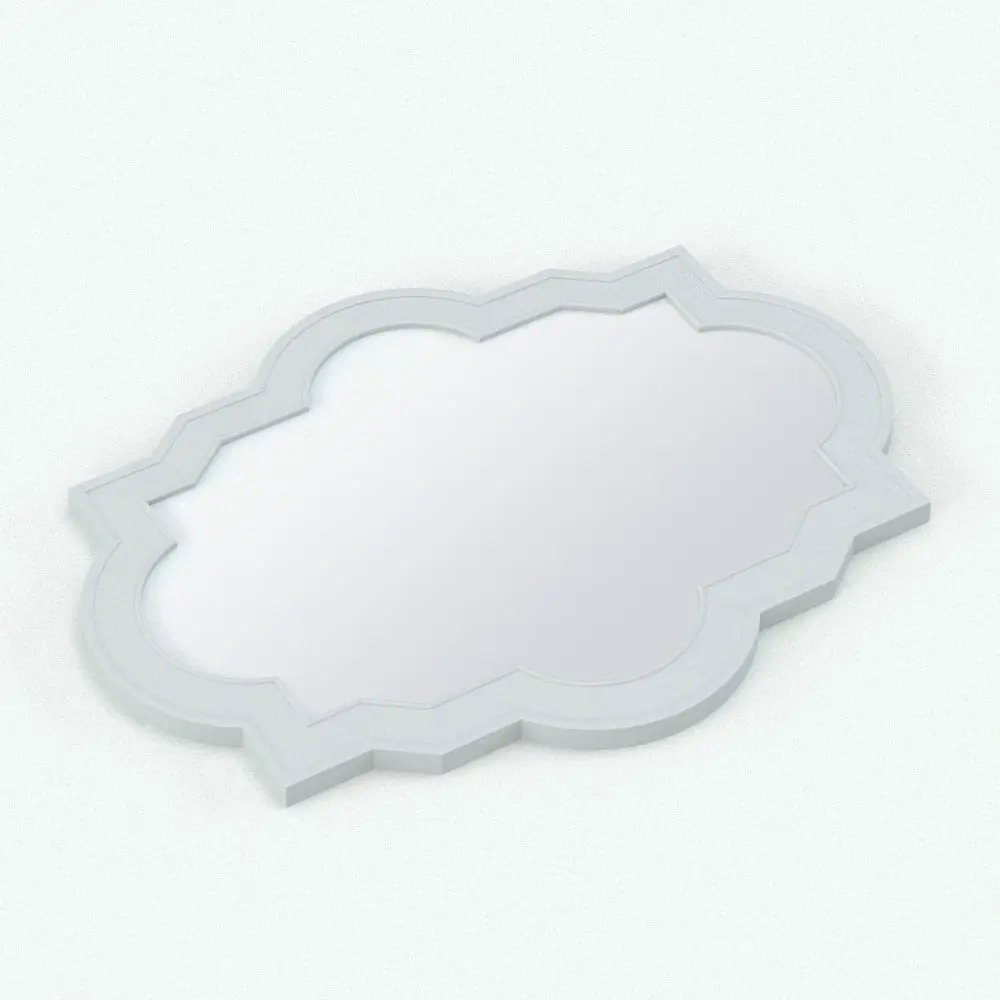

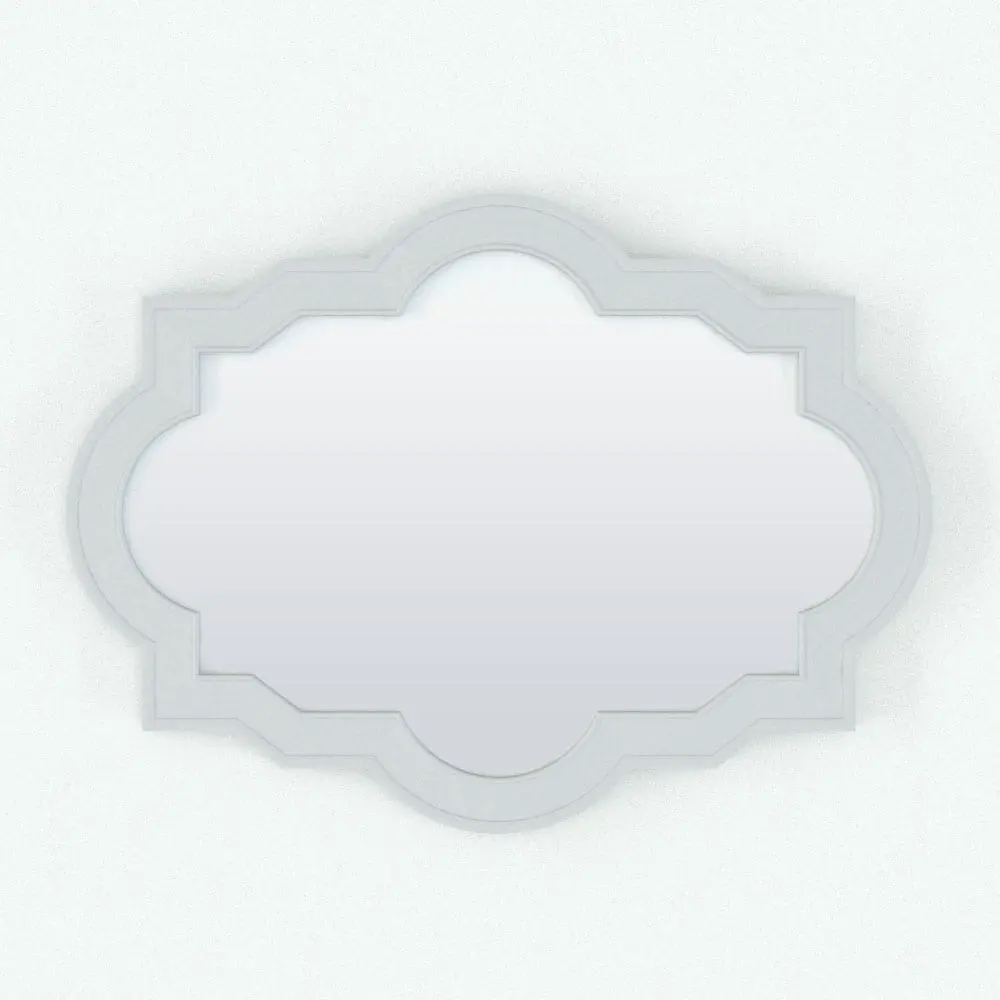

A classic quatrefoil Revit family mirror that can be used to dress up any space. This rectangular quatrefoil mirror comes with parameters to change the size as well as the frame thickness to make it fit to the area where you insert it. The frame thickness can be linked to the size of the mirror so that it updates its thickness proportionally, this way, you don’t have to worry but for the size of the mirror.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Generic Model Face Based
- Materials/textures: Yes
- Approximate file size: 0.57 MB
- File format: .rfa
This Revit family rectangular quatrefoil mirror comes with the following customizable parameters and options:

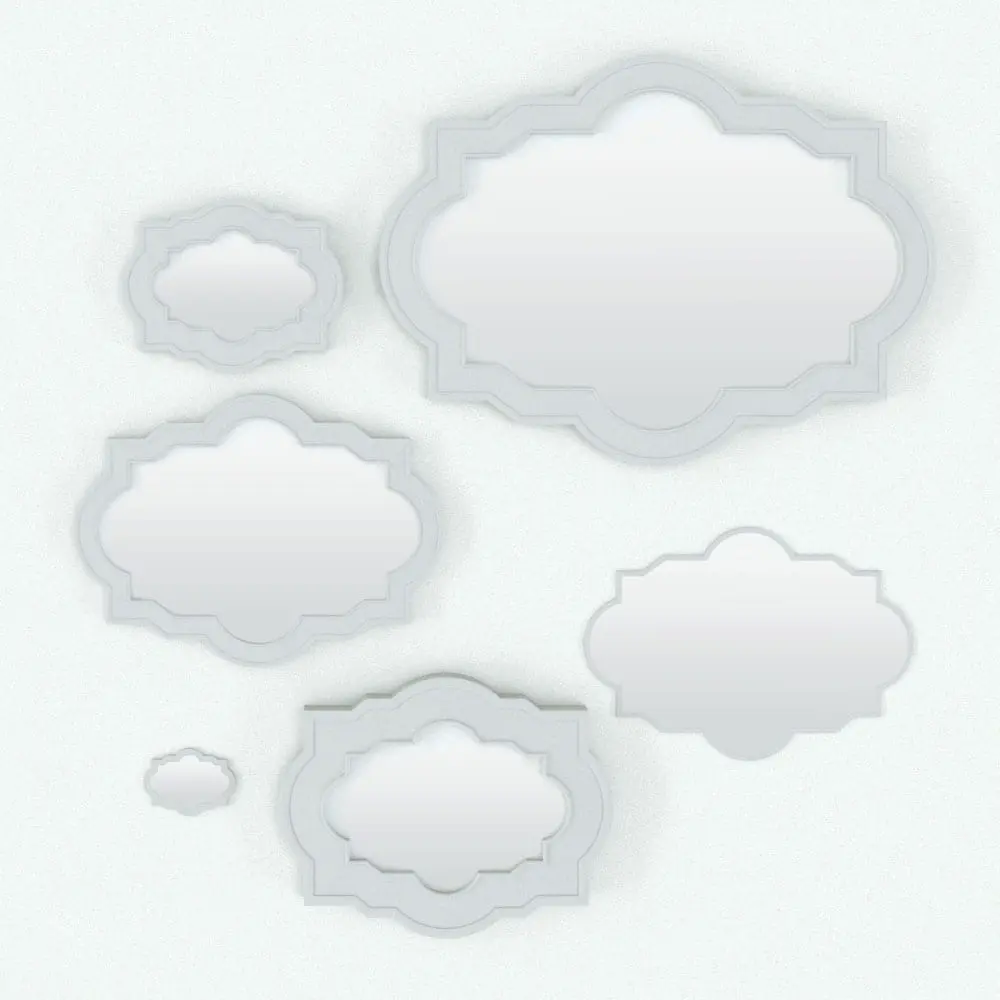

Size:
- Minimum size++: 1′
- Maximum size++: 20′
++ Does not include the frame and the size is measured to the shortest side of the mirror
If the “Scale Proportionally” checkbox is activated, the thickness of the frame will automatically be set to approximately one tenth of the mirror size. If “Scale Proportionally” if off, the thickness of the frame can be set manually using the Frame Thickness parameter:
- Minimum Frame Thickness: ~1″
- Maximum Frame Thickness: ~1/4 of the mirror size
Material parameters for:
- Mirror
- Main Frame
- Inner Frame
- Outer Frame
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
