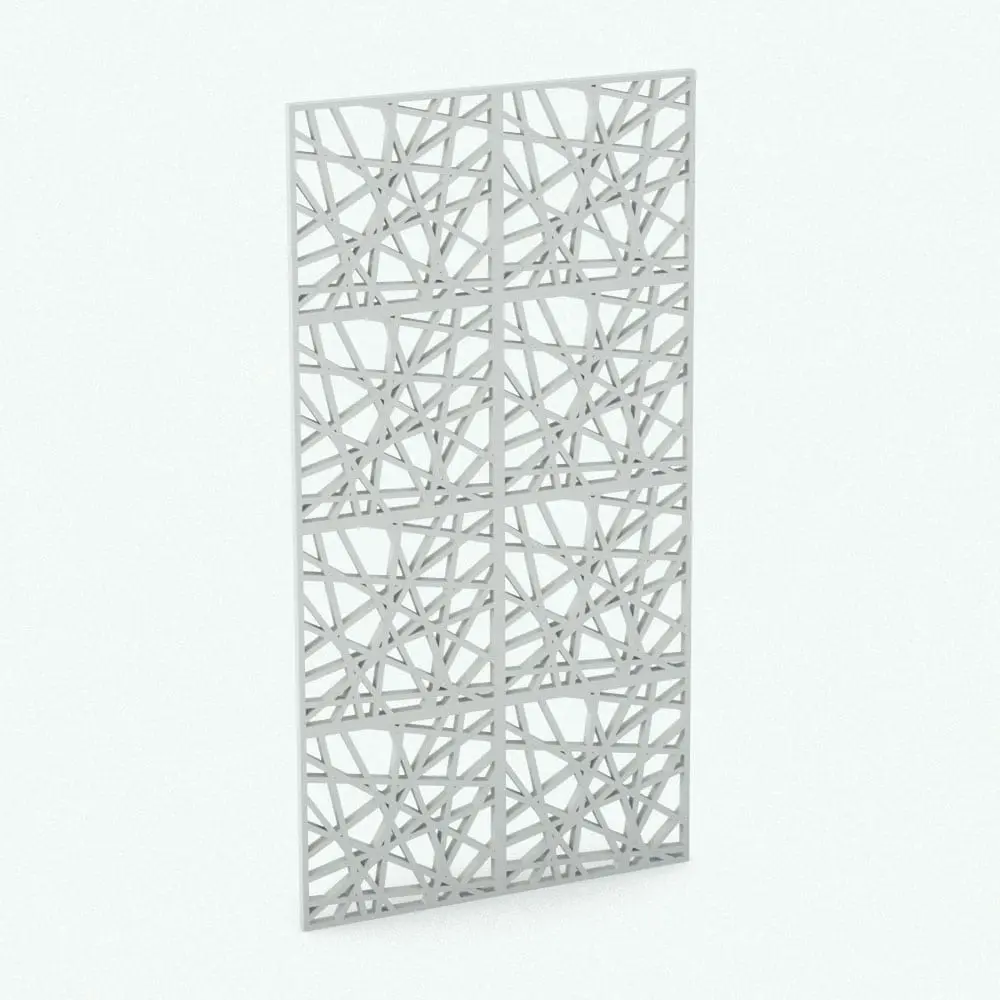

This single pane Revit family space divider is perfect for modern and minimalistic spaces. Its organized random pattern helps to bring order to your design. Change the panel height, width and depth, as well as the thickness of the random lines and the repetition to softly divide and arrange your spaces.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Generic Model
- Materials/textures: Yes
- Approximate file size: 1.04 MB
- File format: .rfa
This Revit family space divider with random lines comes with the following customizable parameters and options:
Panel height:
- Minimum panel height: 9″
- Maximum panel height: 24′
Width:
- Minimum width: 1/3 of the panel height
- Maximum width: panel height dimension
Depth
- Minimum depth: 1/128″ (approx)
- Maximum depth: panel height dimension
Thickness of random lines can be changed. Thickness is based on a number from 1 to 10 (10 being the thickest). In real units, the thickest setting (10) would be approximately 1/24 of the panel height.

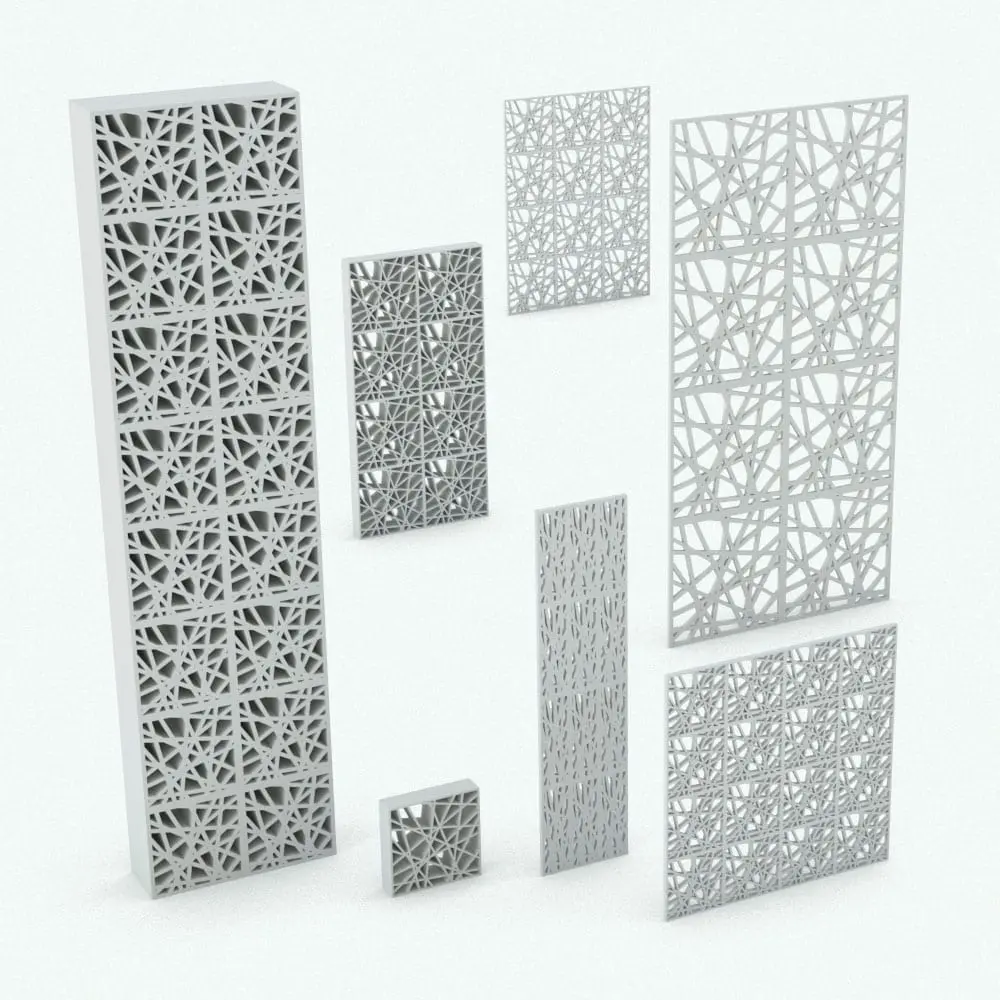

Single panel or array of panels (rows and columns) can be selected:
- Minimum number of panels in an array: 2×2
- Maximum number of panels in an array: 20×20

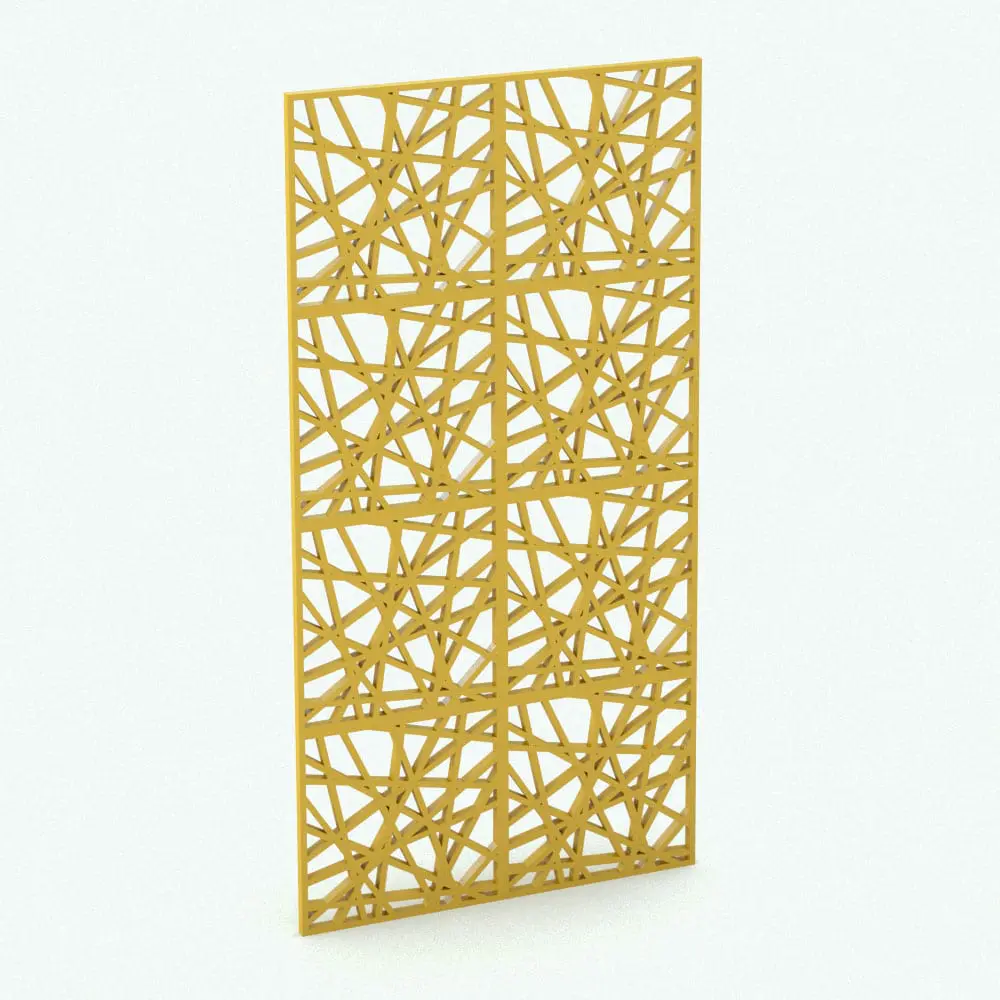

Material parameters for:
- Panel
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
