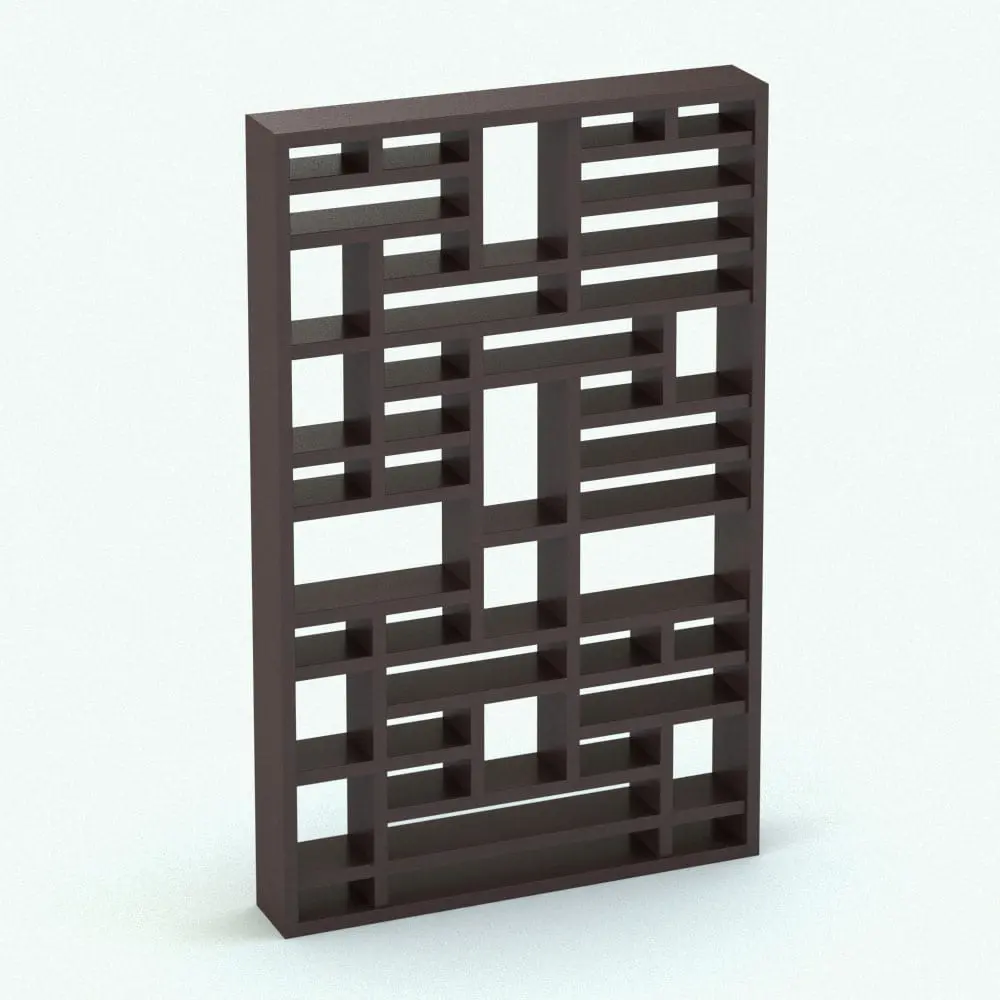

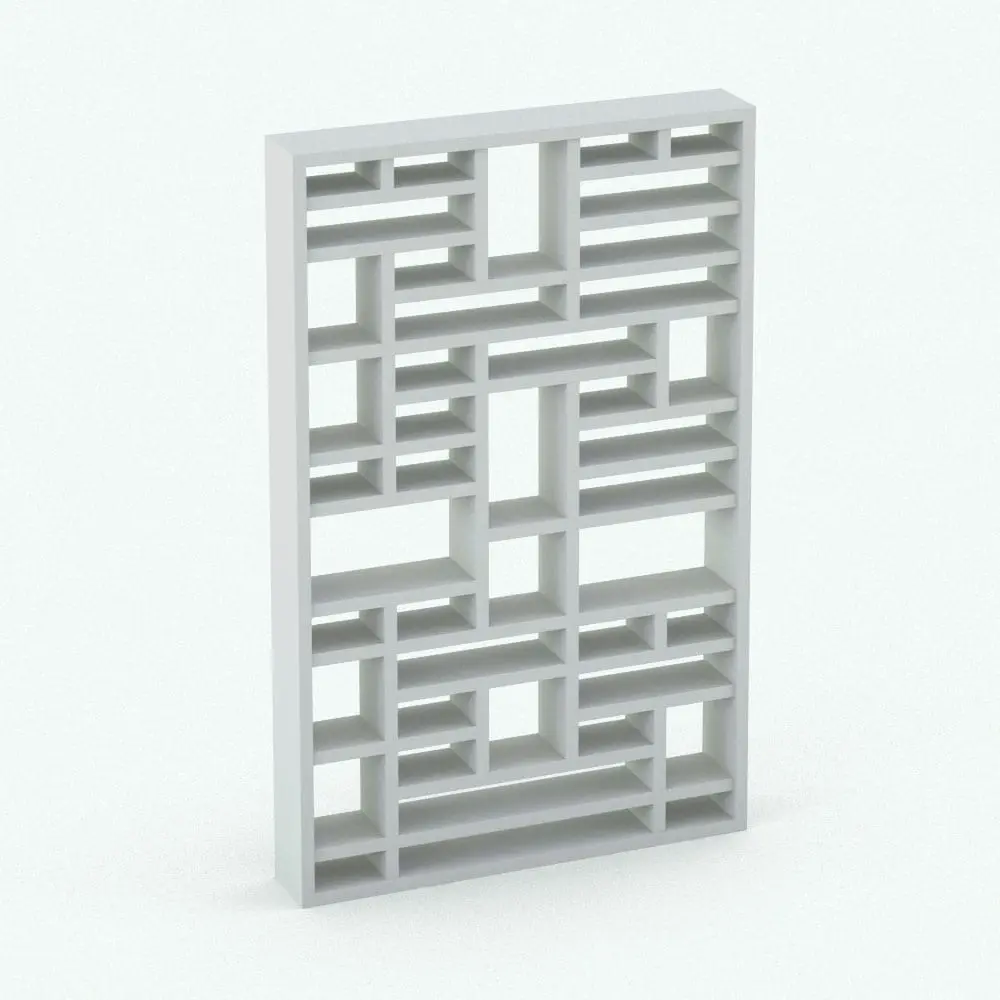

This single pane Revit space divider inspired in Mondrian’s paintings brings elegance to your design. Modify the parameters to create different looks and sizes that will give your space a lot more character. Play with the height and width of the panel, the depth and thickness of the bars as well as with the materials to make it a unique piece for each of your projects.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Generic Model
- Materials/textures: Yes
- Approximate file size: 0.65 MB
- File format: .rfa
This Revit family Mondrian space divider comes with the following customizable parameters and options:
Width and Height:
- Minimum width: 1’8″
- Minimum height: 5′
Frame bars depth:
- Minimum frame bars depth: 3/4″
Bars thickness:
- Minimum bars thickness: 1/2″
- Maximum bars thickness: 2″
Interior bars depth:
- Minimum interior bars depth: 173/256″
- Maximum interior bars depth: frame maximum depth*0.9
Material parameters for:
- Space divider
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
