Modern Hollow Structure Candle | Revit Family

$3.99

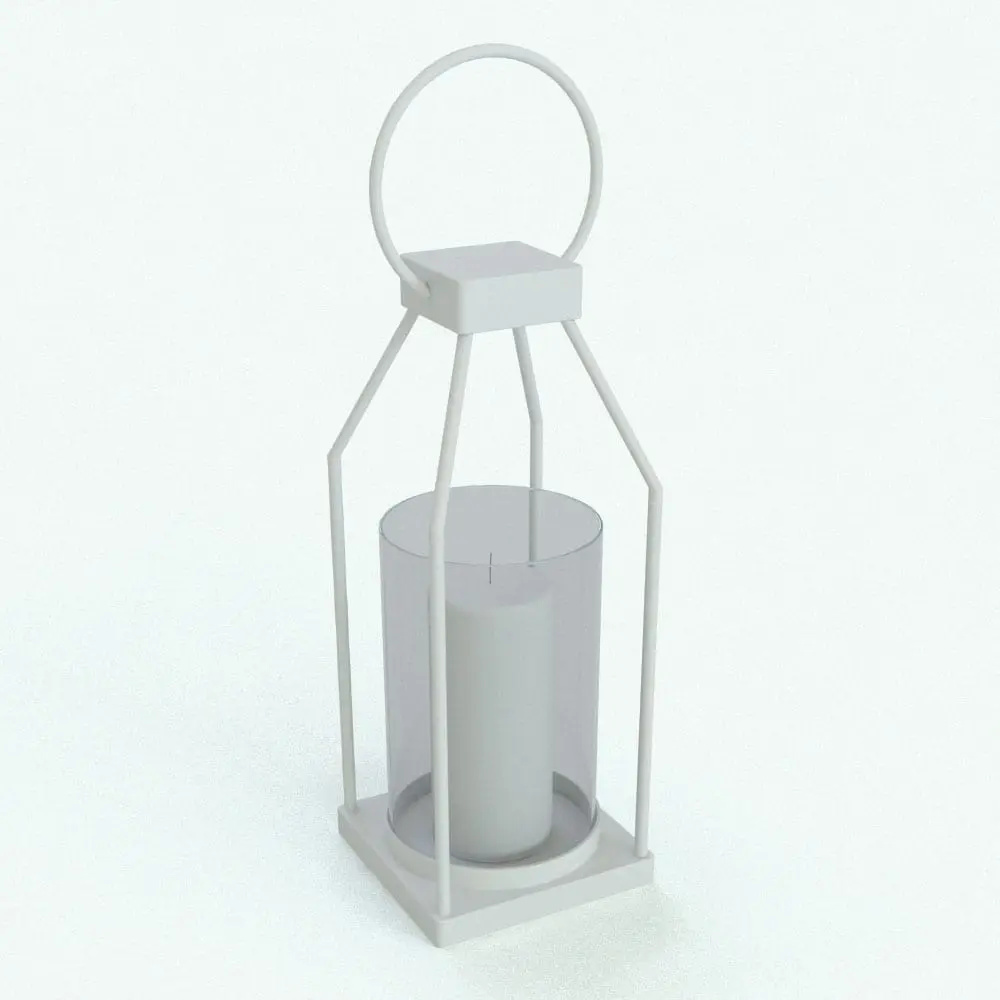

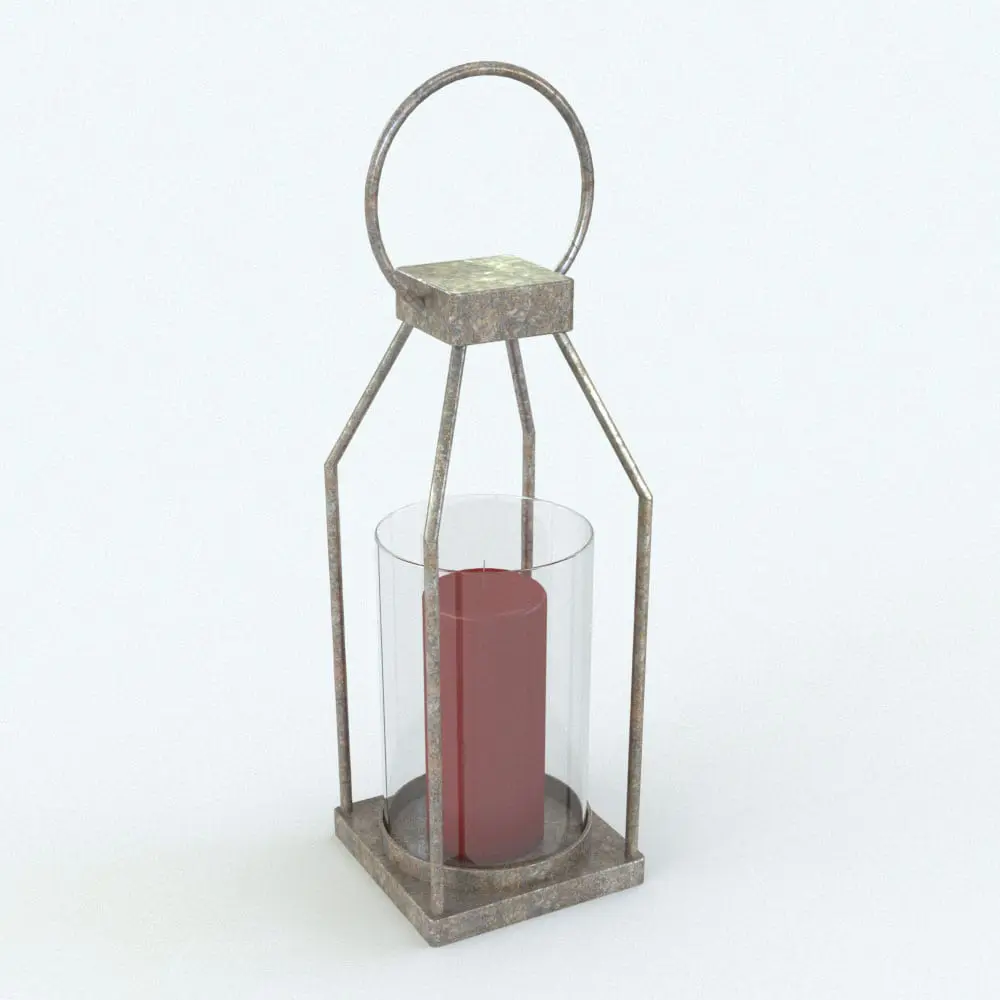

You know how important it is to make your renders look realistic, and this Revit Family candle inside of a structure is certainly a great piece to make that happen. With options to set the size of the base, the height and diameter of the candle and the glass encasement, the height and diameter of the candle and much more, this family will certainly make your renders look stunning.

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model Work Plane-Based
  • Materials/textures: No
  • Approximate file size (set): 0.43 MB
  • File format: .zip**

Description

This Revit family hollow structure candle comes with the following customizable parameters and options:

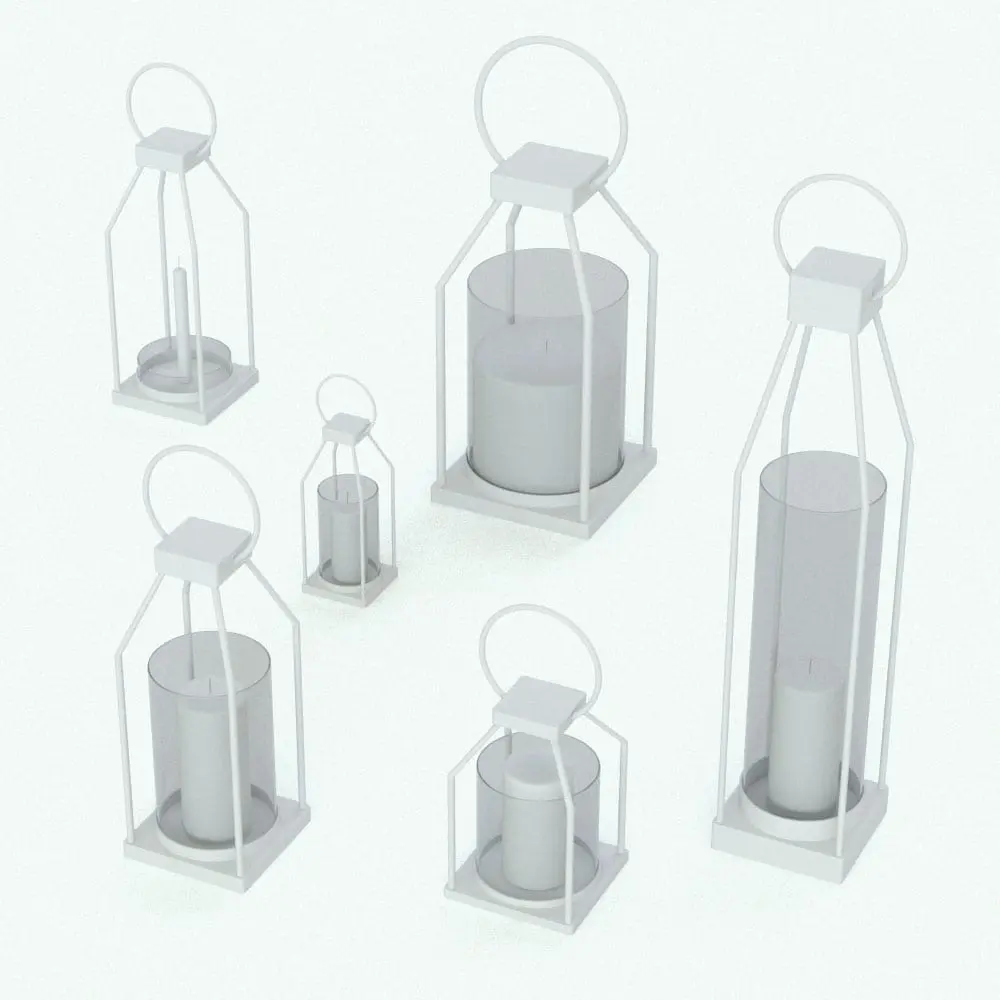

Base size and height+:

  • Minimum base size: 4″
  • Maximum base size” 3′
  • Minimum height: 6″
  • Maximum height: 5′

+ Height does not include the round handle

Candle height, candle diameter, candle glass height and candle glass diameter:

  • Minimum candle height: 1″
  • Maximum candle height: not taller than the main structure (before it starts angling towards the round handle)
  • Minimum candle diameter: 1″
  • Maximum candle diameter: not greater than the glass container that it is in.
  • Minimum candle glass height: 2″
  • Maximum candle glass height: not taller than the main structure (before it starts angling towards the round handle)
  • Minimum candle glass diameter: 2″
  • Maximum candle glass diameter: candle base (square) – 3/4″

If Proportional Scaling is selected, ONLY the Height parameter will work (all the other parameters will update automatically).

Wick can be turned on/off

Material parameters for:

  • Base
  • Candle Base
  • Candle
  • Glass
  • Structure
  • Top

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

** All files are delivered in zip format. Before using your families, you will need to unzip the Revit file(s) (.rfa or .rvt) using a 3rd party software like Winzip or Peazip. Make sure to have a software to unzip files before purchasing 3D models.
