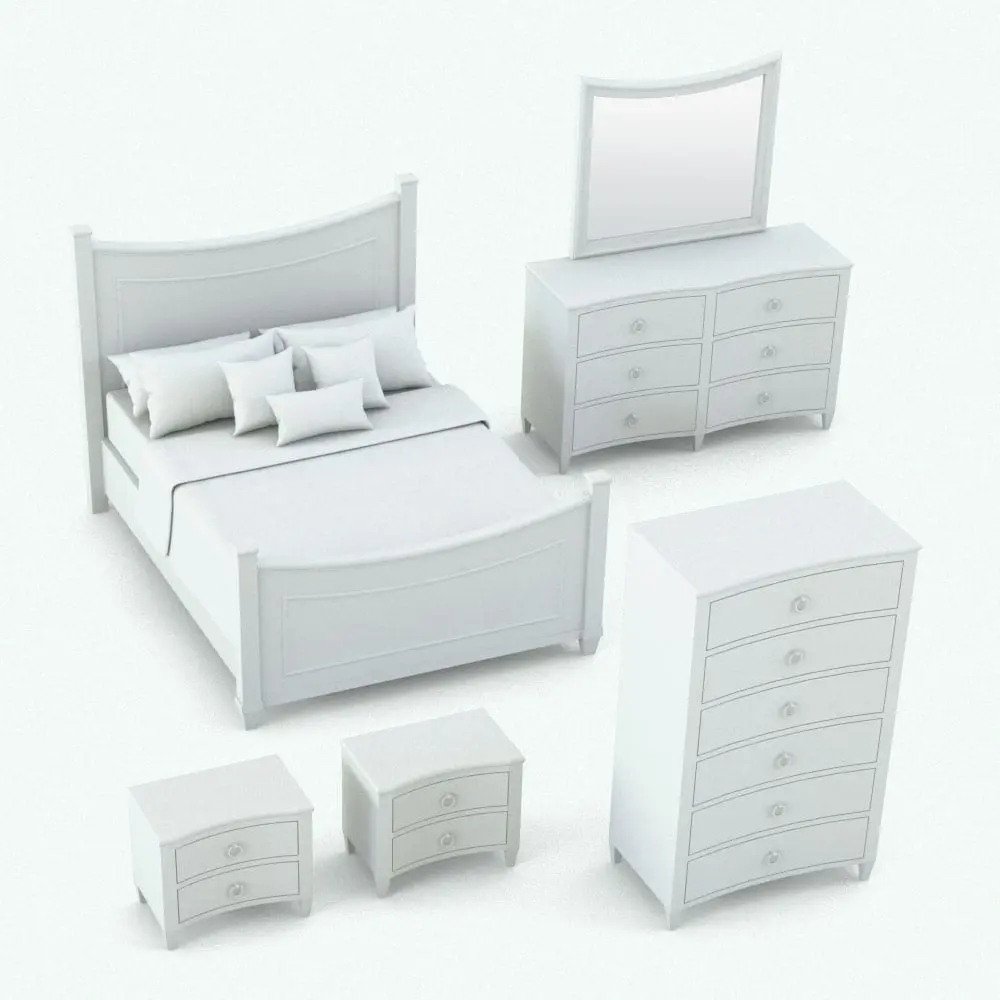

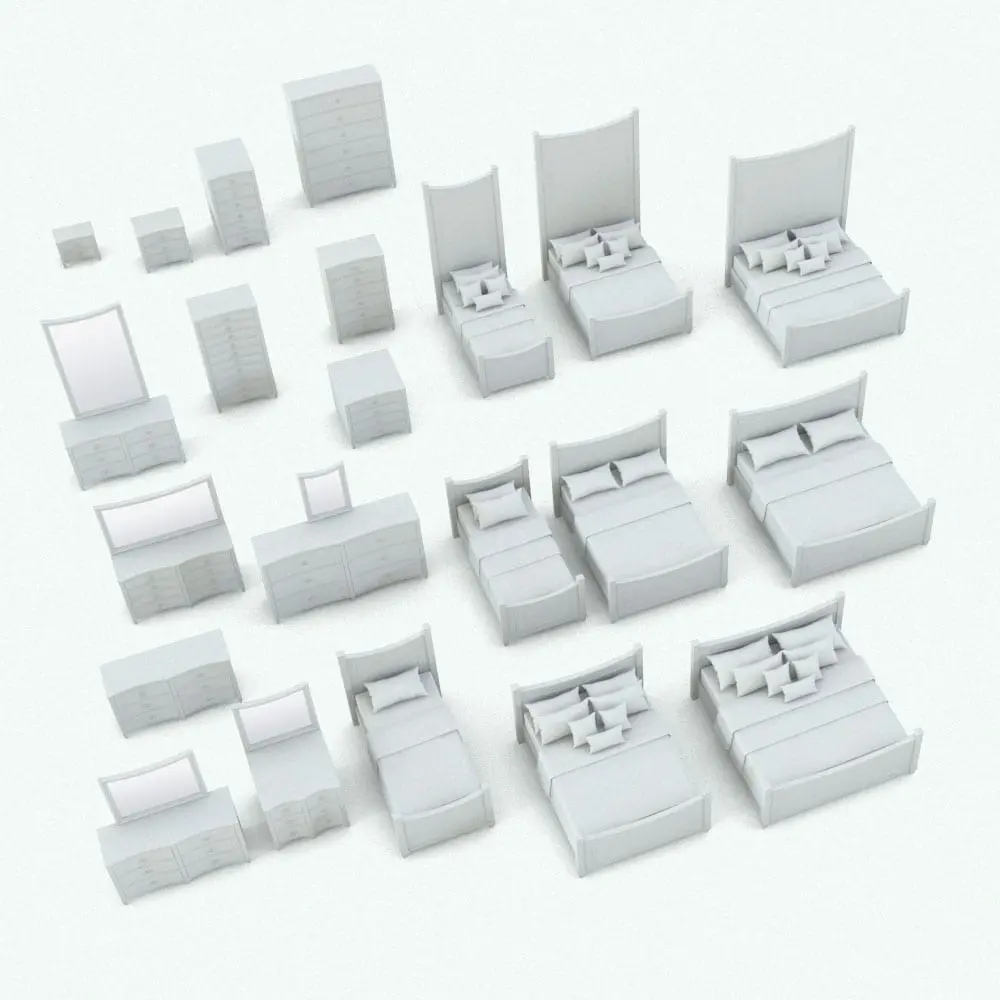

Curved Horizontal Drawers Revit Furniture Set

Revit Bed Family:

• Parametric: Yes
• Hybrid*: Yes
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 1.52 MB
• File format: .rfa



Revit Chest With Drawers Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.55 MB
• File format: .rfa



Revit Dresser Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.64 MB
• File format: .rfa



Night Stand Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.52 MB
• File format: .rfa



This Curved Horizontal Drawers Revit Furniture Set comes with the following customizable parameters and options:

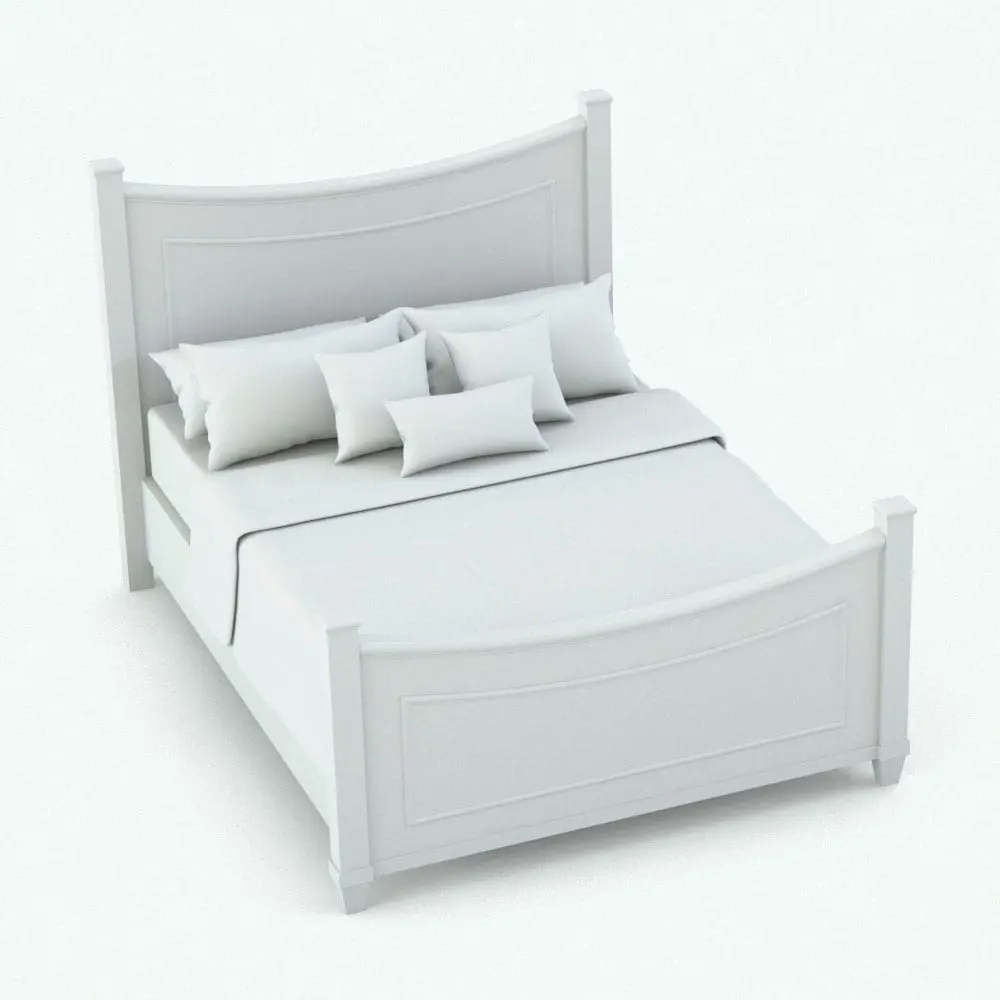

Revit Bed Family:

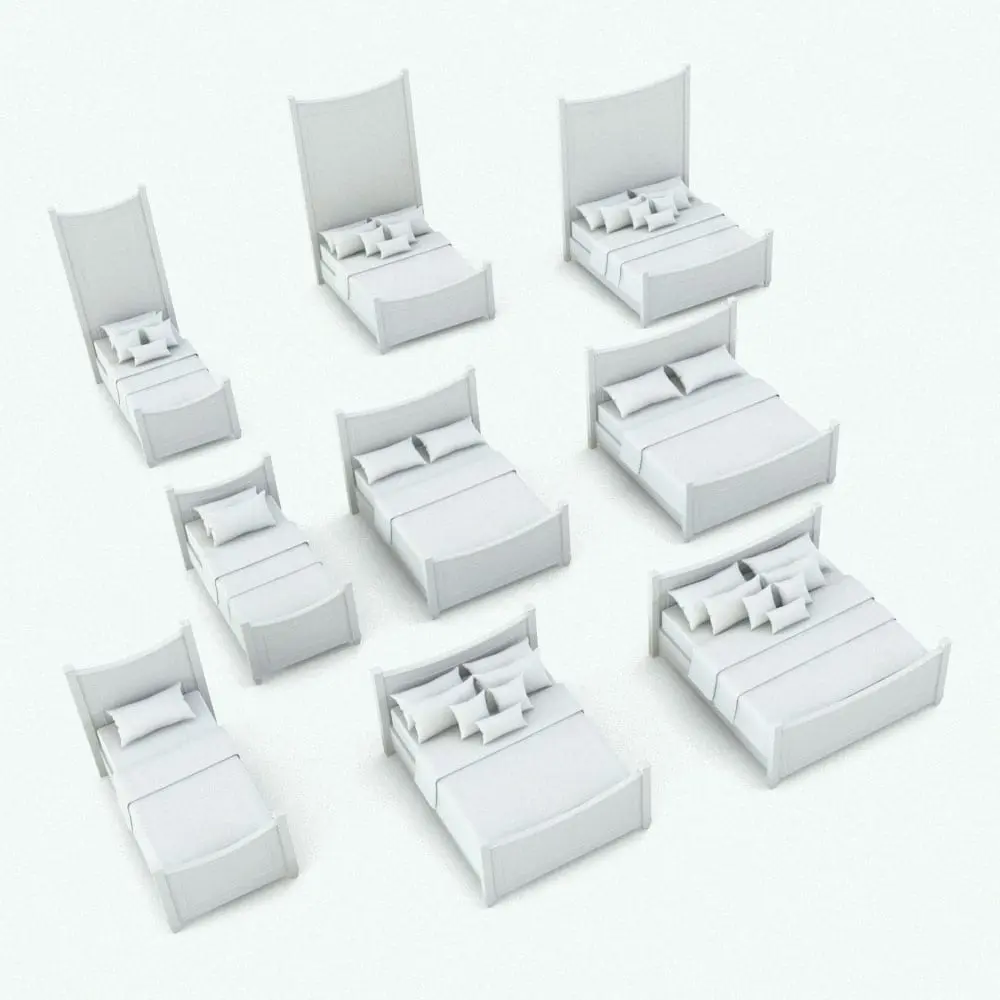

Bed comes in three sizes++:

• Full Size
• Queen Size
• King Size

++ Sizes different than these pre-configured ones will turn off some objects on the bed and/or might give odd results (oversimplified bed).

The following parts of the Revit bed can be turned on/off:

• Throw
• Shams
• Cushions
• Rectangular Cushion

Height of the headboard in this Curved Horizontal Drawers Revit Furniture Set:

• Minimum height: 3’6″
• Maximum height: 10′

Part of the materials can be found in the Properties, while the rest of the materials can be found in the Materials Browser.

Material parameters for:

• Bed Frame and Headboard
• Mattress

Materials (material names) of this Revit bed, which is part of the Curved Horizontal Drawers Revit Furniture Set that are found in the Material Browser:

• Curved Horizontal Drawers Bed – Comforter
• Curved Horizontal Drawers Bed – Cushions
• Curved Horizontal Drawers Bed – Pillows
• Curved Horizontal Drawers Bed – Rect Cushion
• Curved Horizontal Drawers Bed – Shams
• Curved Horizontal Drawers Bed – Throw

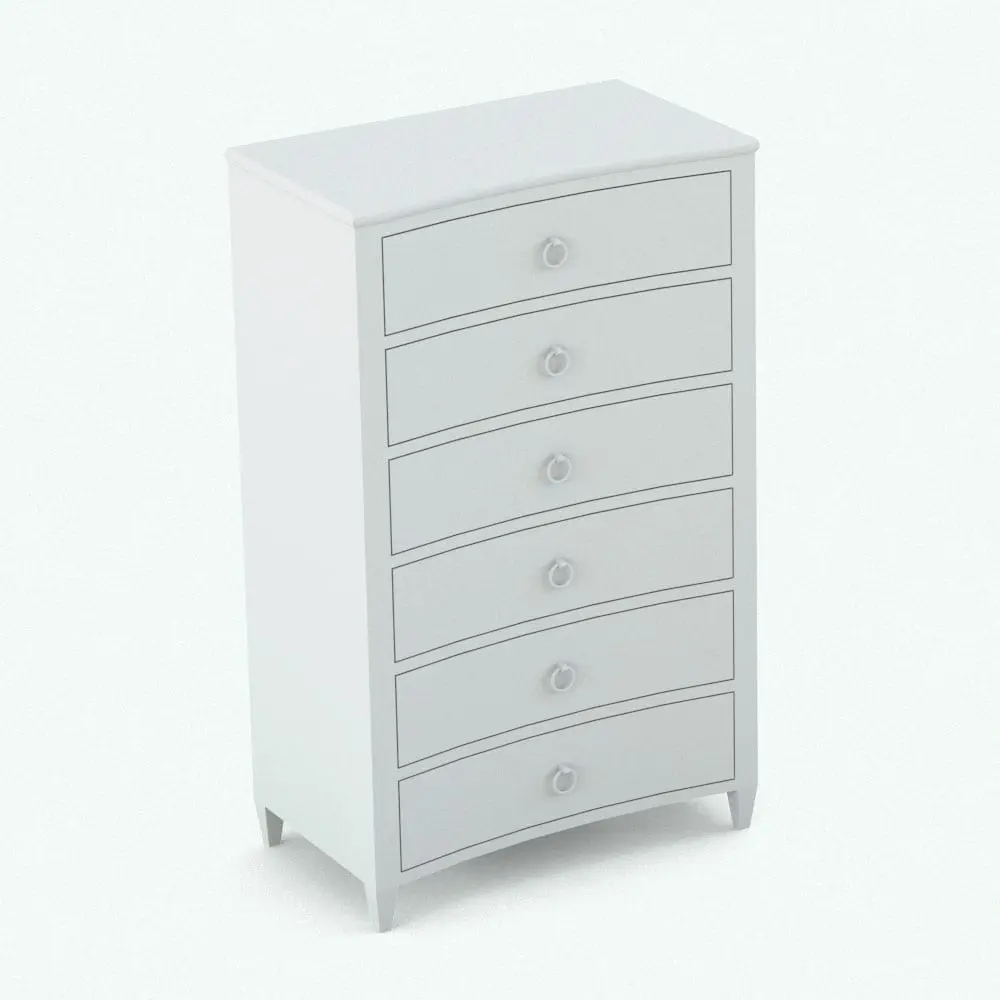

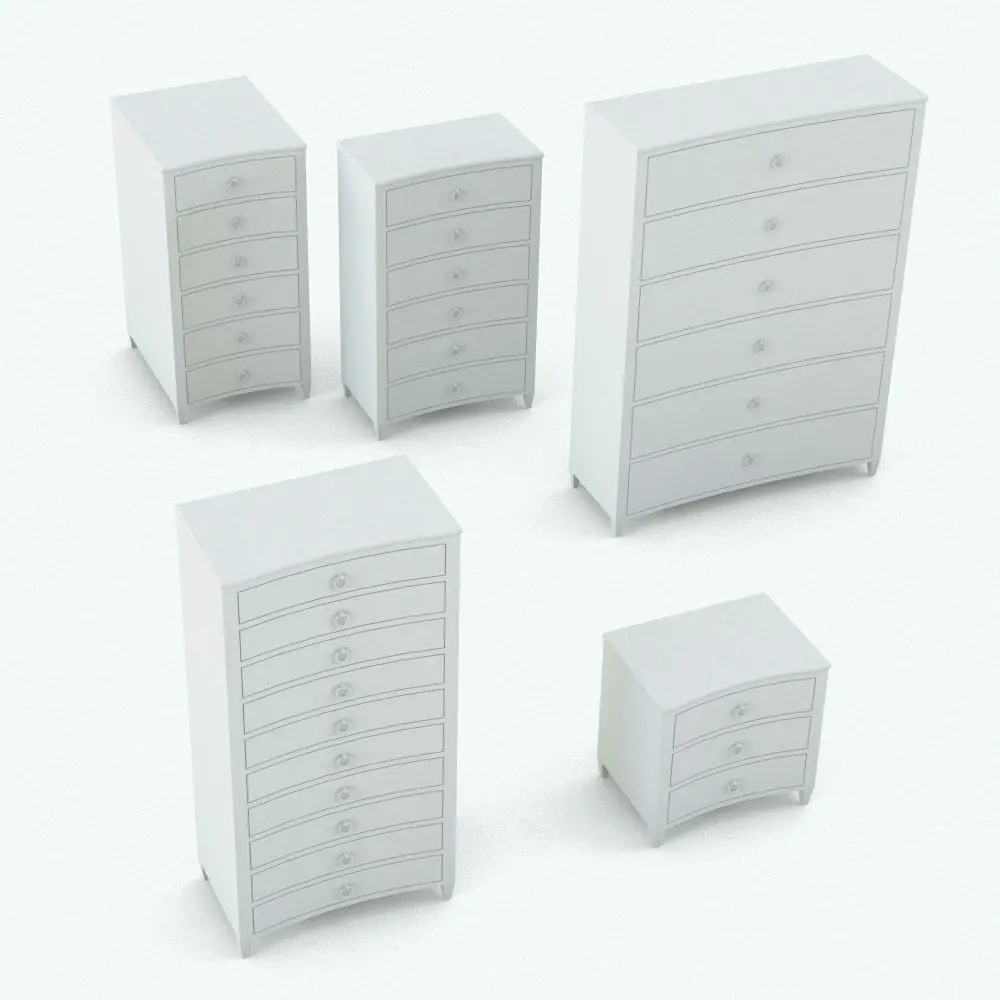

Revit Chest With Drawers Family

Width, height, depth and number of drawers:

• Minimum width: 2’6″
• Maximum width: 10′

• Minimum height: 2’6″
• Maximum height: 7′

• Minimum depth: 1’6″
• Maximum depth: 3′

• Minimum number of drawers: 3
• Maximum number of drawers: as many as long as the height of each drawer is not smaller than 5″

This chest with drawers, which is part of the Curved Horizontal Drawers Revit Furniture Set comes with material parameters for:

• Chest
• Handles

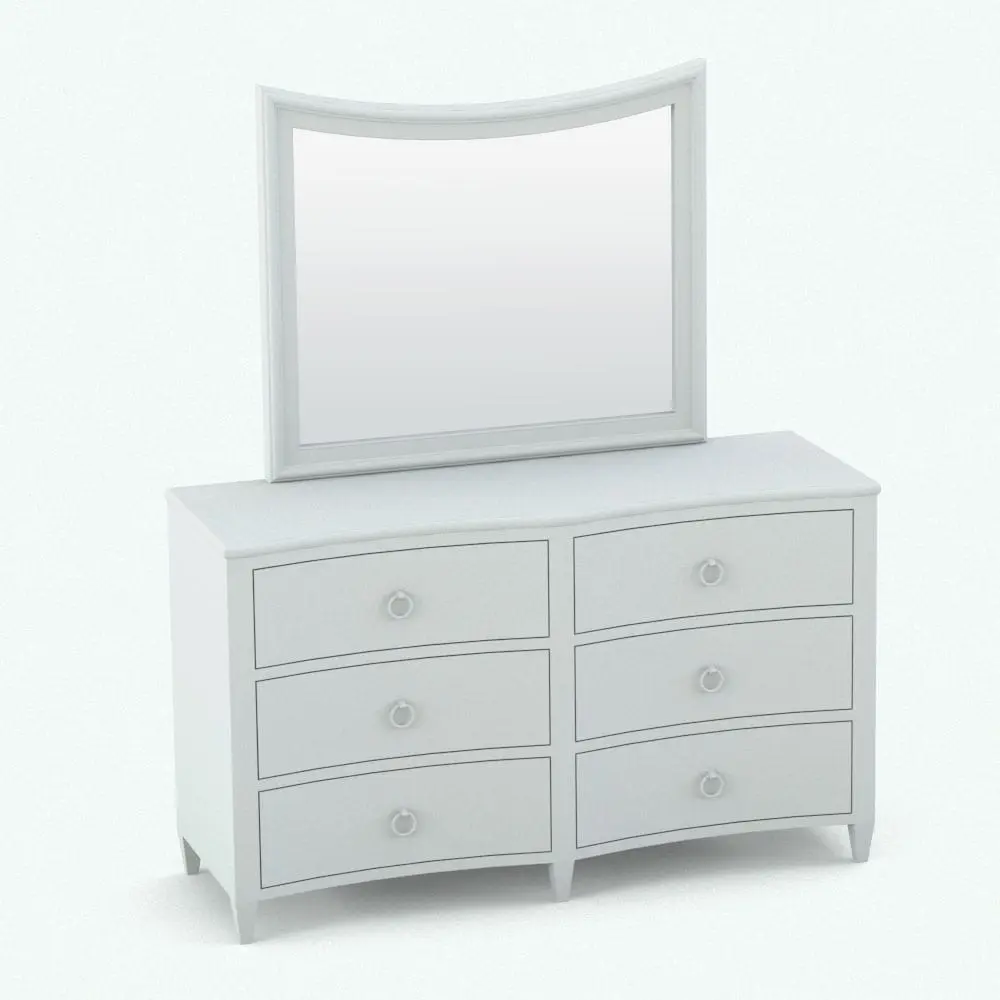

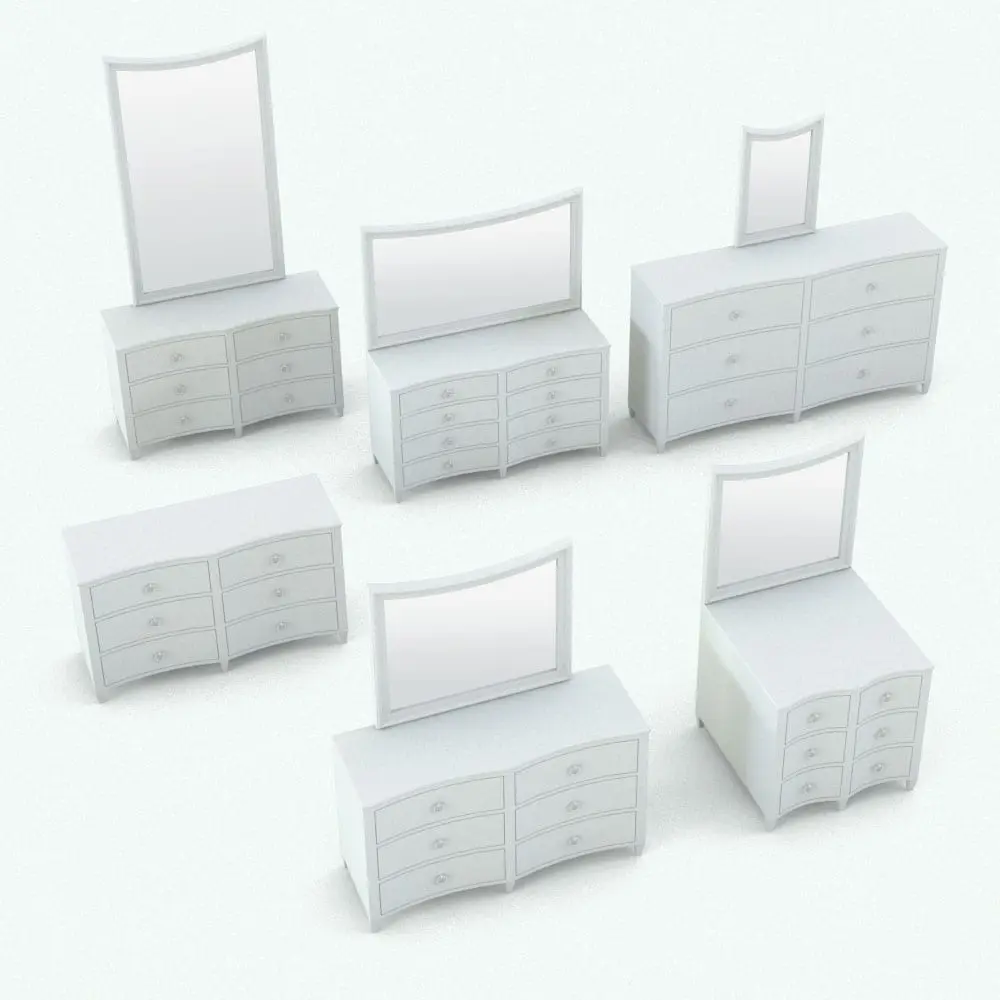

Revit Dresser Family:

Width, height, depth and number of drawers:

• Minimum width: 3′
• Maximum width: 15′

• Minimum height: 2’6″
• Maximum height: 4′

• Minimum depth: 1’6″
• Maximum depth: 3′

• Minimum number of drawers: 3
• Maximum number of drawers: as many as long as the height of each drawer is not smaller than 5″

Mirror width and height of this Revit dresser family:

• Minimum mirror width: 2′
• Maximum mirror width: cannot exceed the total width of the dresser

• Minimum height: 2′
• Maximum height: 10′

Mirror can be turned on/off

This Revit dresser, which is part of the Curved Horizontal Drawers Revit Furniture Set comes with material parameters for:

• Dresser
• Handles
• Mirror

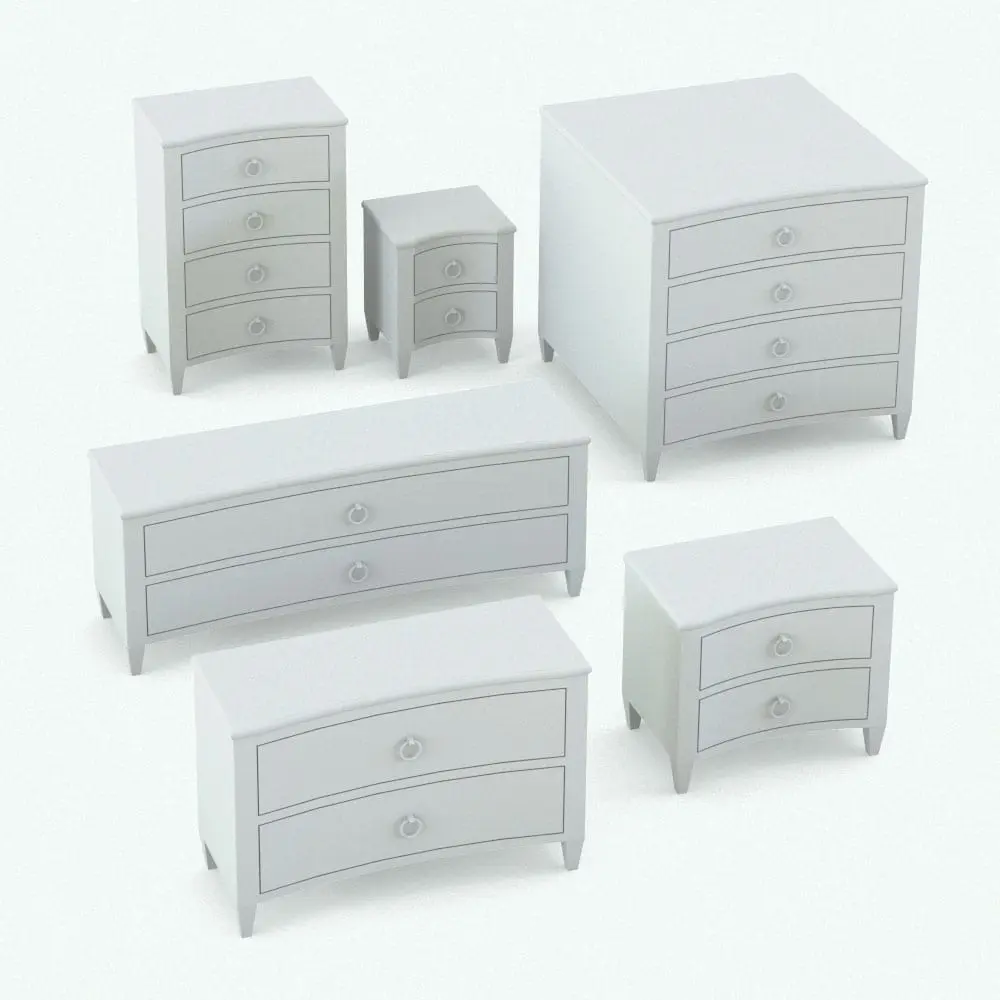

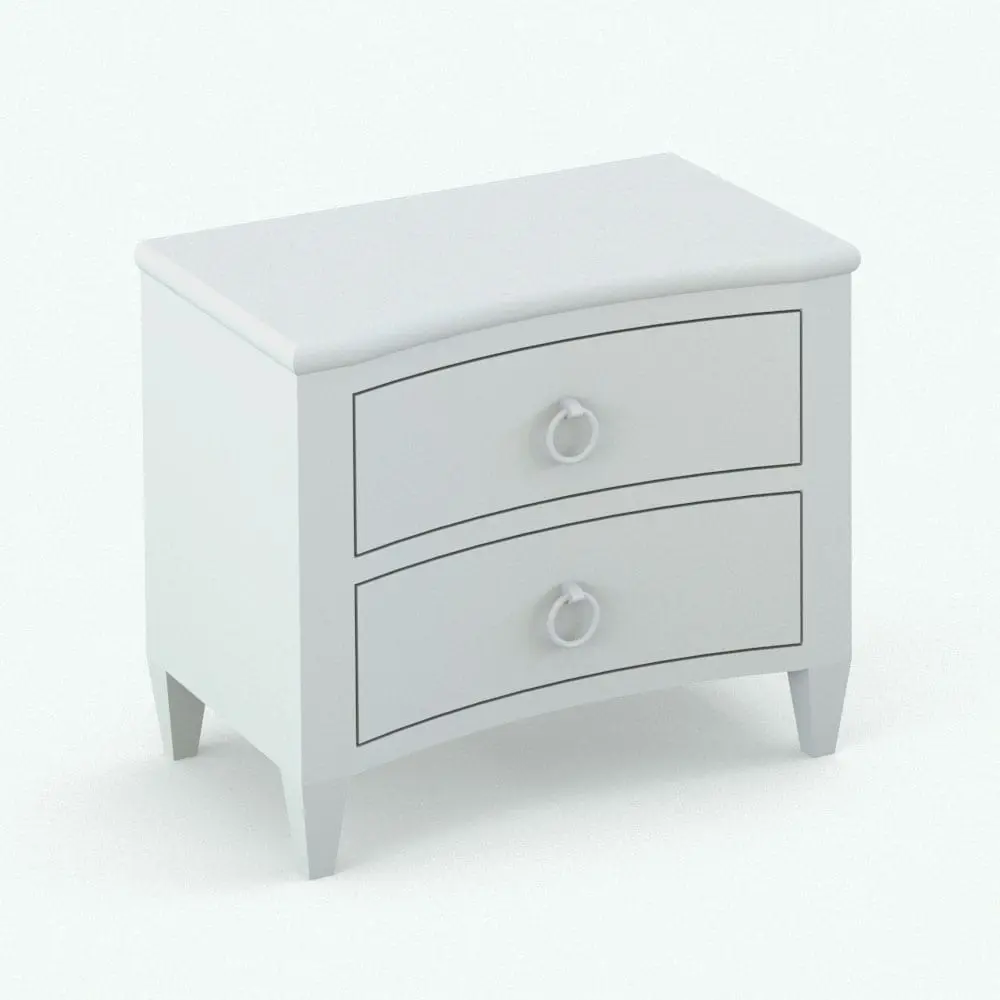

Night Stand Revit Family:

Width, height, depth and number of drawers:

• Minimum width: 1’4″
• Maximum width: 5′

• Minimum height: 1’8″
• Maximum height: 3′

• Minimum depth: 1’1″
• Maximum depth: 3′

• Minimum number of drawers: 2
• Maximum number of drawers: as many as long as the height of each drawer is not smaller than 5″

This night stand, which is part of the Curved Horizontal Drawers Revit Furniture Set comes with material parameters for:

• Night Stand
• Handles



* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
