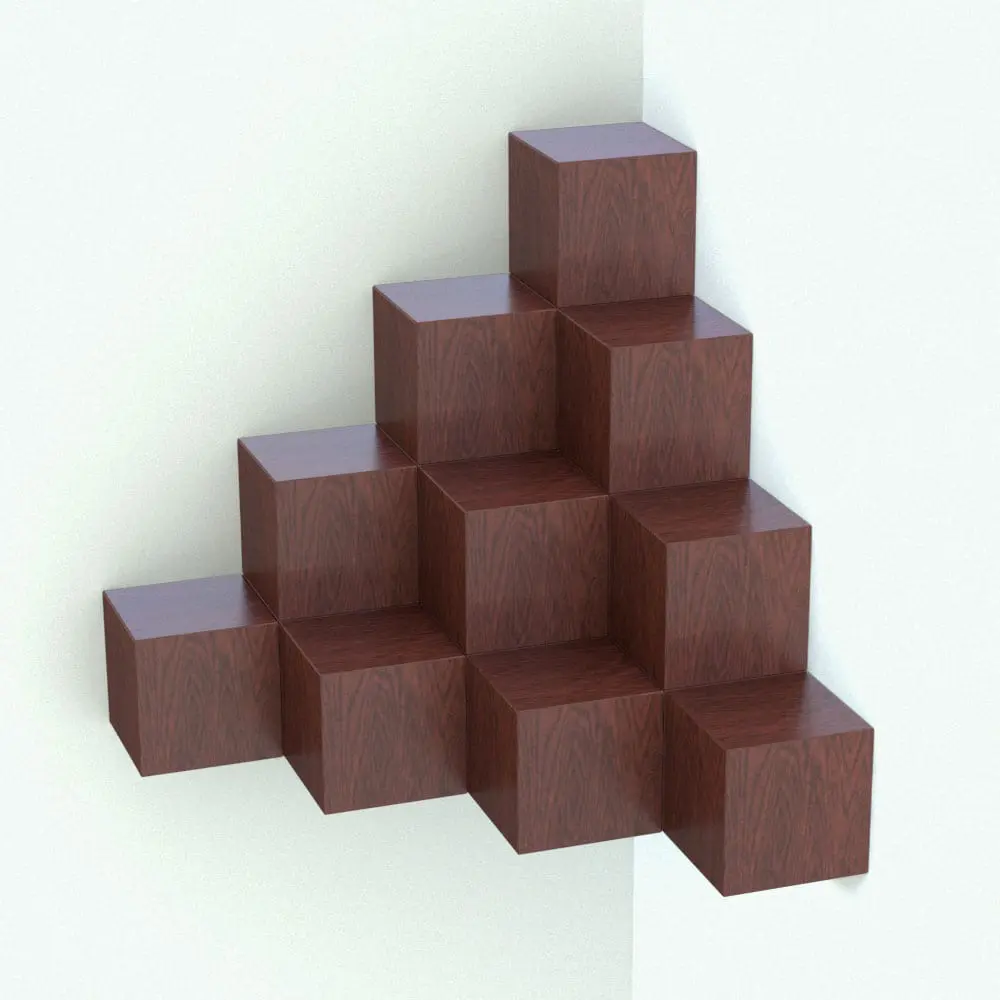

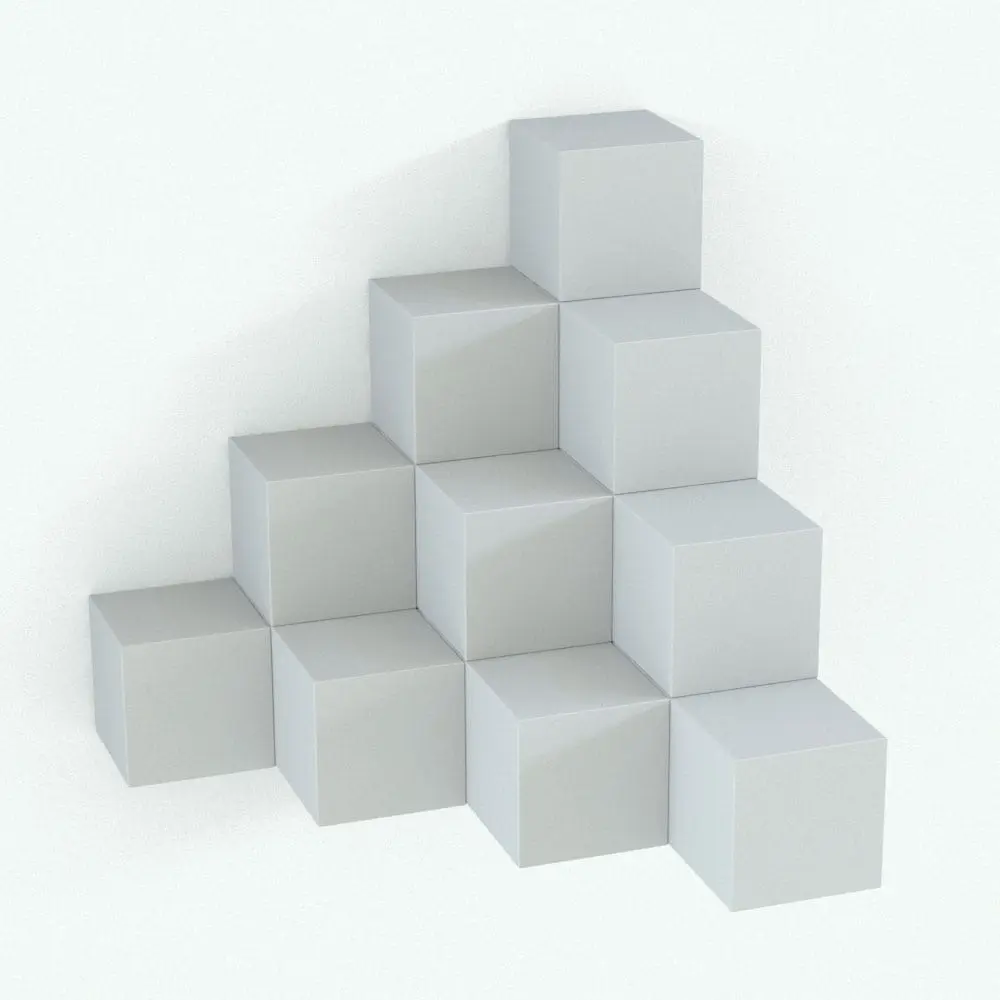

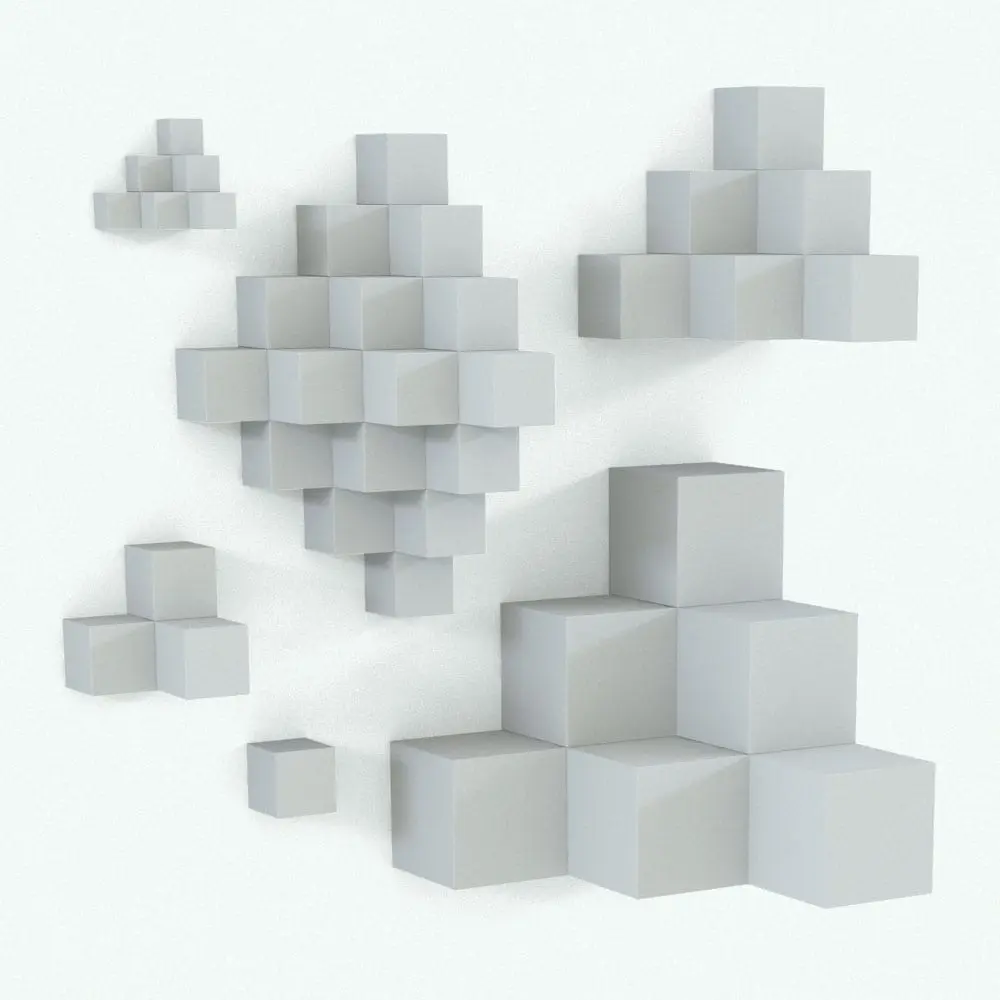

Create your own arrangements of cubic wall shelves with this parametric Revit family. Use it in a corner or in the middle of a wall to add character to your space. Change cube sizes, stack them, invert them, place them back to back or change the number of tiers to create your own arrangements. The options are endless.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Generic Model Work Plane Based
- Materials/textures: Yes
- Approximate file size: 0.43 MB
- File format: .rfa
This Revit family corner cubes shelf comes with the following customizable parameters and options:
Size of cubes and number of tiers:
- Minimum cube size: 1″
- Maximum cube size: 3′
- Minimum number of tiers: 1
- Maximum number of tiers: 4
Material parameter for:
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
