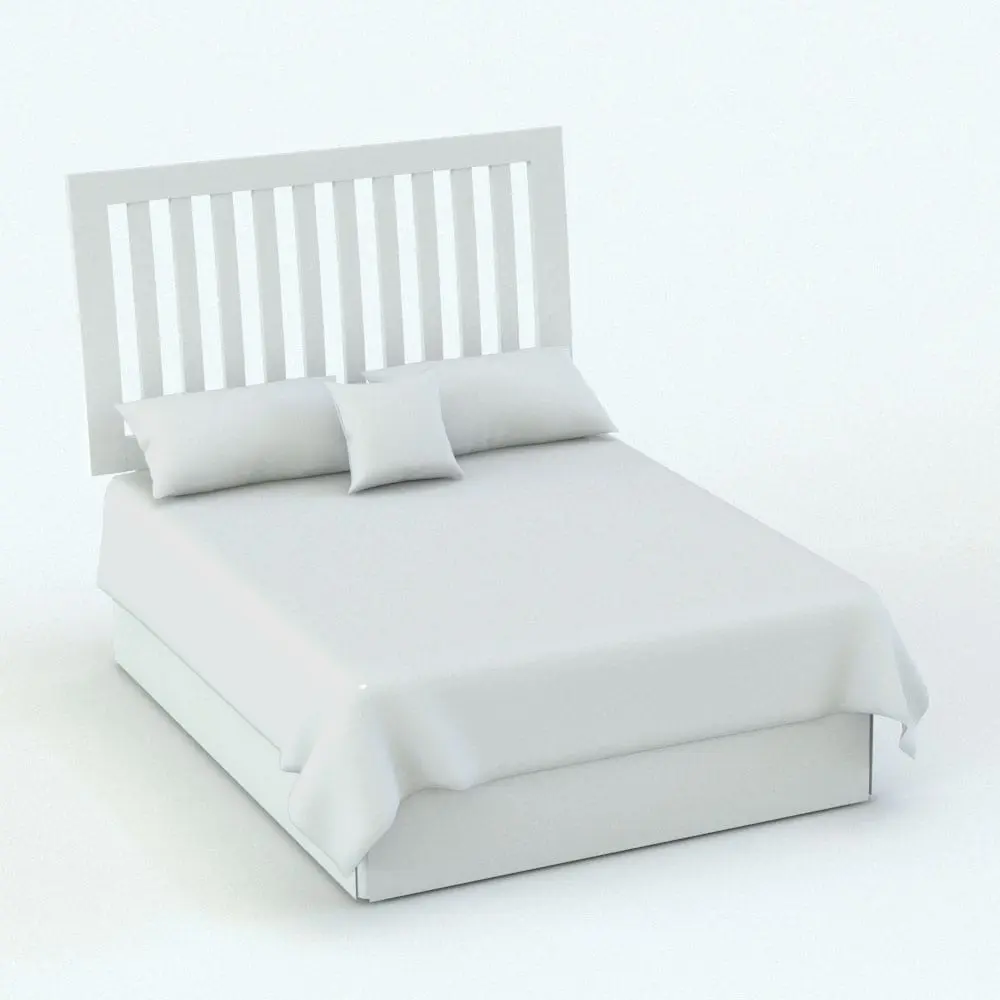

Revit Bed Family With Slats Headboard

Revit Headboard Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.76 MB
• File format: .rfa

Revit Bed Family:

• Parametric: Yes
• Hybrid*: Yes
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 1.28 MB
• File format: .rfa

This Revit Bed Family With Slats Headboard comes with the following customizable parameters and options:

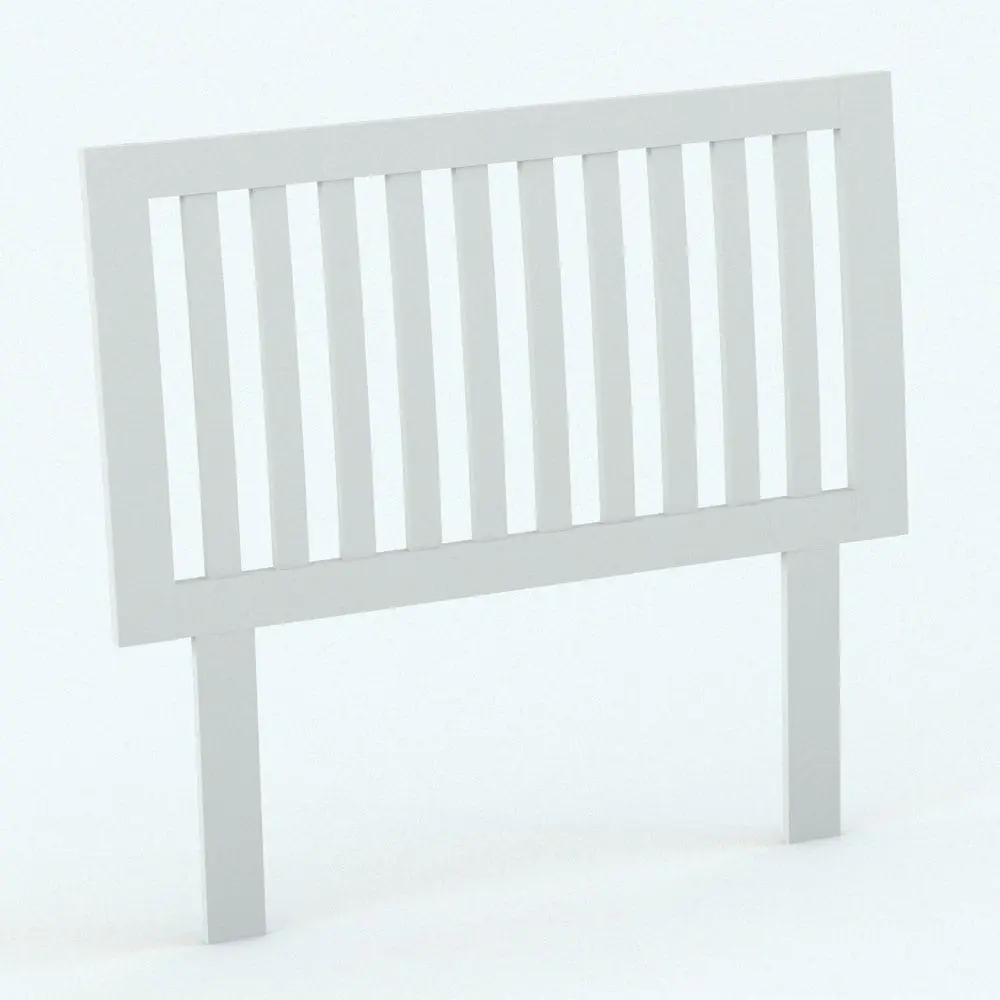

Revit Headboard Family:

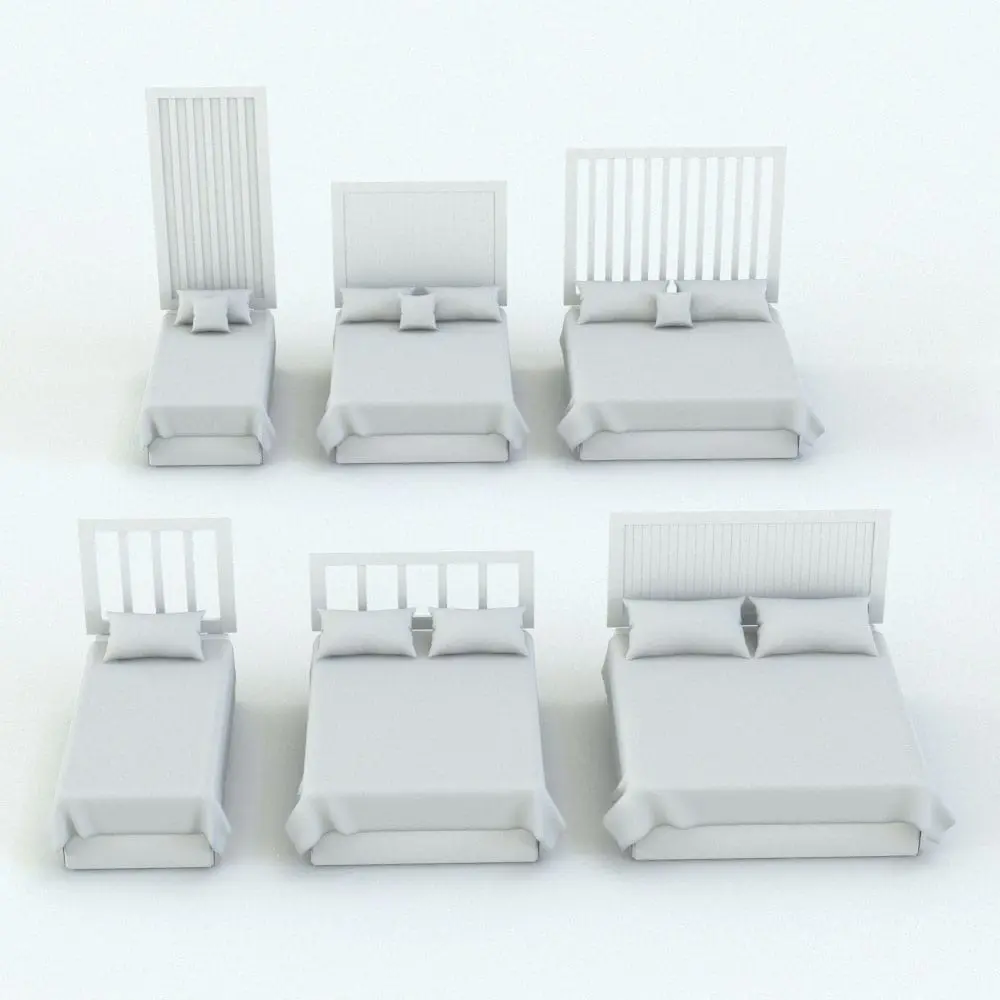

Revit headboard comes in three sizes+: king, queen and twin

+Additional sizes can be created in Edit Type

Leg height:

• Min leg height: 1′ 10″
• Max leg height: 4′

Headboard height of this Revit bed family:

• Min headboard height: 1′
• Max headboard height: 7′

Headboard width:

• Min headboard width: 2′
• Max headboard width: no limit

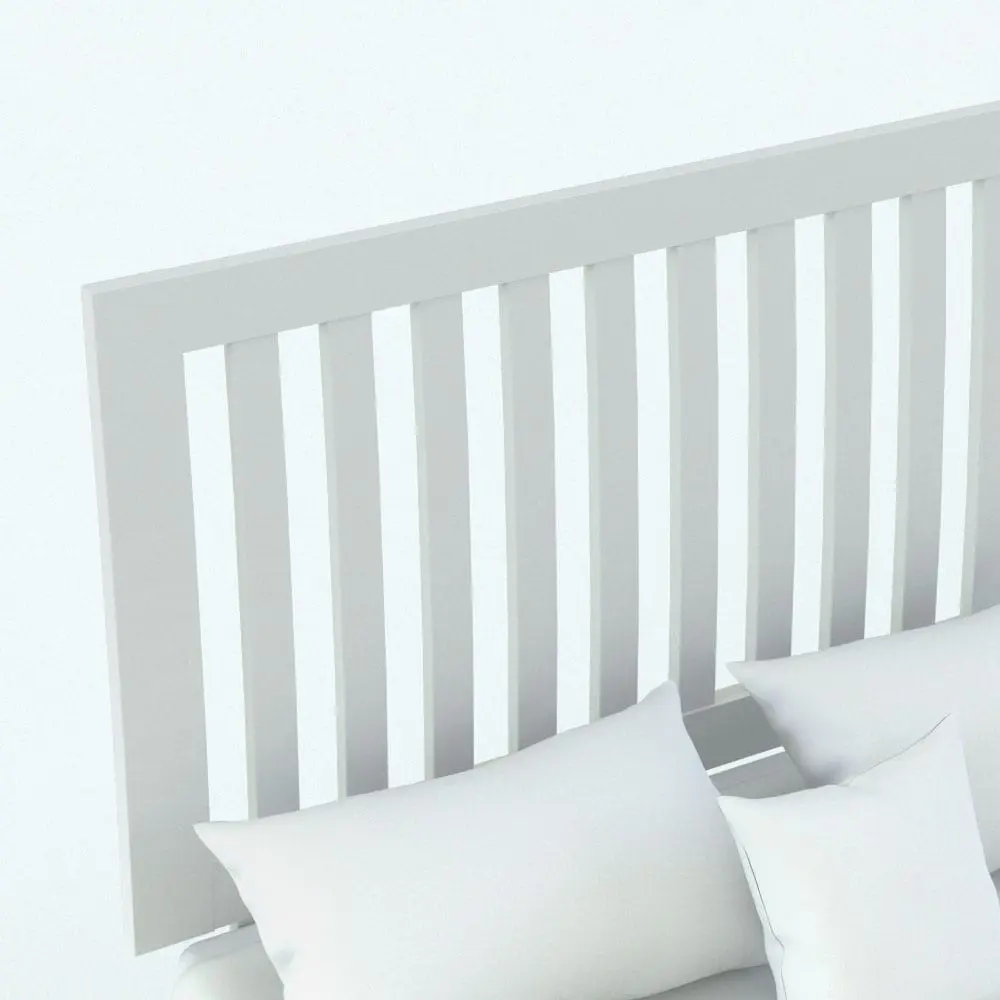

Number of slats (not counting the vertical exterior bars) on this Revit bed:

• Min number of slats: 0 (none)
• Max number of slats: as many as the headboard width fits without overlapping

Backboard can be turned off to give it a more open look

This headboard, which is part of the Revit Bed Family With Slats Headboard comes with material parameters for:

• Legs
• Horizontal Bars
• Vertical Bars and Slats

Revit Bed Family:

Revit bed comes in three sizes++:

• Full Size
• Queen Size
• King Size

++ Sizes different than these pre-configured ones will turn off some objects on the bed and/or might give odd results (oversimplified bed).

The following parts of the Revit bed can be turned on/off:

• Square Cushion

Part of the materials of this Revit bed can be found in the Properties, while the rest of the materials can be found in the Materials Browser.

Materials in the properties (Material parameters):

• Mattress
• Bed Skirt
• Box Spring
• Legs

This Revit Bed Family With Slats Headboard comes with the following materials (material names) found in the Material Browser:

• Simple Bed – Comforter
• Simple Bed – Pillows
• Simple Bed – Square Cushion

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
