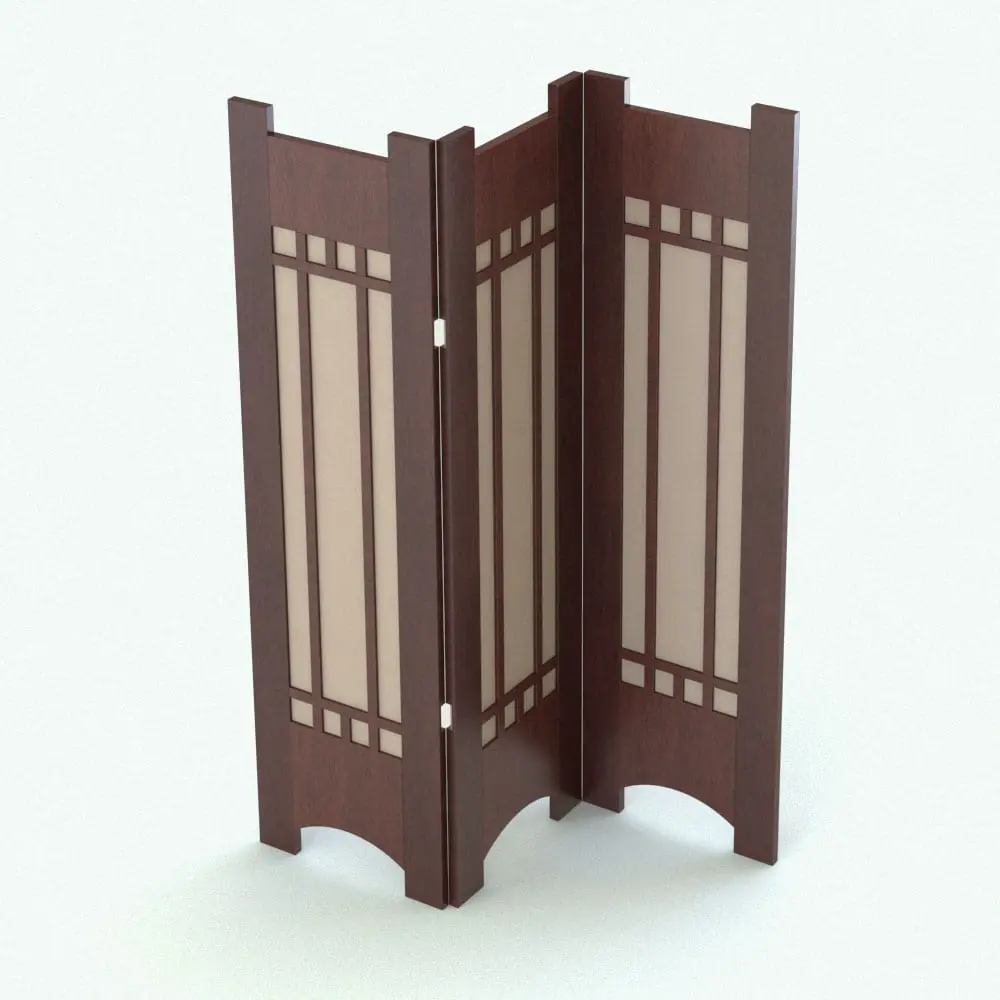

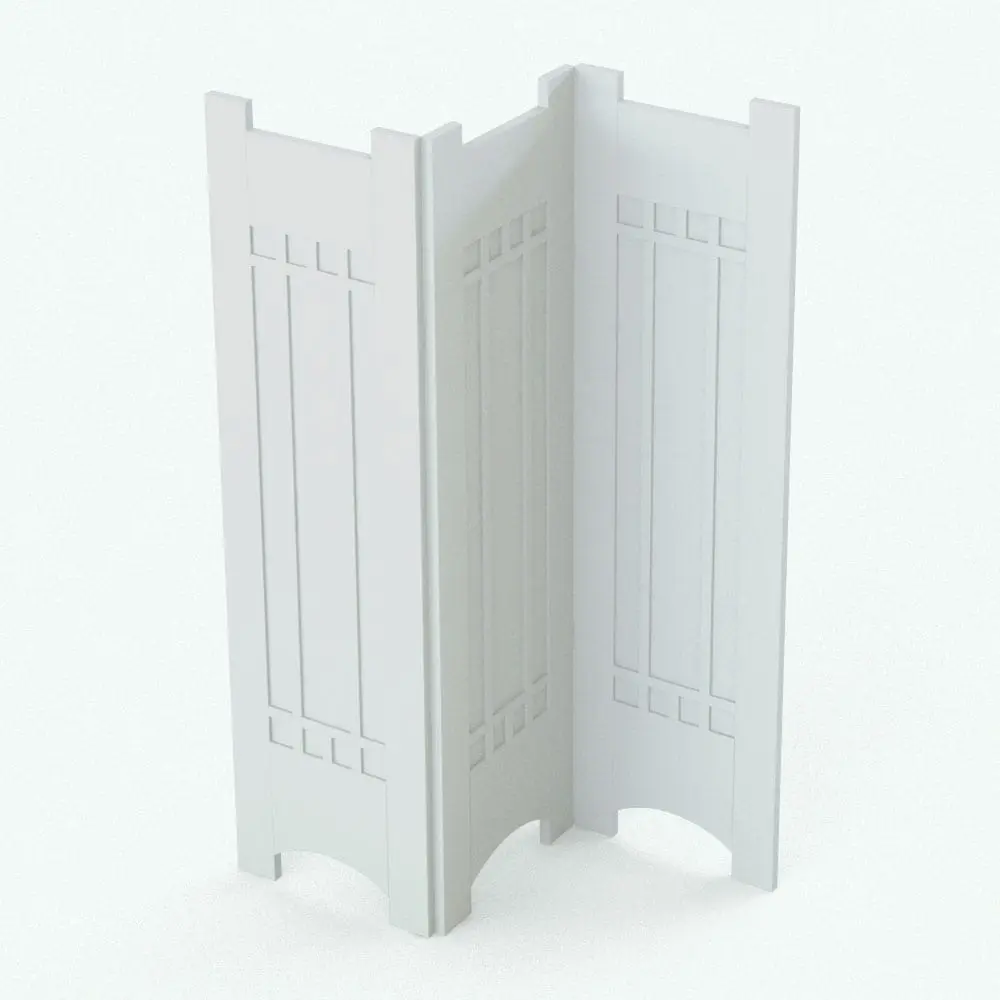

Make your design stand out by adding this fully parametric multi-panel Revit family space divider. Modify the parameters to create different looks and sizes that will make your space look more interesting. Play with the number of panels, the angle, height and width of the panels as well as with the side posts, the top and bottom sections, the offsets and materials to make it look unique in each of your projects.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Furniture
- Materials/textures: Yes
- Approximate file size: 0.79 MB
- File format: .rfa
This Revit family wood and cloth space divider comes with the following customizable parameters and options:
Width and height:
- Minimum height: 4′
- Maximum height: 12′
- Minimum width: 1′ 8″
- Maximum width: 7′
Side posts width:
- Minimum width: 1″
- Maximum width: width of panel/4
Top and bottom sections thickness:
- Minimum thickness: 2″
- Maximum thickness: height of panel/4
Bottom offset (approximate distance between floor and highest point on arch):
- Minimum offset: 8″
- Maximum offset: 1′ 6″

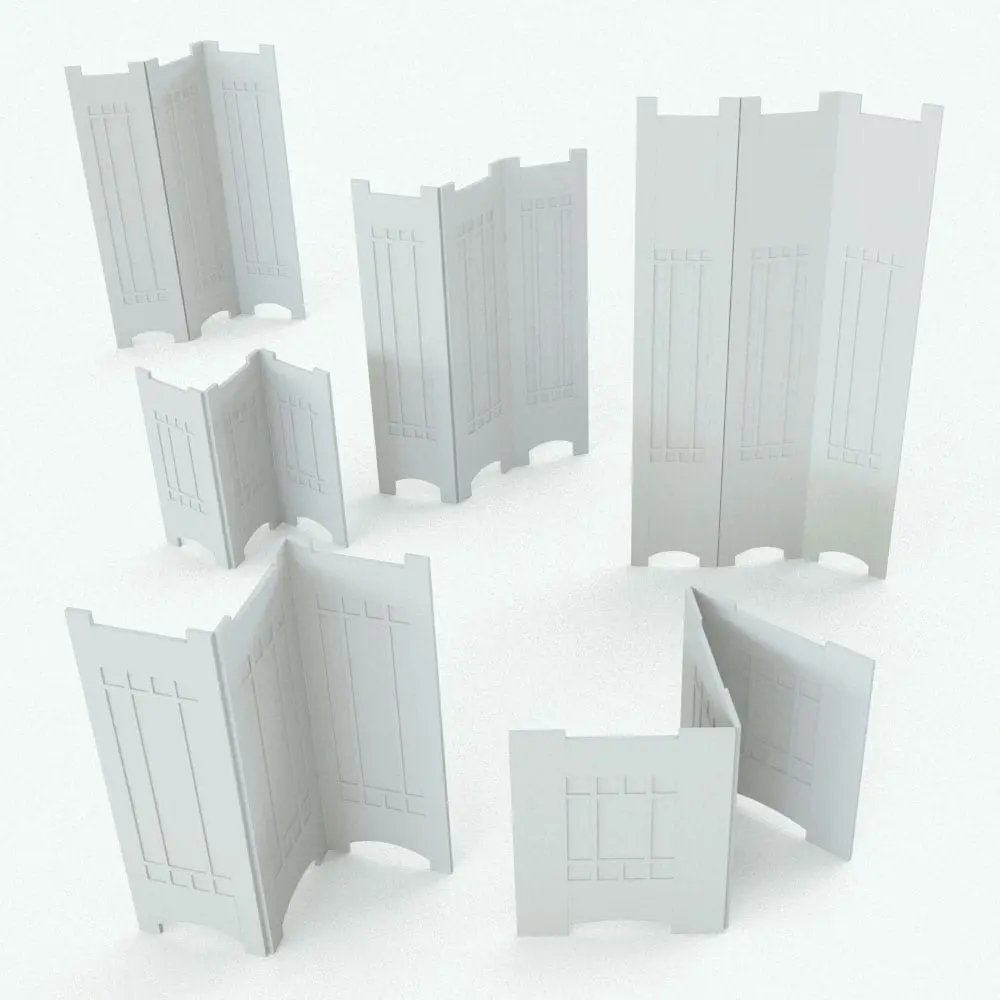

Angles of each panel (individually)+:
- Minimum angle: 0
- Maximum angle: 135
+If the Equal checkbox is on, the angle of all panels will be the same (it will take the angle of panel 1 as the angle for all).
Panel 3 can be turned on/off
Material parameters for:
- Wood horizontal direction
- Wood vertical direction
- Cloth (central panel)
- Hinges
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
