Top Boards Exterior Furniture Set | Revit Family

$9.49

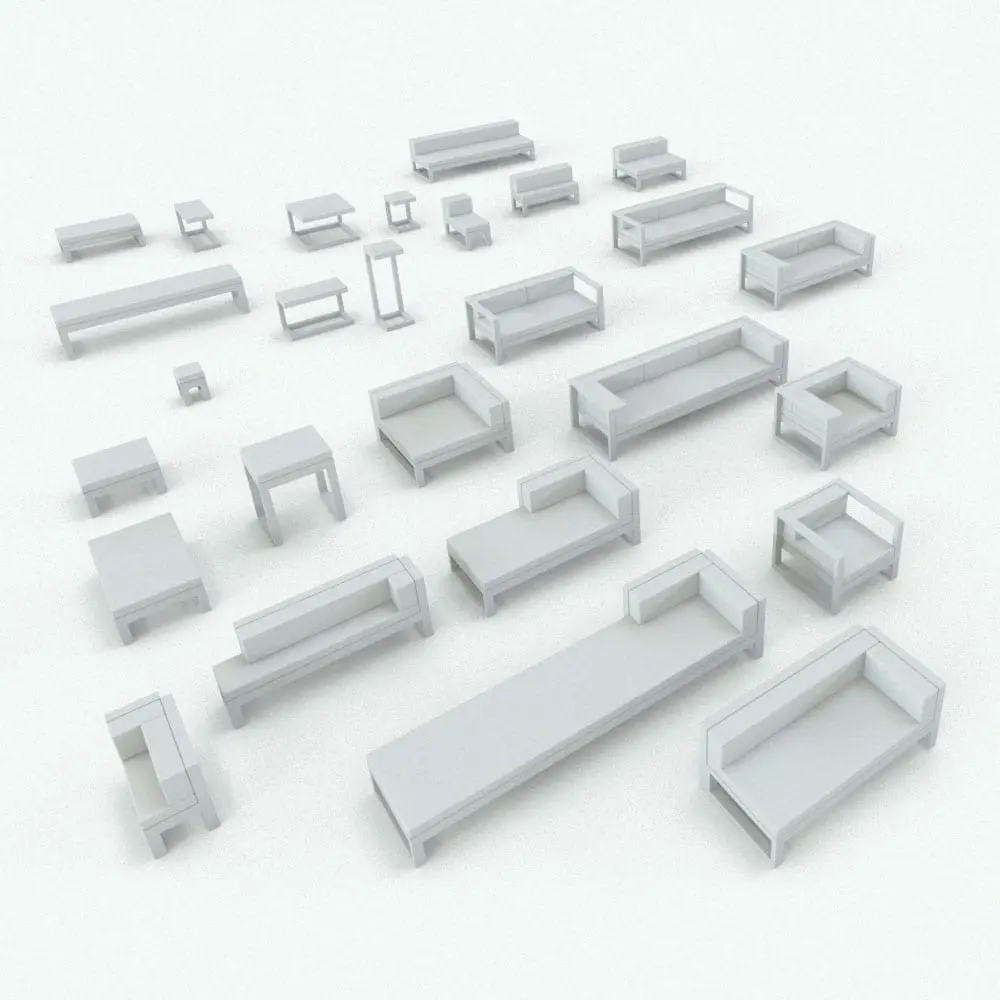

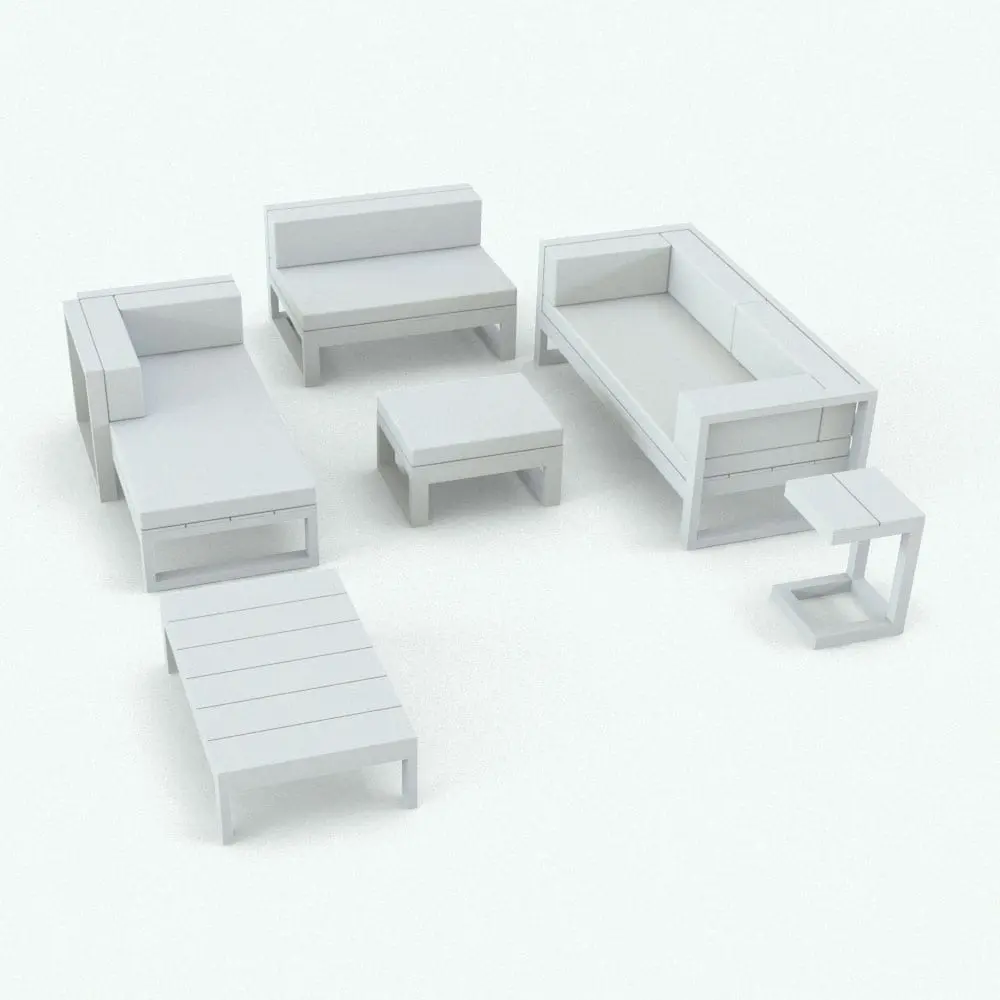

Parametric 6-piece Revit family exterior furniture set. This set includes: coffee table, side table, sofa, ottoman, chaise lounge and modular. Ideal for gardens, patios and public spaces. Change the sizes of each piece for a wide variety of arrangements and looks.

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Furniture
  • Materials/textures: Not included
  • Approximate file size: 0.44 MB
  • File format: .zip**

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Furniture
  • Materials/textures: Not included
  • Approximate file size: 0.48 MB
  • File format: .zip**

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Furniture
  • Materials/textures: Not included
  • Approximate file size: 0.53 MB
  • File format: .zip**

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Furniture
  • Materials/textures: Not included
  • Approximate file size: 0.5 MB
  • File format: .zip**

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Furniture
  • Materials/textures: Not included
  • Approximate file size: 0.55 MB
  • File format: .zip**

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Furniture
  • Materials/textures: Not included
  • Approximate file size: 0.54 MB
  • File format: .zip**

Description

This Revit family set of exterior furniture comes with the following customizable parameters and options:

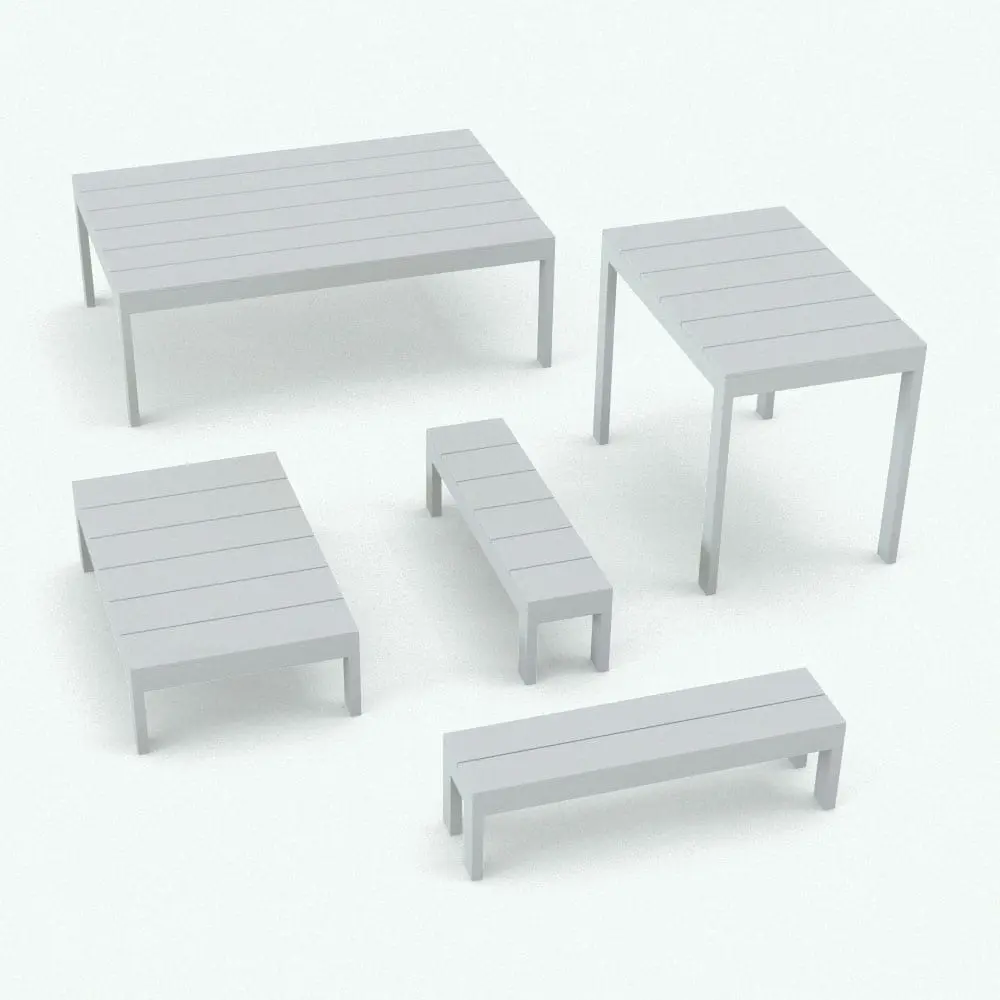

Coffee Table

Width, depth and height:

  • Minimum width: 1′
  • Maximum width: 18′
  • Minimum depth: 1′
  • Maximum depth: 18′
  • Minimum height: 1′
  • Maximum height: 3′

Material parameters for:

  • Boards
  • Frame

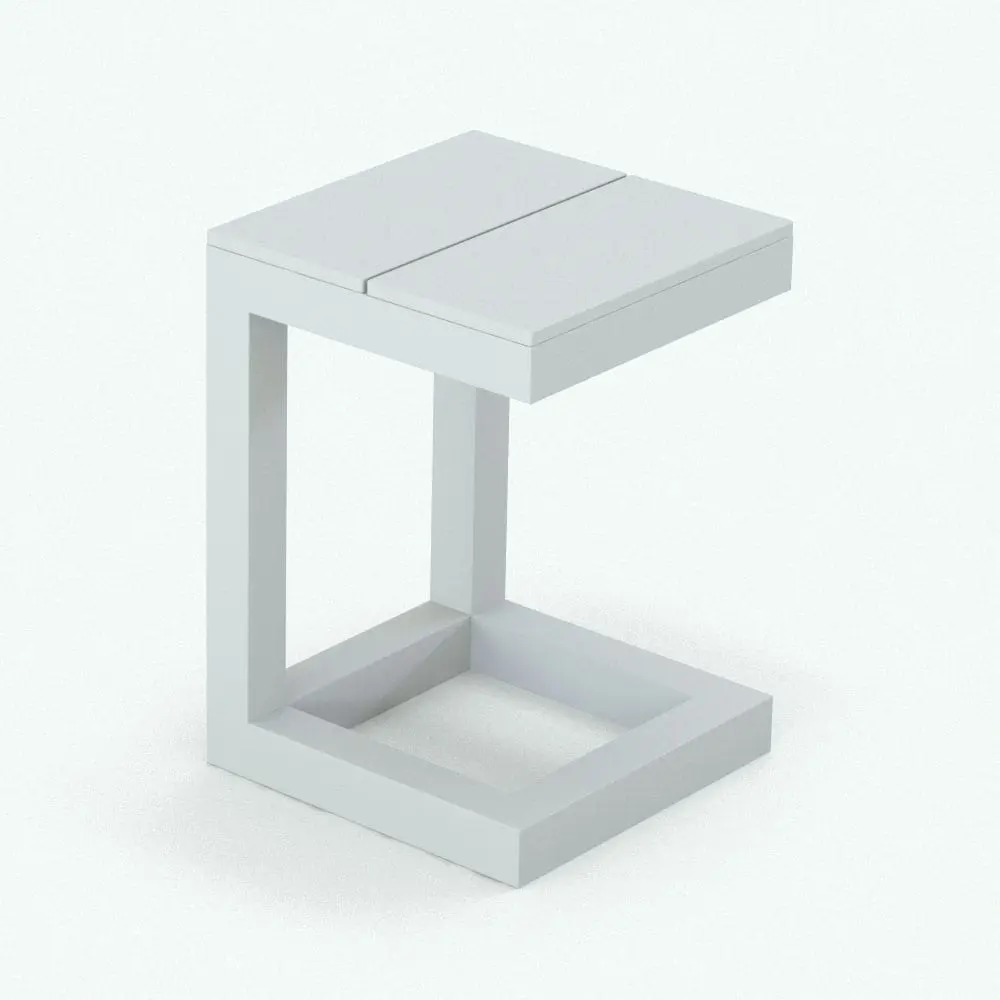

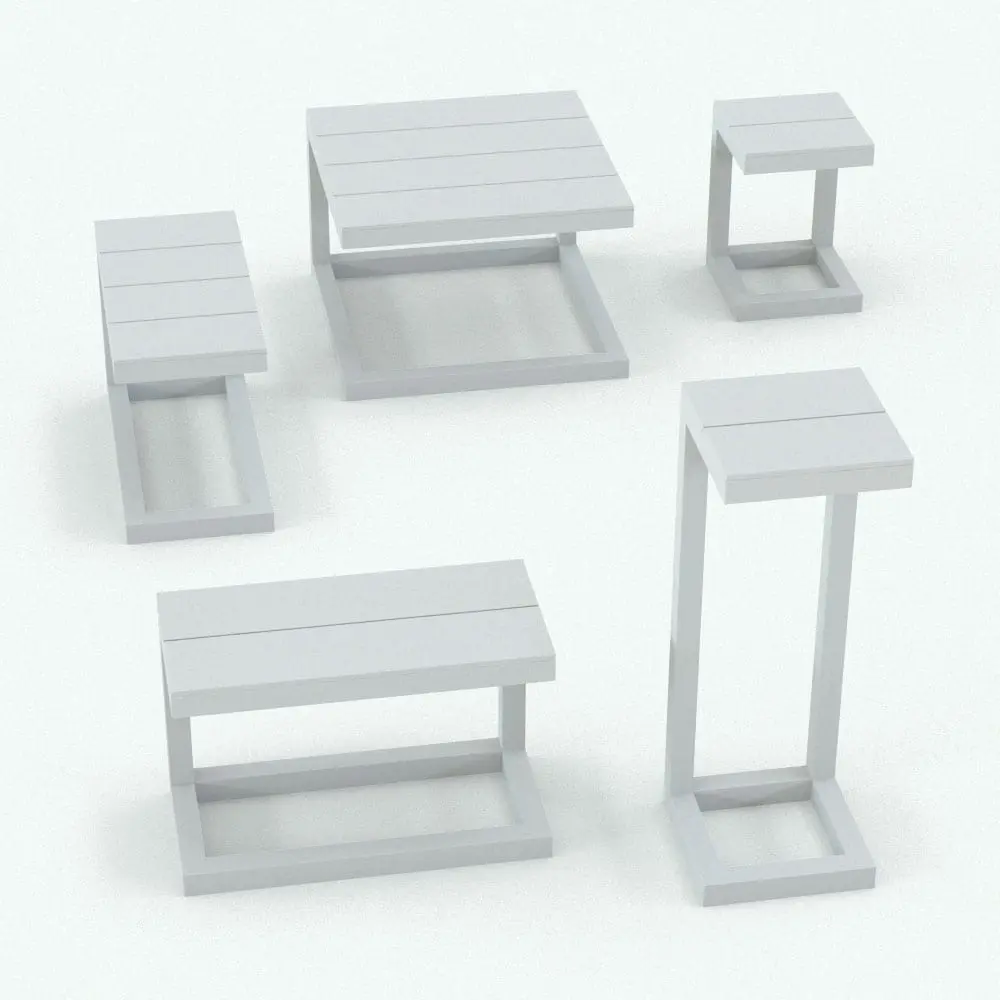

Side Table

Width, depth and height:

  • Minimum width: 1′
  • Maximum width: 4′
  • Minimum depth: 1′
  • Maximum depth: 4′
  • Minimum height: 1′
  • Maximum height: 4′

Material parameter for:

  • Boards
  • Frame

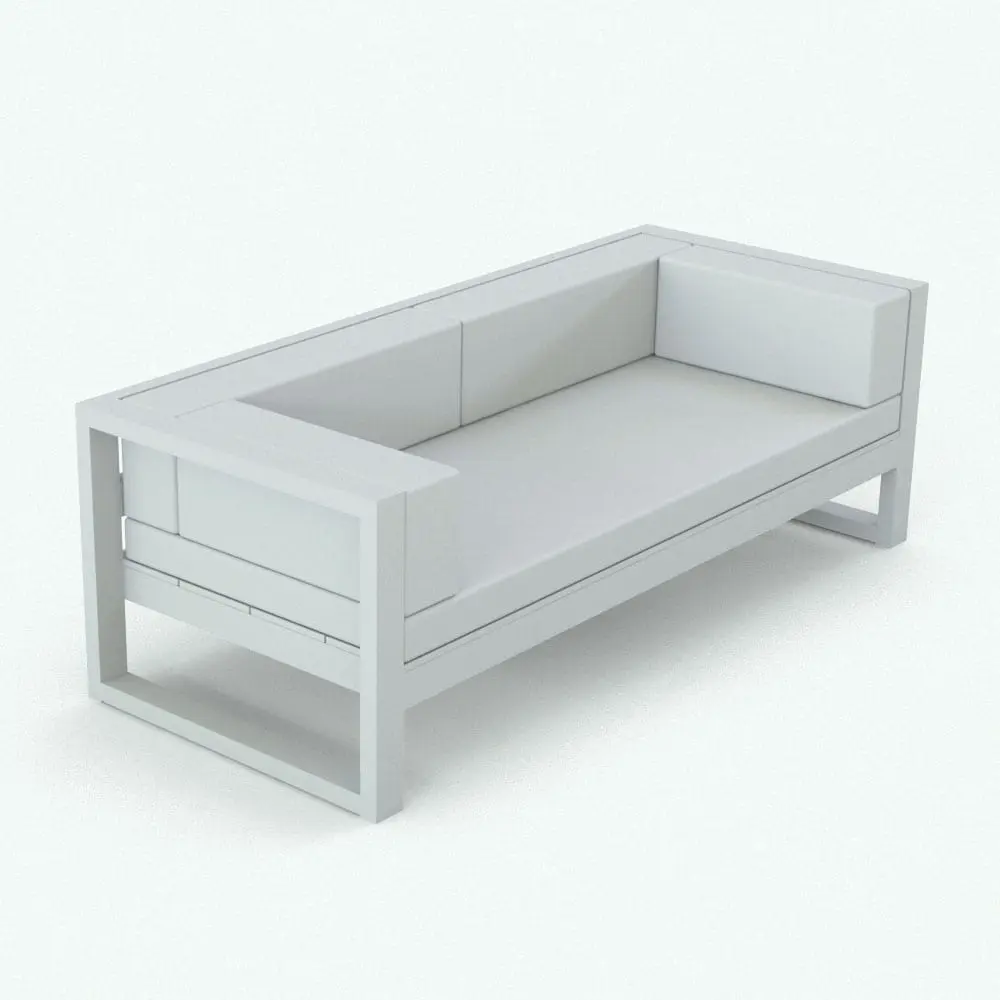

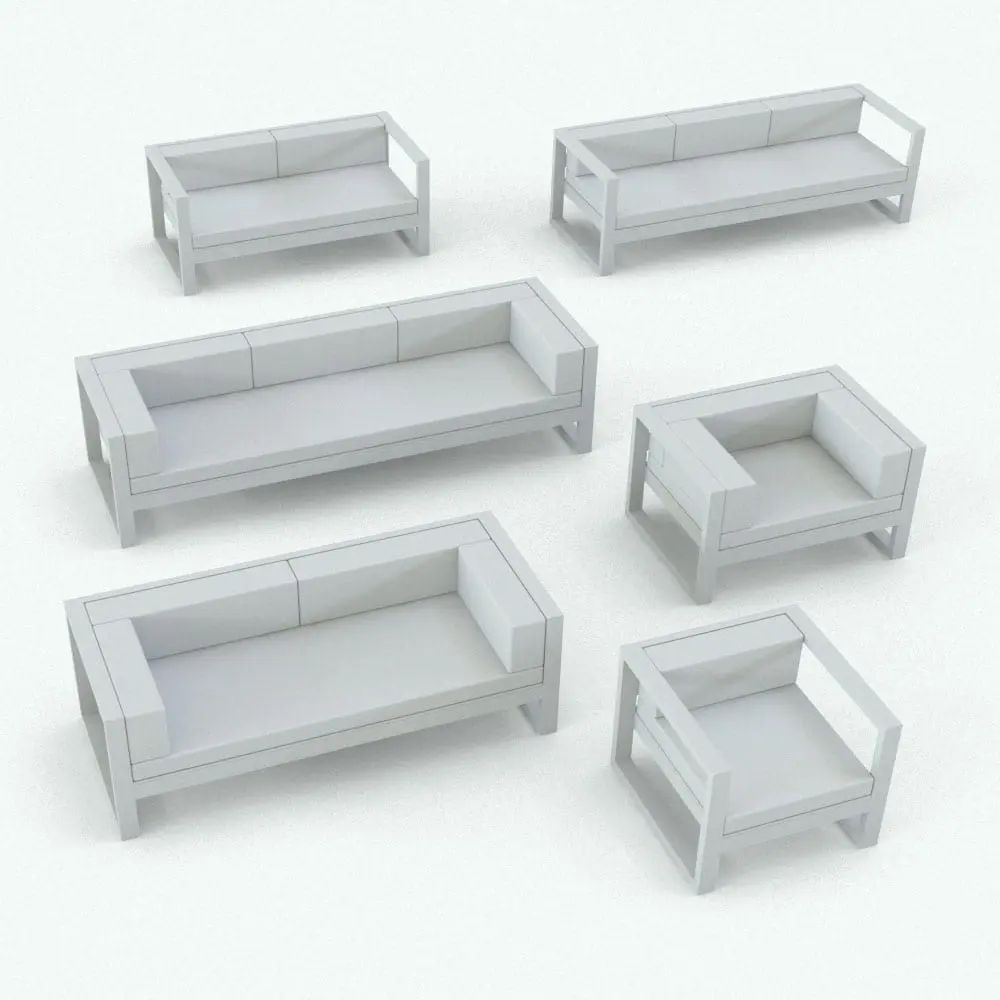

Sofa

This family comes with 6 pre-configured family types:

  • Love Seat With Side Cushions
  • Love Seat No Side Cushions
  • Arm Chair With Side Cushions
  • Arm Chair No Side Cushions
  • 3 Seat Sofa With Side Cushions
  • 3 Seat Sofa No Side Cushions

Width, depth and number of back cushions:

  • Minimum width: 2’11”
  • Maximum width: 20′
  • Minimum depth: 1’6″
  • Maximum depth: 4′
  • Minimum number of back cushions: 2
  • Maximum number of back cushions: 4

Side cushions can be removed

Material parameters for:

  • Boards
  • Cushion
  • Frame

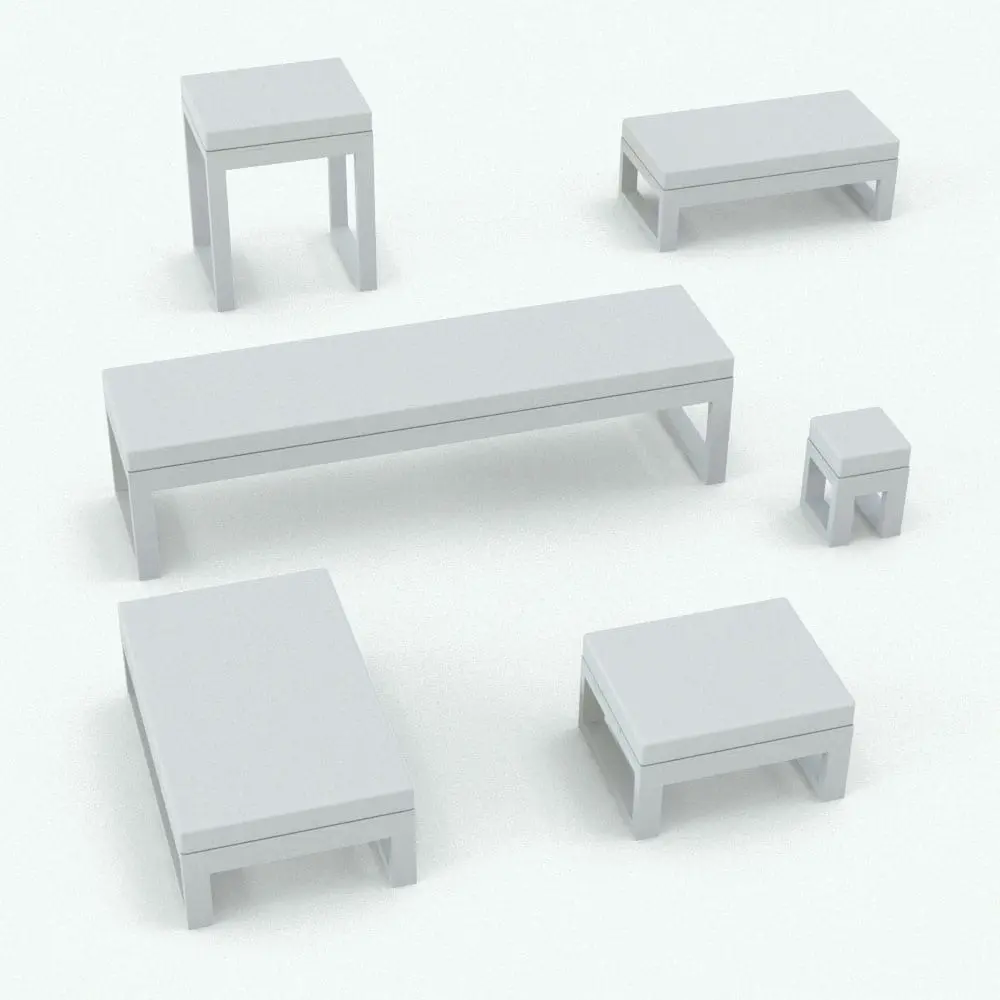

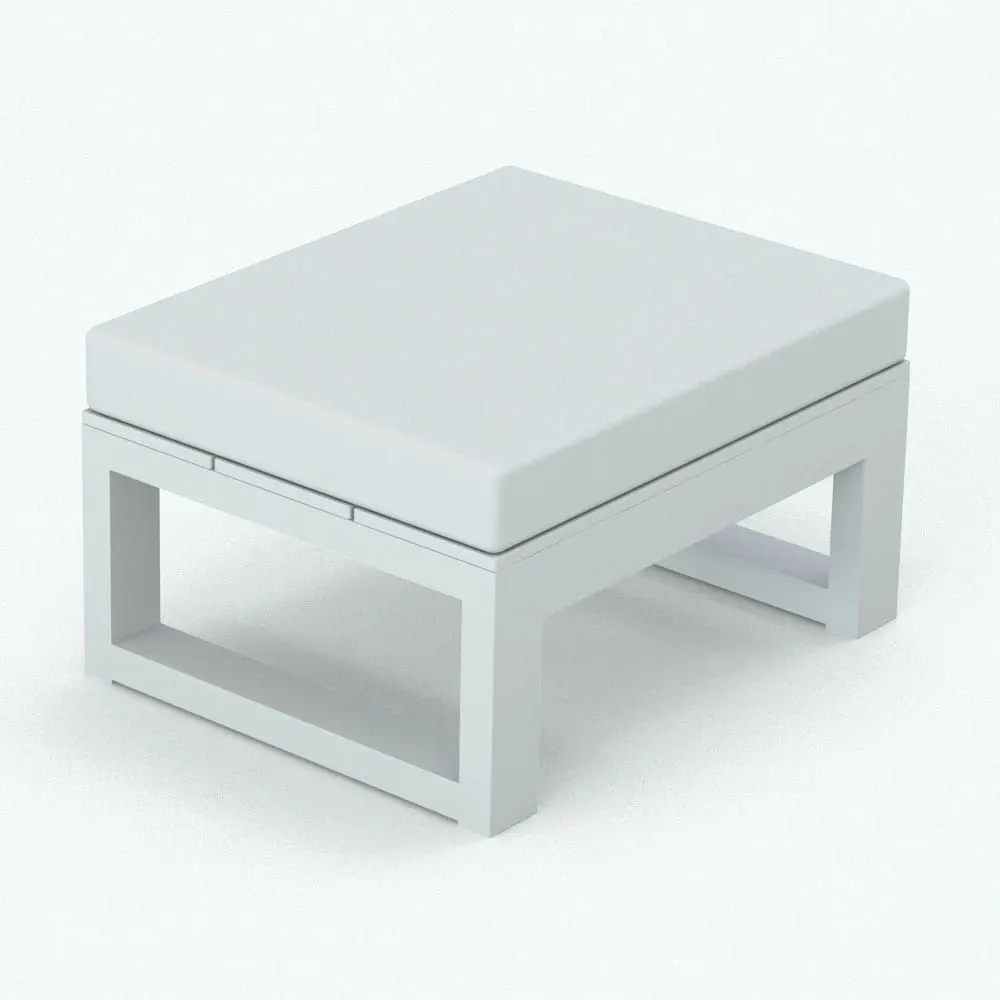

Ottoman

Width, depth and height:

  • Minimum width: 1′
  • Maximum width: 10′
  • Minimum depth: 1′
  • Maximum depth: 10′
  • Minimum height: 1’2″
  • Maximum height: 3′

Material parameter for:

  • Boards
  • Cushion
  • Frame

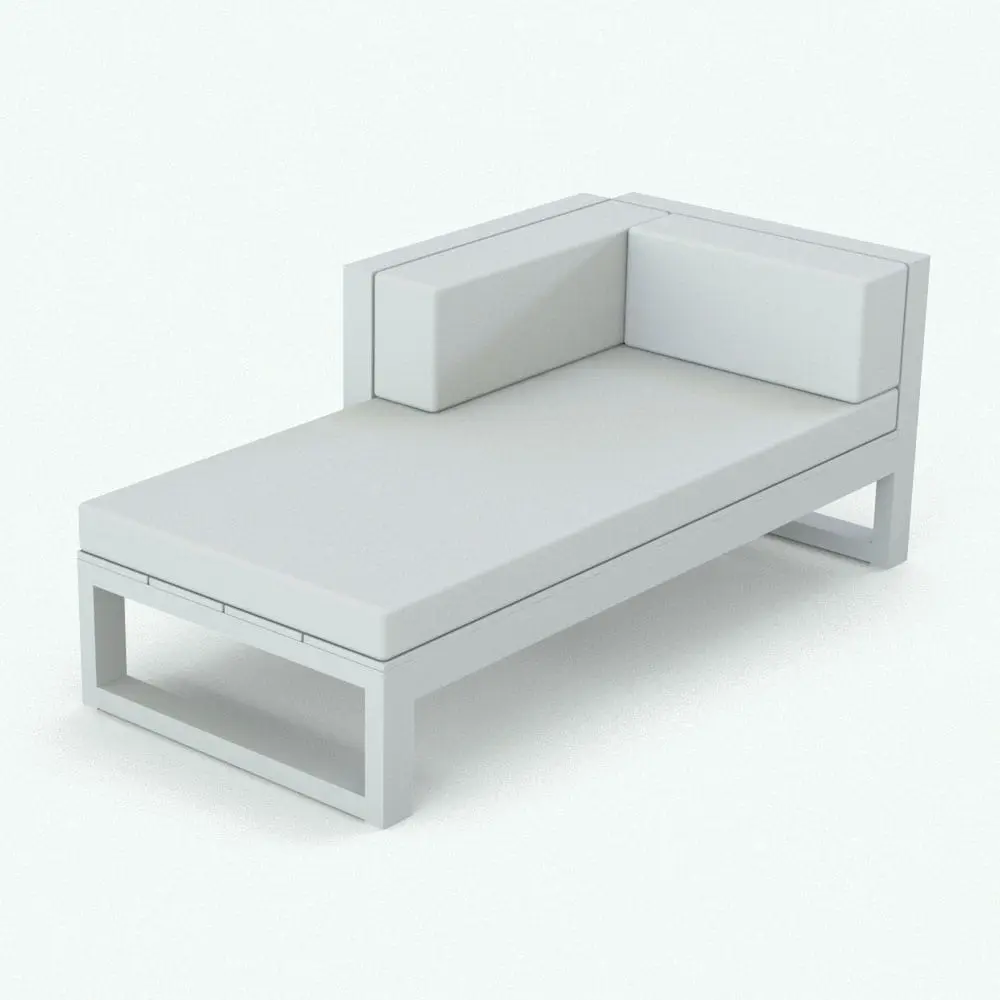

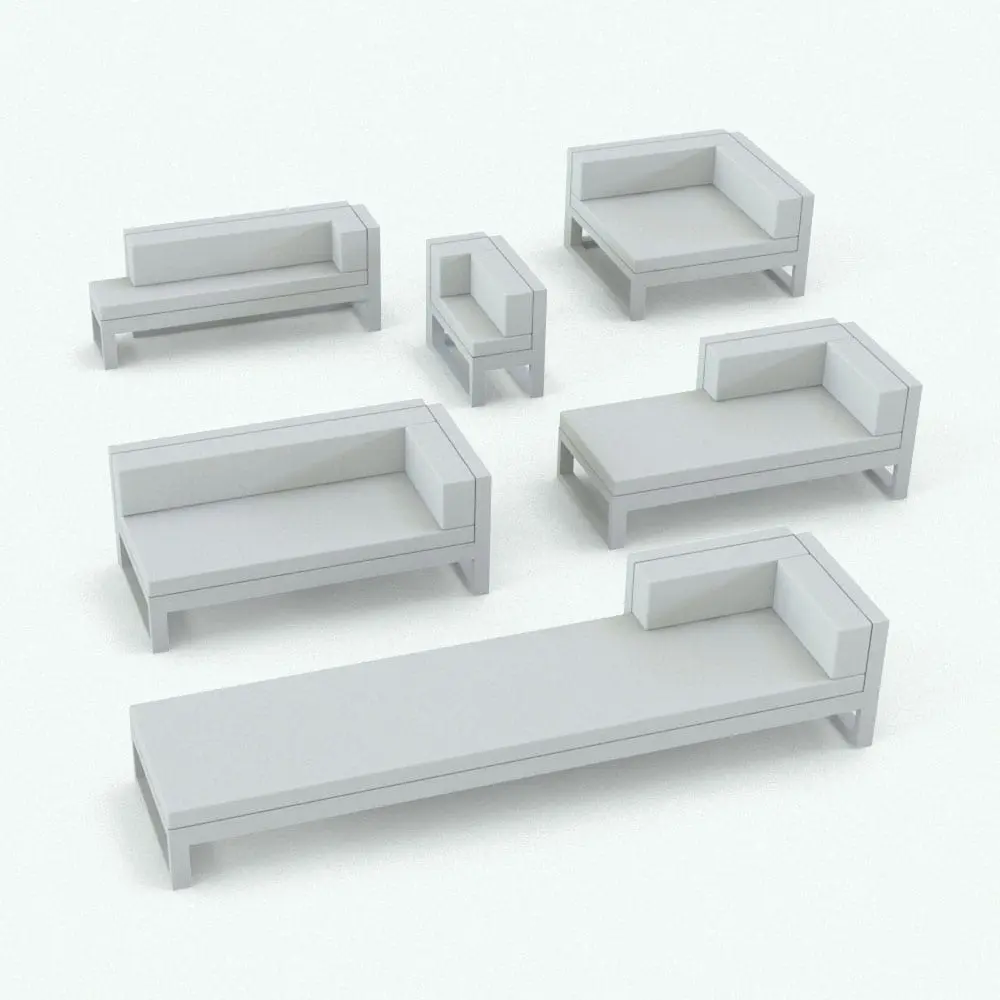

Chaise Lounge

Width, depth and chaise arm length:

  • Minimum width: 1’6″
  • Maximum width: 20′
  • Minimum depth: 1’6″
  • Maximum depth: 4′
  • Minimum chaise arm length: 1’6″
  • Maximum chaise arm length: Width value

Material parameters for:

  • Boards
  • Cushion
  • Frame

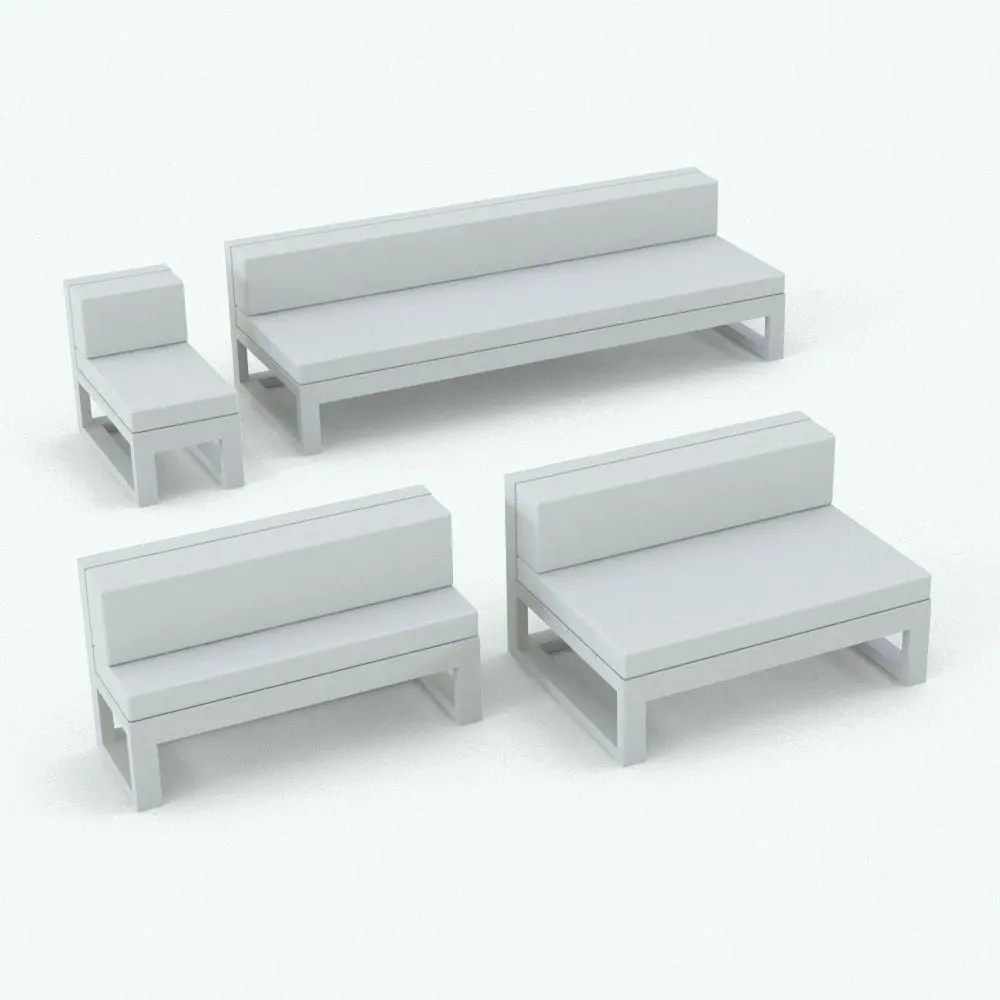

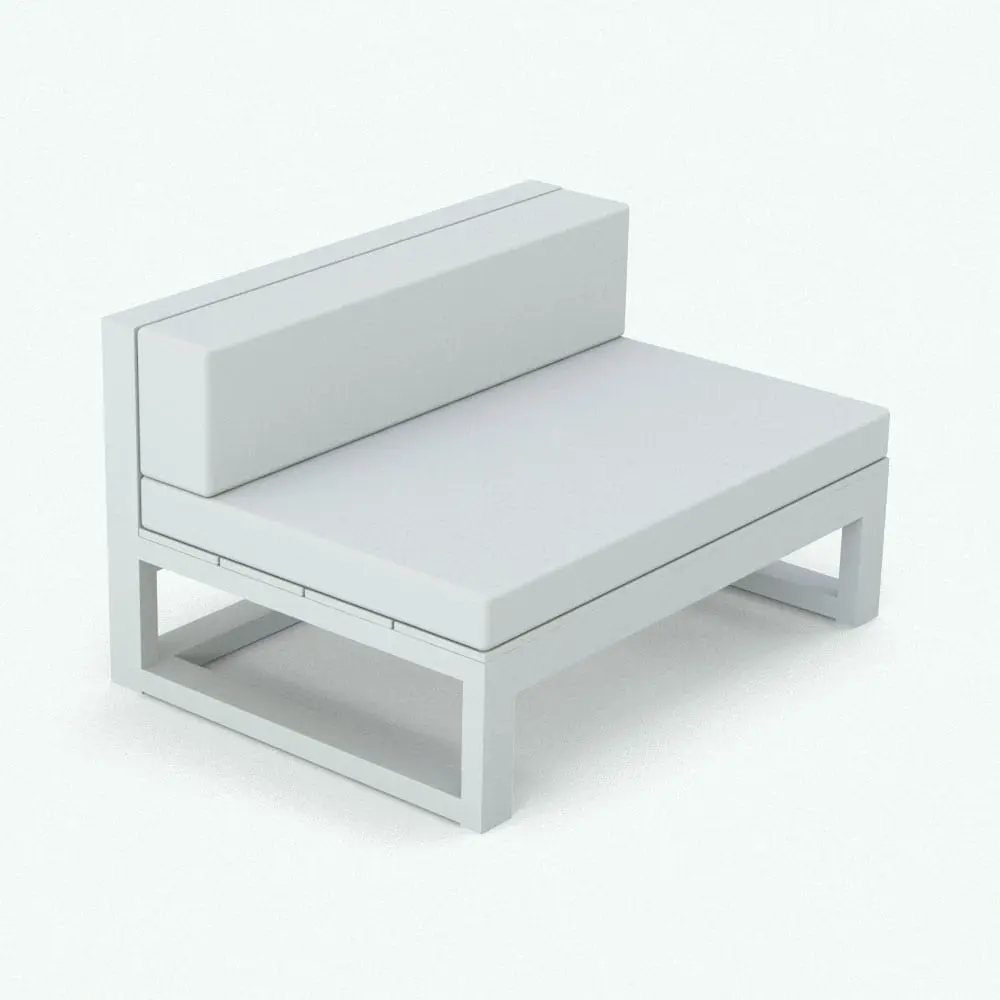

Modular

Width and depth:

  • Minimum width: 1’6″
  • Maximum width: 20′
  • Minimum depth: 1’6″
  • Maximum depth: 4′

Material parameters for:

  • Boards
  • Cushion
  • Frame

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

** All files are delivered in zip format. Before using your families, you will need to unzip the Revit file(s) (.rfa or .rvt) using a 3rd party software like Winzip or Peazip. Make sure to have a software to unzip files before purchasing 3d models.
