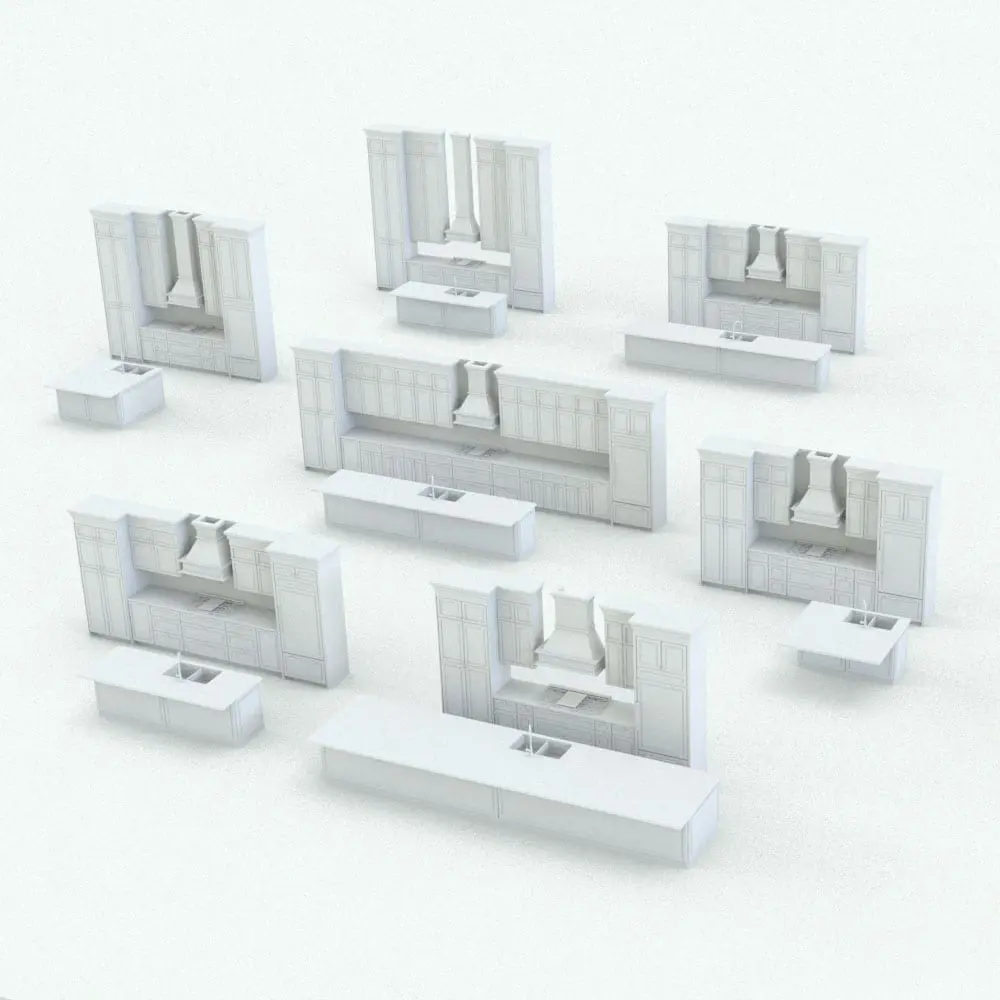

Straight Revit Kitchen Family With Island shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions of both, the stove side and the island side, the width of the pantry, the width of the sink and many more options to fully customize it. Ideal for residential and commercial purposes, this realistic looking Revit kitchen family will elevate your designs to new heights.

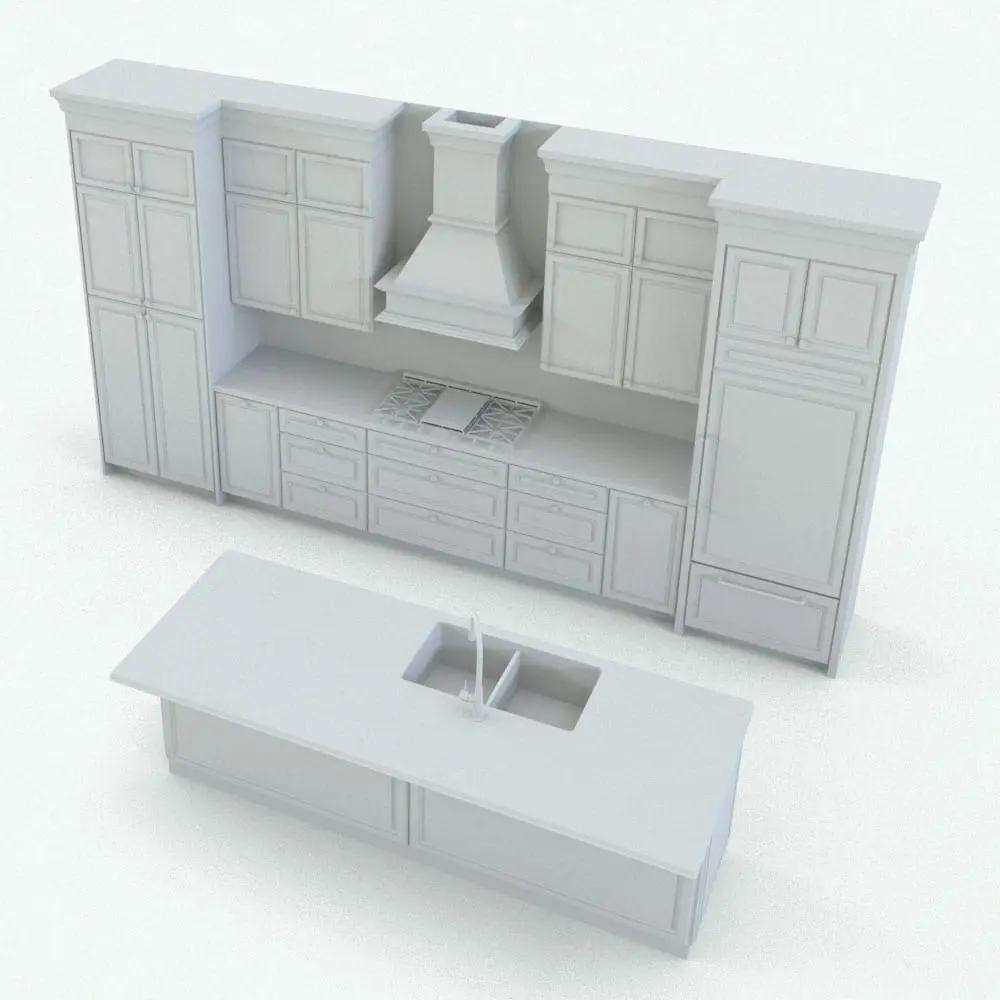

Straight Revit Kitchen Family With Island in 3D and rendered in black and white (ambient occlusion style) to showcase the shapes and details better. Don't waste any more time building your kitchens one cabinet at a time. Instead, get this Revit kitchen family, input the width of your space and let the parameters in this family do their magic. Don't wait any longer and streamline your workflow today with this Straight Revit Kitchen Family With Island.

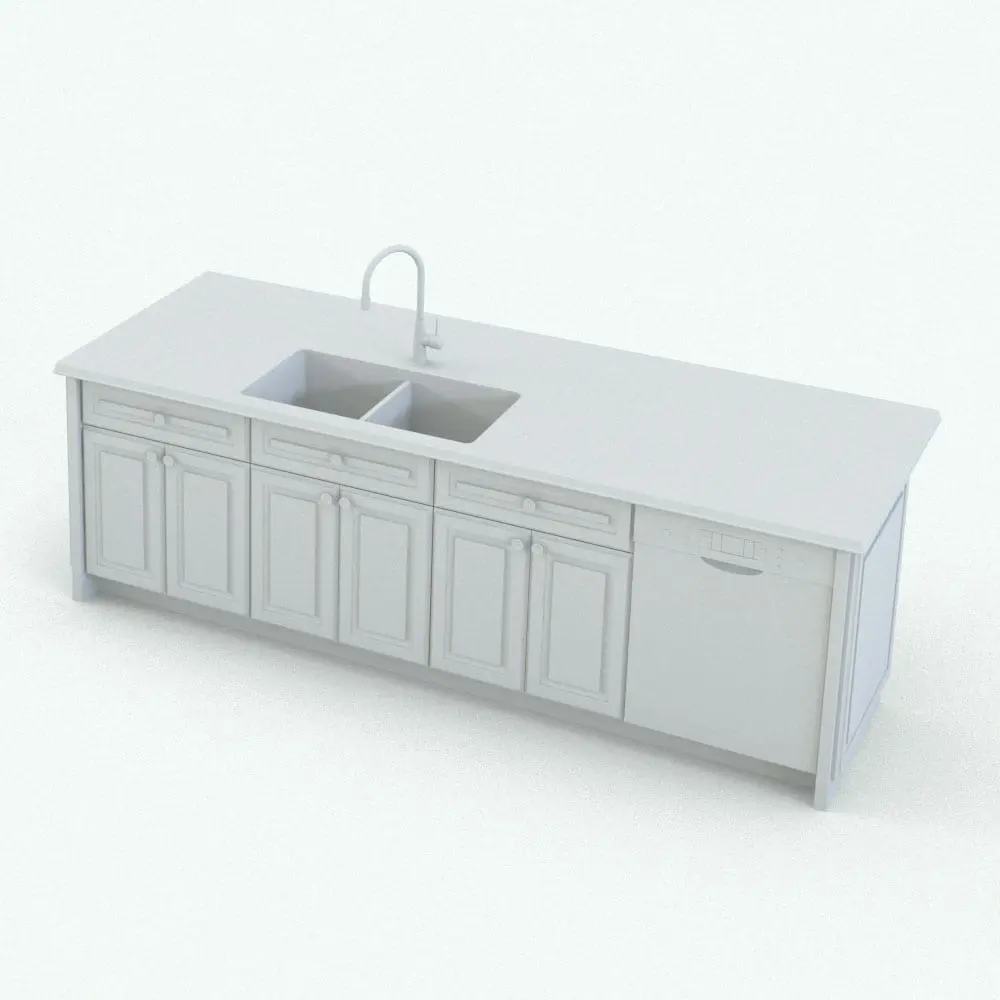

Island in this Straight Revit Kitchen Family showcasing the embedded sink and dishwasher. This island is fully parametric and ready to render. Just insert it into your project, select the materials and hit the render button for instant results. Don't wait any longer and get this Revit kitchen family today.

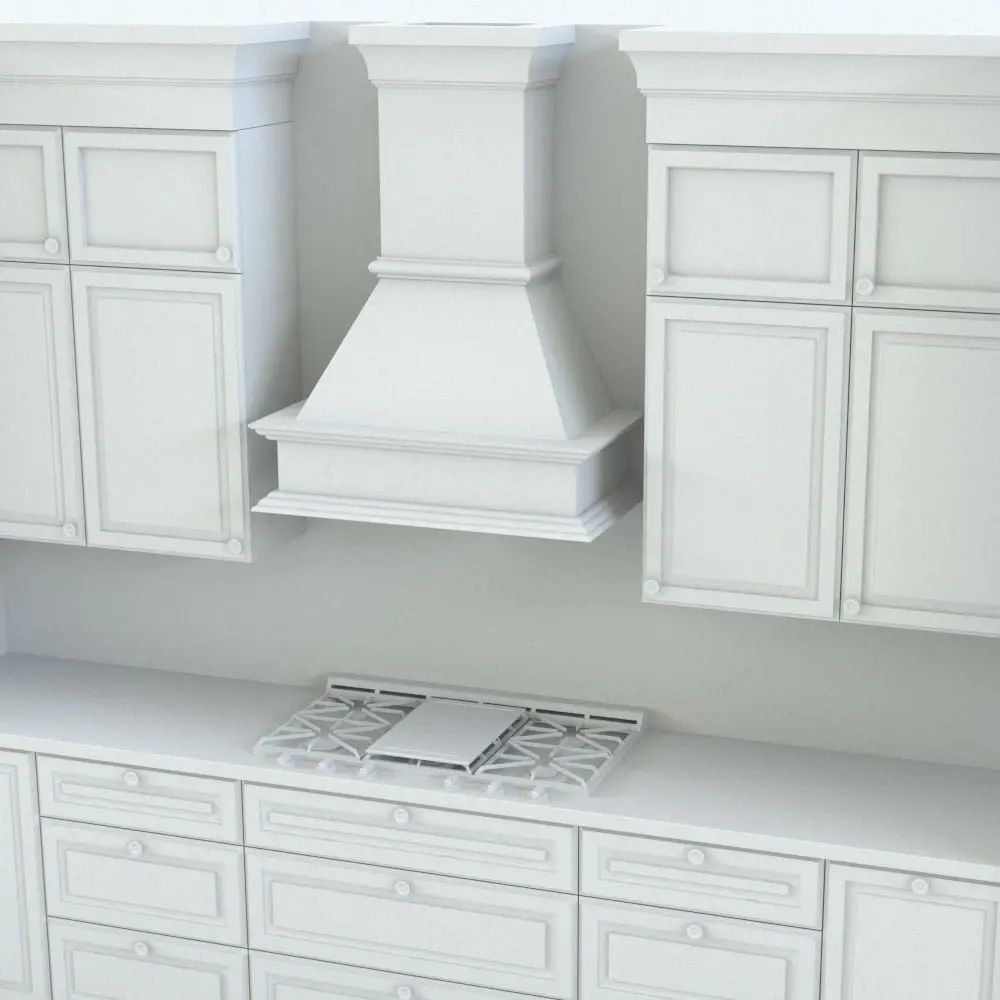

Detail of the kitchen range Revit family and the cabinets. The hood on this Revit kitchen family is a decorative piece on its own and it will make your projects look unique and sophisticated. Ideal for modern, traditional or contemporary projects, this Revit kitchen family will streamline your Revit workflow in just a few clicks.

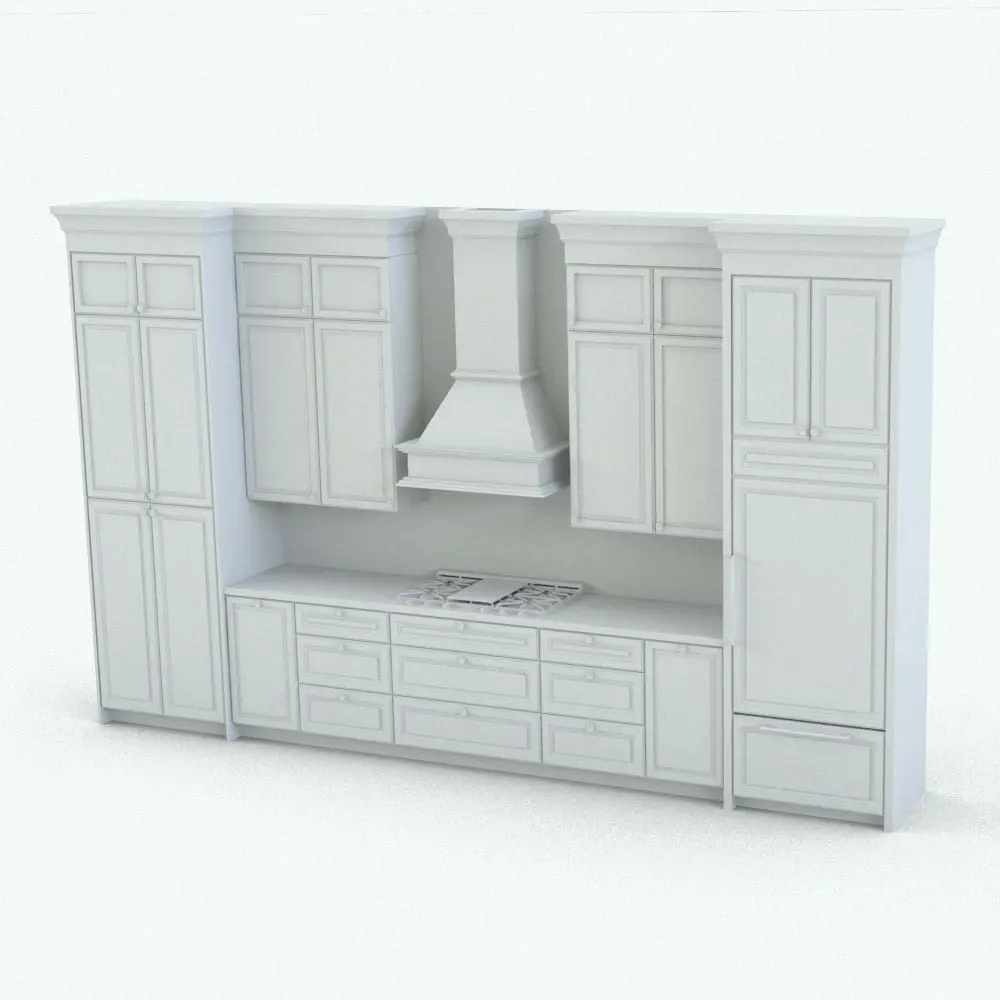

Straight Revit Kitchen Family - oven side. The hood and cabinets unique style will make your projects stand out. Whether used in residential or commercial projects, this fully parametric Revit kitchen is the perfect complement to your modern looking projects.

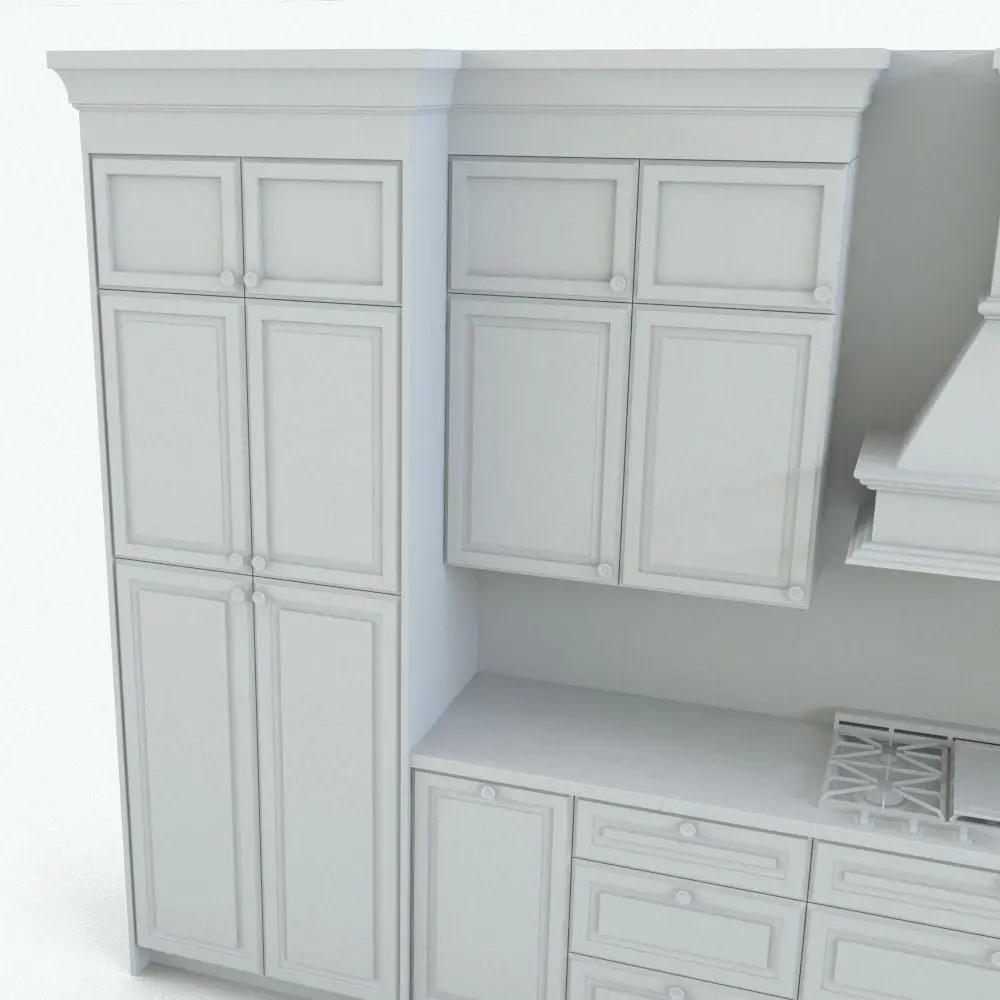

Detail 2 of the Revit kitchen cabinets in this family.

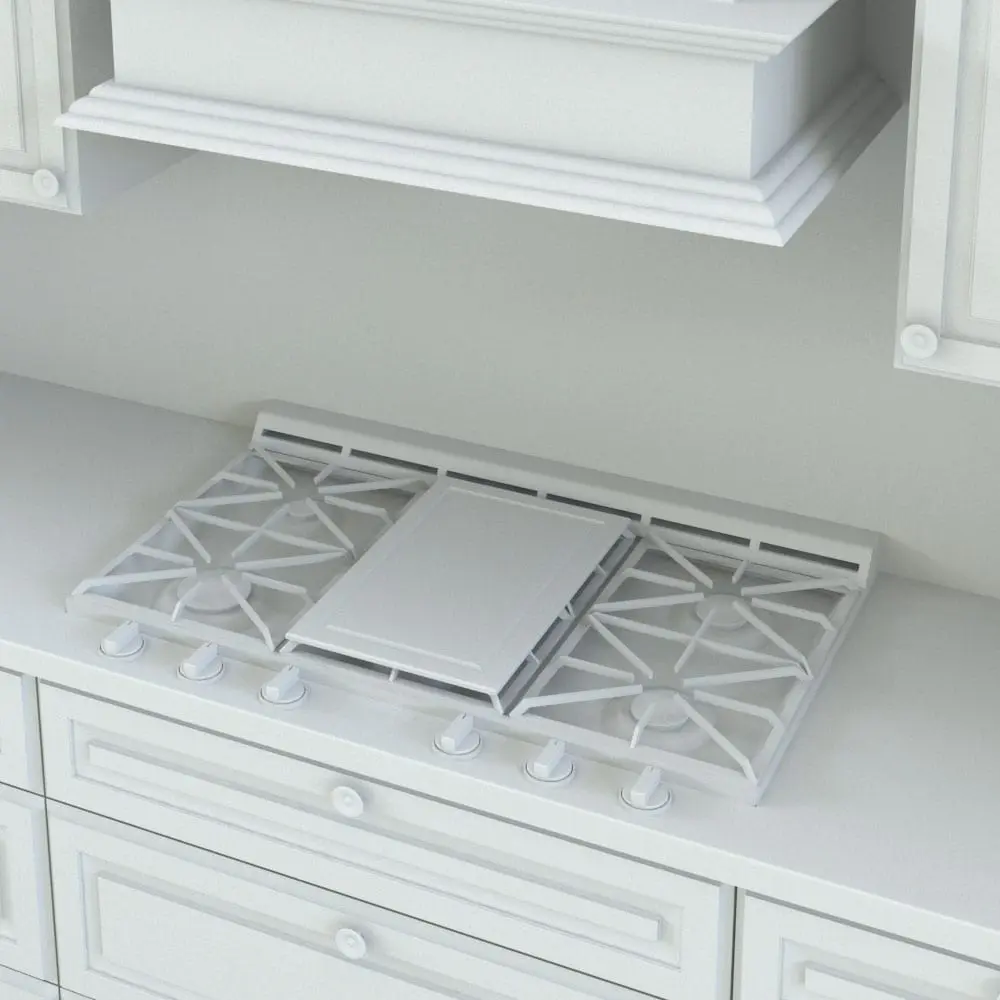

Detail 3 of the Revit stove and part of the hood. This Revit stove's width can be changed as well as the materials for full customization. The moldings and the uniquely shaped hood make this Revit kitchen stand out from the crowd.

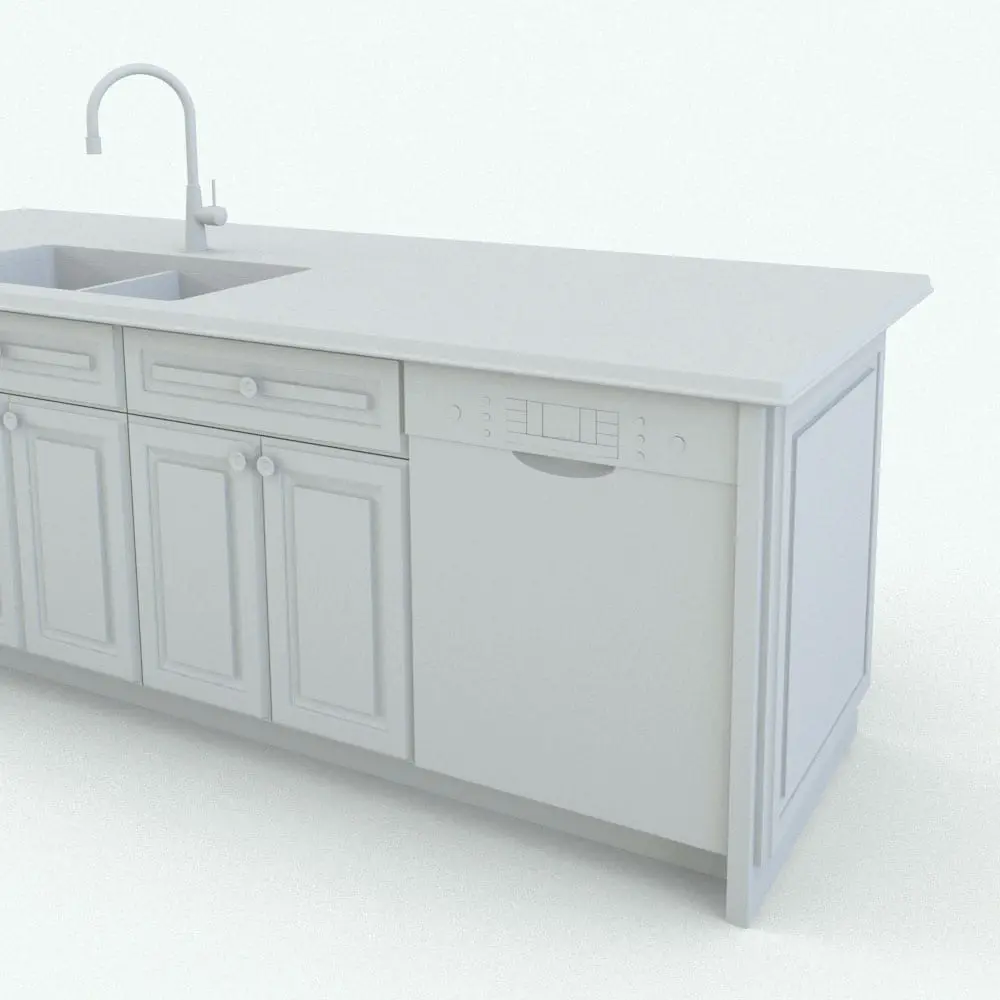

Detail 4 of the Revit dishwasher, lower cabinets and sink part of this Revit kitchen family. The intricate details on the cabinets and the sleek and modern appliances make this family unique and elegant.

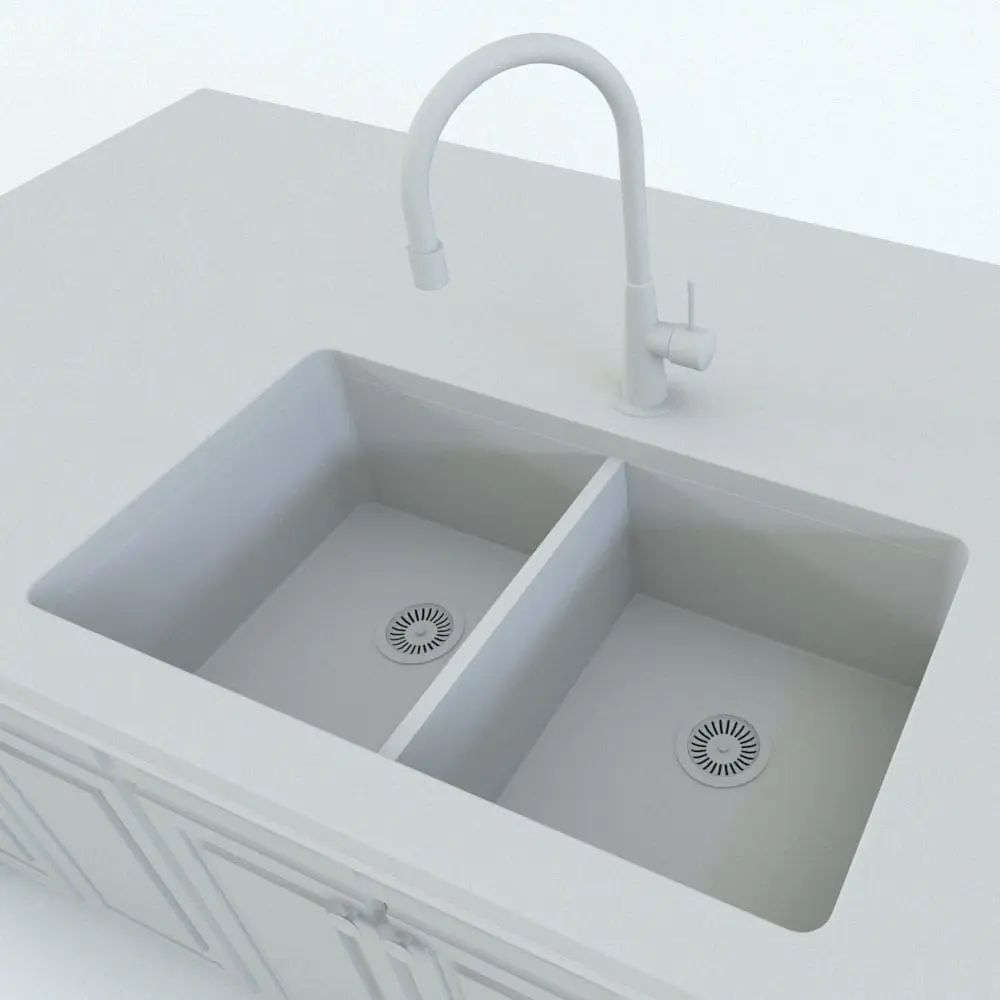

Detail 5 of the Revit sink family, which is also fully customizable.
Straight Revit Kitchen Family With Island in 3D and rendered with a light colored wood for the Revit kitchen cabinets and dark colored marble countertops. Ideal for modern and contemporary interior design projects, This Revit kitchen will transform your spaces in just a few clicks. Don't let this opportunity pass and get this realistic Revit kitchen family today.
Straight Revit Kitchen Family With Island shown in different sizes and configurations to showcase its parametric flexibility. This Revit family allows you to change the overall dimensions of both, the stove side and the island side, the width of the pantry, the width of the sink and many more options to fully customize it. Ideal for residential and commercial purposes, this realistic looking Revit kitchen family will elevate your designs to new heights.
Straight Revit Kitchen Family With Island in 3D and rendered in black and white (ambient occlusion style) to showcase the shapes and details better. Don't waste any more time building your kitchens one cabinet at a time. Instead, get this Revit kitchen family, input the width of your space and let the parameters in this family do their magic. Don't wait any longer and streamline your workflow today with this Straight Revit Kitchen Family With Island.
Island in this Straight Revit Kitchen Family showcasing the embedded sink and dishwasher. This island is fully parametric and ready to render. Just insert it into your project, select the materials and hit the render button for instant results. Don't wait any longer and get this Revit kitchen family today.
Detail of the kitchen range Revit family and the cabinets. The hood on this Revit kitchen family is a decorative piece on its own and it will make your projects look unique and sophisticated. Ideal for modern, traditional or contemporary projects, this Revit kitchen family will streamline your Revit workflow in just a few clicks.
Straight Revit Kitchen Family - oven side. The hood and cabinets unique style will make your projects stand out. Whether used in residential or commercial projects, this fully parametric Revit kitchen is the perfect complement to your modern looking projects.
Detail 2 of the Revit kitchen cabinets in this family.
Detail 3 of the Revit stove and part of the hood. This Revit stove's width can be changed as well as the materials for full customization. The moldings and the uniquely shaped hood make this Revit kitchen stand out from the crowd.
Detail 4 of the Revit dishwasher, lower cabinets and sink part of this Revit kitchen family. The intricate details on the cabinets and the sleek and modern appliances make this family unique and elegant.
Detail 5 of the Revit sink family, which is also fully customizable.

Straight Revit Kitchen Family With Island

rfa

$11.49

Categories: , Tags: , , , , , , , , , , , , , , , , , , ,

Enhance your projects with this elegant Straight Revit Kitchen Family With Island, complete with a functional island and high-end finishes. Designed for both residential and commercial spaces, this Revit kitchen layout combines classic cabinetry with a modern touch, making it an excellent choice for sophisticated Revit interiors.

The main wall on this Straight Revit Kitchen Family With Island features ample storage, integrated appliances, and a decorative range hood, adding a refined aesthetic. The large island includes a built-in sink and extended counter space, providing extra prep area and casual seating options. Fully parametric, this Revit kitchen family allows for customizable finishes, cabinet layouts, and appliance configurations to fit any design requirement.

Key features of this Revit kitchen family:

  • Straight Revit kitchen layout with an island for additional workspace
  • Decorative range hood and integrated storage solutions
  • High-quality Revit kitchen cabinets with classic detailing
  • Customizable finishes, cabinet arrangements, and appliances
  • Ideal for high-end residences, hospitality, and modern homes

Looking for kitchenware to complete your Revit kitchen project? Click HERE to browse the different options we have in stock.

For a detailed description of parameters and materials of this Revit kitchen family, please read the Revit Family Technical Information section below.



Revit Kitchen Cabinets Side (Part 1):

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model
  • Materials/textures: Yes
  • Approximate file size: 4.0 MB
  • File format: .rfa

Revit Island Side (Part 2):

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model
  • Materials/textures: Yes
  • Approximate file size: 2.1 MB
  • File format: .rfa



This Straight Revit Kitchen Family With Island comes with the following customizable parameters and options:

This Revit kitchen family (divided into two files) includes:

  • Gas Stove
  • Sink
  • Built-in Refrigerator
  • Built-in Exhaust Fan
  • Dishwasher
  • Pantry

Revit Kitchen Cabinets Side (Part 1):

Length and total height of the Revit kitchen family:

  • Minimum length: 14′
  • Maximum length: 40′
  • Minimum height: 8′
  • Maximum height: 15′

Pantry width on this Revit kitchen:

  • Minimum pantry width: 2’2″
  • Maximum pantry width: 4′

Revit refrigerator width:

  • Minimum refrigerator width: 2’3″
  • Maximum refrigerator width: 3’6″

Width of Revit Stove:

  • Minimum stove width: 2’4″
  • Maximum stove width: 3’6″

Backsplash can be turned off.

Revit Island Side (Part 2):

Width of Revit island side:

  • Minimum length: 5’8″
  • Maximum length: 30′

Revit kitchen cabinets depth and counter overhang:

  • Minimum cabinets depth: 2′
  • Maximum cabinets depth: 6′
  • Minimum counter overhang: 1′ 1/4″
  • Maximum counter overhang: 3′

Width of sink in the Revit island family:

  • Minimum sink width: 2′
  • Maximum sink width: 3′

The faucet in the sink can rotate between -45 and 45 degrees

Dishwasher can be turned off

This Straight Revit Kitchen Family With Island comes with material parameters for:

  • Cabinets
  • Countertop
  • Frosted Glass
  • Backsplash
  • Handles
  • Stove
  • Stove Knobs
  • Stove Burner Grid
  • Stove Burner
  • Faucet
  • Sink
  • Dishwasher
  • Dishwasher Round Buttons
  • Dishwasher Screen
  • Dishwasher Square Buttons
  • Dishwasher Upper Section

IMPORTANT NOTE ABOUT THIS REVIT KITCHEN FAMILY: This family is not intended to be used as a professional kitchen design tool.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
