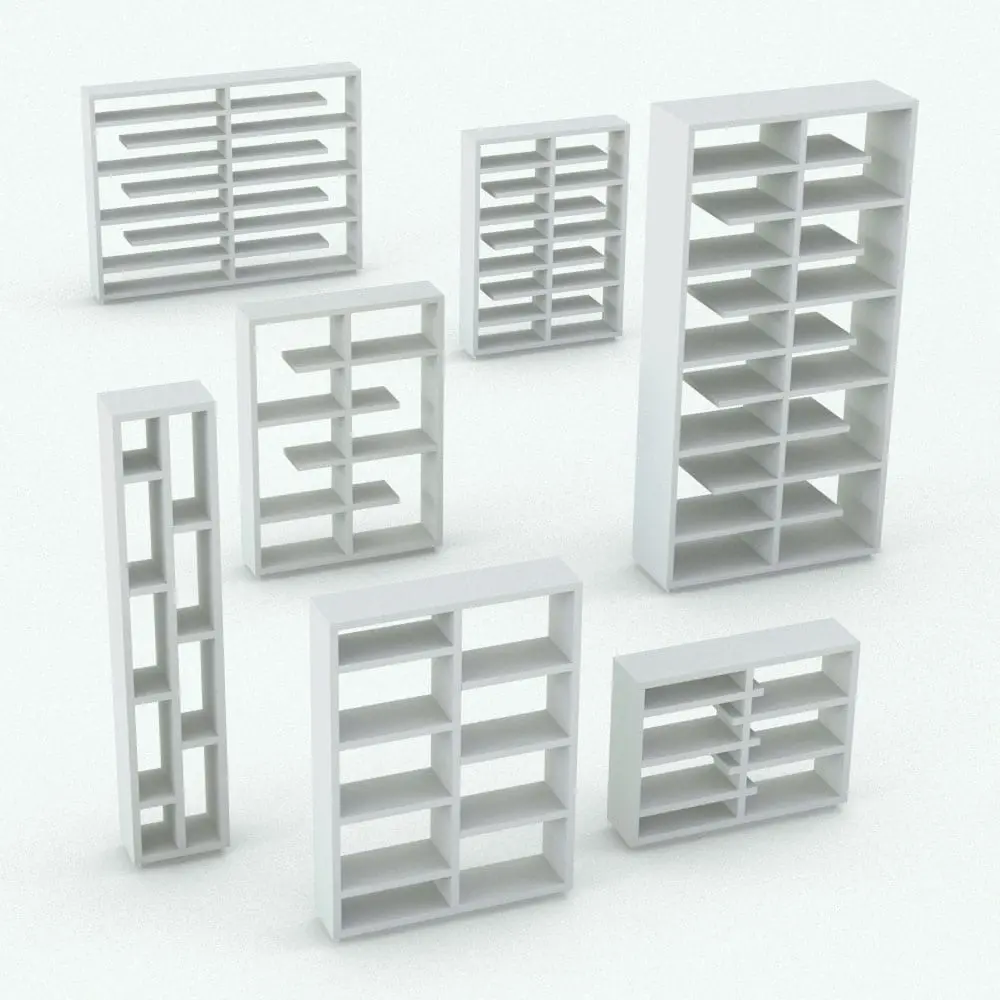

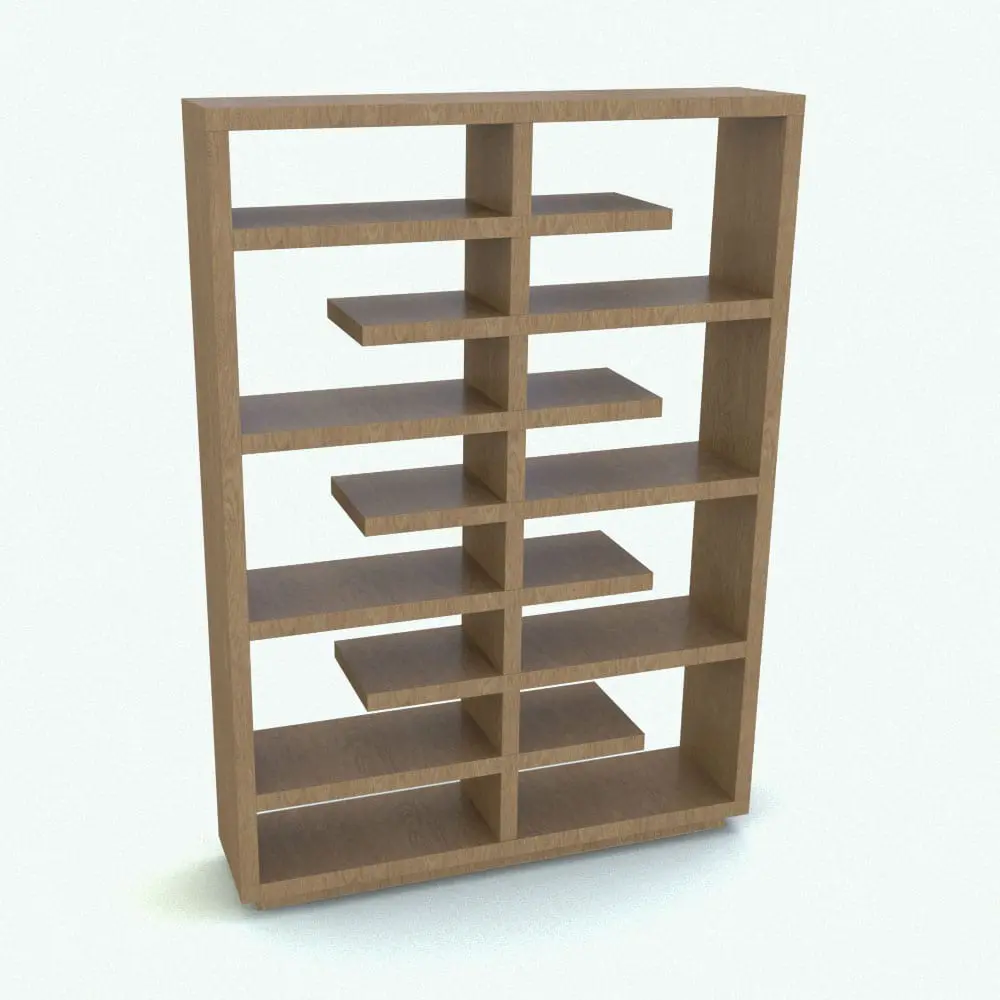

This staggered bookshelf Revit family is an interesting piece of furniture that can change into many different variations. Set the overall dimensions of the bookshelf first (width, depth and height) and then focus on giving it a more refined look by changing the number of shelves and the stagger offset. The results will look very different from project to project.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Furniture
- Materials/textures: Yes
- Approximate file size: 0.43 MB
- File format: .rfa
This Revit family staggered bookshelf comes with the following customizable parameters and options:
Width:
- Minimum width: 2′
- Maximum width: 30′
Depth:
- Minimum depth: 8″
- Maximum depth: 4′
Height:
- Minimum height: 4′
- Maximum height: 15′
Number of shelves:
- Minimum number of shelves: 4
- Maximum number of shelves: as many as long as the vertical separation between them is not less than approximately 8″
Stagger Offset:
- Minimum stagger offset: 0′
- Maximum stagger offset: (width – (frame thickness x 3)/2) + frame thickness
Material parameter for:
- Bookshelf
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
