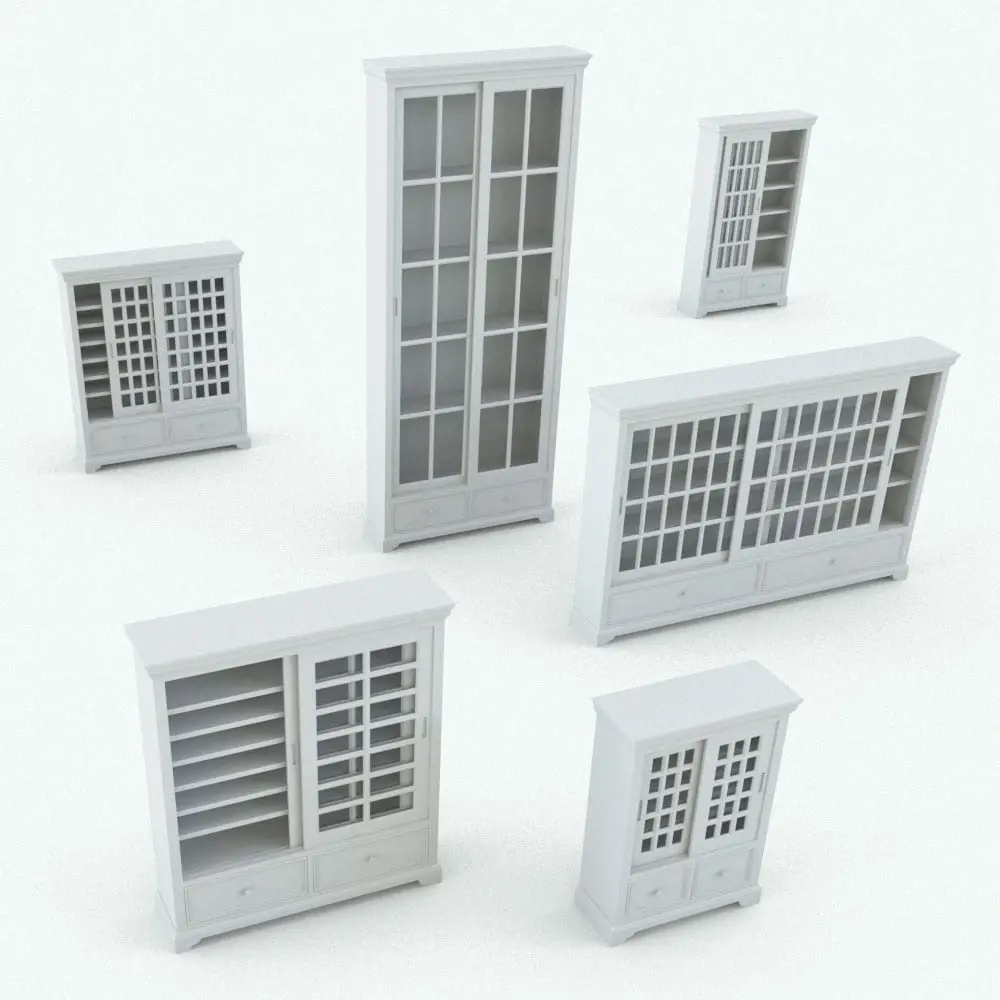

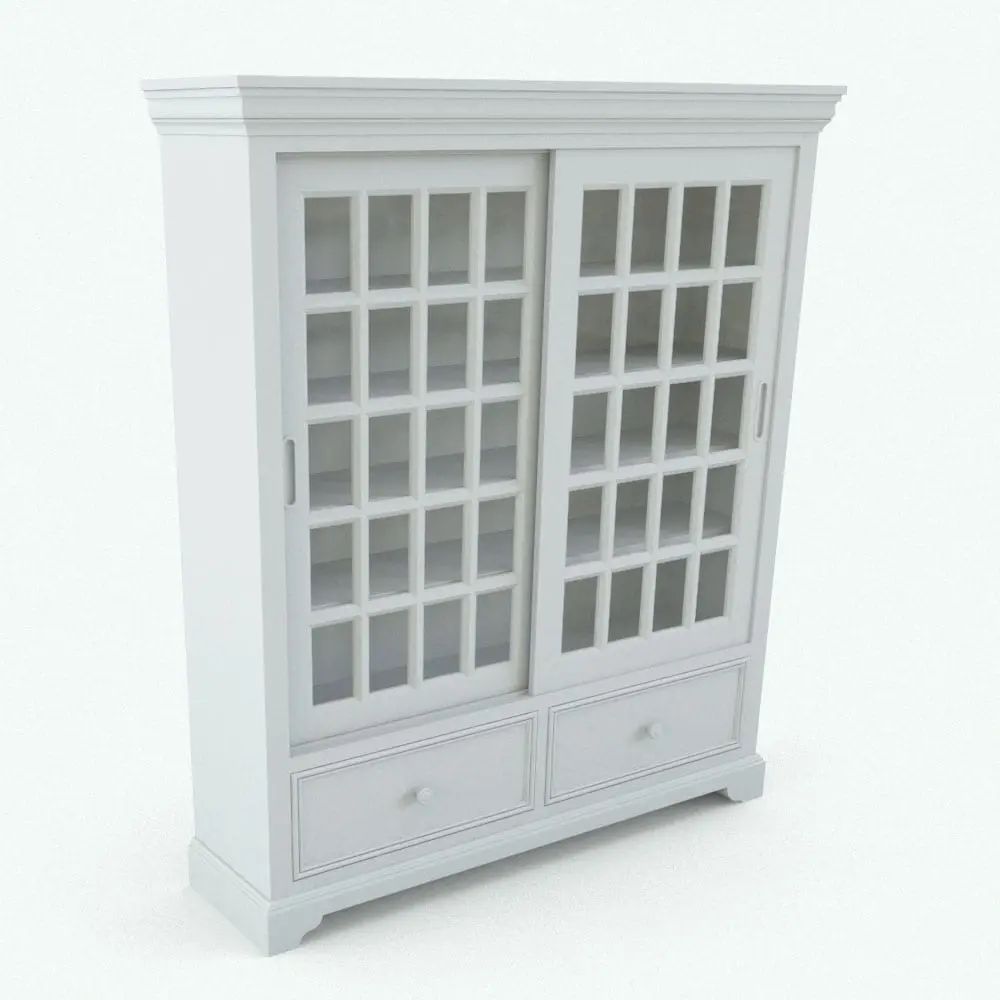

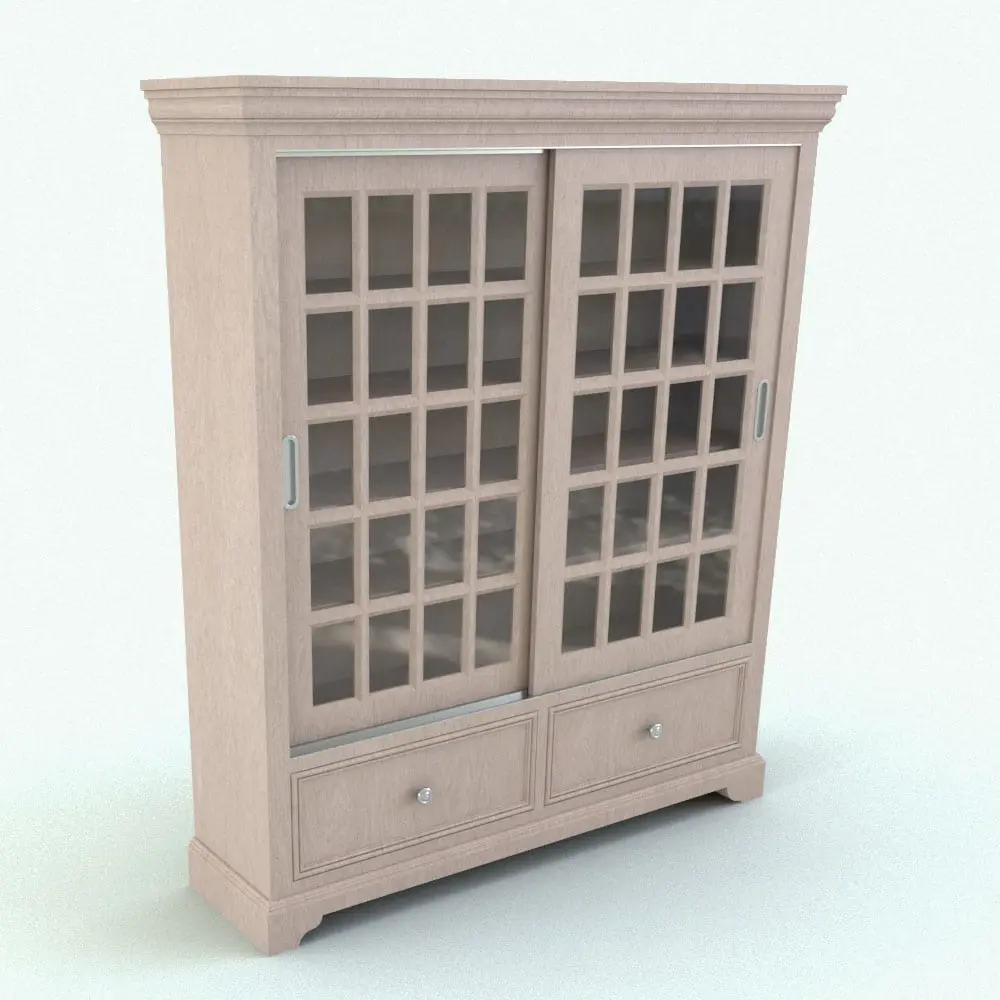

Parametric bookshelf Revit family with sliding doors and bottom drawers. Ideal for offices, libraries or living rooms. Sliding doors can open to add variation to the look of the bookshelf. Width, depth, height and other parameters can be changed.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Furniture
- Materials/textures: Yes
- Approximate file size: 1.17 MB
- File format: .rfa
This Revit family bookshelf with sliding doors comes with the following customizable parameters and options:
Width, depth, height and drawer section height:
- Minimum width: 3′
- Maximum width: 30′
- Minimum depth: 10″
- Maximum depth: 4′
- Minimum height: 4’6″
- Maximum height: 15′
- Minimum drawer section height: 7″
- Maximum drawer section height: Height/3
Number of shelves and vertical divisions of doors:
- Minimum number of shelves: 2
- Maximum number of shelves: as many as long as the vertical separation between them+ is not less than approximately 9″
+ The space below the first shelf and the space above the top most shelf are a little taller than the spacing between the shelves
- Minimum number of vertical divisions: 2
- Maximum number of vertical divisions: as many as long as the width of them is not less than approximately 6″
Doors can be opened at different percentages each:
- Minimum percentage: 0
- Maximum percentage: 90
Material parameters for:
- Bookshelf
- Glass
- Door Handles
- Door Rails
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
