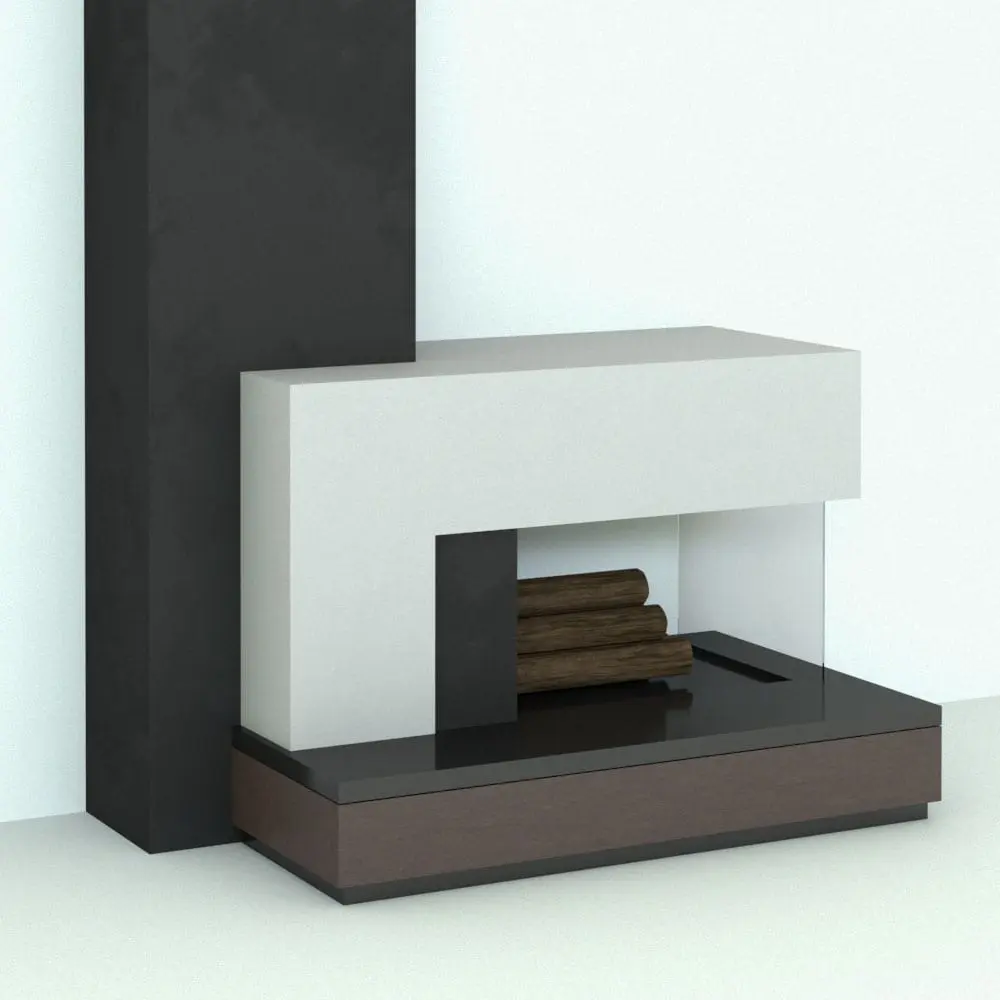

Modern Side Exhaust Revit Fireplace Family

Revit Fireplace Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 0.66 MB
• File format: .rfa

Revit Log Grate Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 0.70 MB
• File format: .rfa

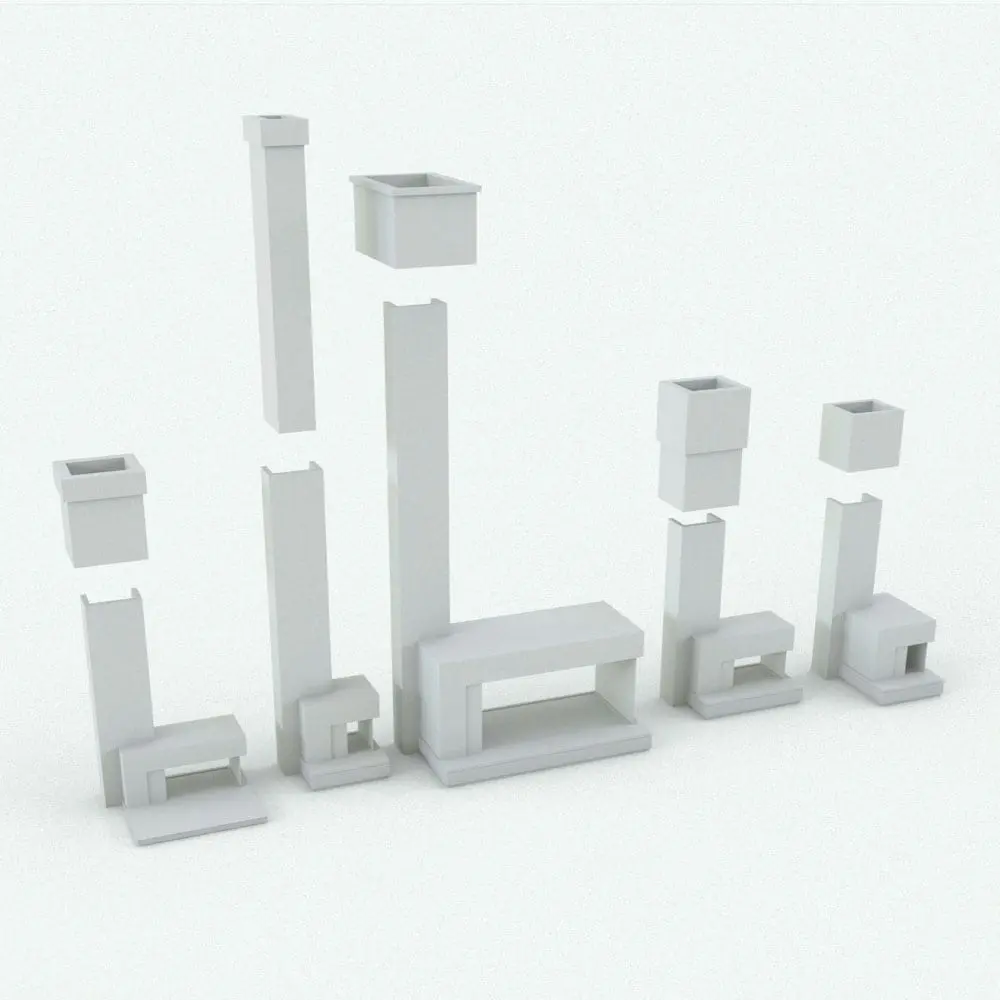

This Modern Side Exhaust Revit Fireplace Family comes with the following customizable parameters and options:

Revit Fireplace and Chimney Family:

Height, width and depth of the Revit fireplace:

• Minimum height: 3′
• Maximum height: (exhaust height/3)*2

• Minimum width: 2′
• Maximum width: 10′

• Minimum depth: 4″
• Maximum depth: 3″

Header thickness, heart depth and heart height of this Revit fireplace:

• Minimum thickness: 6″
• Maximum thickness: header thickness/3

• Minimum heart depth: 4″
• Maximum heart depth: 3′

• Minimum heart height: 4″
• Maximum heart height: header thickness/3

Exhaust height, width and depth in this Revit fireplace:

• Minimum height: 7′
• Maximum height: 30′

• Minimum width: 1′ 6″
• Maximum width: 6′

• Minimum depth: 8″
• Maximum depth: 4′

Chimney height, width, depth and wall thickness (chimney is included as part of this Modern Side Exhaust Revit Fireplace Family):

• Minimum height: 3′
• Maximum height: 30′

• Minimum width: 1′
• Maximum width: 10′

• Minimum depth: 1′
• Maximum depth: 10′

• Minimum wall thickness: 1″
• Maximum wall thickness: 1′

Chimney offset:

• Minimum offset: 1/4″
• Maximum offset: 30′

Chimney moulding height:

• Minimum moulding height: 3″
• Maximum moulding height: 3′

Chimney and/or moulding can be turned on/off

This Modern Side Exhaust Revit Fireplace Family comes with material parameters for:

• Exhaust
• Header
• Heart
• Bottom Moulding Heart
• Flap
• Glass
• Chimney

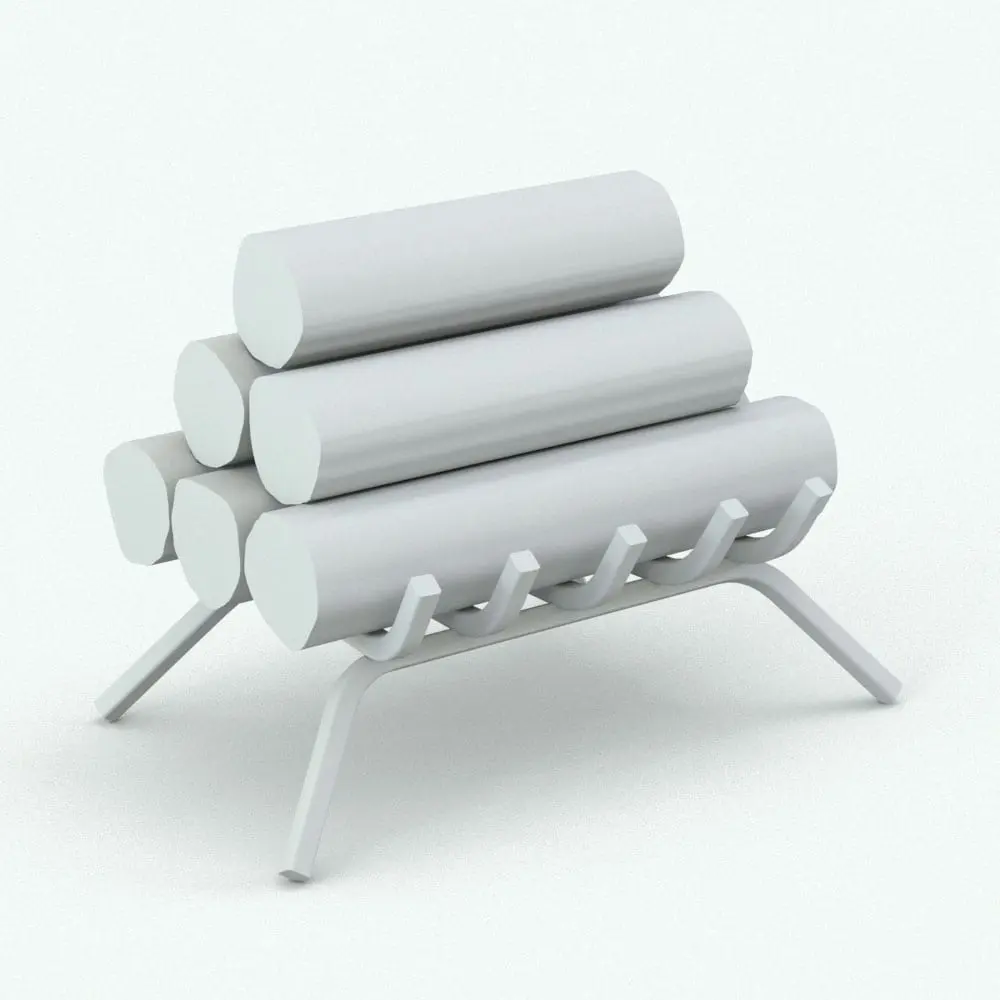

Revit Log Grate Family:

Logs Size: This value depends on the overall grate width. The value ranges from 0-2

Grate Overall Width:

• Minimum grate overall width: 1’6″
• Maximum grate overall width: 4′

Grate Overall Depth:

• Minimum grate overall depth: 6″
• Maximum grate overall depth: 1’1″

The following objects in this Revit family can be turned on/off:

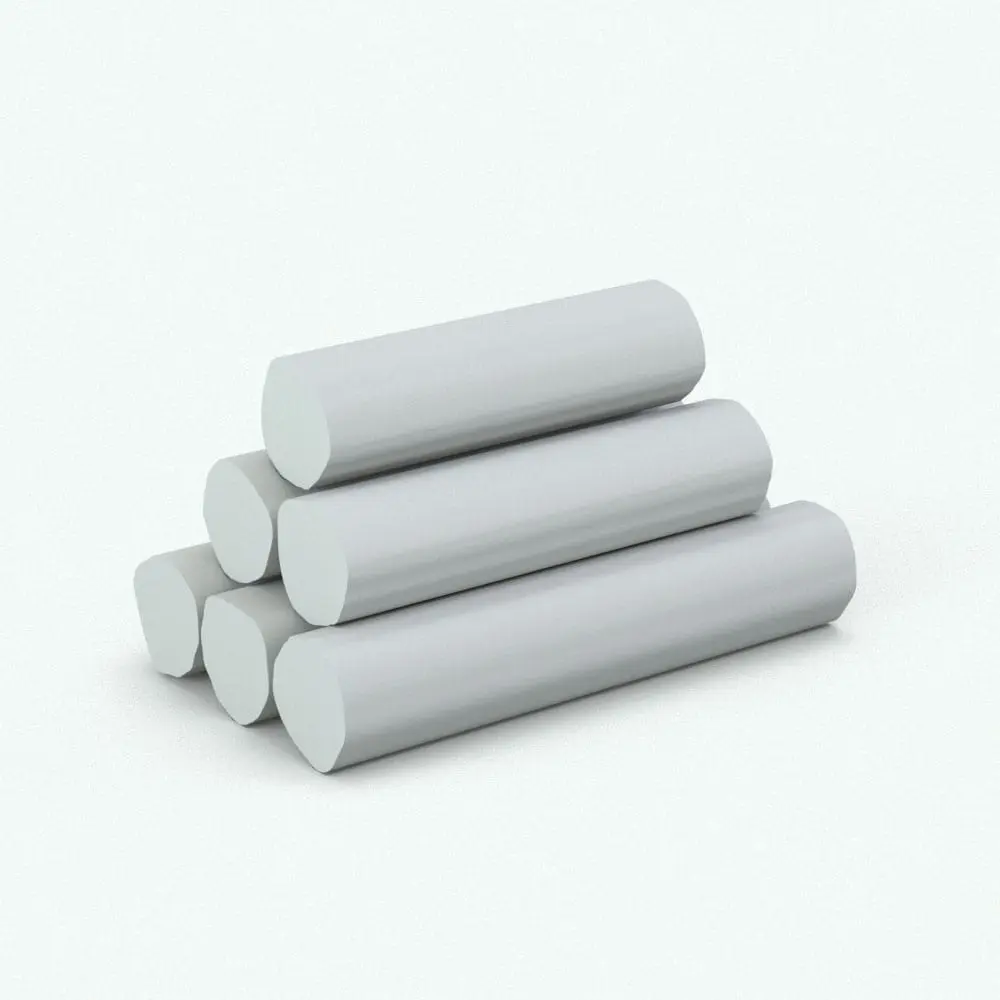

• Logs
• Grate

IMPORTANT NOTE ABOUT THIS REVIT FAMILY: if both objects are turned off, the logs will show up by default.

This log grate, which is part of the Modern Side Exhaust Revit Fireplace Family comes with material parameters for:

• Grate
• Logs

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
