Modern Revit Kitchen Family w/Ceiling Range Hood in 3D and rendered in a light colored wood finish with marble countertops. The Revit kitchen cabinets in this family are fully parametric and they will automatically adjust to any space size by just inputting a couple of dimensions. Ideal for modern and contemporary interior design projects, whether residential or commercial, this Revit kitchen family will transform your spaces in just a few clicks. Get it today and see for yourself.

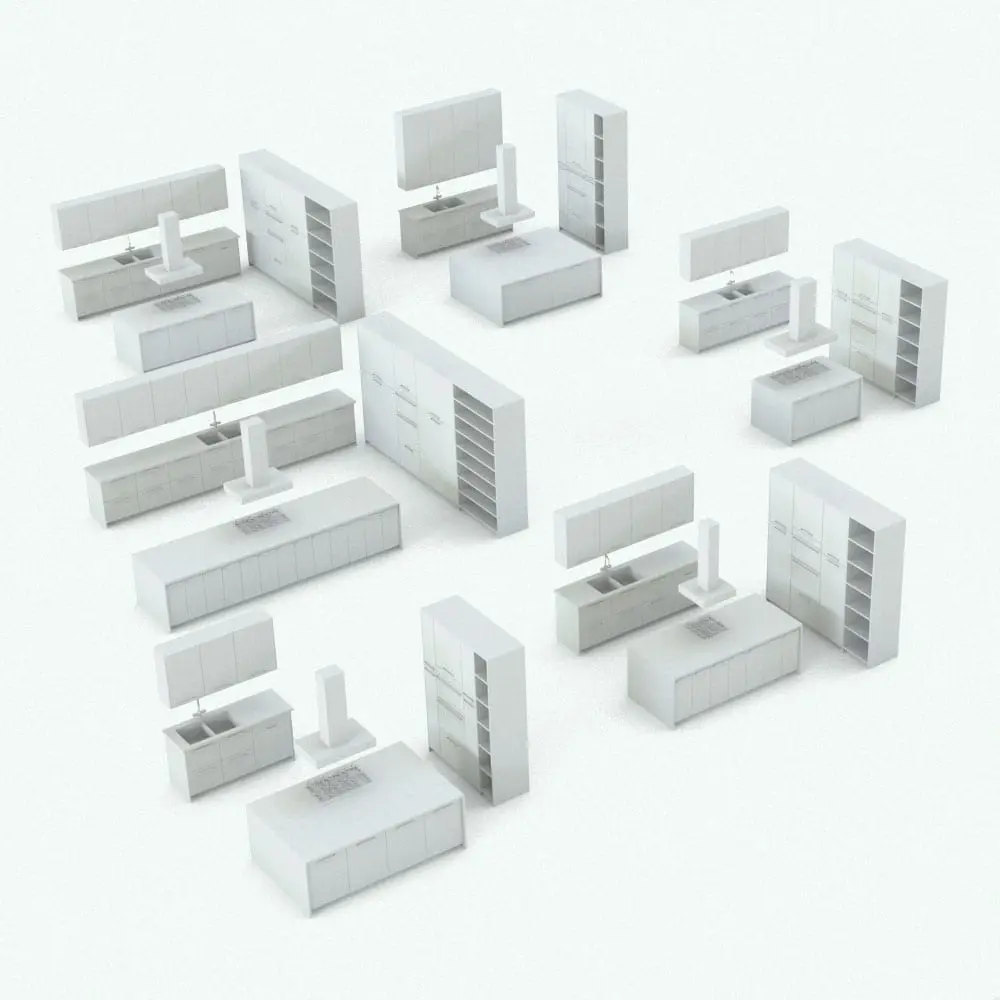

Modern Revit Kitchen Family w/Ceiling Range Hood shown in different sizes and configurations to showcase its parametric versatility. This Revit family comes as three separate files, each of which come packed with parameters that adjust to any space. Whether used in residential or commercial projects, this Modern Revit Kitchen Family w/Ceiling Range Hood will elevate your renders in just a few clicks.

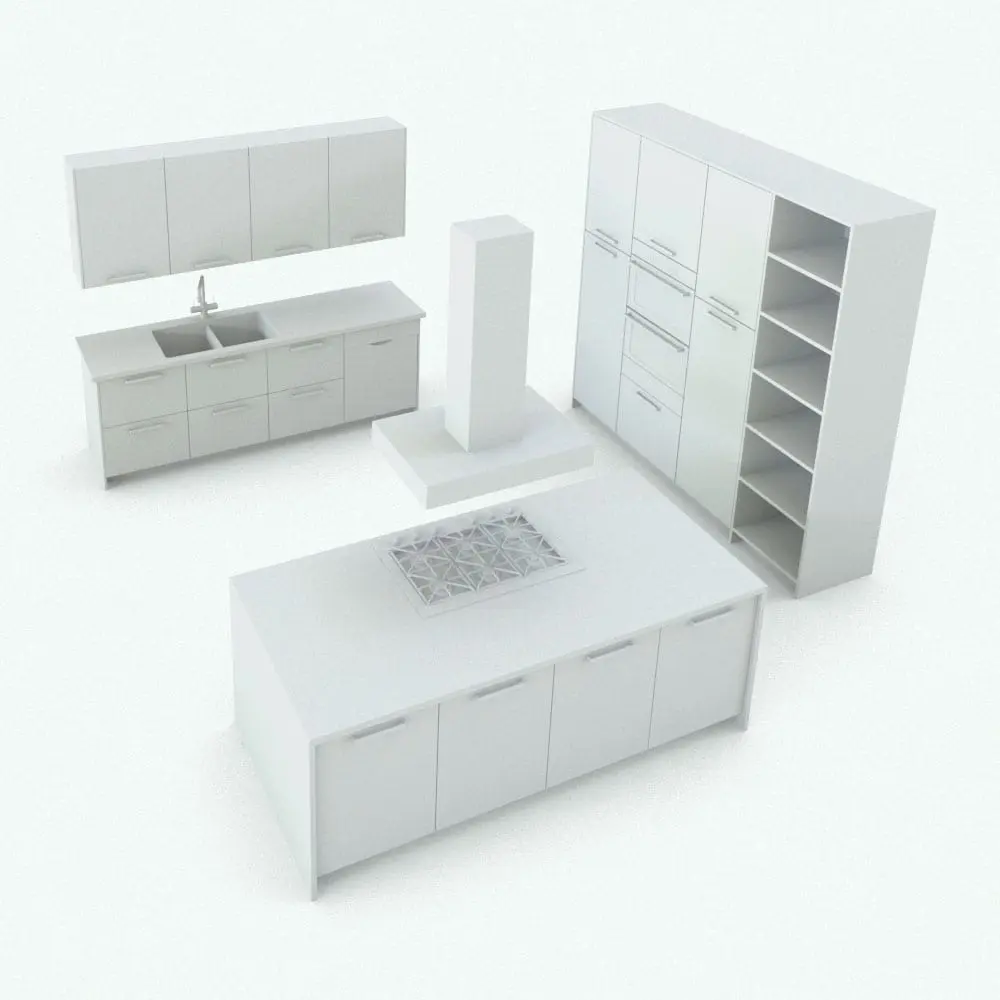

Modern Revit Kitchen Family w/Ceiling Range Hood in 3D and rendered in black and white (ambient occlusion style) to showcase the details and shapes better. This Revit family is fully parametric, easy to use and ready to render. Just load it into your Revit project, set the dimensions and materials and hit the render button for instant results. Ideal to streamline your workflow, this Revit kitchen family will elevate your 3D renderings to new heights.

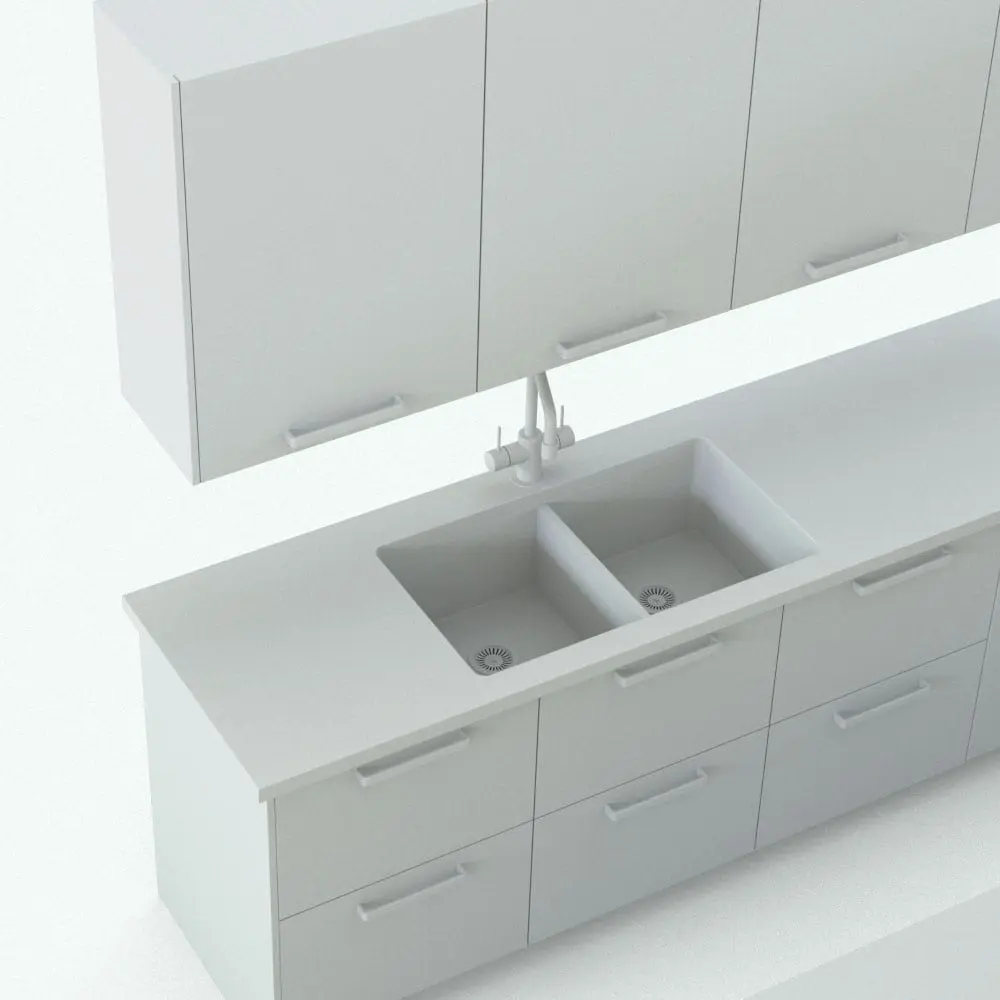

Detail 1 of this family showcasing part of the Revit kitchen cabinets and the sink, all of which are fully parametric. This Revit family can adapt to any space size and it includes tones of parameters to make it your own in terms of design language. Don't wait any longer and get this Revit kitchen family today.

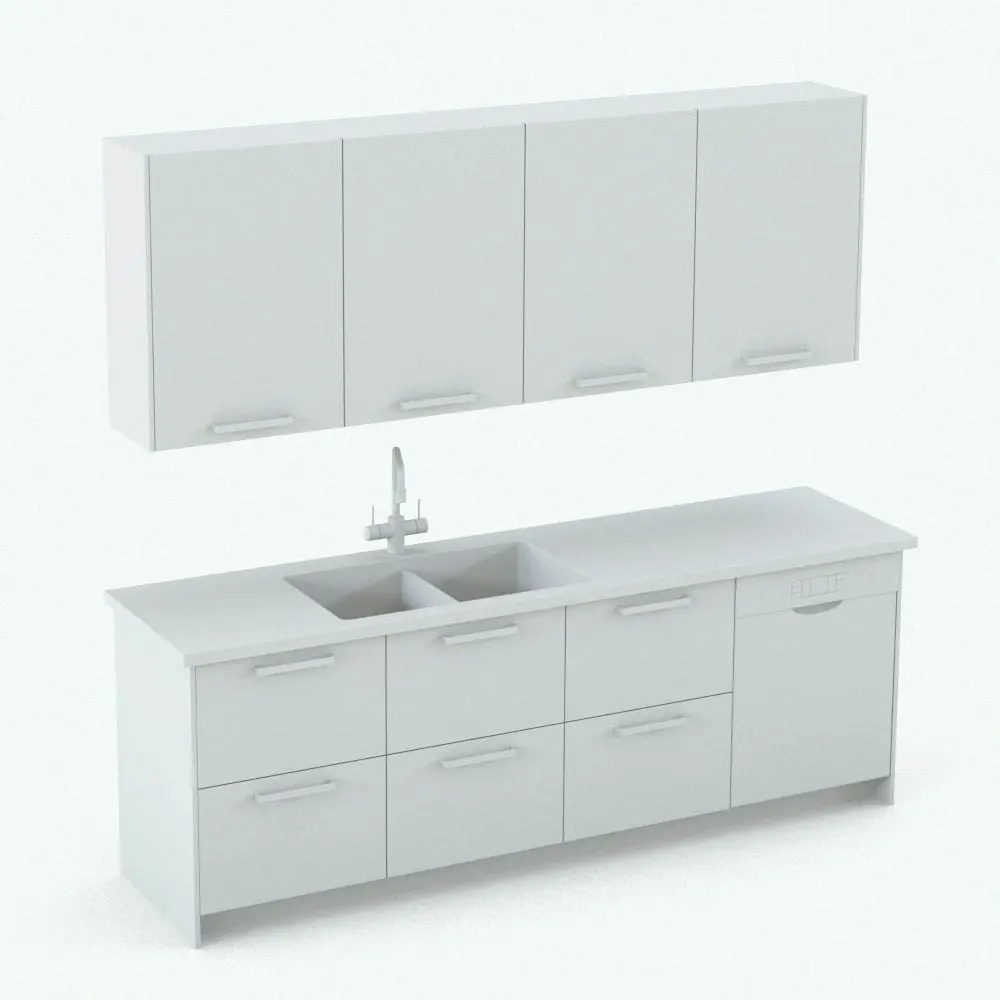

Revit kitchen cabinets-sink side of the kitchen. This modern looking Revit kitchen will blend seamlessly to your spaces in just a few clicks. The additional 2 sides of this kitchen will complement your space and make it look complete. Don't let this opportunity go by and add this Revit kitchen family to your cart now.

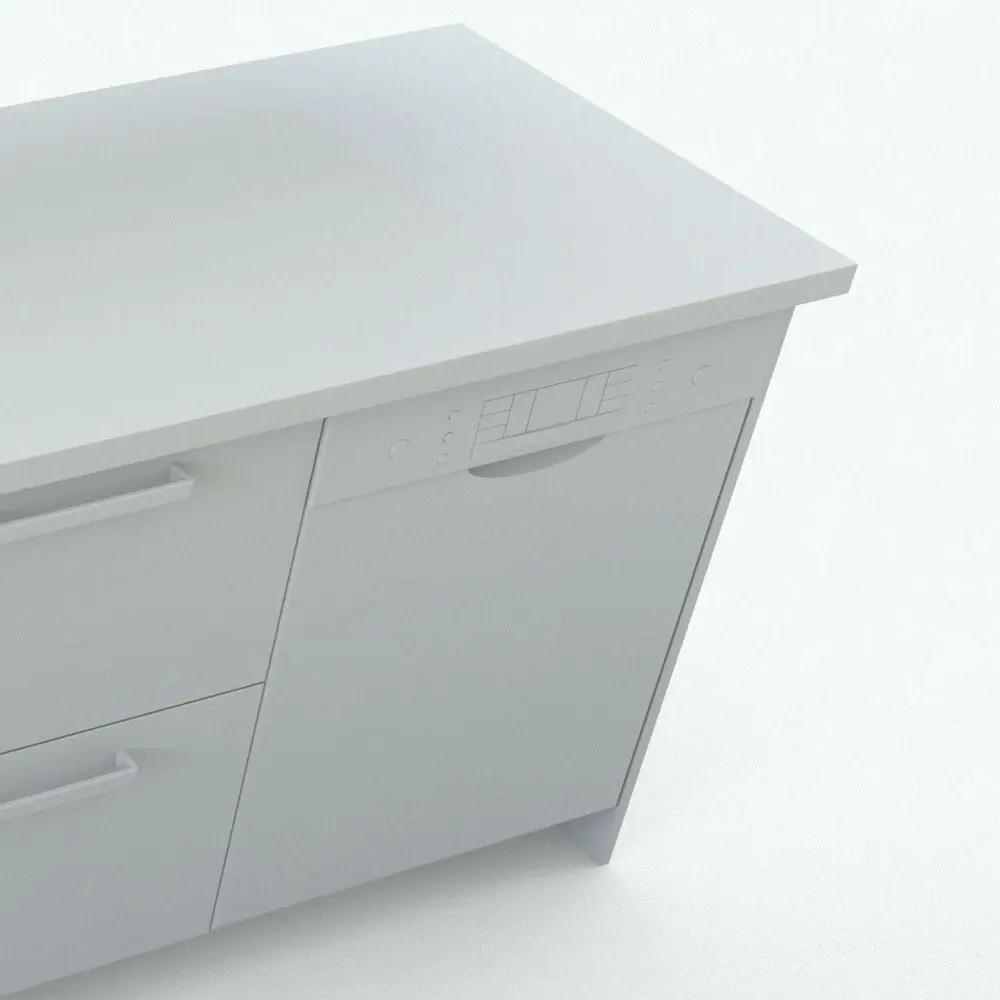

Detail 2 of this kitchen showcasing the Revit dishwasher and all its details.

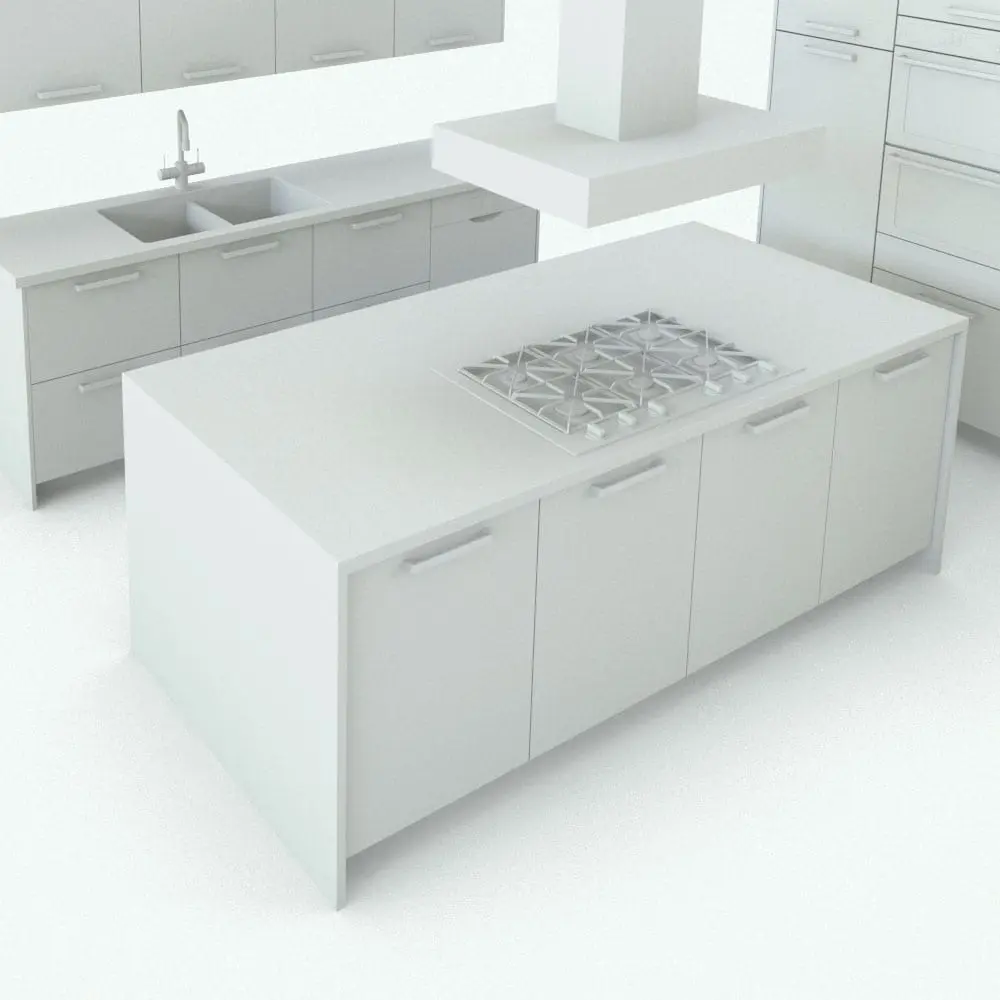

Detail 3 of this family where we can see the Revit island family with the overhead hood. The island part in this Revit kitchen family is also fully parametric and it will allow you to change the overall dimensions, the stove width, the ceiling height and more.

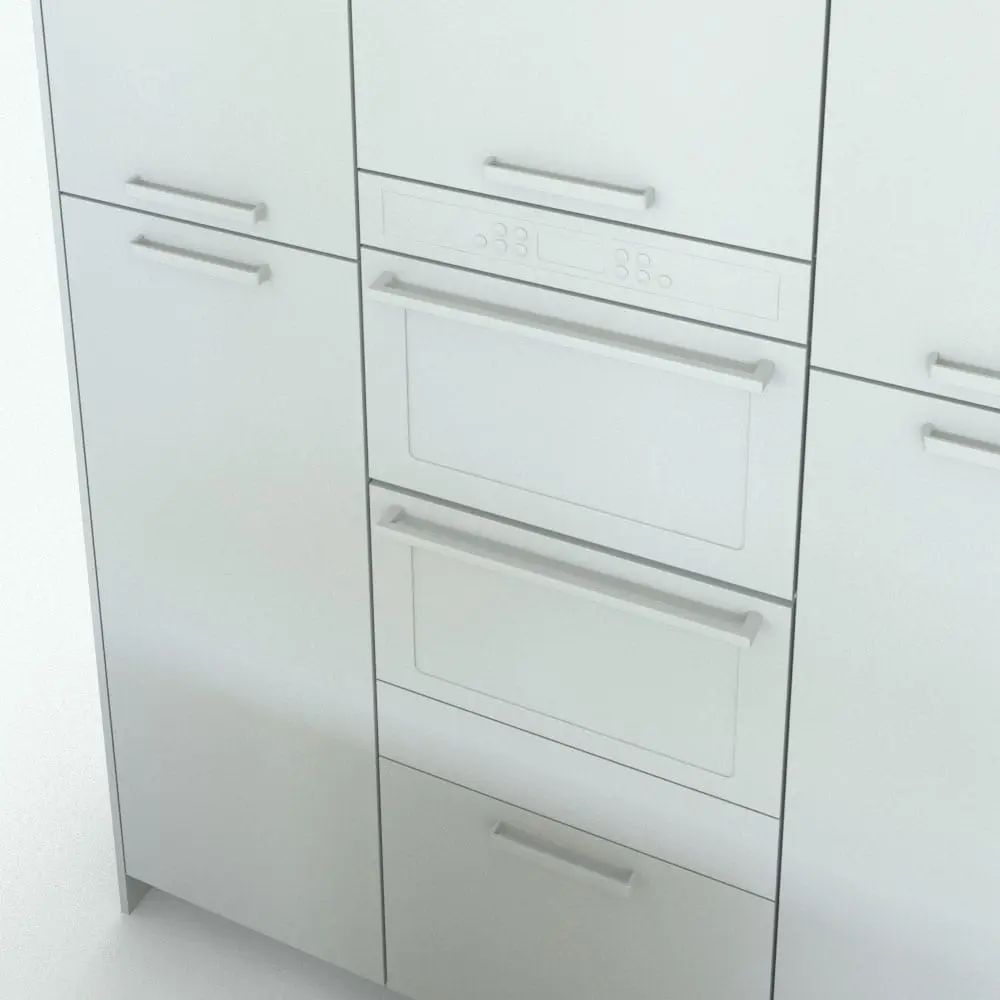

Detail 4 of this Revit kitchen where we can see the highly-detailed oven built-into the Revit kitchen cabinets. All three pieces of this kitchen will create a cohesive look and will bring charm and modernity to your 3D renderings. Don't wait any longer and add this Revit kitchen to your personal assets today.

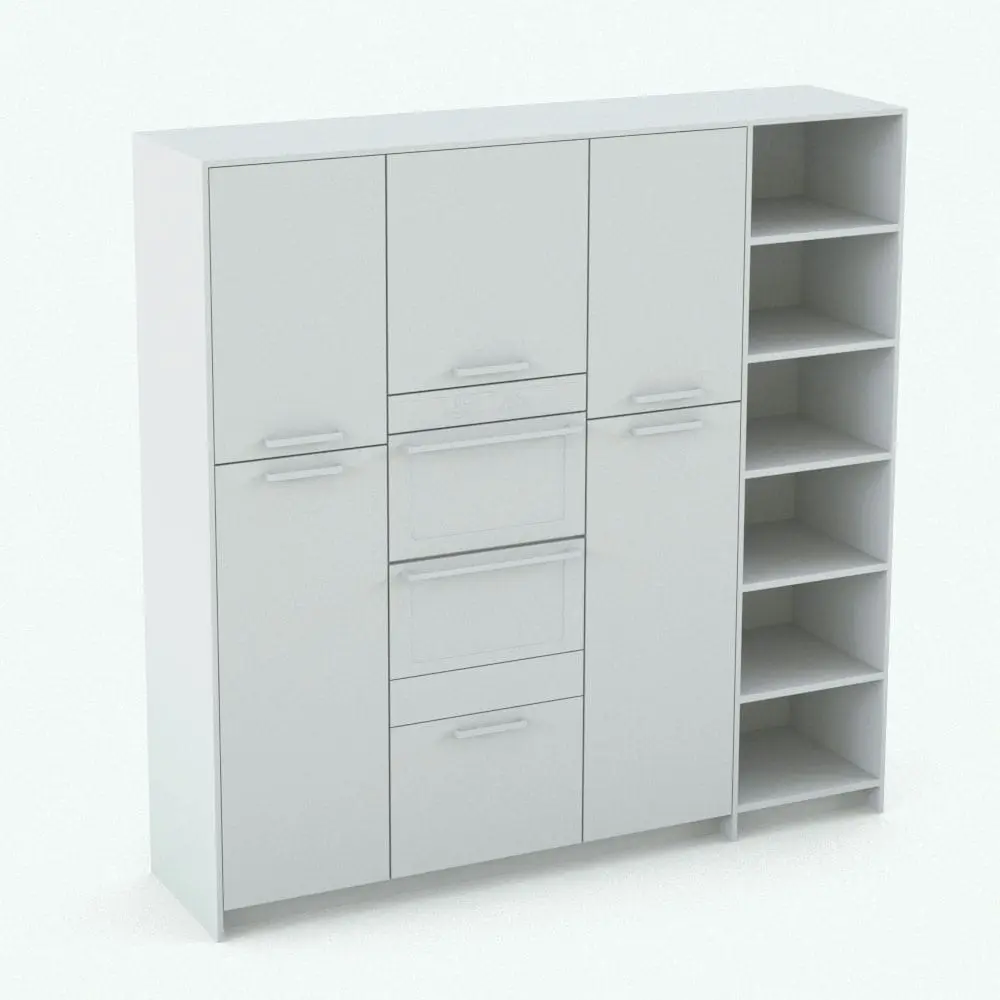

Revit kitchen cabinets-oven side of this 3-part family. Ideal for residential or commercial purposes this highly detailed Revit kitchen will elevate your projects and 3D renderings to new levels.

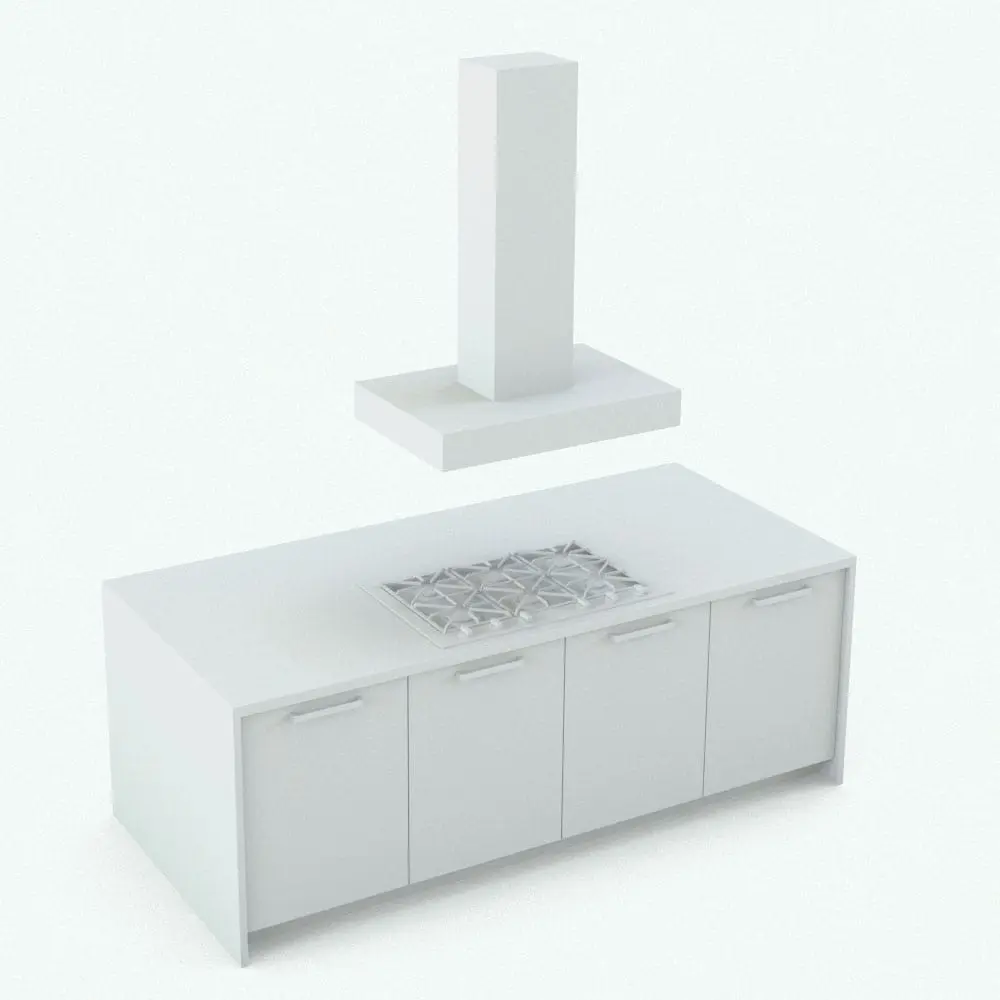

Revit island family of this kitchen.

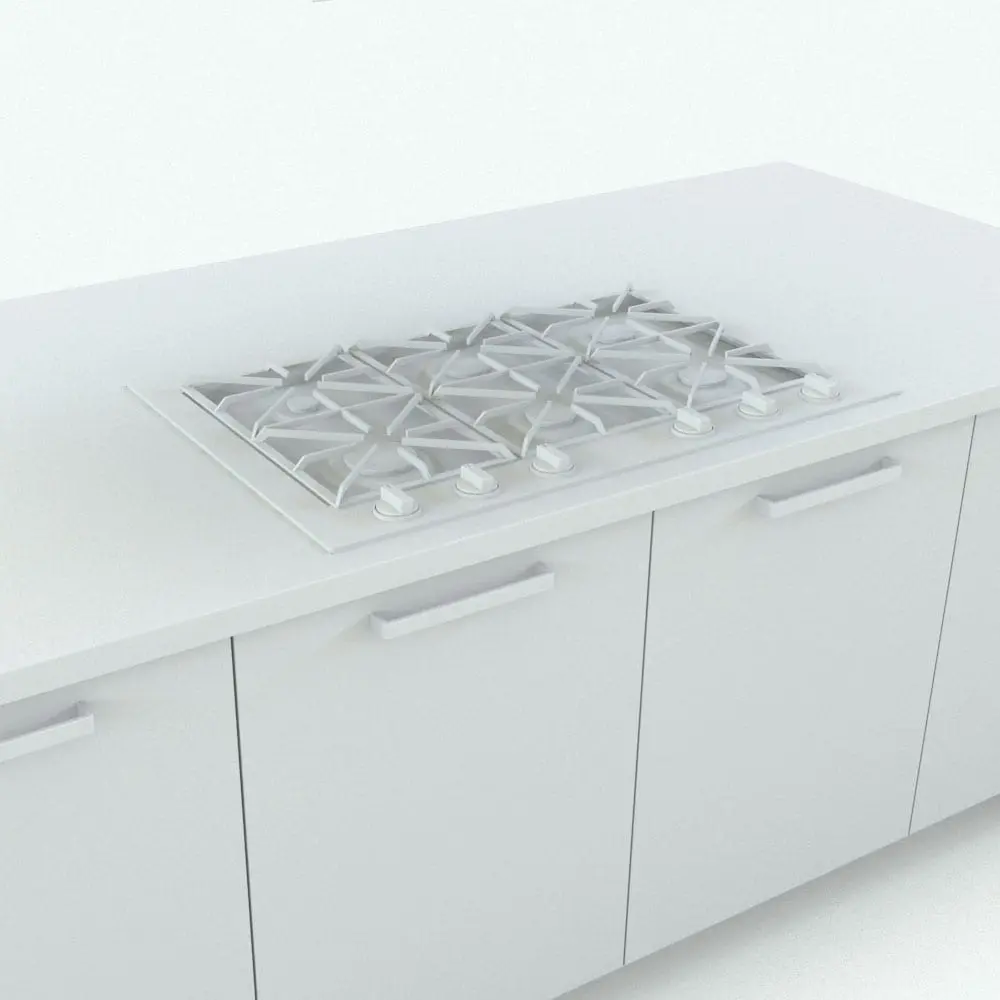

Detail 5 of this Revit kitchen showcasing the stovetop on the island.
Detail 6 of the kitchen oven, which is built-into the Revit kitchen cabinets in this family.
Modern Revit Kitchen Family w/Ceiling Range Hood in 3D and rendered in a light colored wood finish with marble countertops. The Revit kitchen cabinets in this family are fully parametric and they will automatically adjust to any space size by just inputting a couple of dimensions. Ideal for modern and contemporary interior design projects, whether residential or commercial, this Revit kitchen family will transform your spaces in just a few clicks. Get it today and see for yourself.
Modern Revit Kitchen Family w/Ceiling Range Hood shown in different sizes and configurations to showcase its parametric versatility. This Revit family comes as three separate files, each of which come packed with parameters that adjust to any space. Whether used in residential or commercial projects, this Modern Revit Kitchen Family w/Ceiling Range Hood will elevate your renders in just a few clicks.
Modern Revit Kitchen Family w/Ceiling Range Hood in 3D and rendered in black and white (ambient occlusion style) to showcase the details and shapes better. This Revit family is fully parametric, easy to use and ready to render. Just load it into your Revit project, set the dimensions and materials and hit the render button for instant results. Ideal to streamline your workflow, this Revit kitchen family will elevate your 3D renderings to new heights.
Detail 1 of this family showcasing part of the Revit kitchen cabinets and the sink, all of which are fully parametric. This Revit family can adapt to any space size and it includes tones of parameters to make it your own in terms of design language. Don't wait any longer and get this Revit kitchen family today.
Revit kitchen cabinets-sink side of the kitchen. This modern looking Revit kitchen will blend seamlessly to your spaces in just a few clicks. The additional 2 sides of this kitchen will complement your space and make it look complete. Don't let this opportunity go by and add this Revit kitchen family to your cart now.
Detail 2 of this kitchen showcasing the Revit dishwasher and all its details.
Detail 3 of this family where we can see the Revit island family with the overhead hood. The island part in this Revit kitchen family is also fully parametric and it will allow you to change the overall dimensions, the stove width, the ceiling height and more.
Detail 4 of this Revit kitchen where we can see the highly-detailed oven built-into the Revit kitchen cabinets. All three pieces of this kitchen will create a cohesive look and will bring charm and modernity to your 3D renderings. Don't wait any longer and add this Revit kitchen to your personal assets today.
Revit kitchen cabinets-oven side of this 3-part family. Ideal for residential or commercial purposes this highly detailed Revit kitchen will elevate your projects and 3D renderings to new levels.
Revit island family of this kitchen.
Detail 5 of this Revit kitchen showcasing the stovetop on the island.
Detail 6 of the kitchen oven, which is built-into the Revit kitchen cabinets in this family.

Modern Revit Kitchen Family w/Ceiling Range Hood

rfa

$11.49

Categories: , Tags: , , , , , , , , , , , , , , , , , ,

Enhance your projects with this Modern Revit Kitchen Family w/Ceiling Range Hood, featuring a sleek ceiling-mounted range hood and a modular Revit kitchen cabinets system.

Designed for contemporary interiors, this Revit kitchen set includes a large island with a built-in cooktop, wall-mounted cabinets, a functional sink area, and a full-height unit with integrated ovens and open shelving. The minimalist design and high-quality materials make it ideal for luxury homes, apartments, and commercial spaces.

This fully parametric Modern Revit Kitchen Family w/Ceiling Range Hood allows users to customize overall dimensions, materials, appliance visibilities, and more to fit various project needs. The ceiling-mounted kitchen range Revit model provides a clean, modern aesthetic, making it perfect for open-concept kitchens.

Key features of this Revit kitchen family:

  • Ceiling-mounted Revit range hood for a sleek, modern look
  • Large island with built-in cooktop and generous storage
  • Wall-mounted Revit kitchen cabinets and functional sink area
  • Full-height unit with integrated ovens and open shelving
  • Parametric customization for sizes, materials, and layout options

Need other styles of Revit kitchen families? Click HERE to see the options that we have in stock.

For a detailed description of parameters and materials of this Revit kitchen family, please read the Revit Family Technical Information section below.



Revit Kitchen Cabinets-Sink Arm Side (Part 1):

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model
  • Materials/textures: Yes
  • Approximate file size: 1.98 MB
  • File format: .rfa

Revit Kitchen Cabinets-Oven Arm Side (Part 2):

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model
  • Materials/textures: Yes
  • Approximate file size: 1.16 MB
  • File format: .rfa

Revit Island Side (Part 3):

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model
  • Materials/textures: Yes
  • Approximate file size: 1.42 MB
  • File format: .rfa



This Modern Revit Kitchen Family w/Ceiling Range Hood comes with the following customizable parameters and options:

This Revit kitchen (divided into three files) includes:

  • Gas Stove
  • Sink
  • Exhaust Fan
  • Oven
  • Dishwasher

Kitchen Revit Cabinets-Sink Arm Side (Part 1):

Width and height of the sink arm side:

  • Minimum width: 5′ 6″
  • Maximum width: 30′
  • Minimum height: 7′
  • Maximum height: 15′

Width of sink in this Revit kitchen family:

  • Minimum sink width: 2′
  • Maximum sink width: 3′

The faucet in the sink can rotate between -45 and 45 degrees

The following parts of the Revit kitchen can be turned off:

  • Dishwasher

Revit Kitchen Cabinets-Oven Arm Side (Part 2)

Width and height of oven arm:

  • Minimum width: 5’6″
  • Maximum width: 14′
  • Minimum height: 7′
  • Maximum height: 15′

Cabinets depth in this Revit kitchen family:

  • Minimum cabinets depth: 1’8″
  • Maximum cabinets depth: 3′

Number of shelves:

  • Minimum number of shelves: 2
  • Maximum number of shelves: as many as long as the approximate vertical spacing between then is not less than 1′

Oven buttons can be removed for a cleaner look.

Revit Island Side (Part 3):

Width of island and cabinets depth in this Revit kitchen family:

  • Minimum island width: 5’6″
  • Maximum island width: 30′
  • Minimum cabinets depth: 3′
  • Maximum cabinets depth: 10′

Ceiling height:

  • Minimum ceiling height: 7’6″
  • Maximum ceiling height: 15′

Stove width in this Revit island family:

  • Minimum stove width: 2′
  • Maximum stove width: 4′

This Modern Revit Kitchen Family w/Ceiling Range Hood comes with material parameters for:

  • Cabinets
  • Countertop
  • Faucet
  • Handles
  • Sink
  • Dishwasher
  • Dishwasher Round Buttons
  • Dishwasher Screen
  • Dishwasher Square Buttons
  • Dishwasher Upper Section
  • Oven Material 1
  • Oven Material 2
  • Glass Windows Material
  • Oven Handles
  • Oven Structure
  • Oven Top Panel
  • Oven Top Panel Screen
  • Buttons
  • Stove Top
  • Stove Top Knobs
  • Stove Top Burner Grid
  • Stove Top Burner
  • Range Hood
  • Range Hood Interior

IMPORTANT NOTE ABOUT THIS REVIT KITCHEN FAMILY: This Revit family is not intended to be used as a professional kitchen design tool.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
