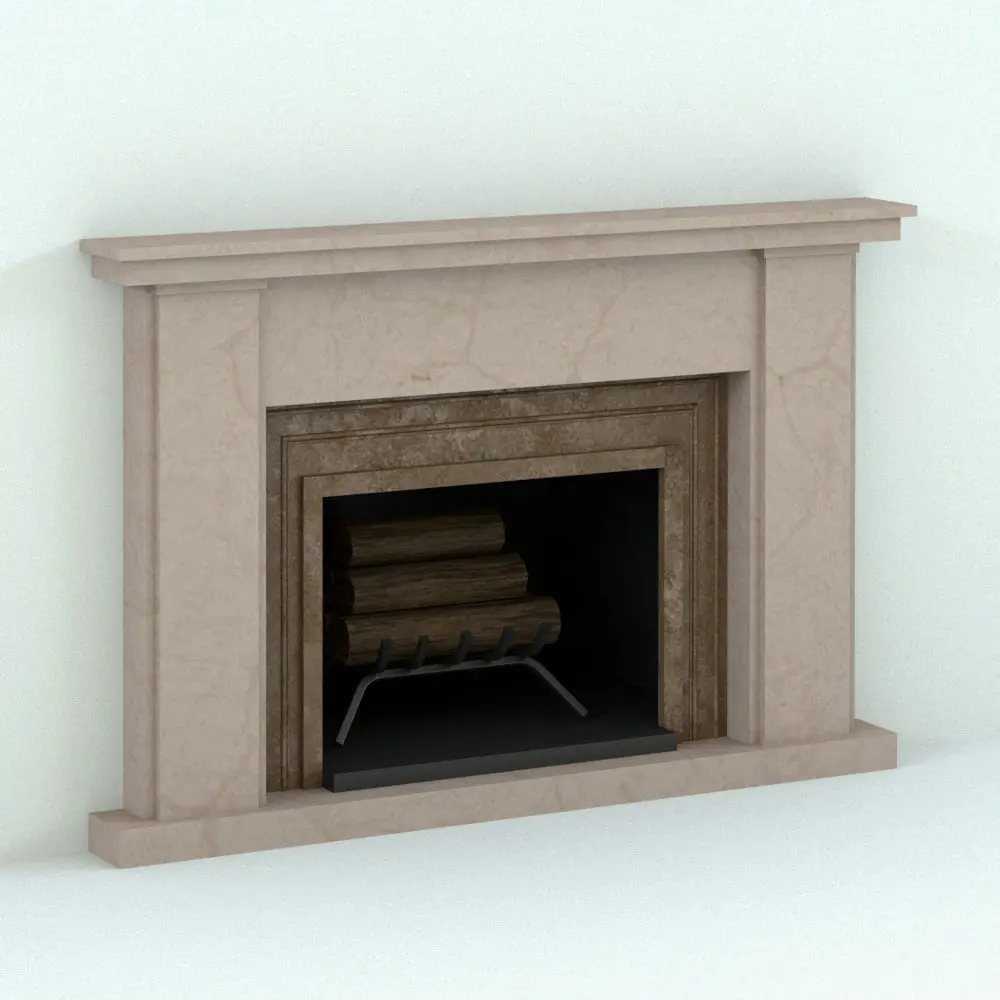

Two-Toned Modern Revit Fireplace Family

Revit Fireplace Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 0.73 MB
• File format: .rfa



Revit Log Grate Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 0.70 MB
• File format: .rfa



This Two-Toned Modern Revit Fireplace Family comes with the following customizable parameters and options:

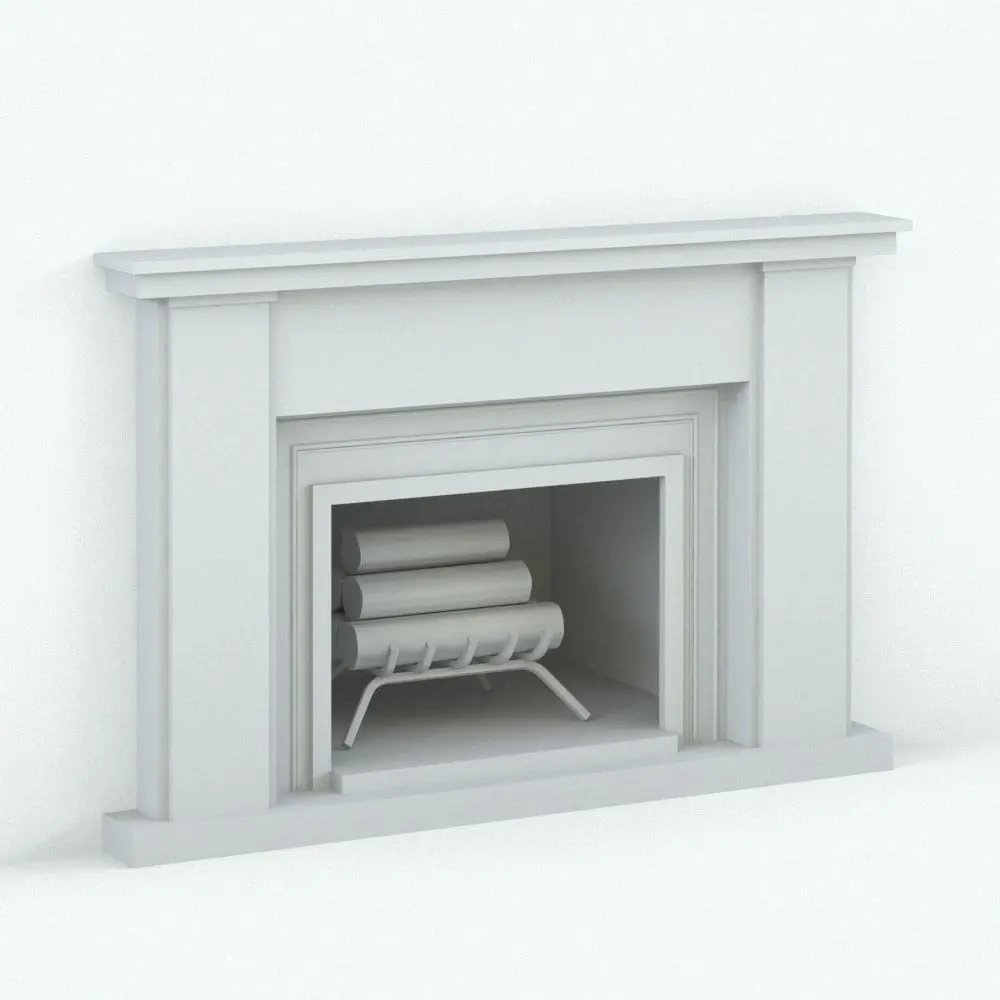

Revit Fireplace and Chimney Family:

Width and height of Revit fireplace:

• Minimum width: 4′
• Maximum width: 10′

• Minimum height: 3′
• Maximum height: 8′

Header and inner trim thicknesses of this Revit fireplace:

• Minimum header thickness: 6″
• Maximum header thickness: fireplace width or height (smaller one)/3

• Minimum inner trim thickness: 4″
• Maximum inner trim thickness: (fireplace width or height-(header*2))/4

Top inner trim = inner trim*1.25

Revit fireplace heart depth and height:

• Minimum heart depth: 6″
• Maximum heart depth: 2′

• Minimum heart height: 1″
• Maximum heart height: 7″

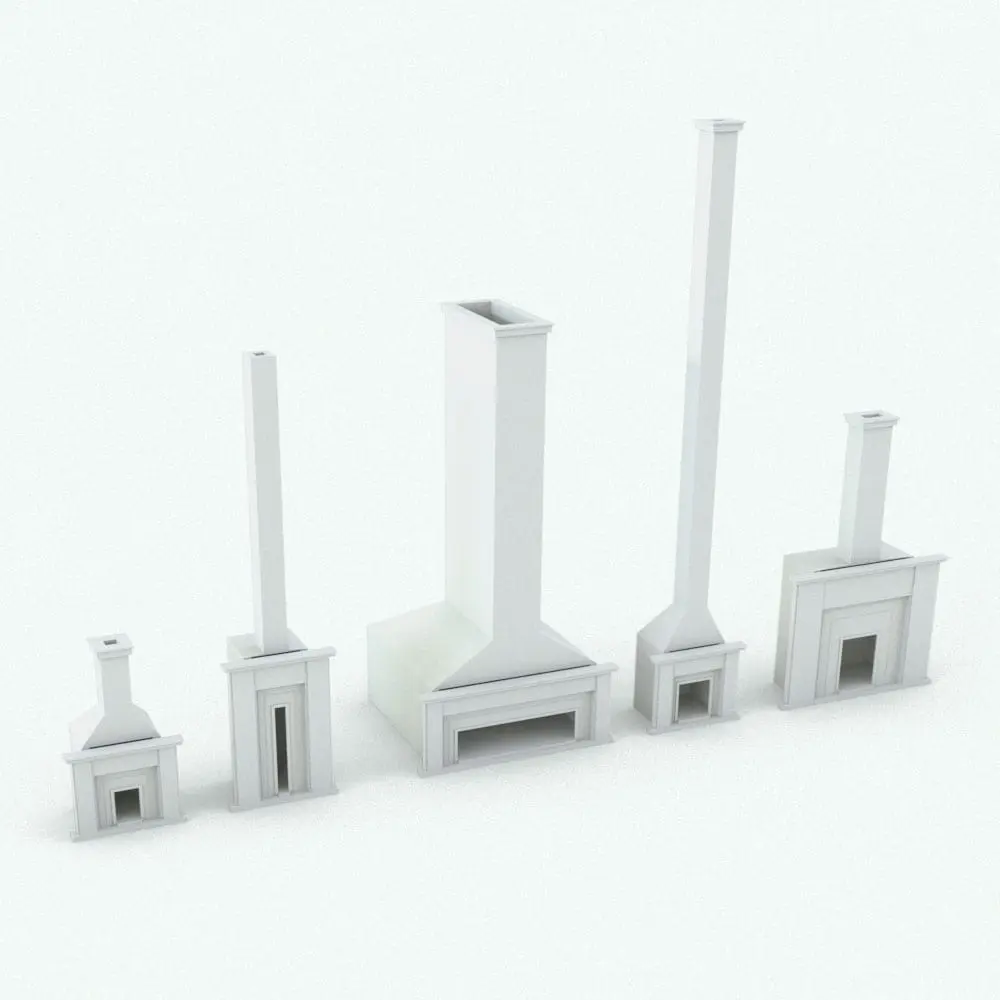

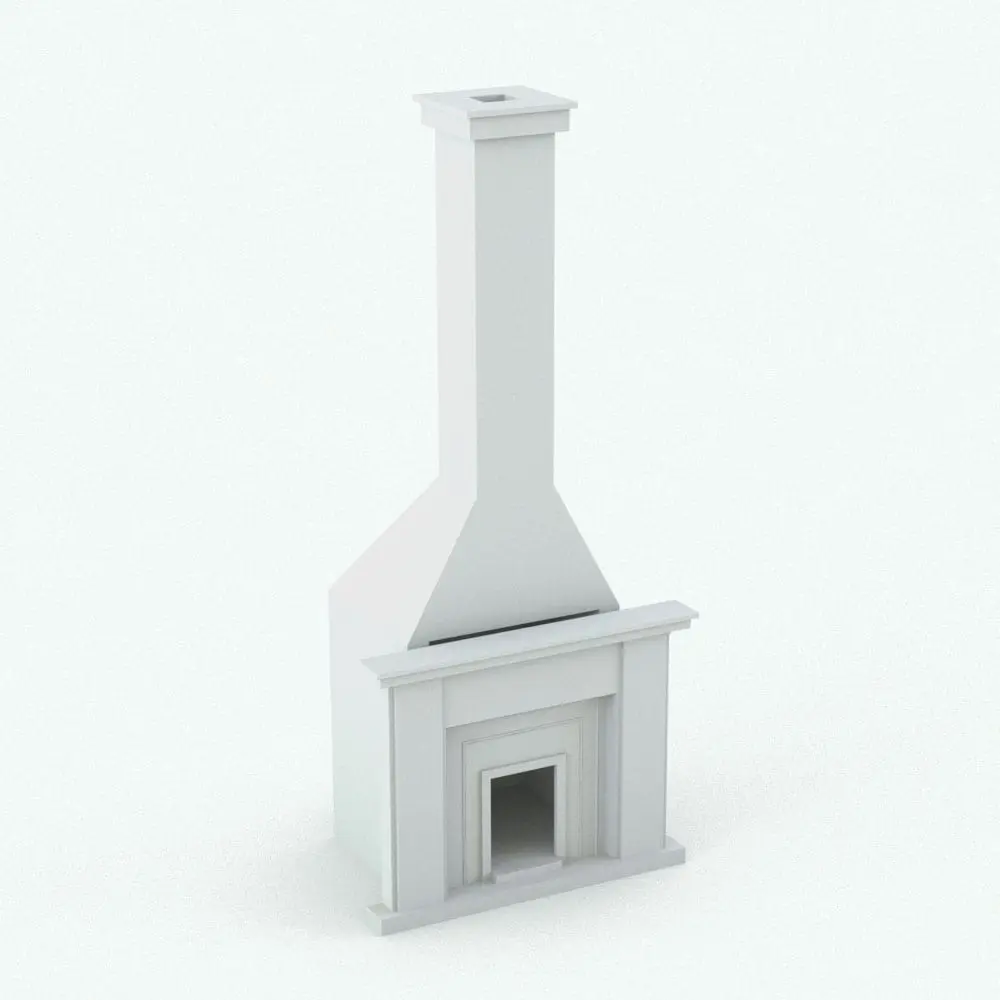

Chimney height, depth and wall thickness (chimney is included in this Revit fireplace):

• Minimum height: double of the firebox opening height
• Maximum height: 50′

• Minimum depth: 1′
• Maximum depth: 8′

• Minimum wall thickness: 1″
• Maximum wall thickness: 1′

Start, end and offsets (sides and back) of the tapered part of the chimney:

• Minimum start height: height of firebox opening height
• Maximum start height: chimney height/3

• Minimum end height: minimum start + 1/128″
• Maximum end height: (chimney height/3)*2

• Minimum side offset: 0′
• Maximum side offset: width of chimney/2.5

• Minimum back offset: 0′
• Maximum back offset: (depth of chimney/4)*3

Chimney and top moulding on chimney can be turned on/off in case another chimney wants to be used.

This Two-Toned Modern Revit Fireplace Family comes with material parameters for:

• Header and legs
• Inner trim and details
• Mantle
• Fireplace fake columns
• Heart
• Firebox base
• Chimney
• Interior of chimney
• Chimney top moulding

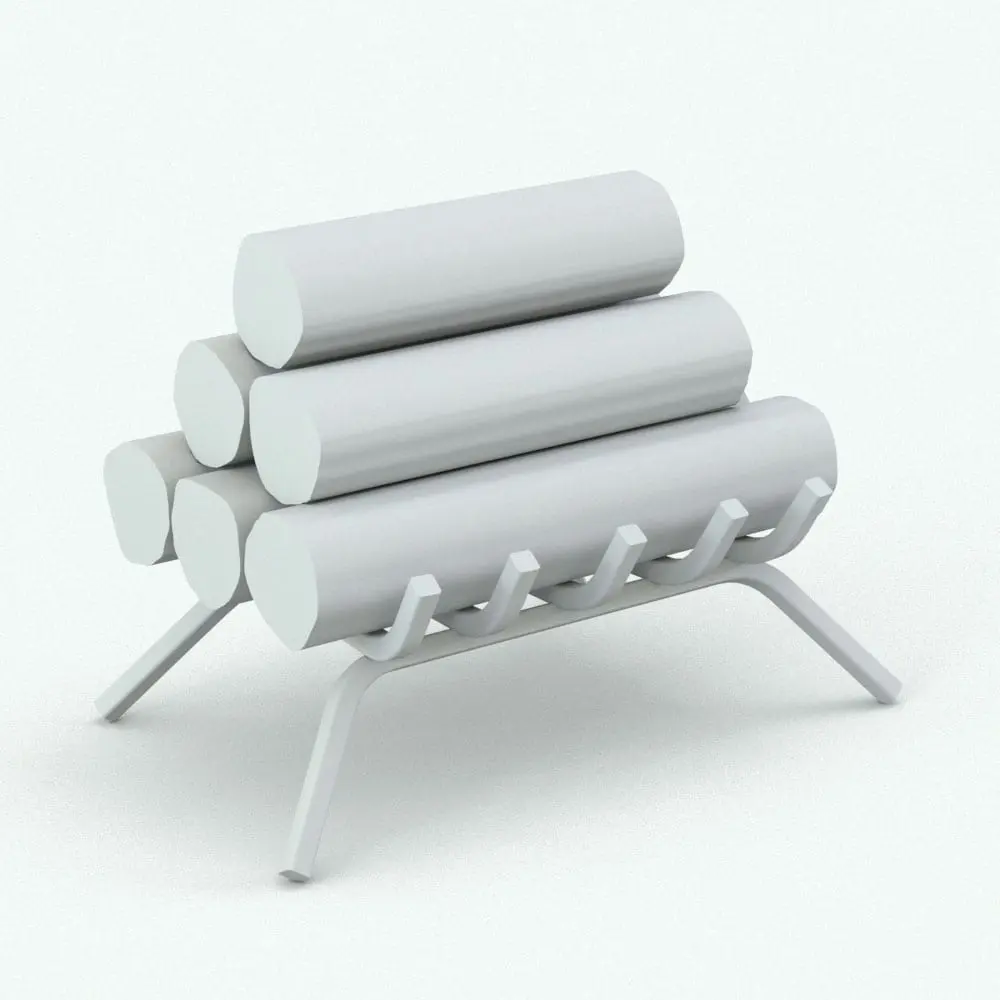

Revit Log Grate Family:

Logs Size: This value depends on the overall grate width. The value ranges from 0-2

Grate Revit Family Overall Width:

• Minimum grate overall width: 1’6″
• Maximum grate overall width: 4′

Grate Overall Depth:

• Minimum grate overall depth: 6″
• Maximum grate overall depth: 1’1″

The following objects can be turned on/off:

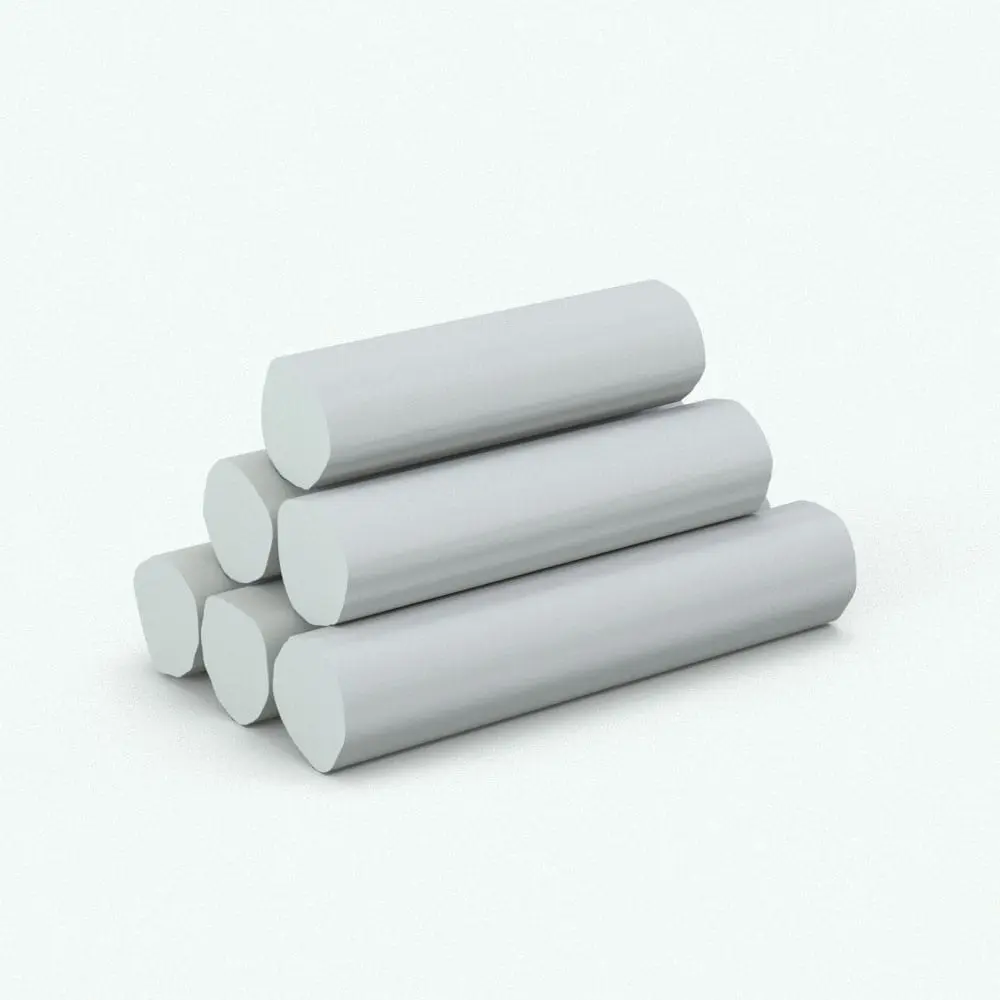

• Logs
• Grate



IMPORTANT NOTE ABOUT THIS REVIT FAMILY: if both objects are turned off, the logs will show up by default.

This log grate, which is part of the Two-Toned Modern Revit Fireplace Family comes with material parameters for:

• Grate
• Logs



* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
