Modern Dual-Single Shower Revit Family
$4.99
Quick Overview:
- Fully Parametric Modern Dual-Single Shower Revit Family
- Shower and Bathtub Configurations Included
- Single or Dual Showerhead Layouts
- Adjustable Dimensions & Door Controls
- Configurable Wall & Fixture Visibility
- Modern Bathroom Design Ready
- Revit 2016 and Newer Compatible
Product Description:
Create flexible and modern bathroom layouts with this Modern Dual-Single Shower Revit Family. Designed for residential projects, hospitality developments, multifamily housing, luxury suites, and commercial interiors, this highly adaptable family allows multiple bathroom configurations within a single Revit model.

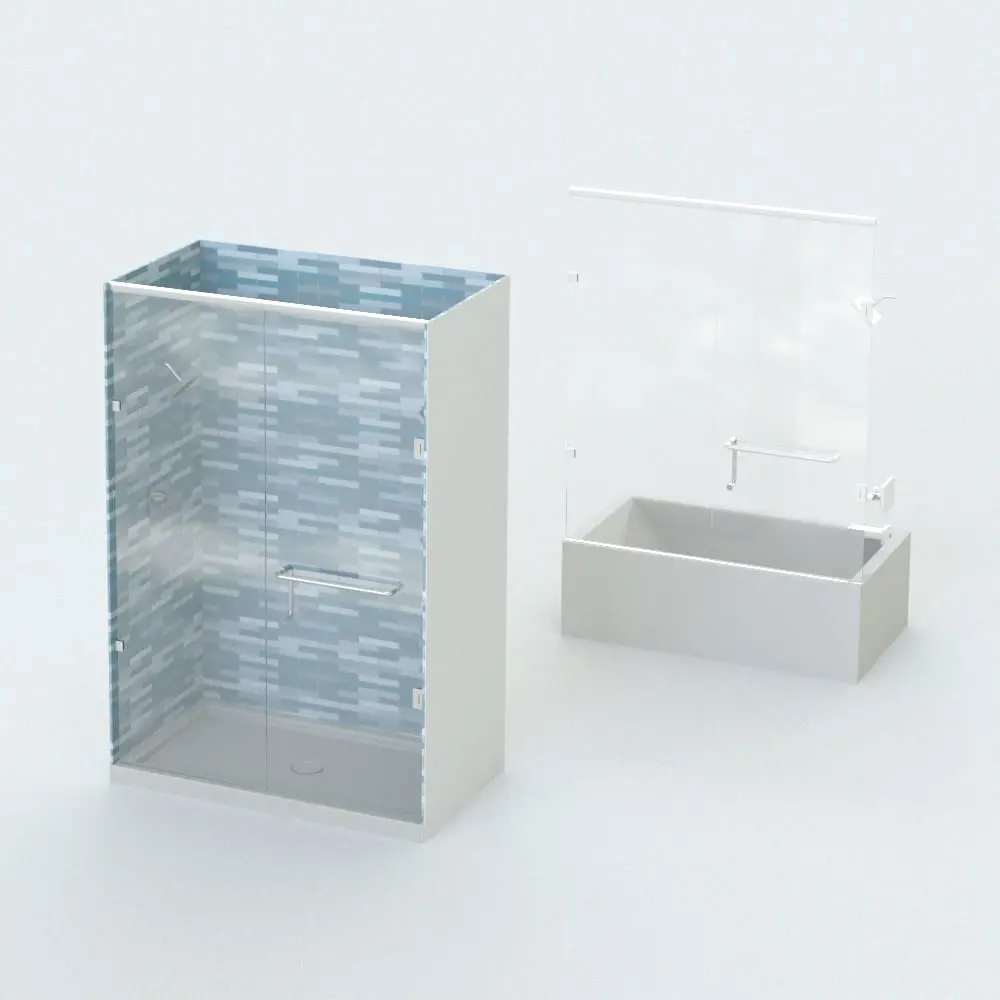

The family can be configured either as a shower enclosure or as a bathtub with a glass panel, making it suitable for a wide variety of project requirements without the need to load multiple families. Additional controls allow customization of dimensions, wall visibility, fixture visibility, and shower configurations to match different bathroom layouts and design styles.
Support for one or two showerheads provides additional flexibility when designing master bathrooms, hotel suites, couples’ bathrooms, or larger shower enclosures. The family also includes multiple material parameters, making it easy to coordinate finishes with the rest of the project and create realistic presentation renderings.
Whether used in compact urban bathrooms or larger luxury spaces, this Revit family provides a versatile solution for BIM documentation, interior design workflows, and architectural visualization.
Included Files:
This product includes 1 zip file containing:
- Revit family file (.rfa)
- Texture files
Included Elements Inside the Revit Family:
- Shower enclosure
- Bathtub configuration
- Glass panels
- Shower door
- Shower base
- Showerheads
- Faucets
- Three surrounding walls
- Handles
Key Parametric Controls:
- Adjustable width
- Adjustable depth
- Adjustable height
- Adjustable door height
- Door Match Height option
- Shower or bathtub configuration
- Visibility controls for walls
- Visibility control for faucets
- Visibility control for showerheads
- Single or dual showerhead configuration
- Material parameters for all components
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Plumbing Fixtures
- Materials/textures: Yes
- Approximate file size (set): 1.13 MB
- File format: .rfa

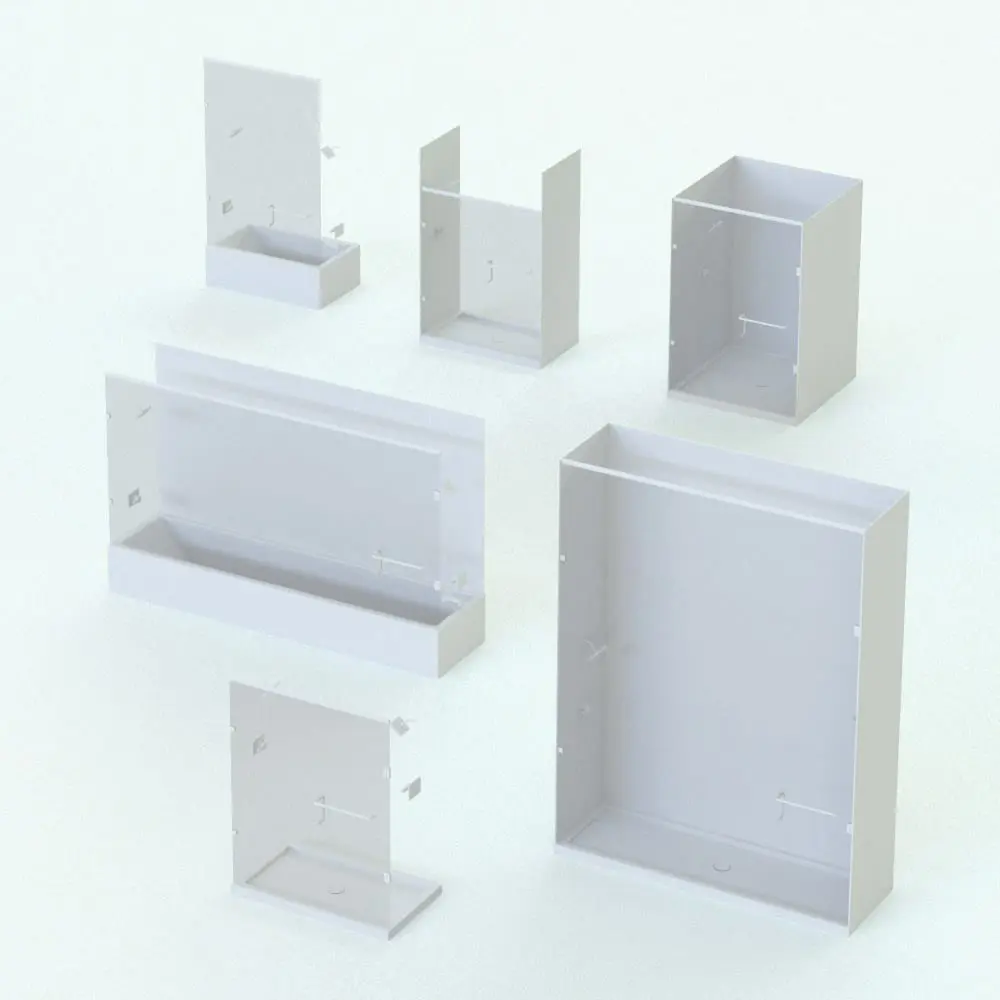

This Modern Dual-Single Shower Revit Family comes with the following customizable parameters and options:
Width, depth and height of the shower Revit family, as well as door height can be changed:
- Minimum width: 3′
- Maximum width: 20′
- Minimum height: 6′
- Maximum height: 20′
- Minimum depth: 2″
- Maximum depth: 10′
- Minimum door height: 6′
- Maximum door height: 20′
You can match the door height to the shower height by turning the Door Match Height checkbox on.
You can change the Revit shower family to a bathtub for added flexibility.
Visibility of each of the three surrounding walls, as well as the faucets and heads can be turned on/off.
This Modern Dual-Single Shower Revit Family comes with material parameters for:
- Glass
- Handles
- Plastic
- Shower Base
- Wall 1
- Wall 2
- Wall 3
- All files are delivered in compressed .ZIP format. You will need a third-party extraction software such as WinZip, 7-Zip, or PeaZip before using the files.
- Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
| Format | rfa |
|---|
