L-Shape Fireplace Revit Family

Fireplace Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model
• Materials/textures: Yes
• Approximate file size: 0.58 MB
• File format: .rfa



Log Grate Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 0.70 MB
• File format: .rfa

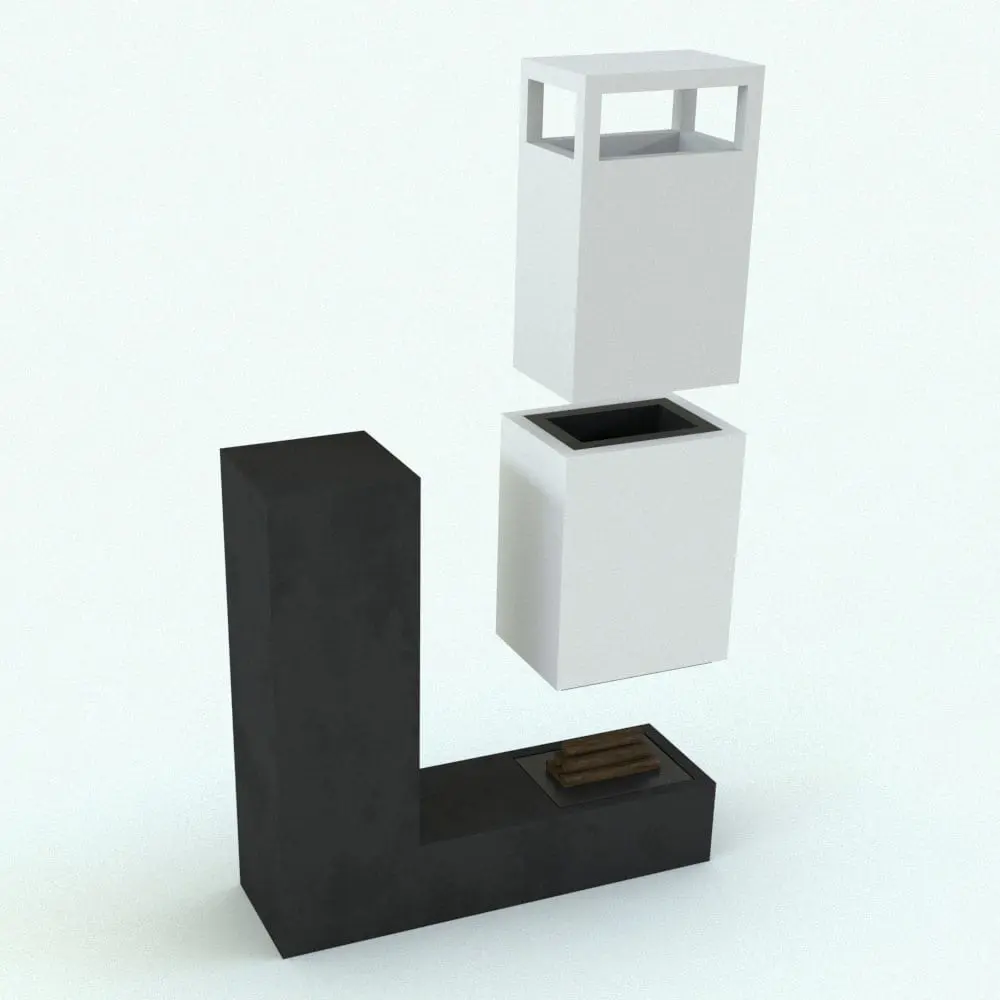

This L-Shape Fireplace Revit Family comes with the following customizable parameters and options:

Fireplace and Chimney Revit Family:

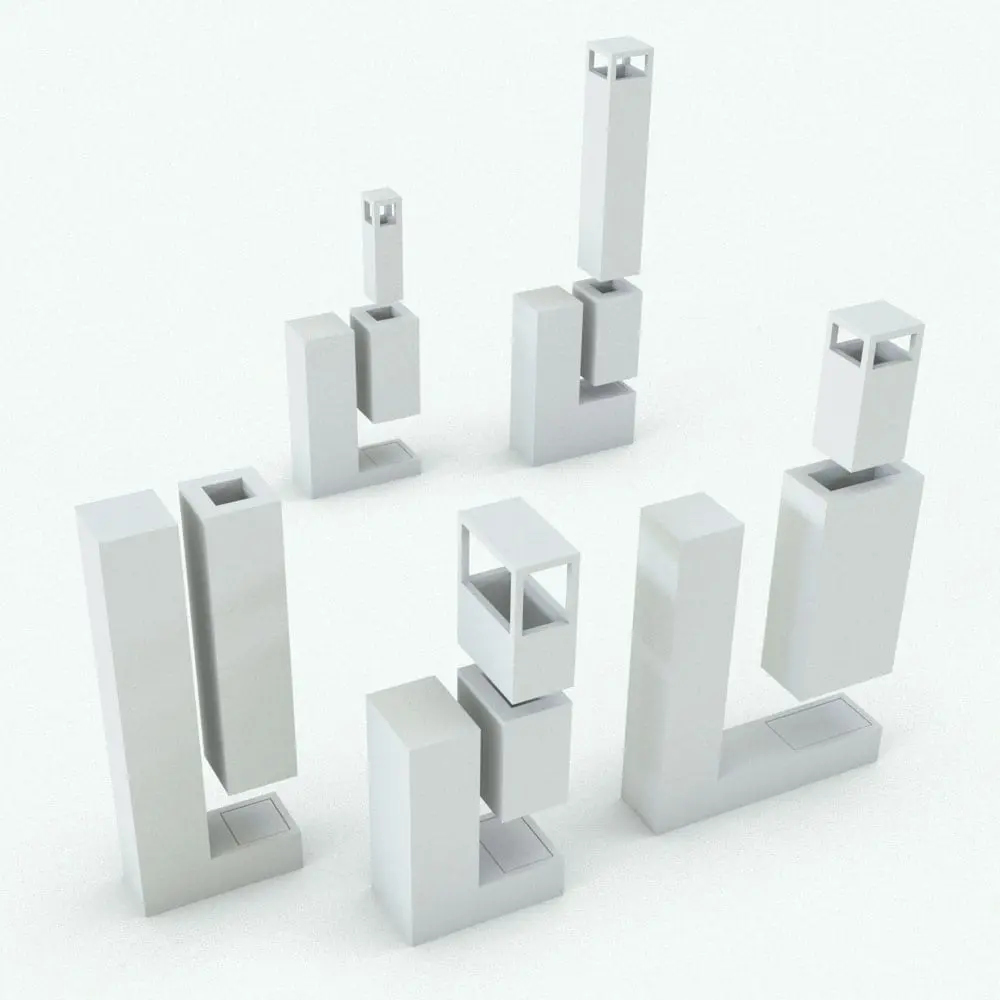

Revit fireplace height, width and depth:

• Minimum height: 7′
• Maximum height: 35′

• Minimum width: 2′ 9″
• Maximum width: 30′

• Minimum depth: 1′ 6″
• Maximum depth: 8′

Revit fireplace wall width, exhaust width, heart height and exhaust start height:

• Minimum fireplace wall width: 1′
• Maximum fireplace wall width: 8′

• Minimum exhaust width: 1′ 6″
• Maximum exhaust width: 8′

• Minimum heart height: 1′
• Maximum heart height: 3′ 6″

• Minimum exhaust start height: 1′
• Maximum exhaust start height: ((fireplace height-heart height)/3)*2

Chimney height, width, depth and wall thickness (included as part of this Revit fireplace):

• Minimum height: 3′
• Maximum height: 30′

• Minimum width: 1′
• Maximum width: 10′

• Minimum depth: 1′
• Maximum depth: 10′

• Minimum wall thickness: 1″
• Maximum wall thickness: 1′

Chimney offset:

• Minimum offset: 1/4″
• Maximum offset: 30′

Chimney opening height:

• Minimum opening height: 2″
• Maximum opening height: half of the height of the chimney

Chimney  in this Revit fireplace can be turned on/off

This L-Shape Fireplace Revit Family comes with material parameters for:

• Wall
• Fireplace
• Metal Exhaust
• Grill
• Chimney

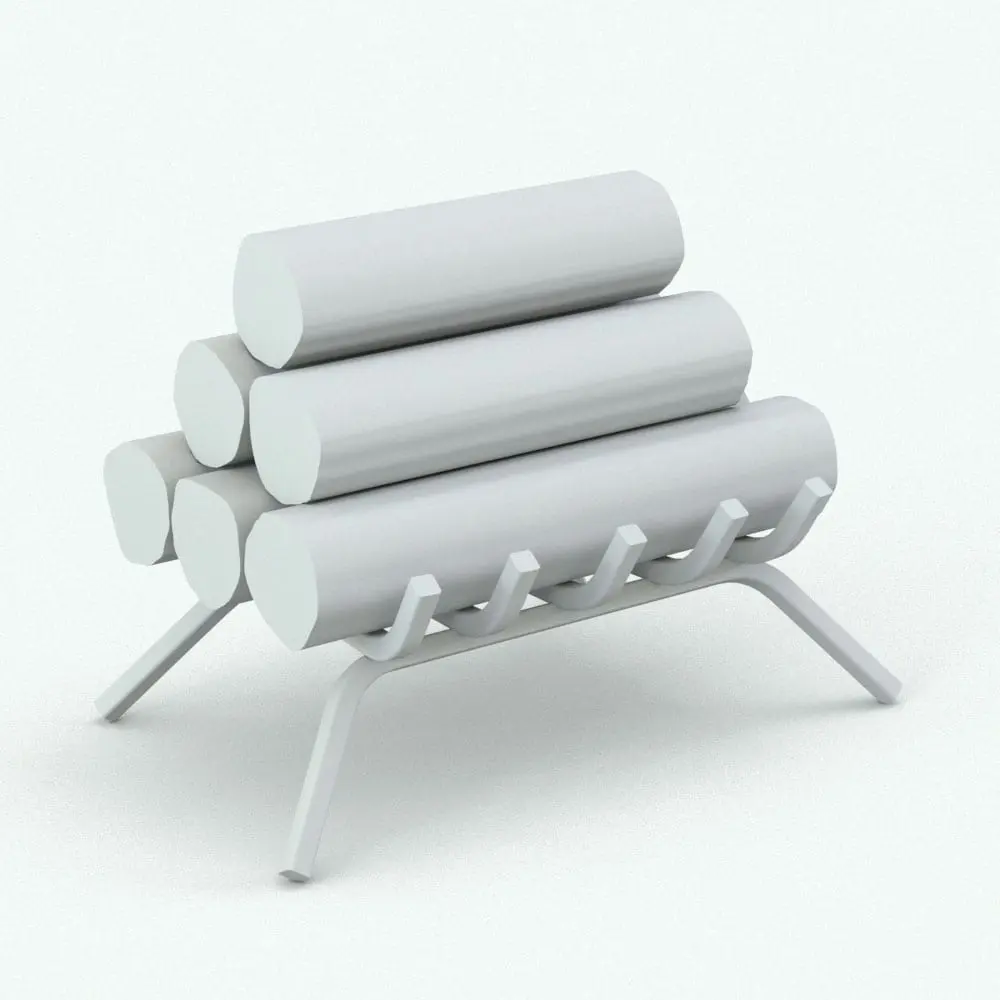

Log Grate Revit Family:

Logs Size: This value depends on the overall grate width. The value ranges from 0-2

Grate Overall Width:

• Minimum grate overall width: 1’6″
• Maximum grate overall width: 4′

Grate Overall Depth:

• Minimum grate overall depth: 6″
• Maximum grate overall depth: 1’1″

The following objects in this Revit family can be turned on/off:

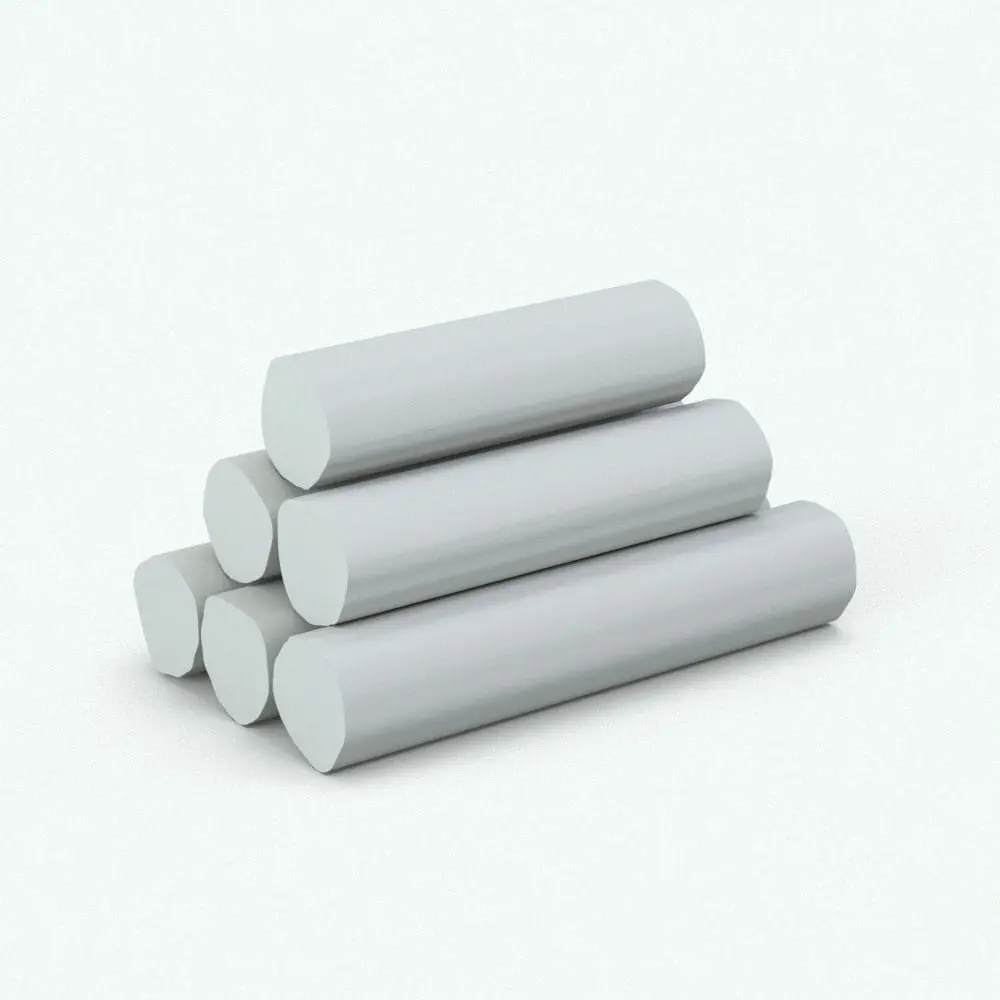

• Logs
• Grate



IMPORTANT NOTE ABOUT THIS REVIT FAMILY: if both objects are turned off, the logs will show up by default.

This log grate, which is part of the L-Shape Fireplace Revit Family comes with material parameters for:

• Grate
• Logs



* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
