Glass Balustrade Escalator Revit Family
$7.49
Quick Overview:
- Fully Parametric Glass Balustrade Escalator Revit Family
- Modern Transparent Glass Design
- Adjustable Height, Width & Escalator Dimensions
- Commercial & Public Space Ready
- Detailed Escalator Components Included
- BIM & Architectural Visualization Optimized
- Revit 2016 and Newer Compatible
Product Description:

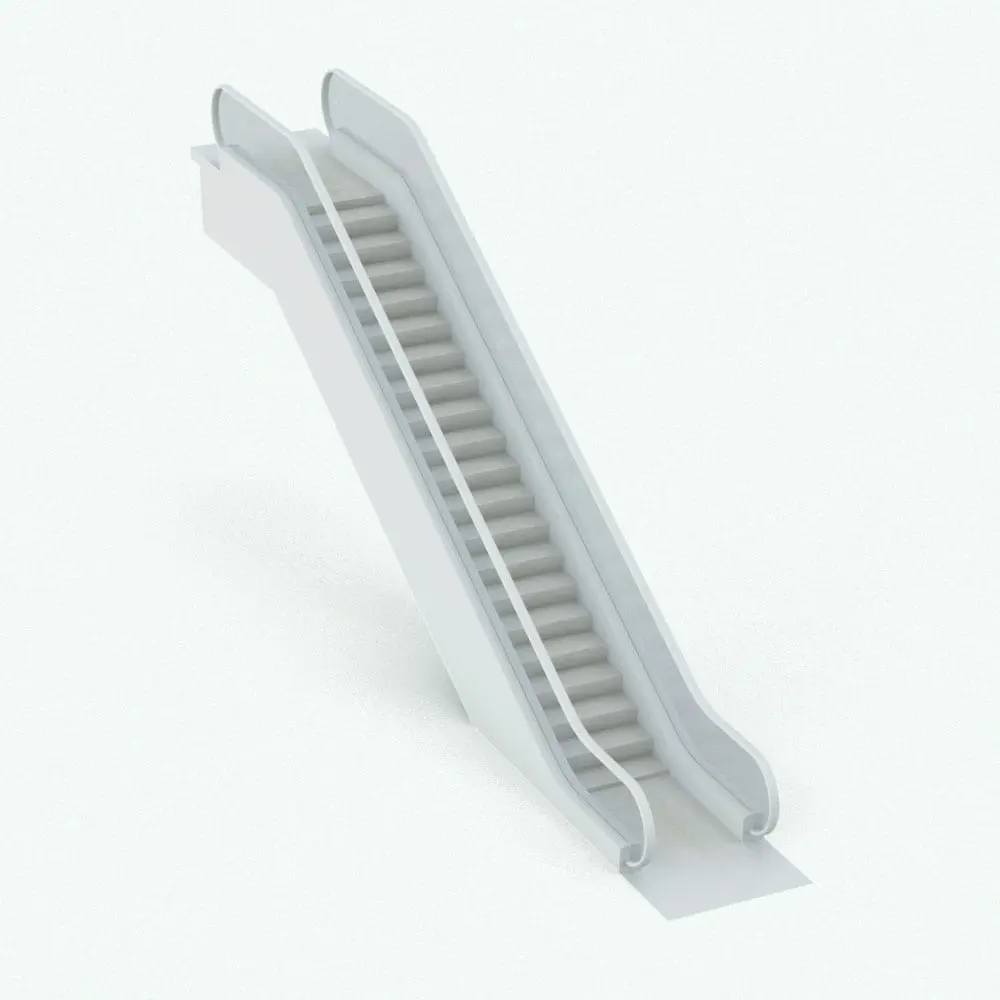

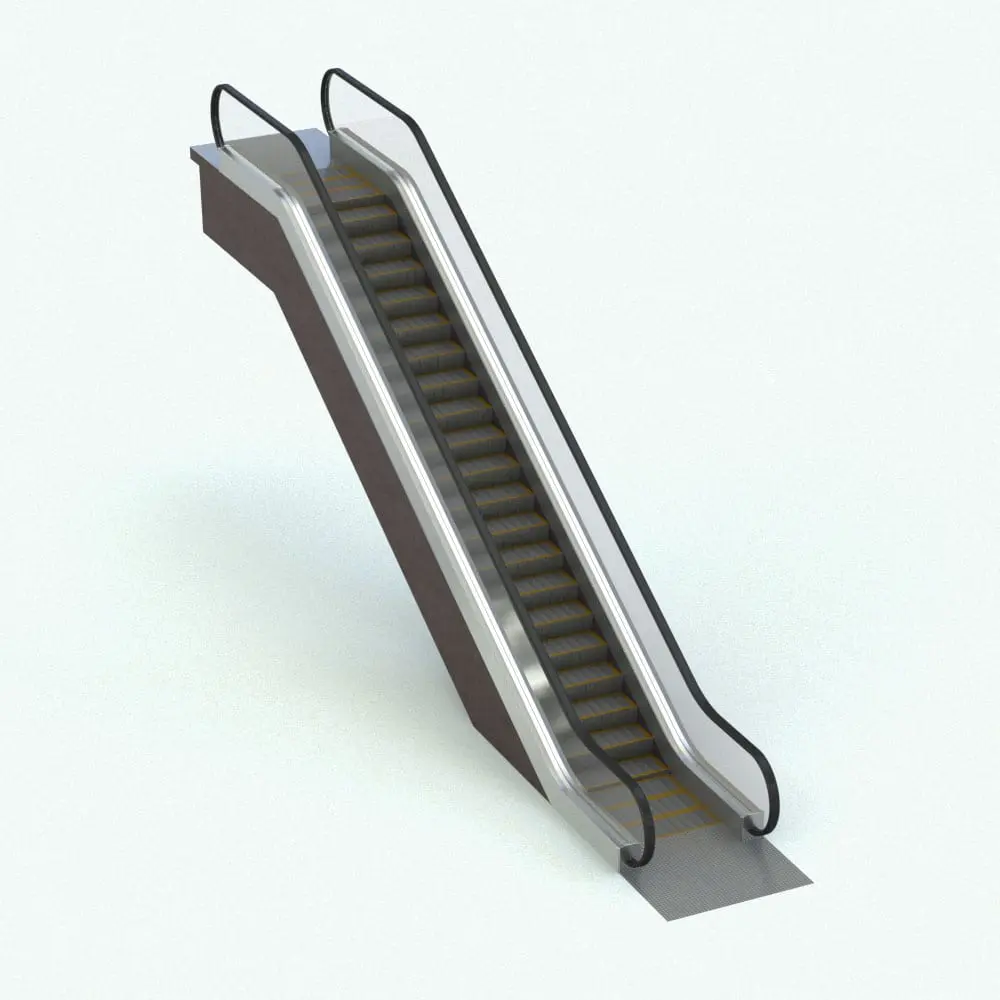

Bring a modern architectural look to your projects with this highly detailed Glass Balustrade Escalator Revit Family. Designed for shopping malls, airports, office buildings, retail developments, hospitality projects, and commercial environments, this parametric escalator family combines sleek transparent glass balustrades with clean contemporary detailing for high-quality BIM and visualization workflows.

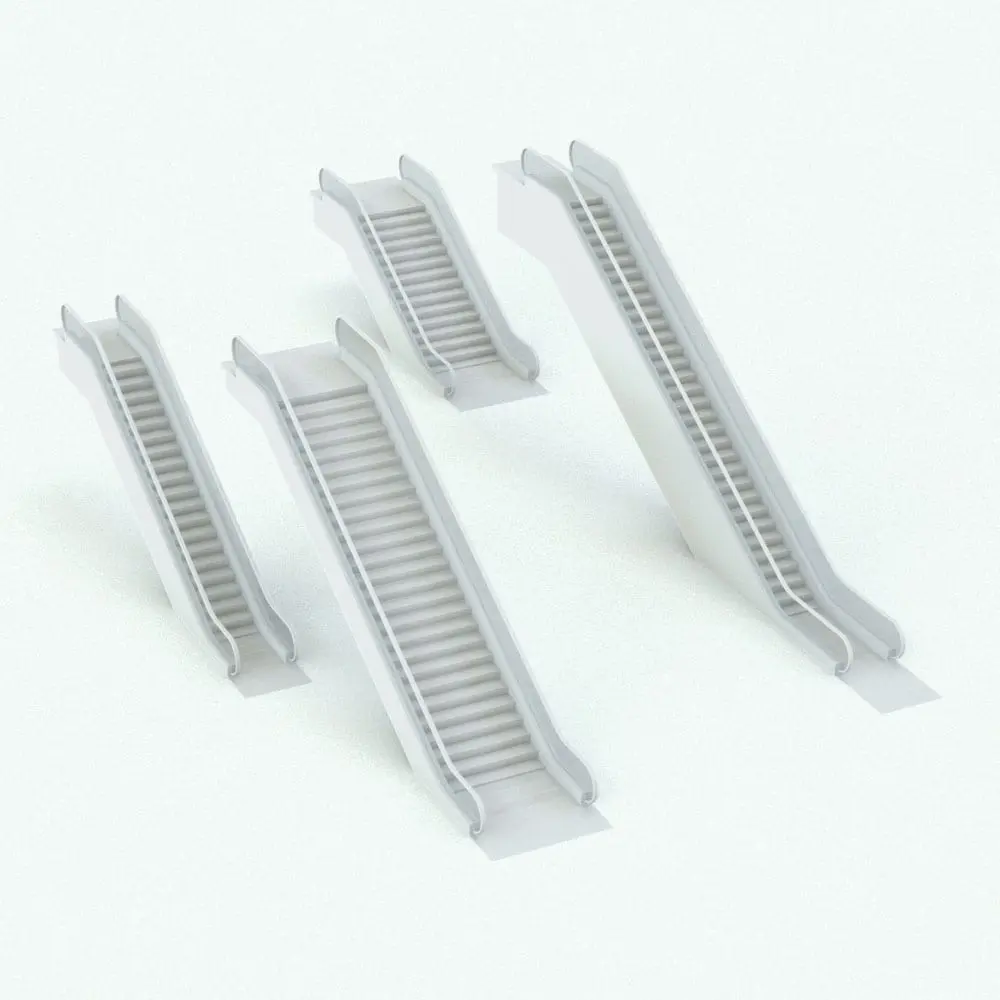

The family includes adjustable controls for floor-to-floor height, tread width, landing dimensions, and escalator proportions, allowing you to adapt the design to different architectural layouts and circulation requirements. Its modern glass enclosure and detailed escalator components make it ideal for both design presentations and realistic rendering environments.
Material parameters are included for the main escalator components, making it easy to match project finishes, visualization styles, and branding requirements directly inside Revit. The family is optimized to help speed up workflow efficiency while maintaining a clean and professional appearance across a wide variety of commercial and public projects.
This Glass Balustrade Escalator Revit Family works especially well alongside modern elevator systems and contemporary transportation cores within larger architectural developments.
Included Files:
This product includes 1 zip file containing:
- Revit family file (.rfa)
- Texture files
Included Elements Inside the Revit Family:
- Escalator structure
- Glass balustrades
- Escalator handrails
- Escalator treads

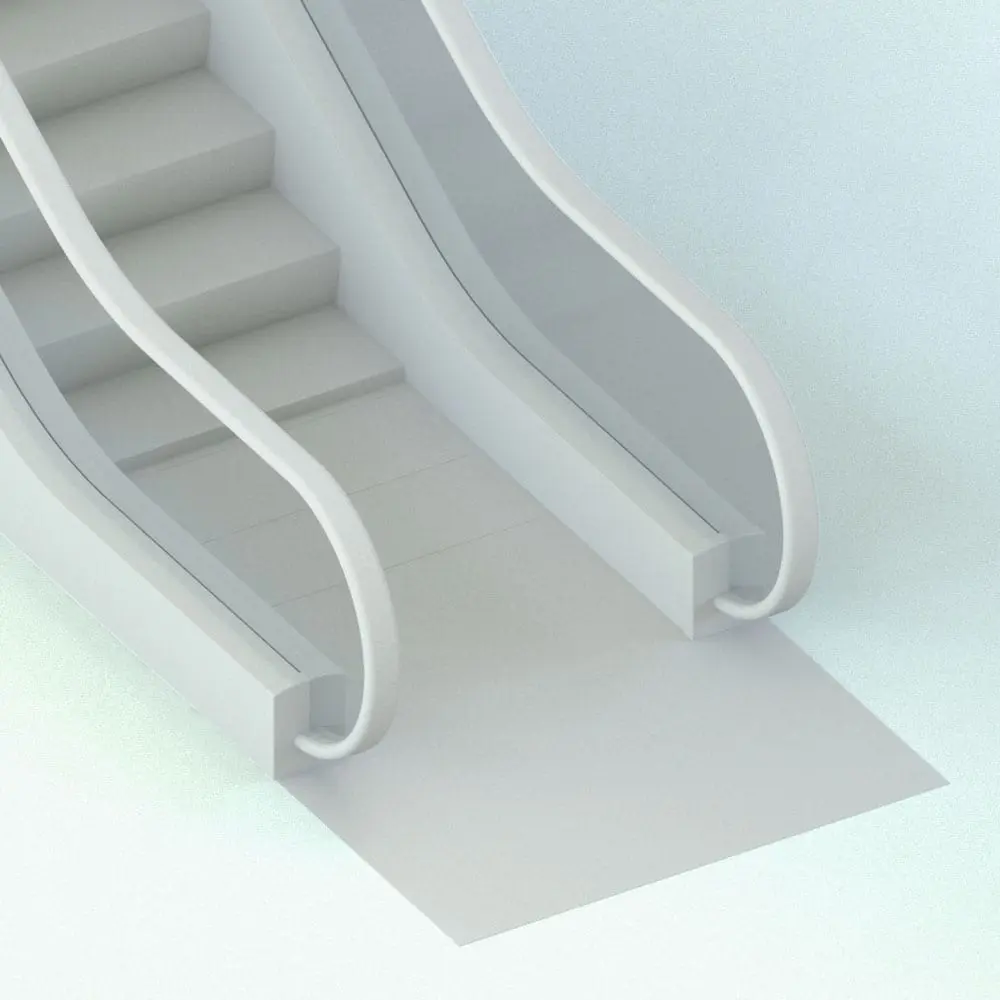

- Landing plates
- Escalator skirt panels
- Escalator box structure
- Safety tread striping
Key Parametric Controls:
- Adjustable floor-to-floor height
- Adjustable tread width
- Adjustable escalator box depth
- Adjustable additional steps at start and end
- Adjustable landing plate length
- Material parameters for major escalator components
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Mechanical Equipment
- Materials/textures: Yes
- Approximate file size: 0.87 MB
- File format: .rfa
This Glass Balustrade Escalator Revit Family comes with the following customizable parameters and options:
Floor to floor height, tread width and box depth:
- Minimum floor to floor height: 10′
- Maximum floor to floor height: 50′
- Minimum tread width++: 1’6″
- Maximum tread width++: 8′
++ Does not include the skirt/box width, only the tread width.
- Minimum box depth: 2′
- Maximum box depth: 7′
Additional steps at the start and end, as well as the landing plates length:
- Minimum additional steps start: 2
- Maximum additional steps start: 8
- Minimum additional steps end: 2
- Maximum additional steps end: 8
- Minimum landing plates length: 3’4″
- Maximum landing plates length: 12′
Material parameters for:
- Box
- Glass Balustrade
- Handrail
- Landing Plates
- Skirt
- Tread
- Tread Safety Yellow Line
- All files are delivered in compressed .ZIP format. You will need a third-party extraction software such as WinZip, 7-Zip, or PeaZip before using the files.
- Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
