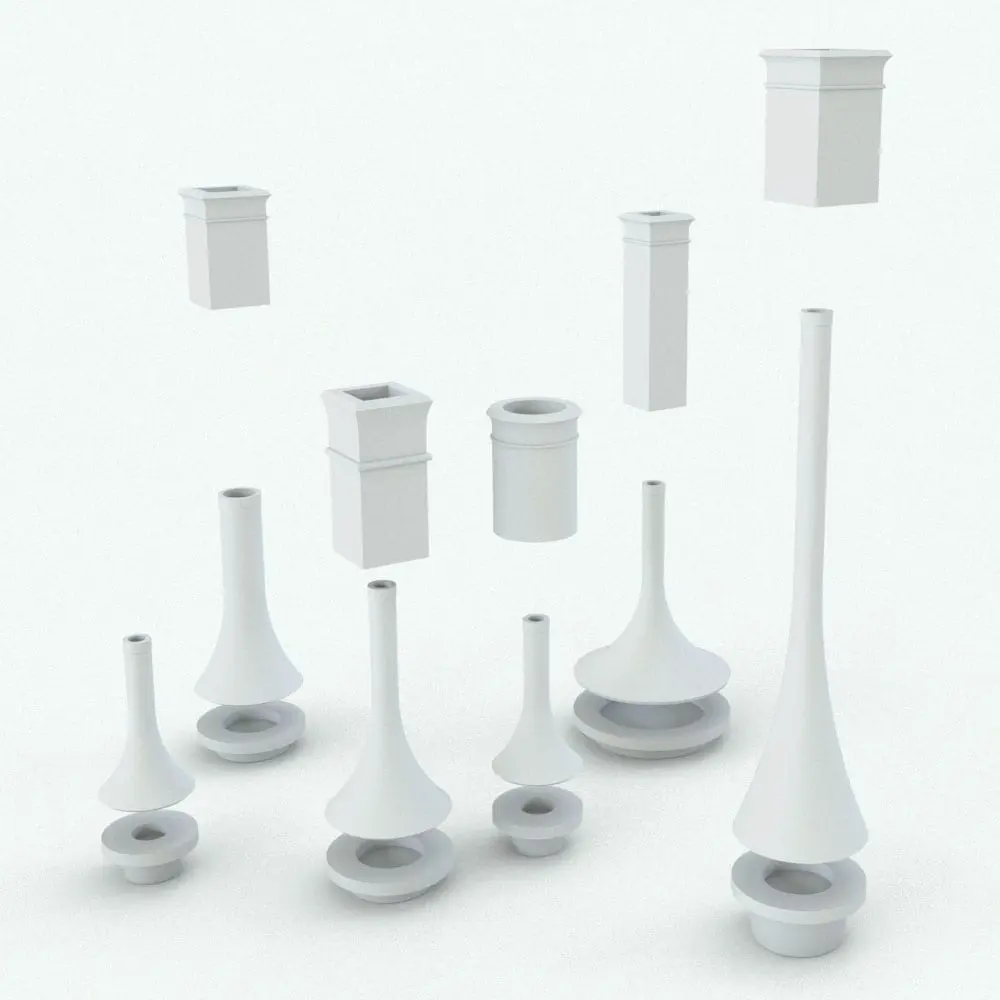

Curved Conical Revit Fireplace Family shown in different sizes and configurations to showcase its parametric flexibility. This Revit family includes not only the fireplace, but also the chimney (in two different shapes) and a log grate with logs, so you can create multiple looks according to your project. Don't wait any longer and add this Curved Conical Revit Fireplace Family to your assets today.
Curved Conical Revit Fireplace Family in 3D and rendered in black and white (ambient occlusion style) to showcase the shape better. This Revit family is fully parametric, easy to use and ready to render. Whether you need a background element in your render or a focal point, this Revit fireplace will certainly achieve both goals.

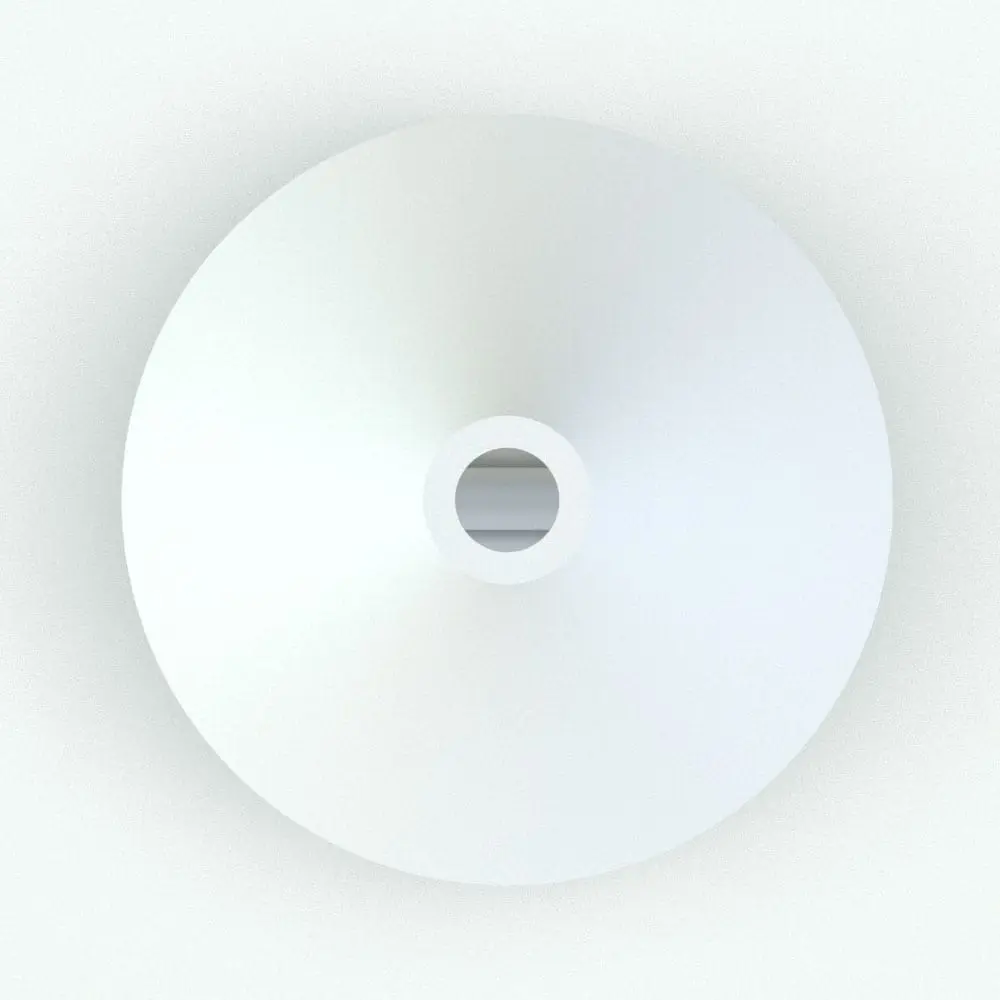

Curved Conical Revit Fireplace Family in top view and rendered without any materials. Ideal for contemporary and minimalistic designs, this fully parametric and versatile Revit fireplace will turn your spaces into masterpieces in just a few clicks. Get it today and see for yourself.
Revit chimneys included in this Revit fireplace family. Use the one that matches your design style the most.

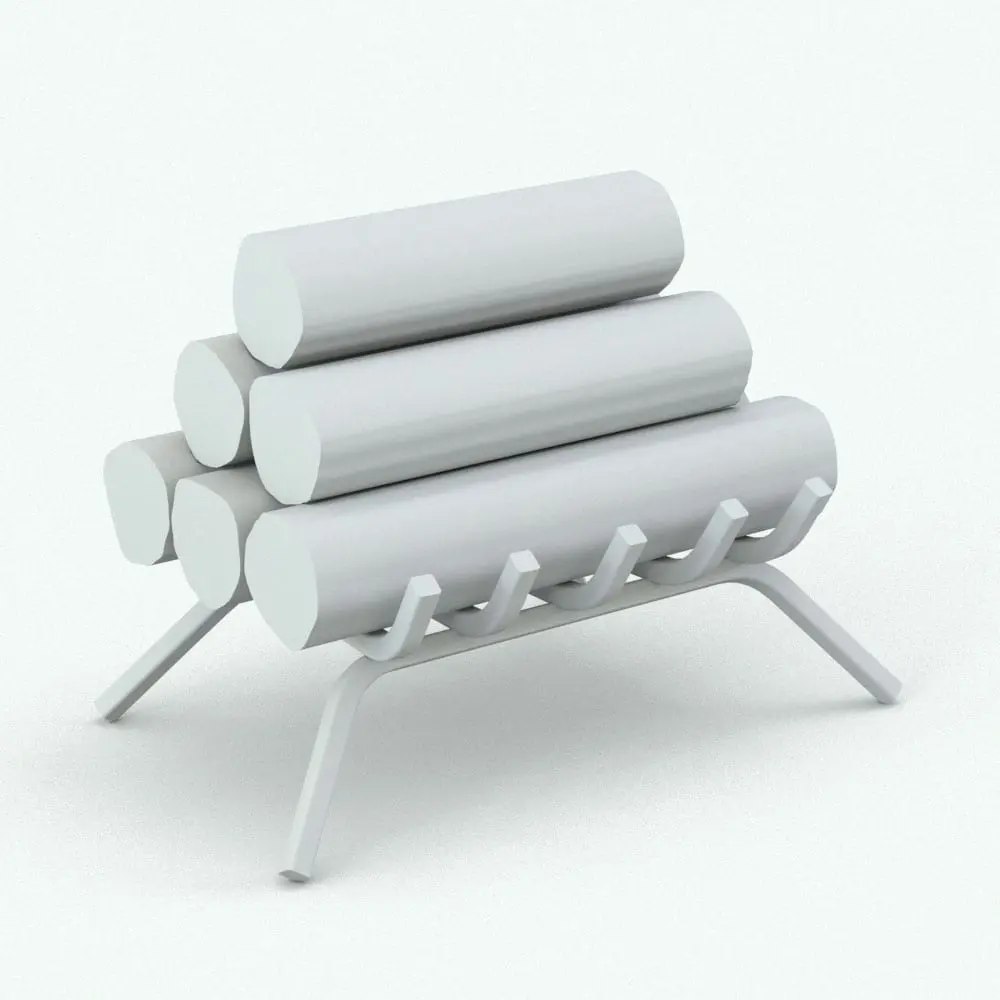

Revit log grate with logs. Both included with the Curved Conical Revit Fireplace Family.

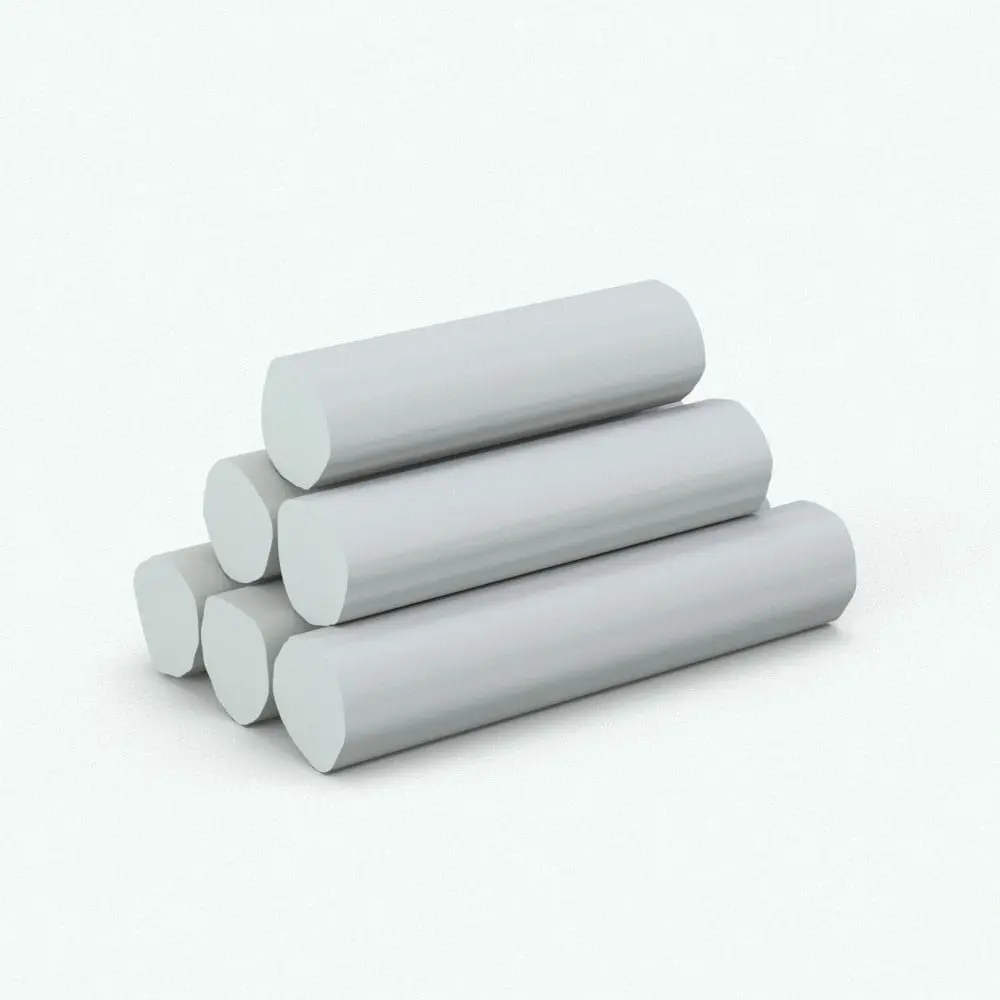

Revit logs included in the Curved Conical Revit Fireplace Family.
Curved Conical Revit Fireplace Family in 3D and rendered with a dark metallic finish and a stone rim. This Revit family includes an extra family for the log grate, so you can create a more realistic looking fireplace. Ideal for modern, minimalistic and contemporary interior design projects, this Revit fireplace will become a focal point in your projects.
Curved Conical Revit Fireplace Family shown in different sizes and configurations to showcase its parametric flexibility. This Revit family includes not only the fireplace, but also the chimney (in two different shapes) and a log grate with logs, so you can create multiple looks according to your project. Don't wait any longer and add this Curved Conical Revit Fireplace Family to your assets today.
Curved Conical Revit Fireplace Family in 3D and rendered in black and white (ambient occlusion style) to showcase the shape better. This Revit family is fully parametric, easy to use and ready to render. Whether you need a background element in your render or a focal point, this Revit fireplace will certainly achieve both goals.
Curved Conical Revit Fireplace Family in top view and rendered without any materials. Ideal for contemporary and minimalistic designs, this fully parametric and versatile Revit fireplace will turn your spaces into masterpieces in just a few clicks. Get it today and see for yourself.
Revit chimneys included in this Revit fireplace family. Use the one that matches your design style the most.
Revit log grate with logs. Both included with the Curved Conical Revit Fireplace Family.
Revit logs included in the Curved Conical Revit Fireplace Family.

Curved Conical Revit Fireplace Family

rfa

$5.49

Categories: , Tags: , , , , , , , , , , , , ,

Elevate your architectural projects with the Curved Conical Revit Fireplace Family, a stunning modern Revit fireplace designed for both indoor and outdoor spaces. This high-quality Revit family features a suspended conical hood with a sleek curved design, directing smoke upward while serving as a striking visual centerpiece.

The circular fire pit base is enhanced with a refined stone or metal rim, adding an elegant touch to contemporary homes, boutique hotels, and luxury outdoor lounges.

This Curved Conical Revit Fireplace Family also includes an exterior chimney for venting efficiency and a log grate Revit family for added realism and functionality. Designed with accurate dimensions, parametric flexibility, and high-quality materials, this fireplace ensures seamless integration into your Revit workflow. Whether used indoors or as a sophisticated outdoor fire feature, this fireplace enhances ambiance while maintaining architectural sophistication.

For a detailed description of parameters and materials of this Revit fireplace family, please read the Revit Family Technical Information section below.



Revit Fireplace Family:

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model
  • Materials/textures: Yes
  • Approximate file size: 0.64 MB
  • File format: .rfa



Revit Log Grate Family:

  • Parametric: Yes
  • Hybrid*: No
  • Compatible with: Revit 2016 and higher.
  • Family type: Generic Model Face Based
  • Materials/textures: Yes
  • Approximate file size: 0.70 MB
  • File format: .rfa



This Curved Conical Revit Fireplace Family comes with the following customizable parameters and options:

Revit Fireplace and Chimney Family:

Height of Revit fireplace:

  • Minimum height: 8′
  • Maximum height: 35′

Firebox start height, end height, diameter and exhaust diameter:

  • Minimum firebox start height: 6″
  • Maximum firebox start height: 1′ 6″
  • Minimum clearance height: 1′
  • Maximum clearance height: 3′
  • Minimum firebox diameter: 3′
  • Maximum firebox diameter: 6′
  • Minimum exhaust diameter: 6″
  • Maximum exhaust diameter: 1′ 6″

Chimney height, width and wall thickness (included with the Revit fireplace):

  • Minimum height: 3′
  • Maximum height: 30′
  • Minimum width: 1′
  • Maximum width: 6′
  • Minimum wall thickness: 1″
  • Maximum wall thickness: 1′

Chimney offset:

  • Minimum offset: 1/4″
  • Maximum offset: 30′

Chimney in this Revit fireplace can be turned into a cylindrical chimney

This Curved Conical Revit Fireplace Family comes with material parameters for:

  • Fireplace
  • Brick Moulding
  • Grill
  • Chimney



Revit Log Grate Family:

Logs Size: This value depends on the overall grate width. The value ranges from 0-2

Grate Overall Width:

  • Minimum grate overall width: 1’6″
  • Maximum grate overall width: 4′

Grate Overall Depth:

  • Minimum grate overall depth: 6″
  • Maximum grate overall depth: 1’1″

The following objects can be turned on/off:

  • Logs
  • Grate



IMPORTANT NOTE ABOUT THIS REVIT FAMILY: if both objects are turned off, the logs will show up by default.

This log grate, which is included in the Curved Conical Revit Fireplace Family comes with material parameters for:

  • Grate
  • Logs

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.



Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.



Format

rfa

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
