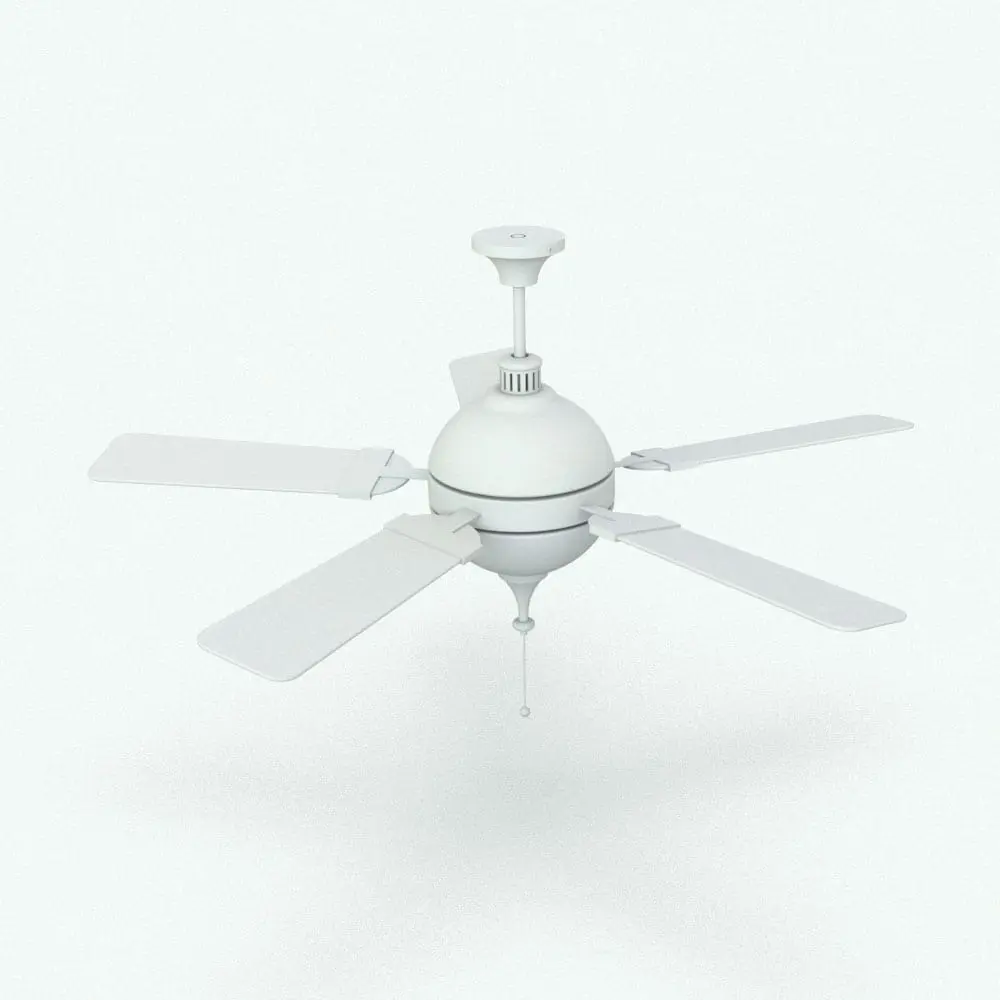

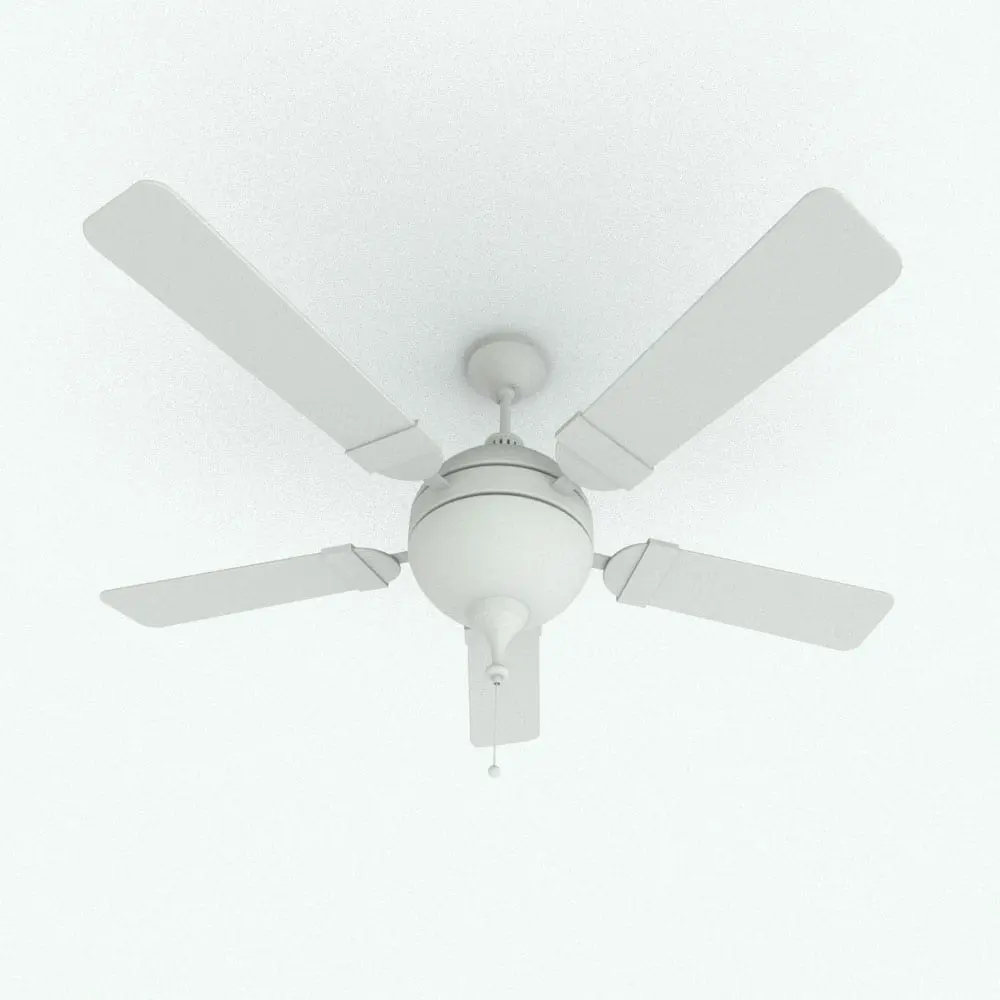

Sphere Revit Ceiling Fan Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Ceiling Based
• Materials/textures: Yes
• Approximate file size: 0.87 MB
• File format: .rfa

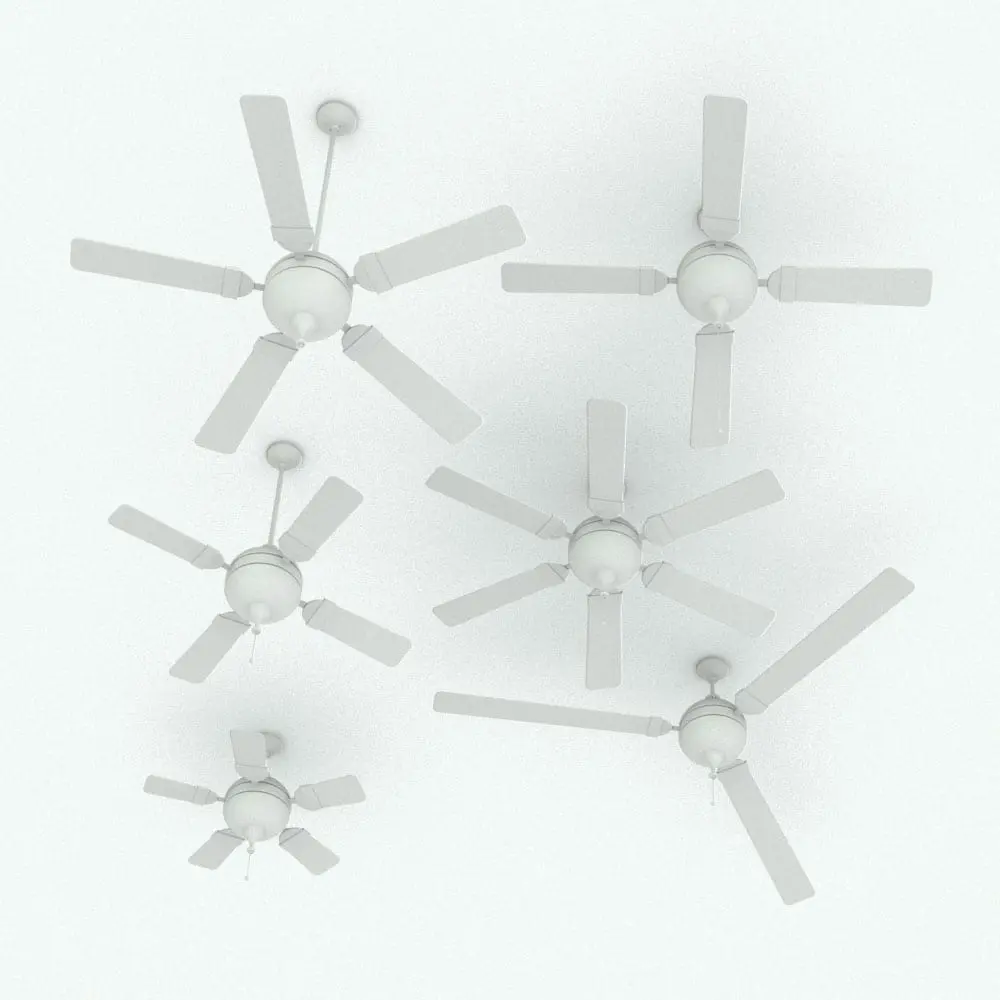

This Sphere Revit Ceiling Fan Family comes with the following customizable parameters and options:

Distance from ceiling:

• Minimum distance: 4″
• Maximum distance: 15′

Number of blades:

• Minimum number of blades: 3
• Maximum number of blades: 6

Blades length of this ceiling fan Revit family:

• Minimum length: 1′
• Maximum length: 3’6″

Length of chains:

• Minimum length: 6″
• Maximum length: 8′

Chain can be turned on/off

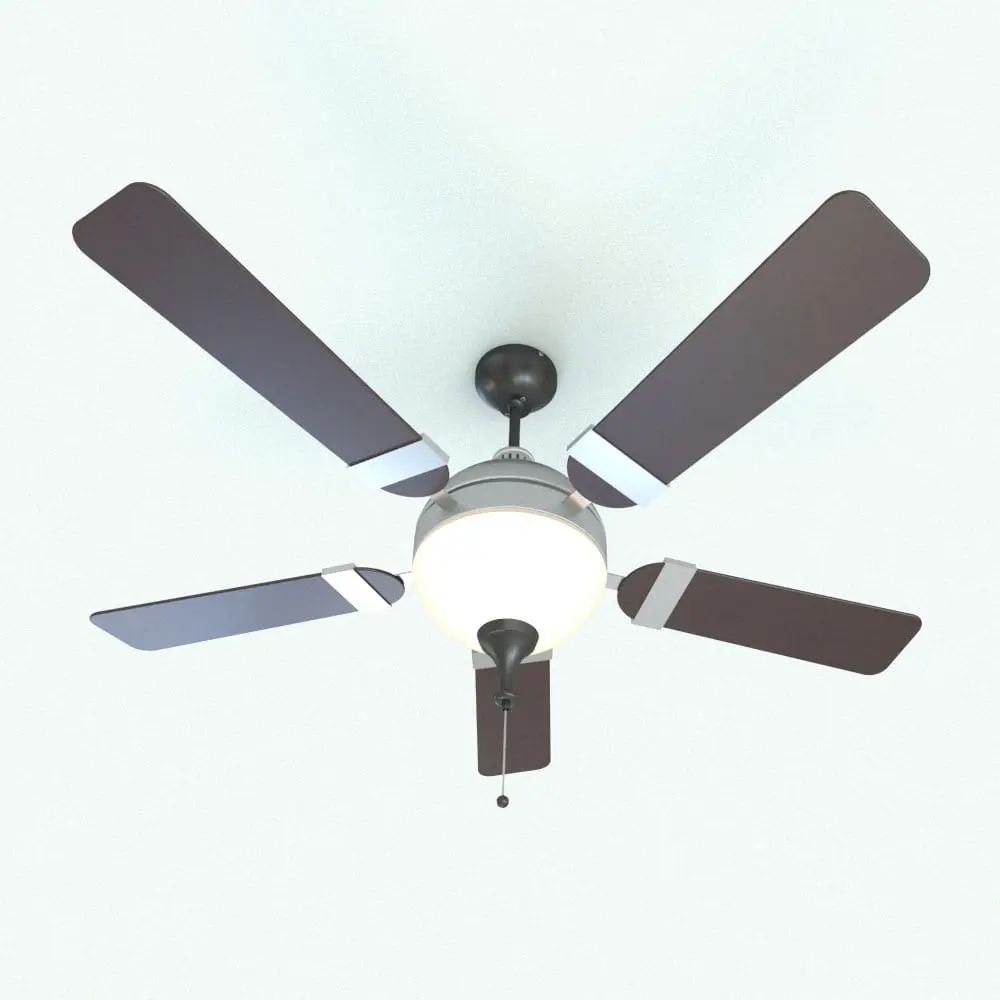

This Sphere Revit Ceiling Fan Family comes with material parameters for:

• Housing
• Mounting
• Blades
• Blades Details
• Downrod
• Light+
• Chain
• Handle
• Ball
• Screws

+ There is not an actual light in this family, but a material parameter where you can add an emissive material

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
