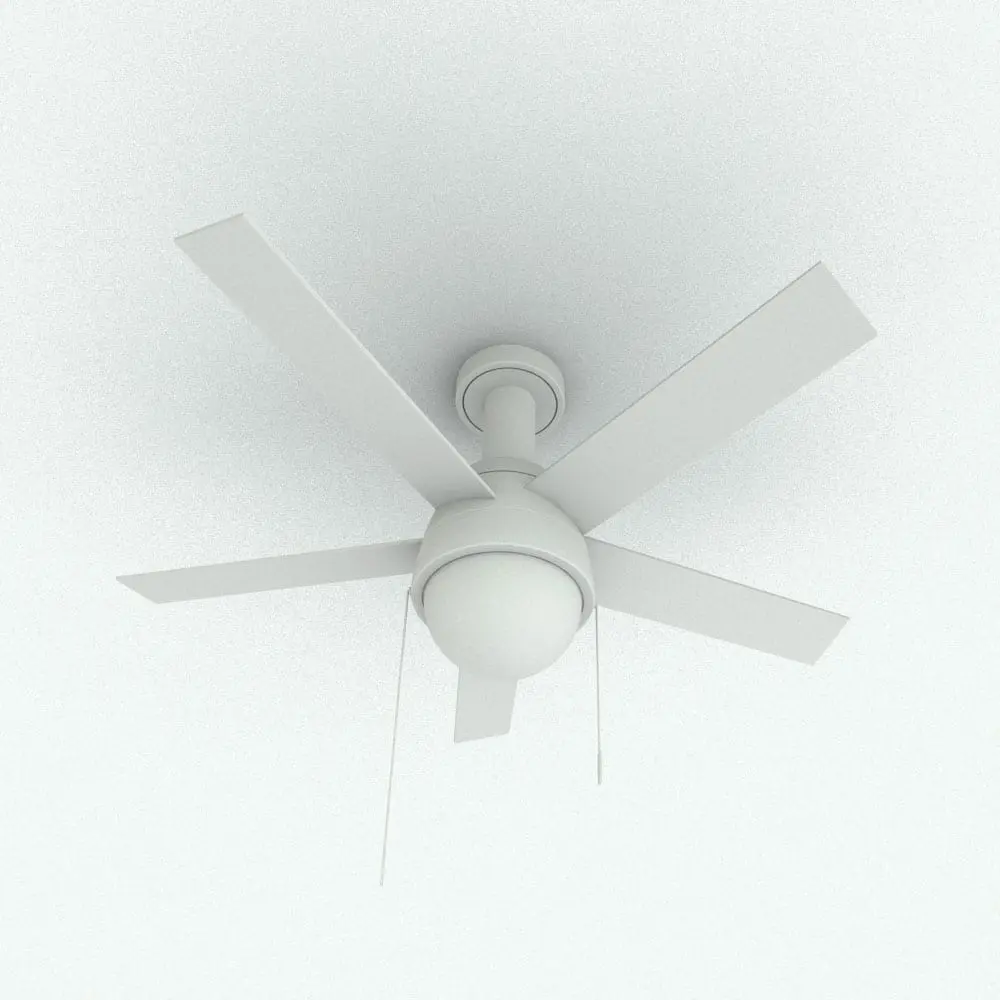

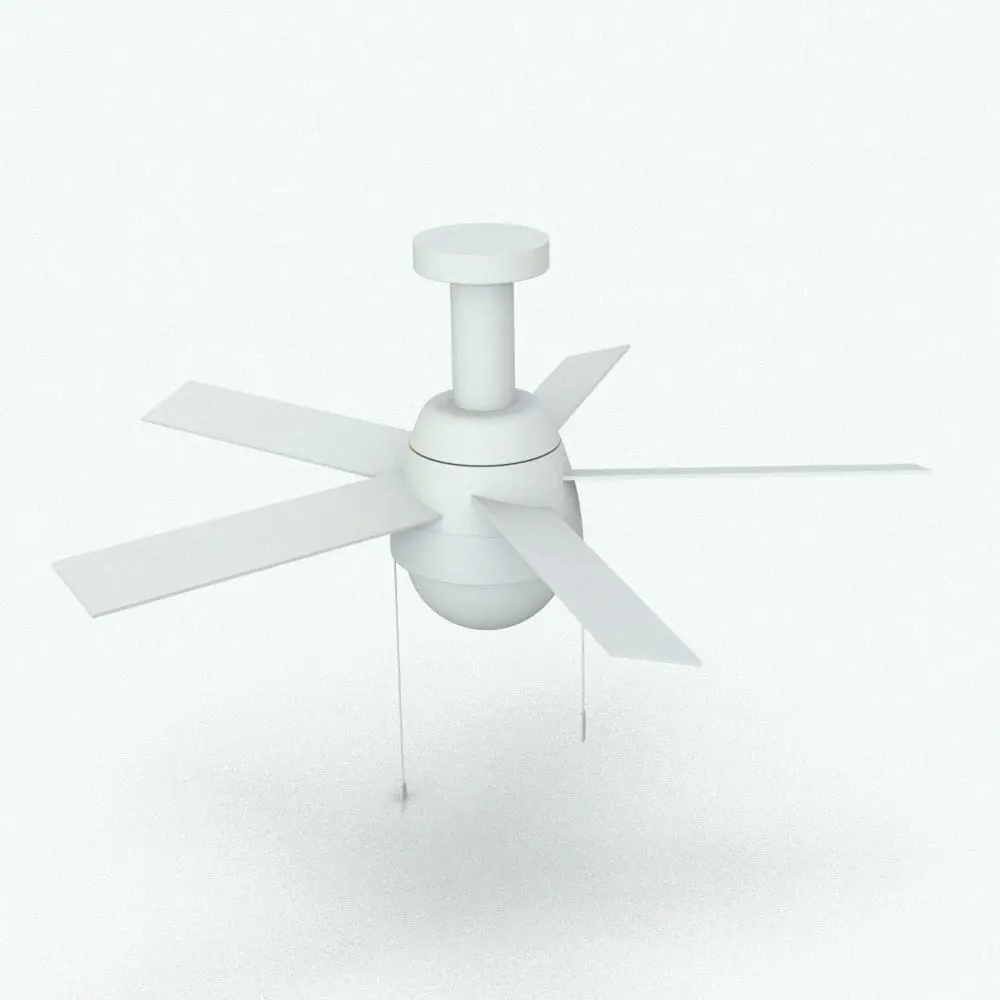

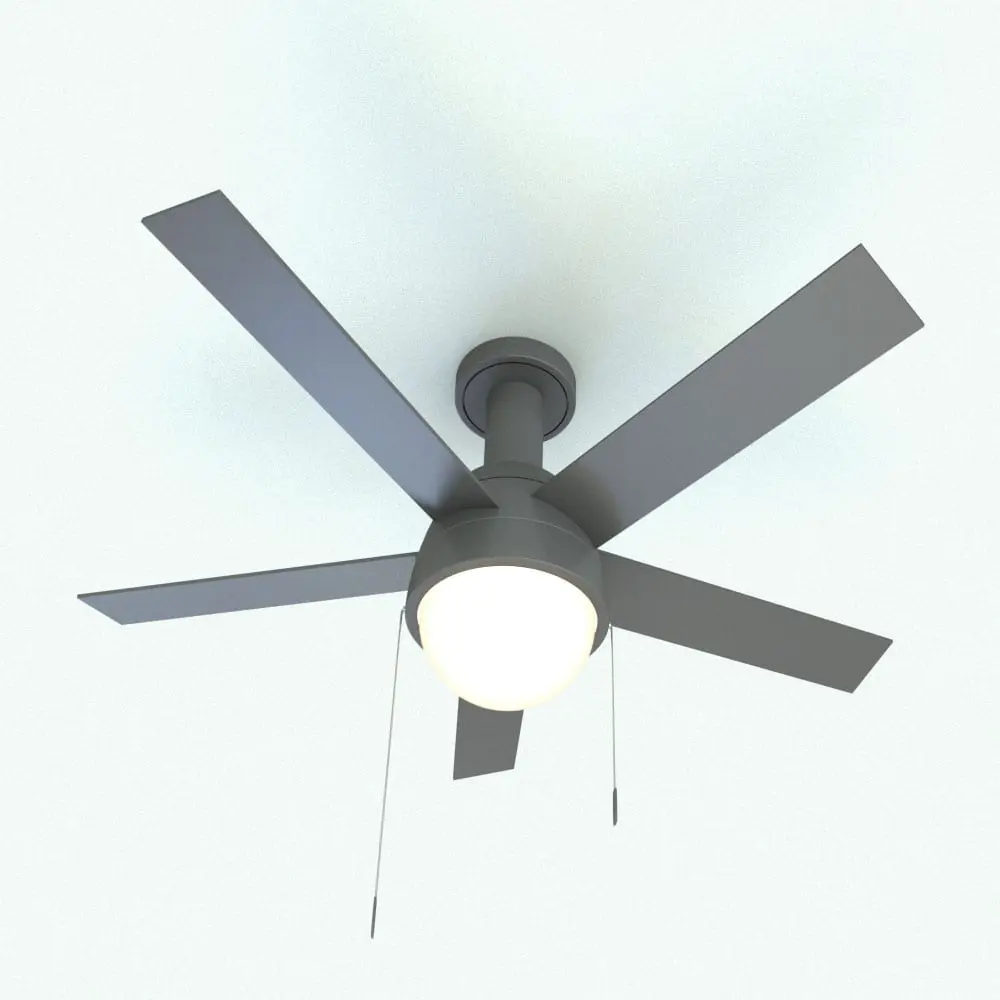

Modern Revit Ceiling Fan Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Ceiling Based
• Materials/textures: Yes
• Approximate file size: 0.57 MB
• File format: .rfa

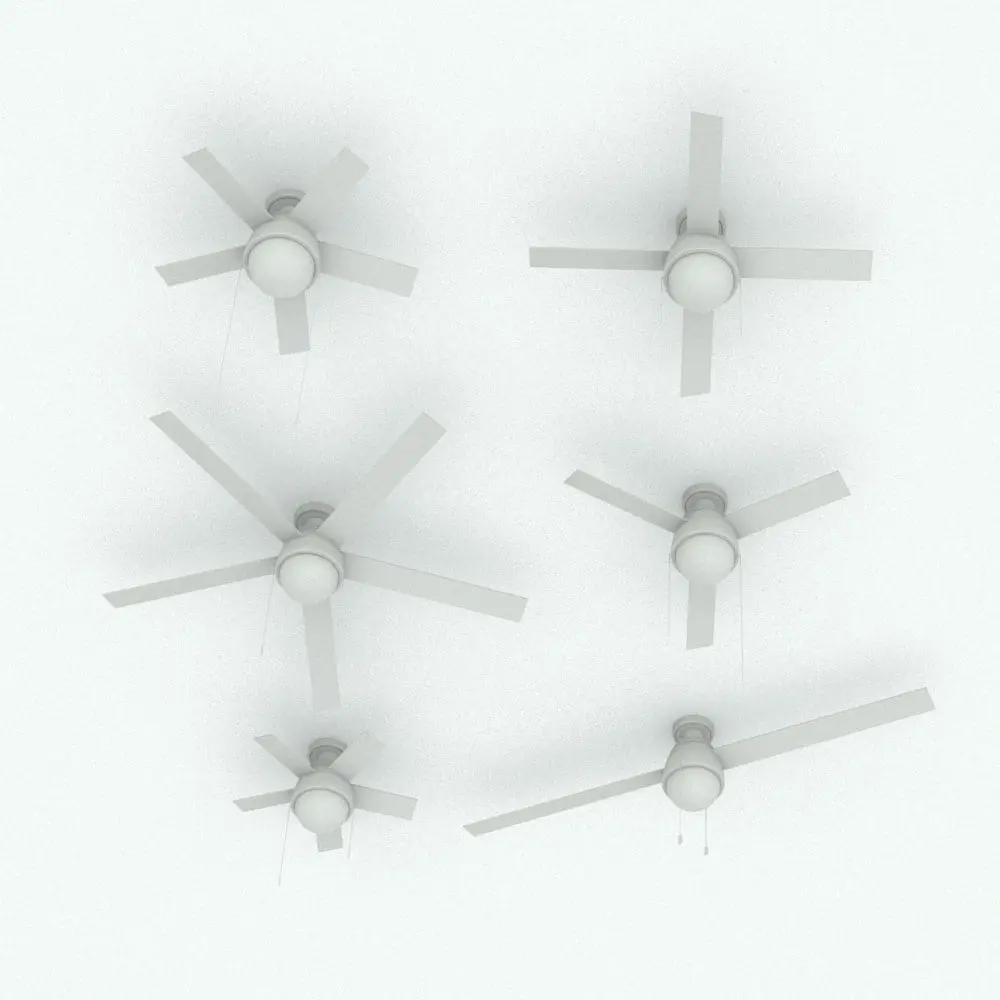

This Modern Revit Ceiling Fan Family comes with the following customizable parameters and options:

Distance from ceiling:

• Minimum distance: 10″
• Maximum distance: 5′

Blades length:

• Minimum length: 1’3″ (approx)
• Maximum length: 3’9″ (approx)

Number of blades of this Revit ceiling fan family:

• Minimum number of blades: 2
• Maximum number of blades: 7

Lengths of chains (both) can be adjusted independently:

• Minimum length: 6″
• Maximum length: 5′

This Modern Revit Ceiling Fan Family comes with material Parameters for:

• Housing
• Blades
• Light+
• Chain
• Chain End

+ There is not an actual light in this family, but a material parameter where you can add an emissive material

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
