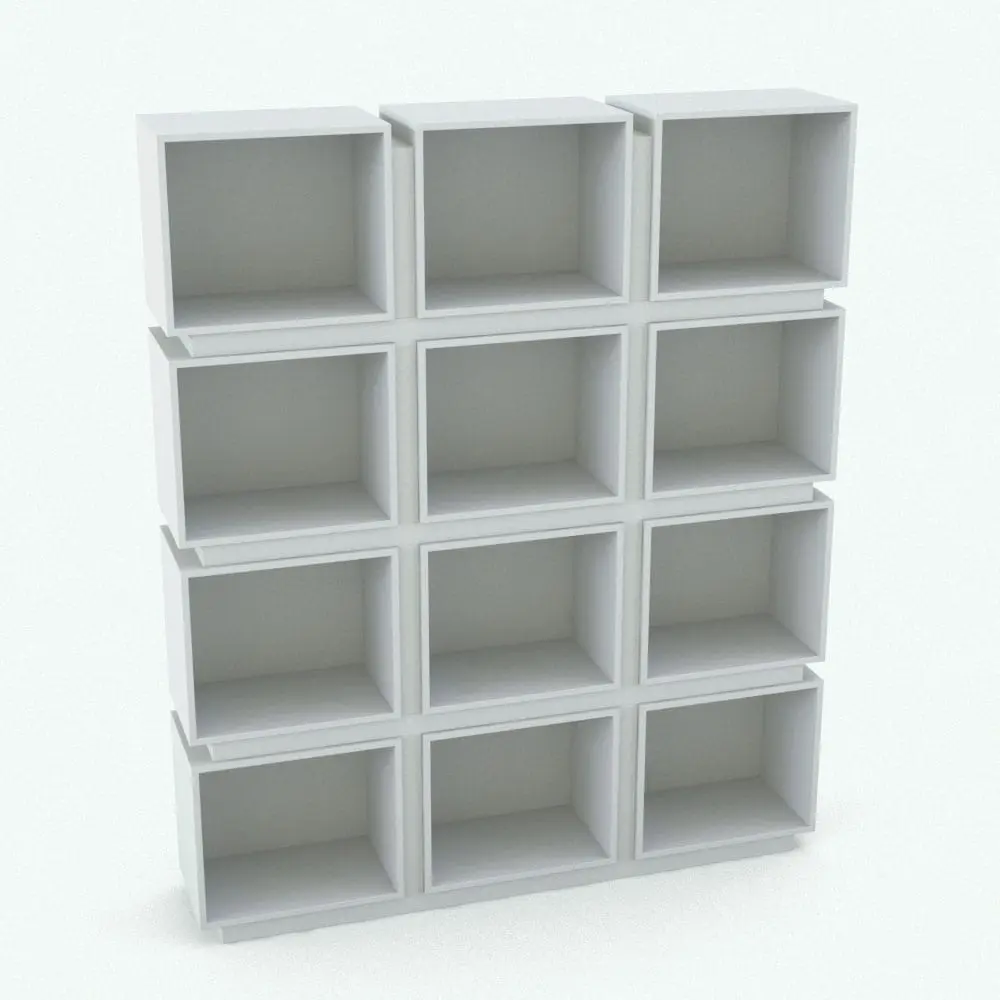

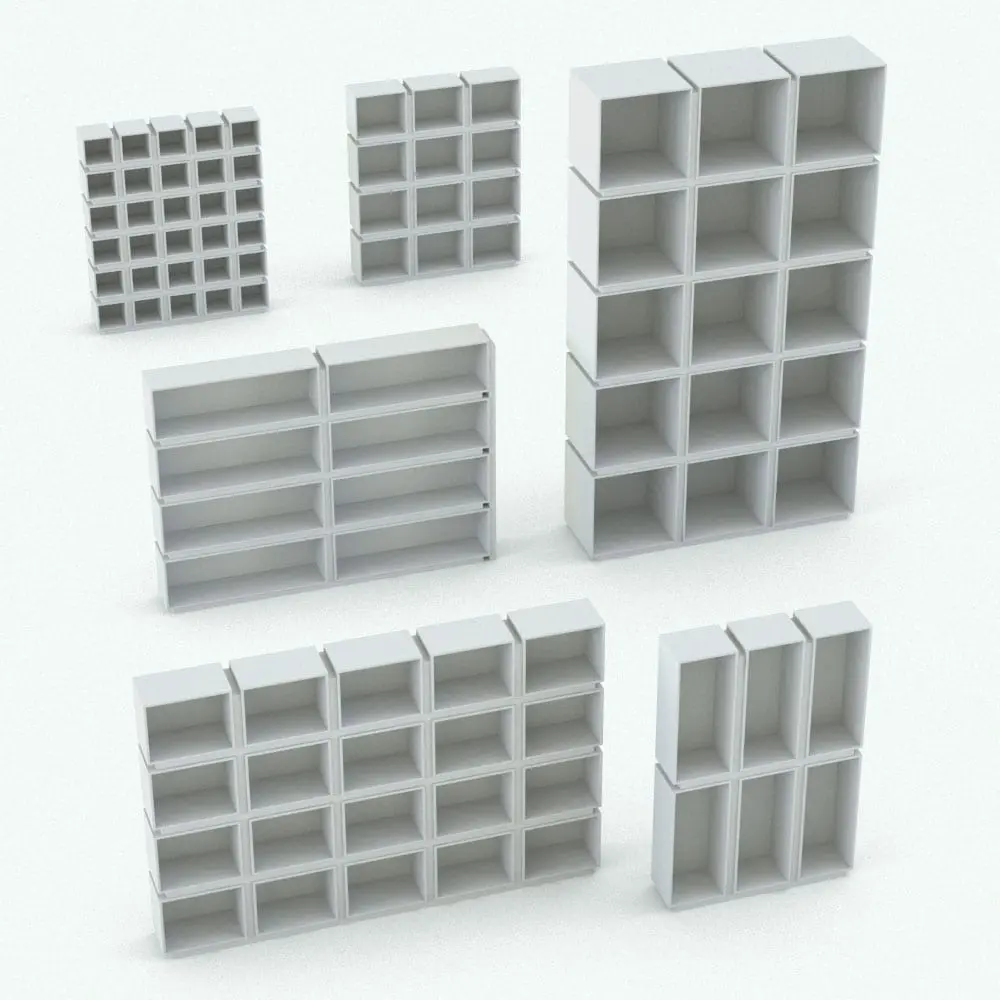

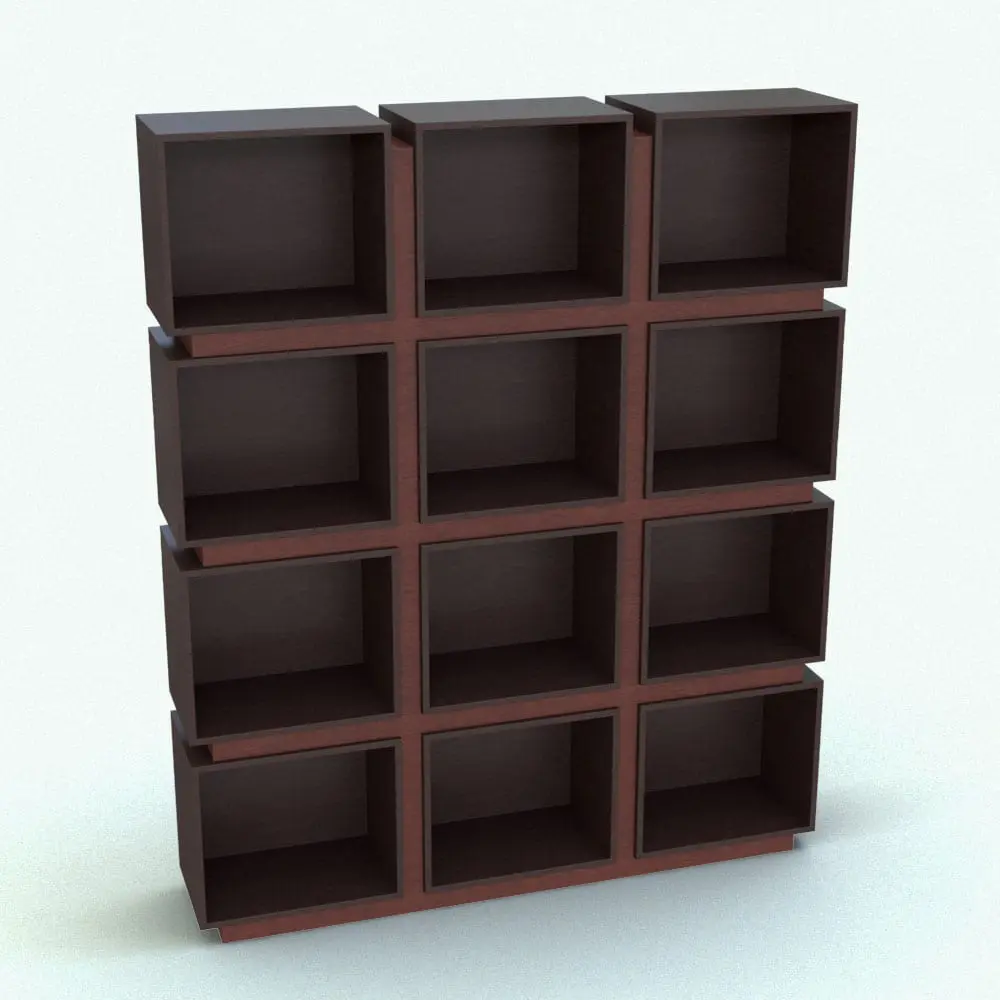

Modern parametric bookshelf Revit family ideal for offices, living rooms, bedrooms, stores, commercial spaces, etc. This family is packed with parameters to change the look of the bookshelf. Change the overall dimensions of the bookshelf, like width, depth and height, or go deeper into changing more specific parameters like boxes (cells) thickness, the structure thickness, the number of rows or columns. The possibilities are endless with this family.
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Furniture
- Materials/textures: Yes
- Approximate file size: 0.60 MB
- File format: .rfa
This Revit family boxes-bookshelf comes with the following customizable parameters and options:
Width:
- Minimum width: 2’6″
- Maximum width: 30′
Depth:
- Minimum depth: 6″
- Maximum depth: 4′
Height:
- Minimum height: 1’8″
- Maximum height: 15′
Boxes thickness:
- Minimum boxes thickness: 1/4″
- Maximum boxes thickness: 1 1/4″
Structure thickness:
- Minimum structure thickness: 3/4″
- Maximum structure thickness: 4″
Number of rows:
- Minimum number of rows: 2
- Maximum number of rows: as many as long as the separation between them is not less than approximately 1′
Number of columns:
- Minimum number of columns: 2
- Maximum number of columns: as many as long as the separation between them is not less than approximately 1′
Material parameters for:
- Boxes
- Structure
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
