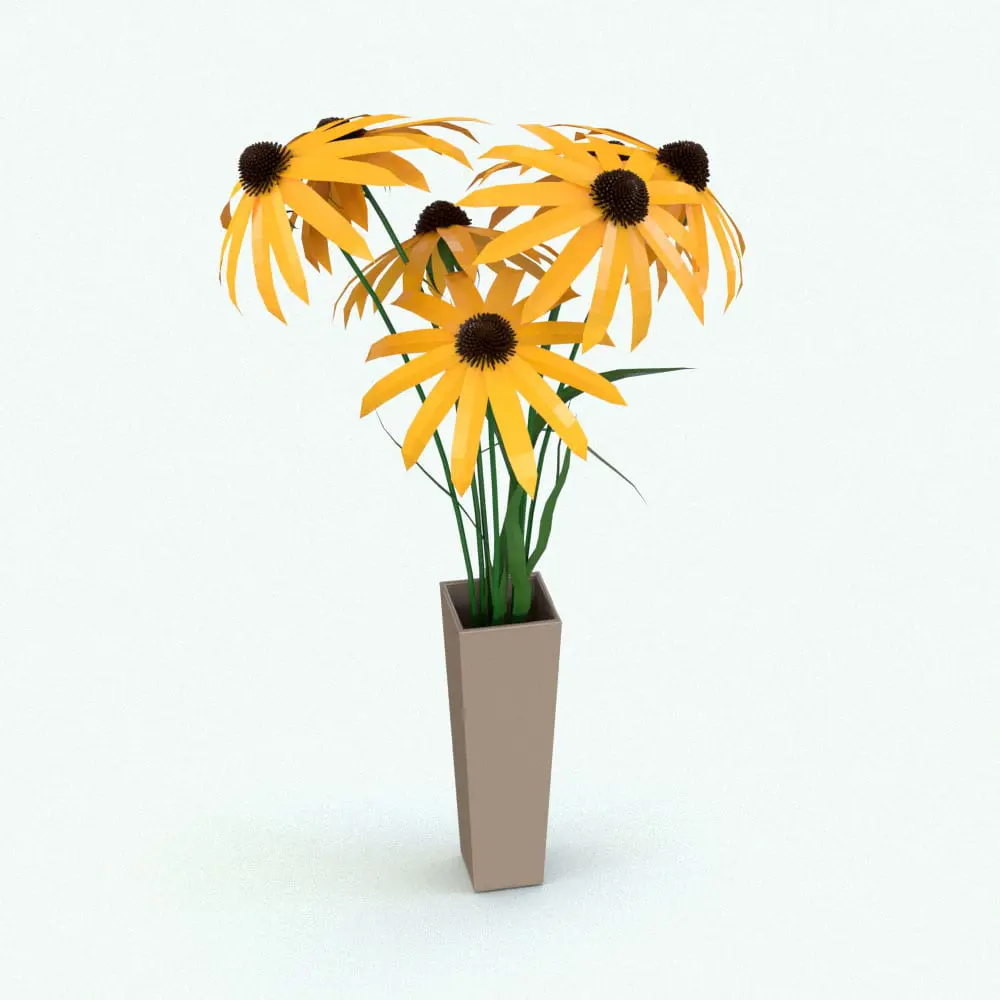

Black Eyed Susan Revit Flowers Family

Included Files:

This product includes 1 zip file containing:

• Revit family file (.rfa)
• 3D Max file (.max)
• AutoCAD block files (.dwg)
• FBX file (.fbx)
• V-Ray proxy files (.vrmesh and .vrscene)
• Texture files

Included Elements Inside the Revit Family:

• Black Eyed Susan flower arrangement
• Contemporary tapered vase
• Flower petals
• Flower centers
• Flower leaves
• Flower stems

Key Parametric Controls:

• Adjustable flower arrangement size
• Independent visibility controls for flowers and vase
• Material parameter for vase
• Editable flower materials through Revit Material Browser

Revit Technical Information:

• Parametric: Yes
• Hybrid*: Yes
• Compatible with: Revit 2016 and higher.
• Family type: Planting
• Materials/textures: Basic materials/colors are set for the flowers and pot.
• Approximate file size: 2.09 MB
• File format: .rfa

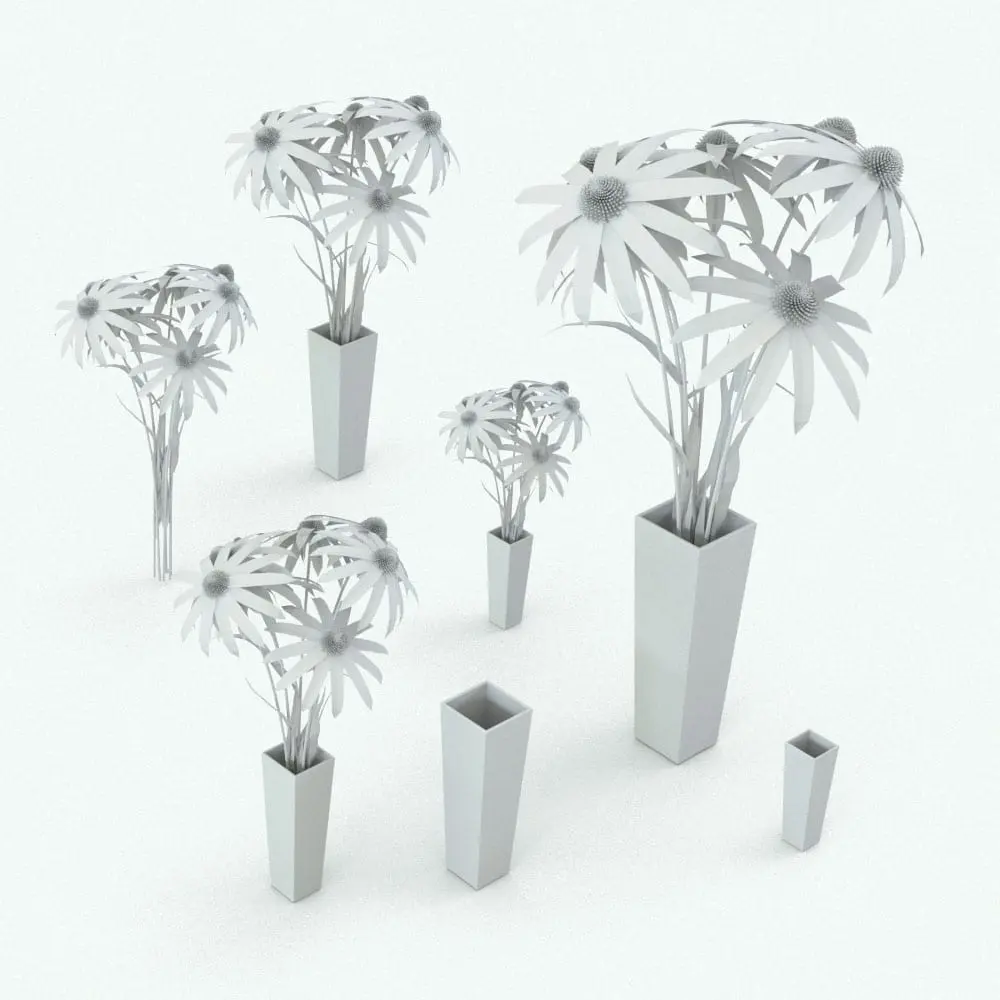

This Black Eyed Susan Revit Flowers Family comes in the following family sizes (more sizes can be created by going to Edit Type, Duplicating and changing the Size value):

• Black Eyed Susan 12″
• Black Eyed Susan 14″
• Black Eyed Susan 16″
• Black Eyed Susan 18″
• Black Eyed Susan 20″
• Black Eyed Susan 24″
• Black Eyed Susan 28″

Size of the Revit flowers (including the vase and measured to the longest distance):

• Minimum size: 6″
• Maximum size: 5′

You can turn on/off the flowers and vase independently in case you want to mix and match pots/vases and flowers/plants from other families. If both are off, the flowers will turn on automatically.

Part of the materials can be found in the Properties, while the rest of the materials can be found in the Material Browser.

Material parameters found in the Properties:

• Vase

This Black Eyed Susan Revit Flowers Family comes with the following materials (material names) found in the Material Browser:

• Black Eyed Susan Centers
• Black Eyed Susan Leaves
• Black Eyed Susan Petals 1
• Black Eyed Susan Petals 2
• Black Eyed Susan Pods
• Black Eyed Susan Stems

3D Max Technical Information:

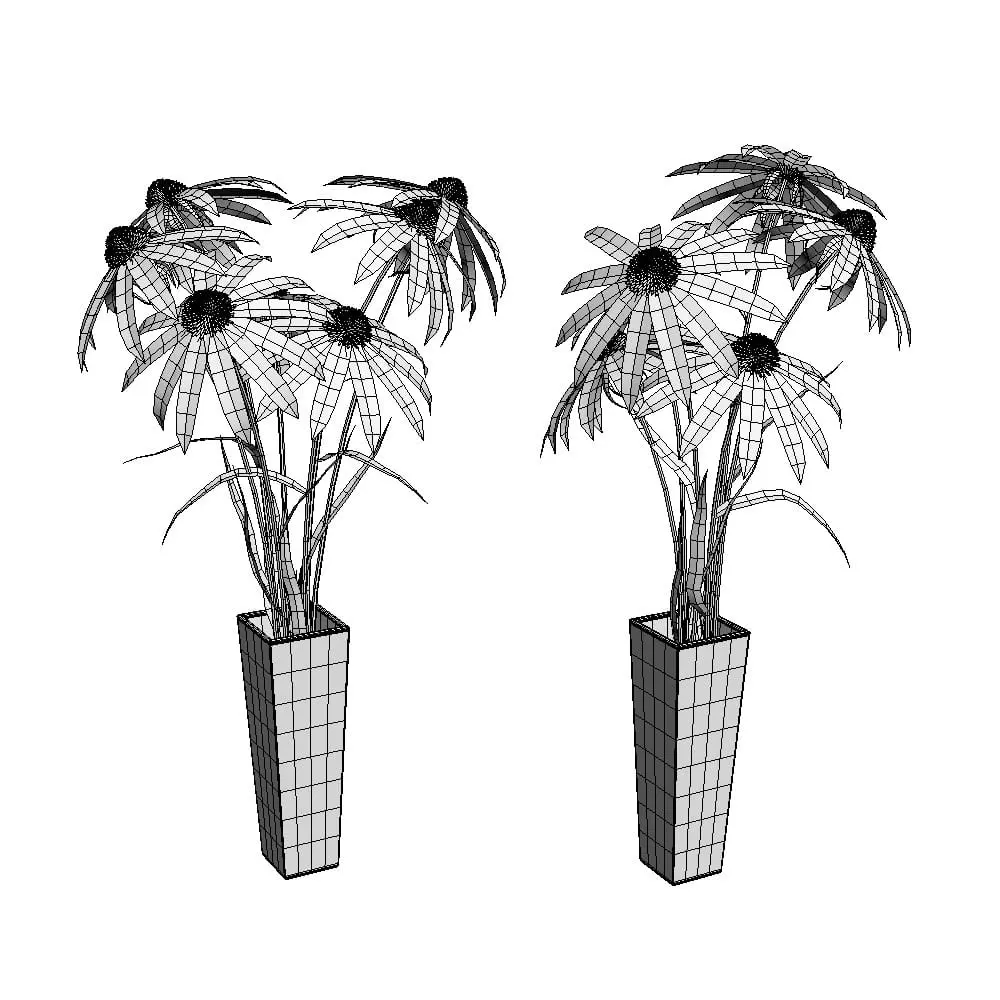

Highly detailed 3D model of the Black Eyed Susan Revit Flowers Family that can be used in 3D Max. Comes in 2 different options to give your renders a lot more variation.

• Compatible with: 3D Max 2016 and higher.
• Materials/textures: Yes (Vray Materials with textures). Textures can be used to create materials for other render engines.
• Vray version: 3.60.05 and higher
• UV Mapped: Yes
• Geometry: Polygonal
• Approximate file size: 4.56 MB (all two plants)
• File Format: .max

AutoCAD Technical Information:

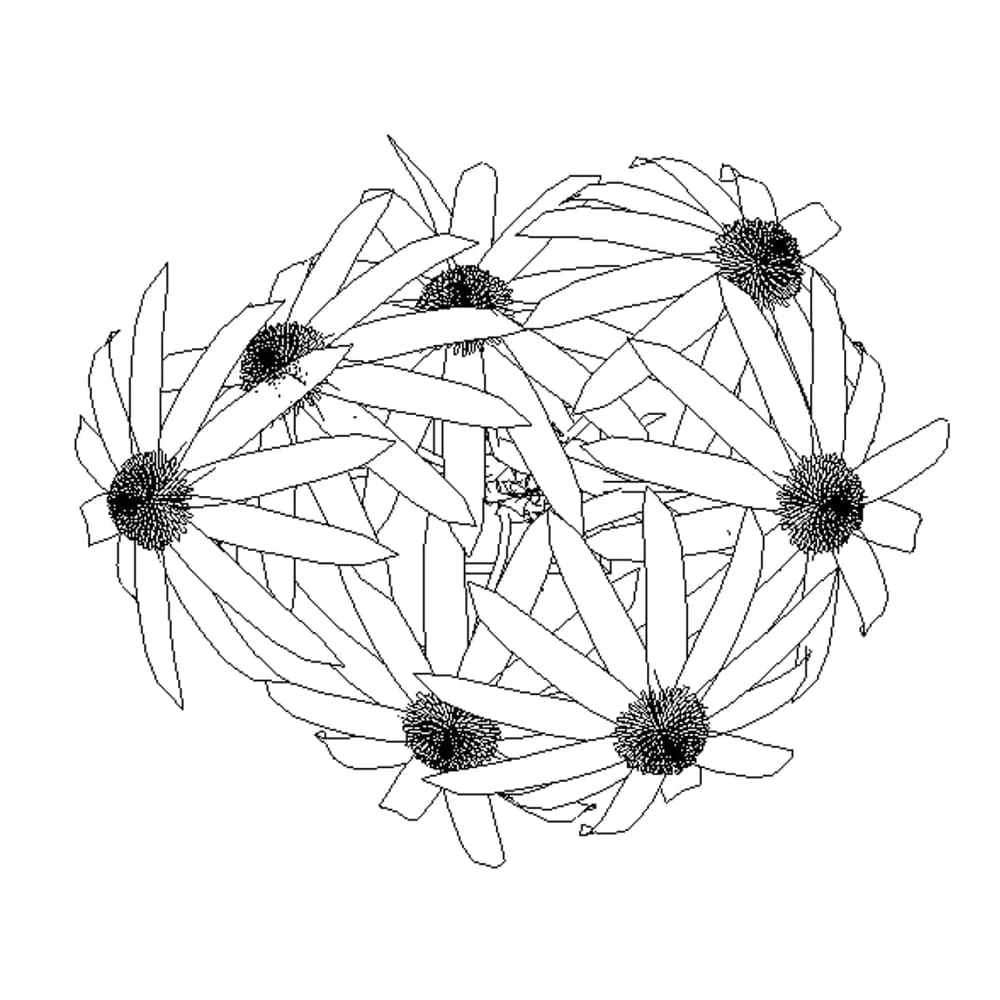

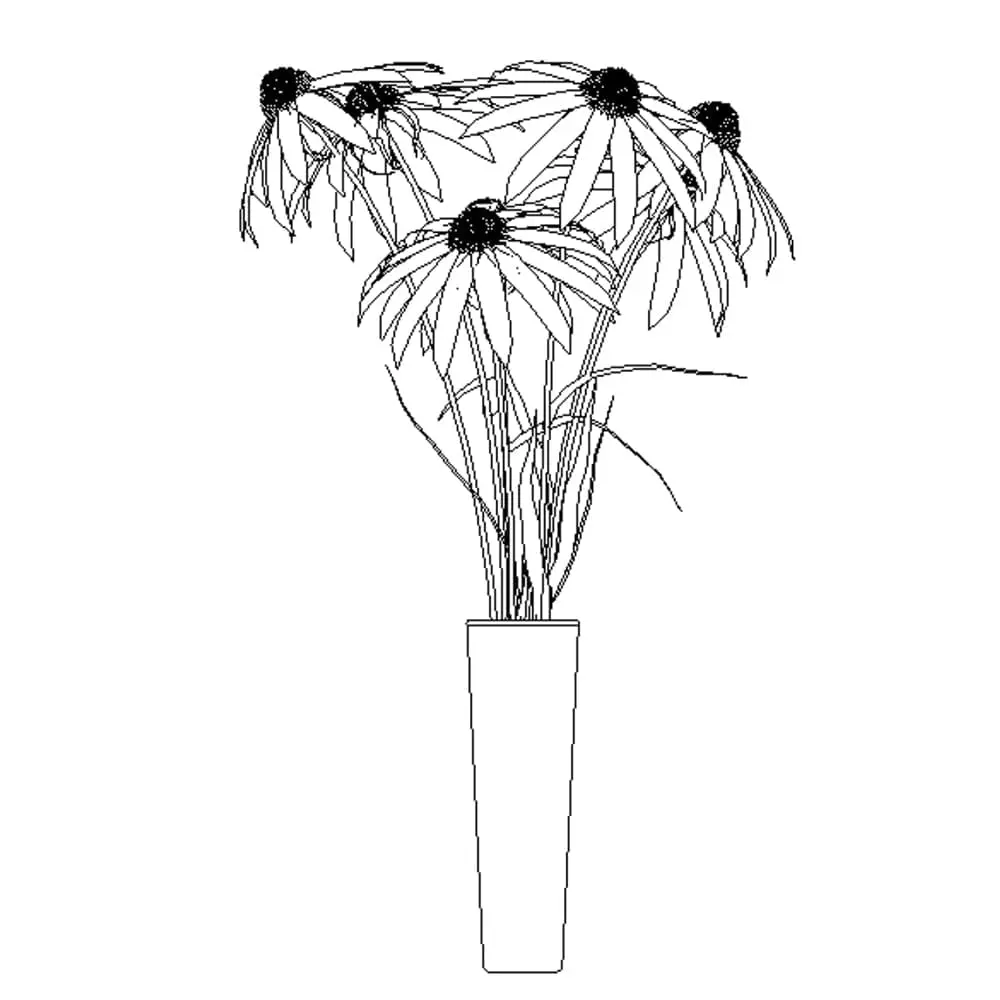

Top and front views of the Black Eyed Susan Revit Flowers Family ready to use as AutoCAD blocks.

• Compatible with: AutoCAD 2016 and higher.
• Approximate file size: 0.68 MB (both)
• File format: .dwg

Additional Formats:

FBX, Vray Proxy (vrmesh and vrscene)

• All files are delivered in compressed .ZIP format. You will need a third-party extraction software such as WinZip, 7-Zip, or PeaZip before using the files.
• Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
